PCB trace severed, requiring bridging or rework.
5 repair logs
+34 photosSuccessful repairNEC — PC Engine LT
An epic of strife, perseverance and adaptation. The NEC PC Engine LT is the 1991 laptop-format PC Engine with a built-in colour LCD. Almost always dead from cap leakage. This one needed a full recap, a new voltage regulator, and an off-the-shelf voltage inverter module to replace the T500 LCD bias transformer, killed by the electrolyte. Without that, the screen stays dark.
+135 photosPartial fixSega — Wondermega
Absolute labour of love on this Sega Wondermega HWM-5010 from Japan: corrosion, missing components, broken traces and a RAM package with broken legs. The Mega Drive side eventually came back to life; the Mega-CD side continues to freeze on the BIOS animation, defying everything thrown at it.
+17 photosSuccessful repairSega — Game Gear
This Japanese Sega Game Gear went through a lot: a full IPS LCD mod with speaker upgrade, FM sound module and glass lens, then a trip to the floor courtesy of a curious one-year-old that tore the flex cables. A clock-line bodge wire and a barely-surviving TP10 pad later, everything was restored.
+15 photosPartial fixSega — Game Gear
Two heavily contaminated Sega Game Gears, so badly that components were falling off the boards from the electrolyte. Many hours in, one has a partially defective screen and the other boots and plays audio with no picture. A partial result after a massive effort.

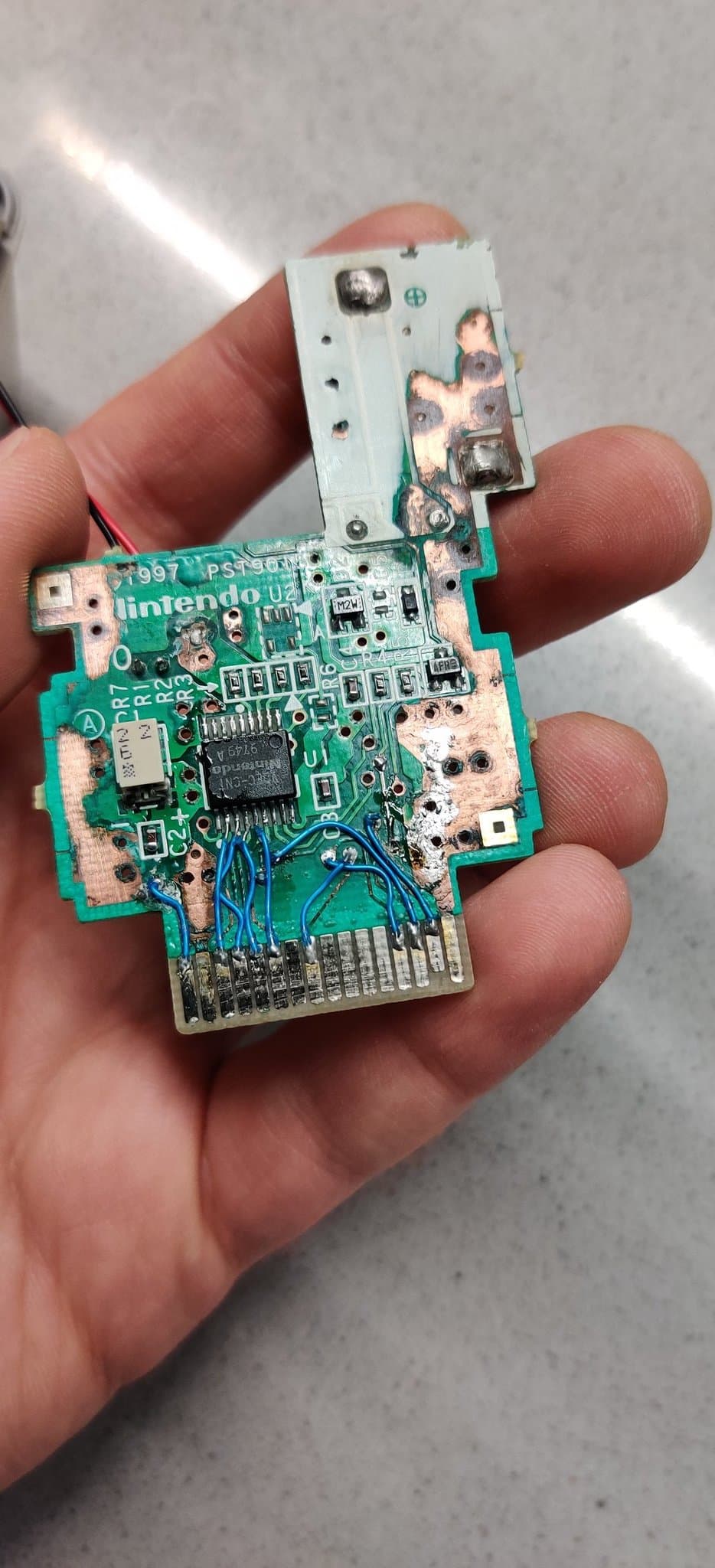

+4 photosSuccessful repairTrace repair on an N64 Rumble Pak that had suffered from leaking batteries. Short job, satisfying result.
