N64 Rumble Pak necromancy

May 20, 20221 thread~1 min readSuccessful repair

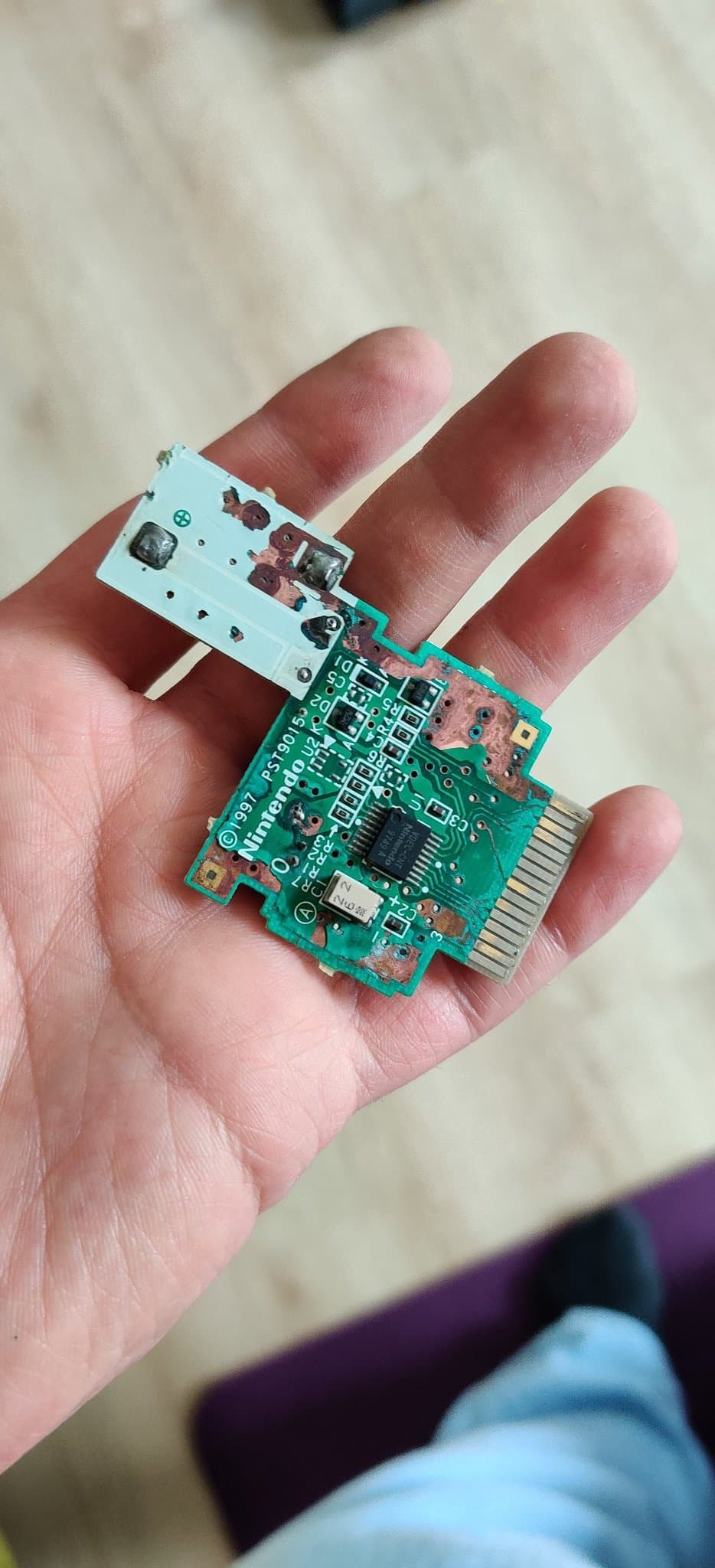

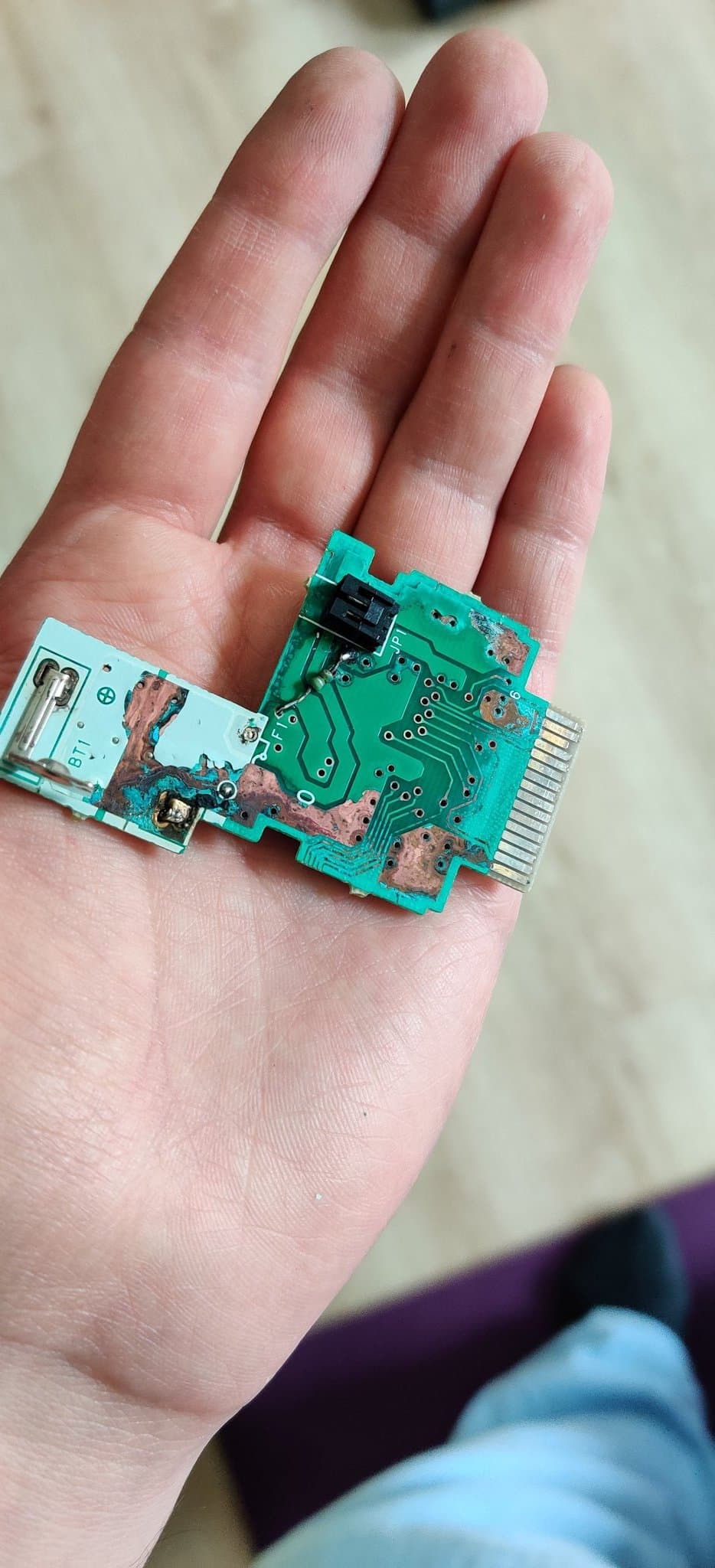

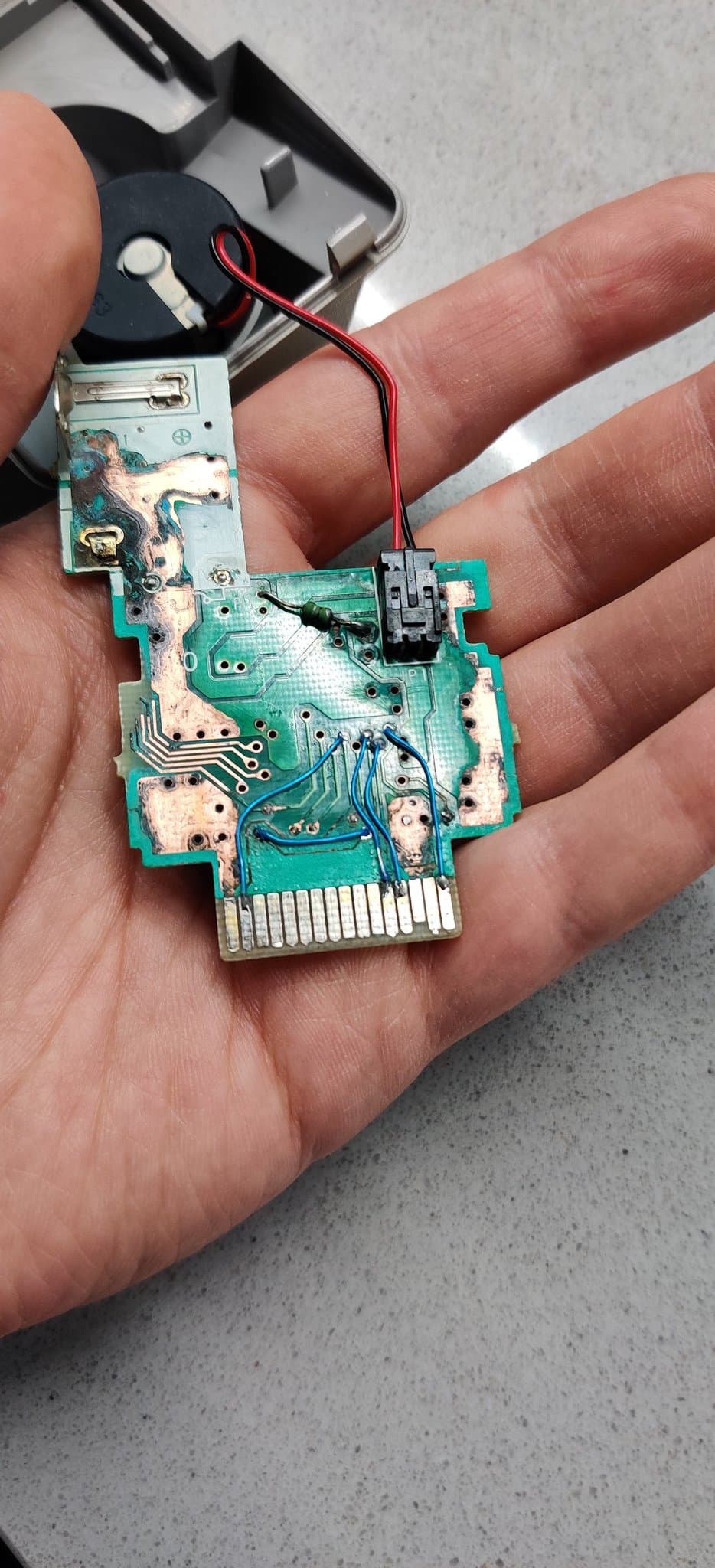

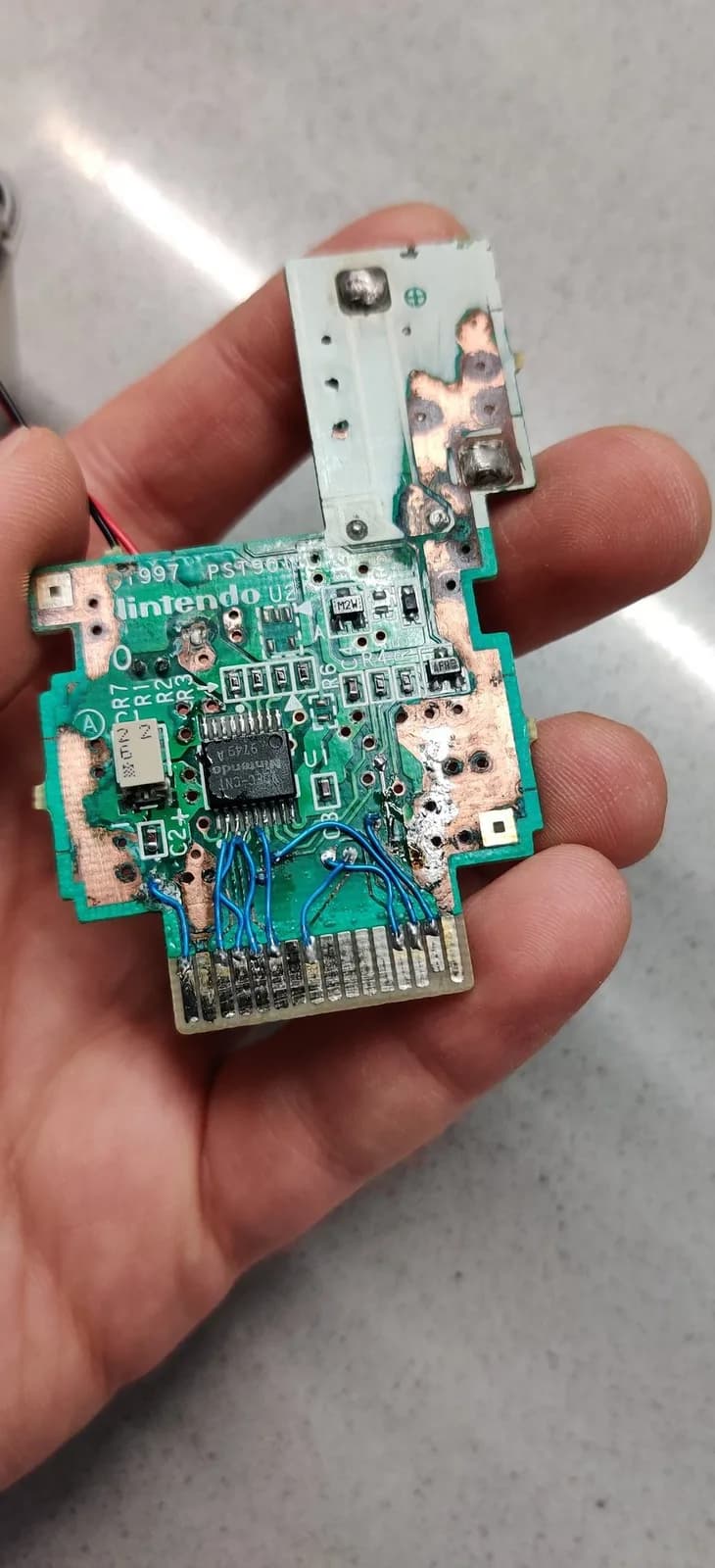

Trace repair on an N64 Rumble Pak that had suffered from leaking batteries. Short job, satisfying result.

Parts & Tools (1)

Reference: iFixit rumble-without-batteries guide

N64 Rumble Pak (Rumble WITHOUT batteries) on iFixit, the guide for the power mod that relocates a resistor so the pak draws power from the controller instead of AAA batteries (so there are no batteries left to leak).

hitmanmcc

May 20, 2022· Thread 1· 2 tweets

View on X ↗Without login ↗

The Rumble Pak lives once more! After some after some trace repair due to leaking batteries. #RETROGAMING #n64

2 / 2

Et voilà!

Related repairs

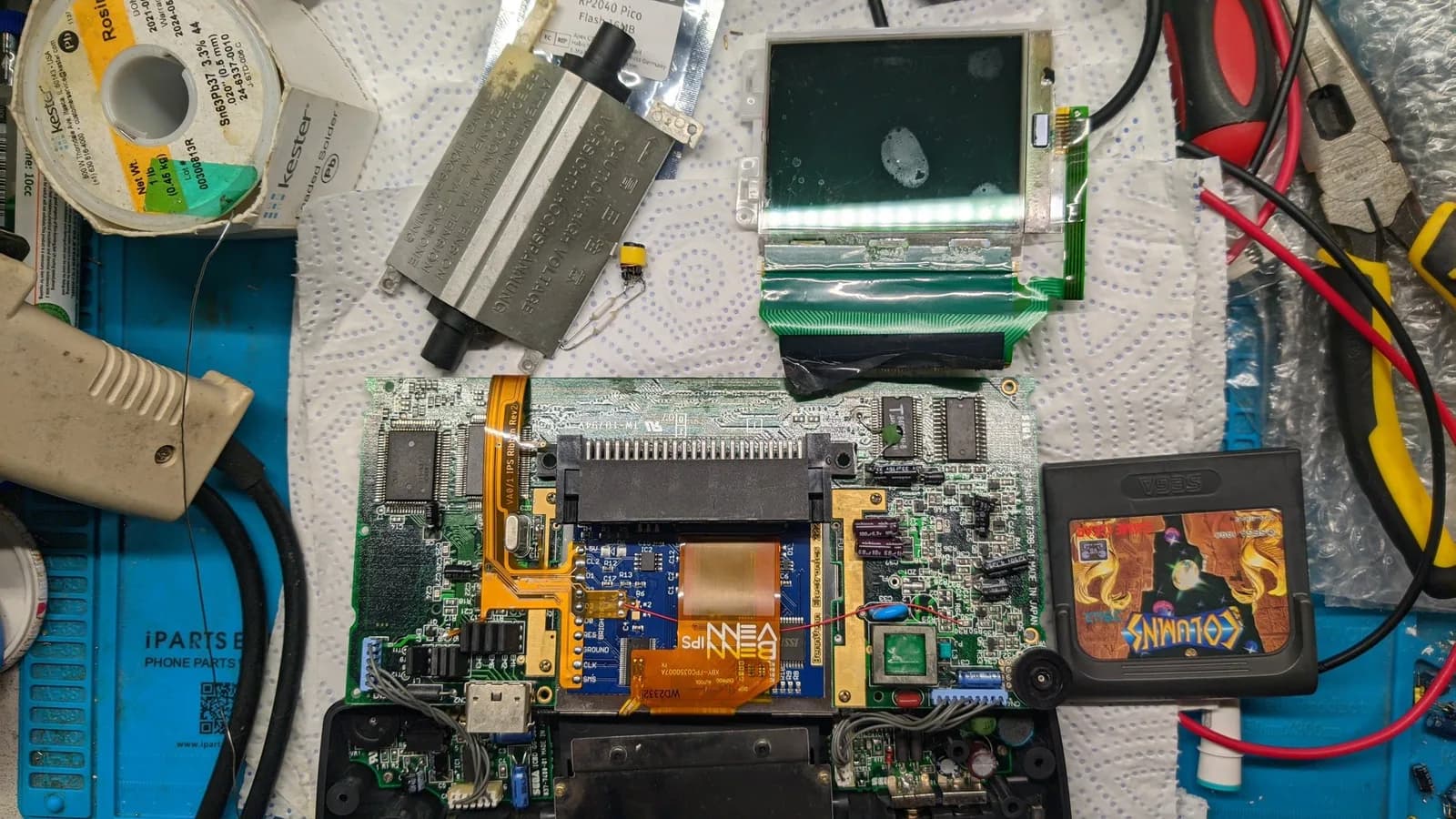

Game Gear teardown after the IPS install and before the later accident: the new IPS panel fitted to the mainboard, with the original screen and the parts it replaced set aside, and a Columns cartridge resting beside the console.
