Sega — Game Gear
This Japanese Sega Game Gear went through a lot: a full IPS LCD mod with speaker upgrade, FM sound module and glass lens, then a trip to the floor courtesy of a curious one-year-old that tore the flex cables. A clock-line bodge wire and a barely-surviving TP10 pad later, everything was restored.
IPS LCD screen kit
Game Gear IPS LCD kit v1 by BennVenn, for replacing the original LCD with an IPS panel.
FM sound module (Yamaha YM2413)
GGFM Yamaha YM2413 FM sound module by SYF, for FM sound output on the Game Gear.

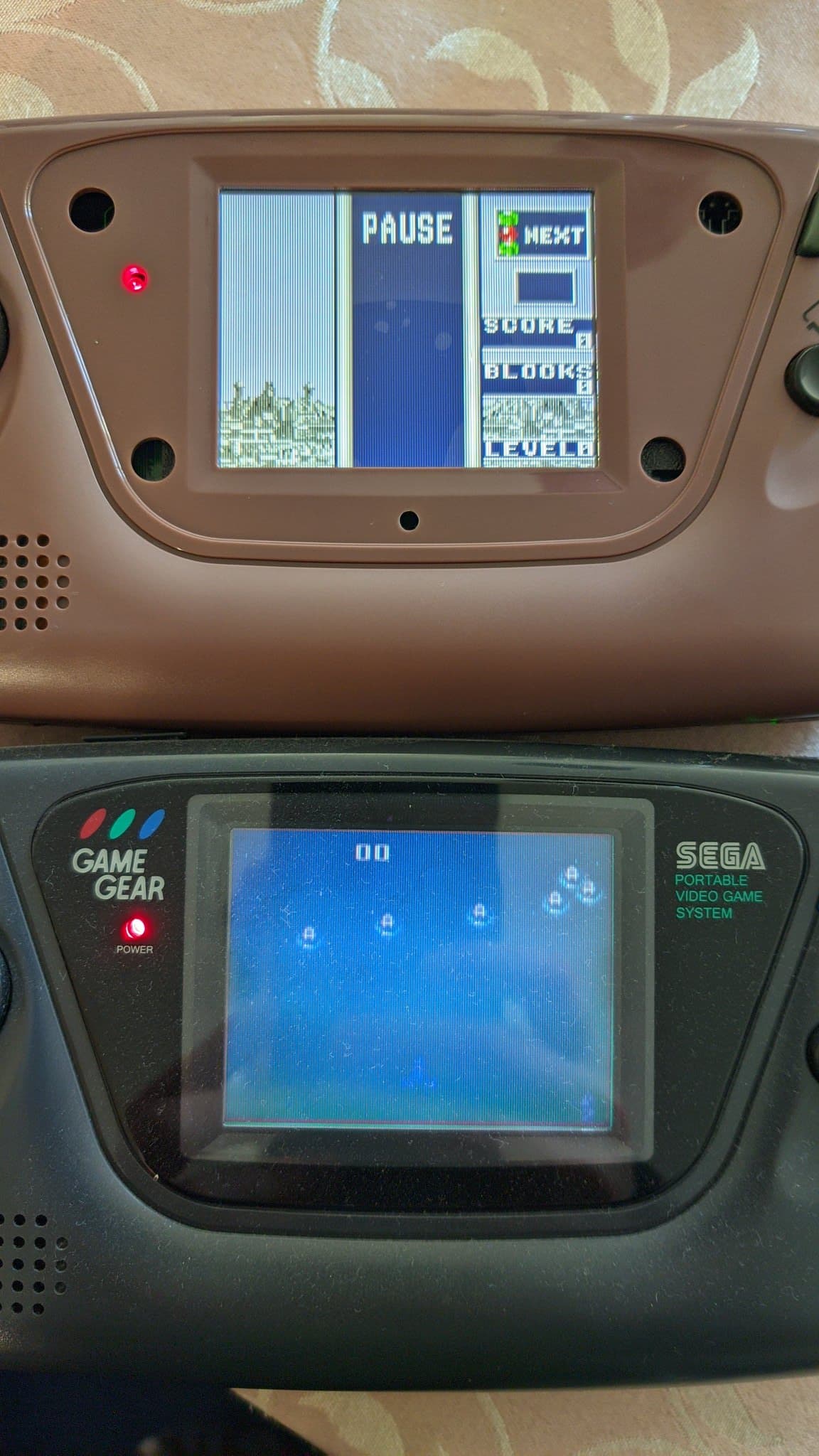

(1/2) For a quick weekend project. I decided to upgrade one of my #Sega #GameGear with a broken screen, to one of @BennVennElec's IPS screens. #RETROGAMING #restoration #repair

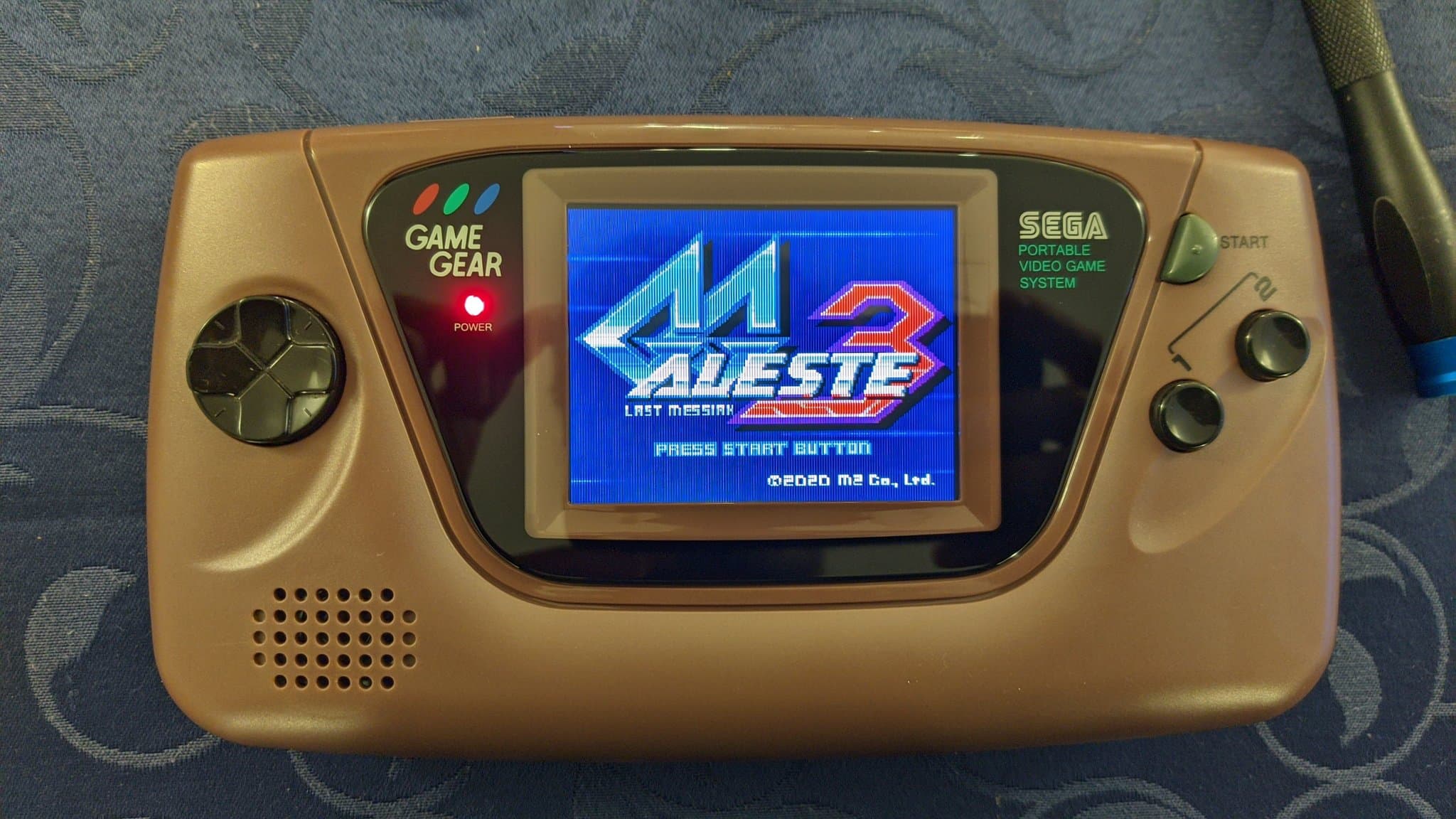

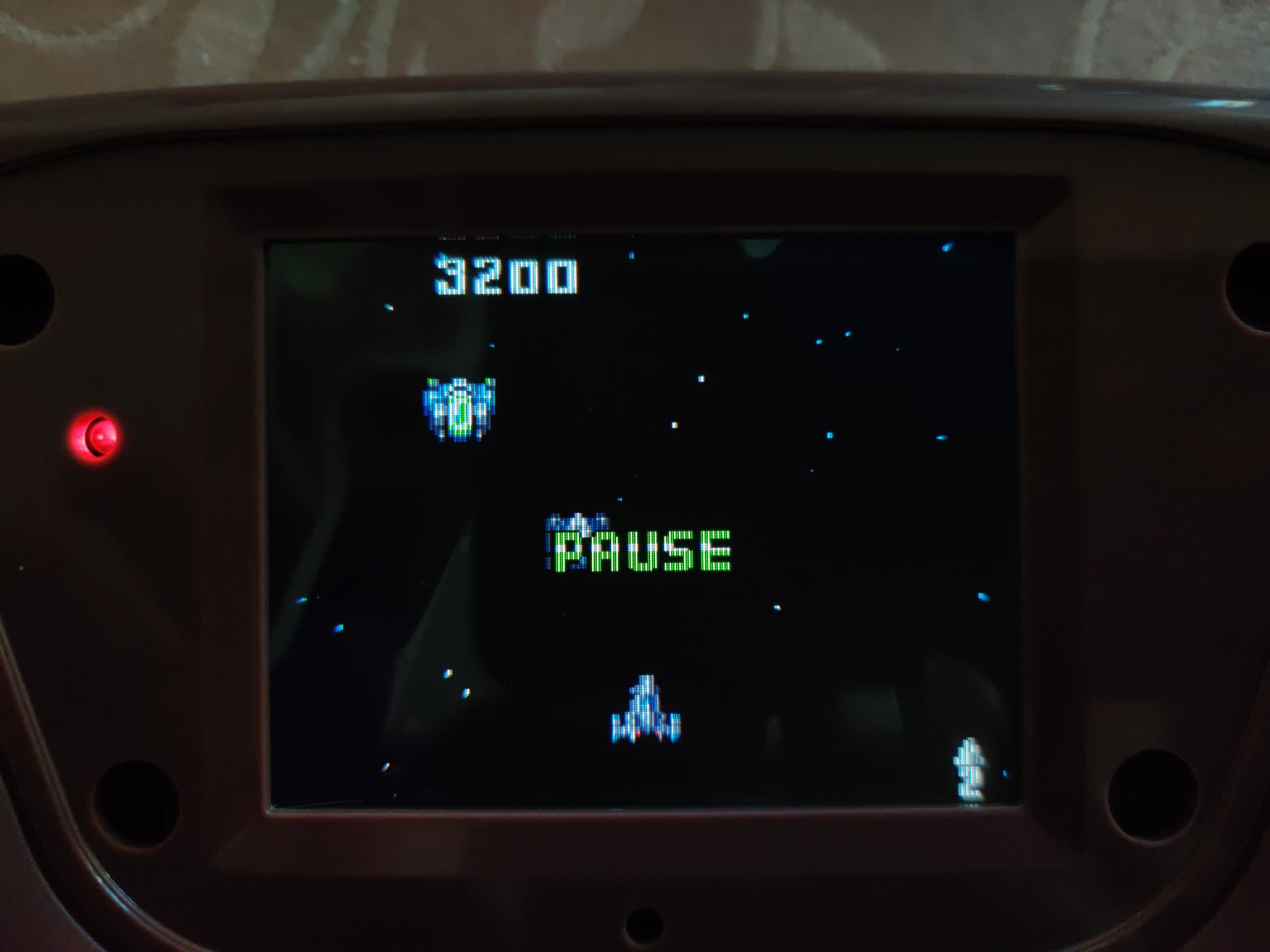

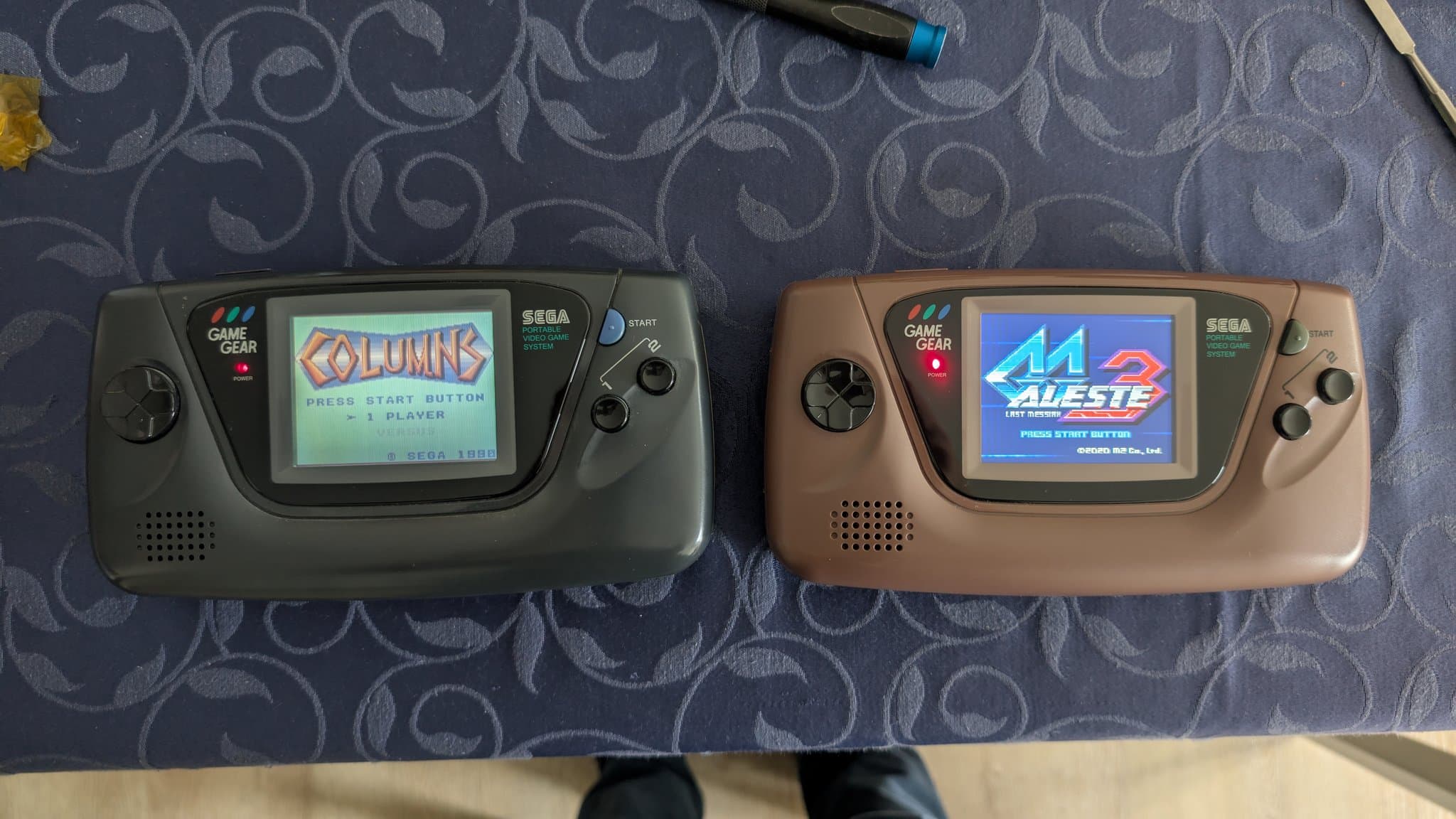

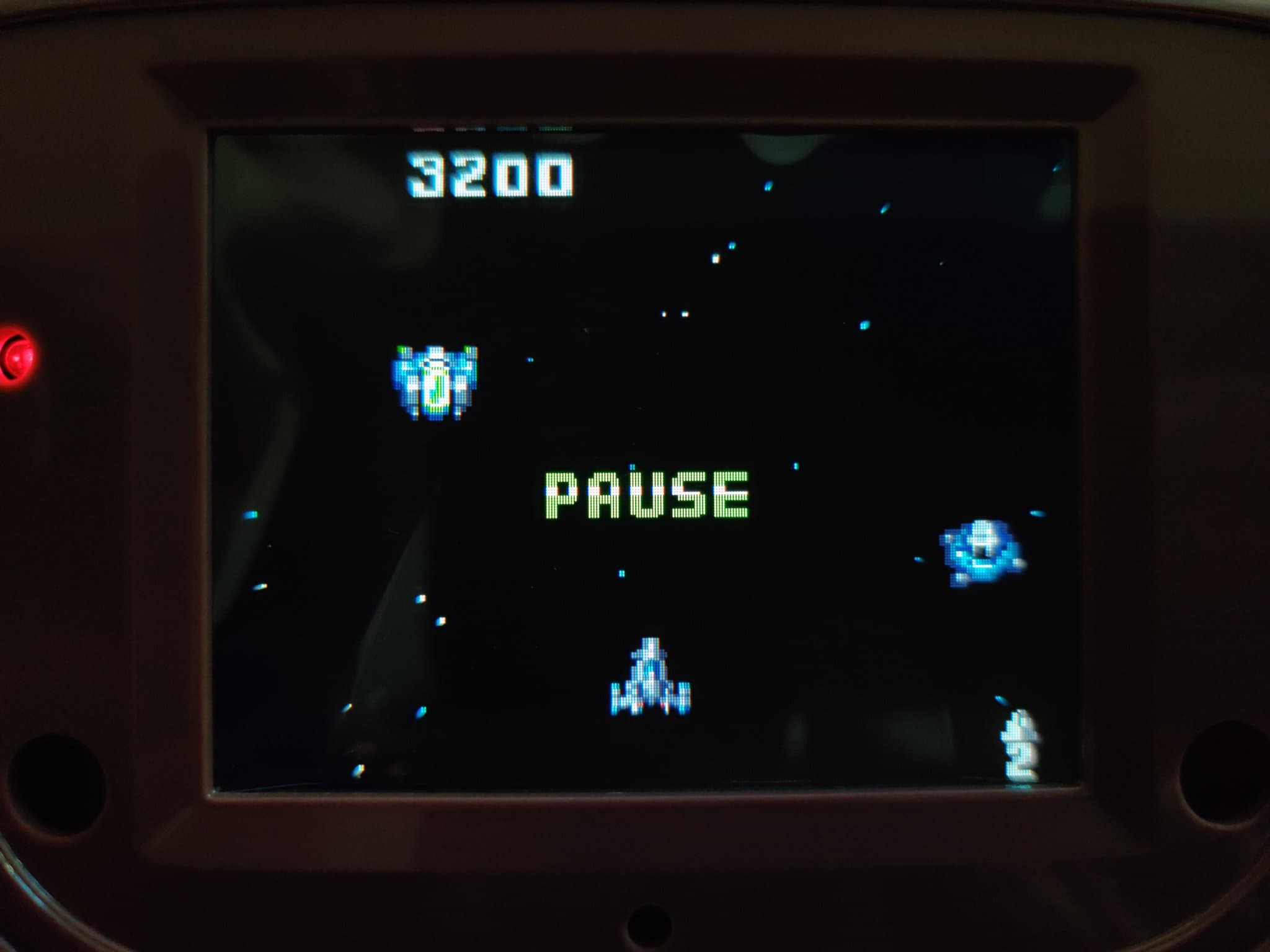

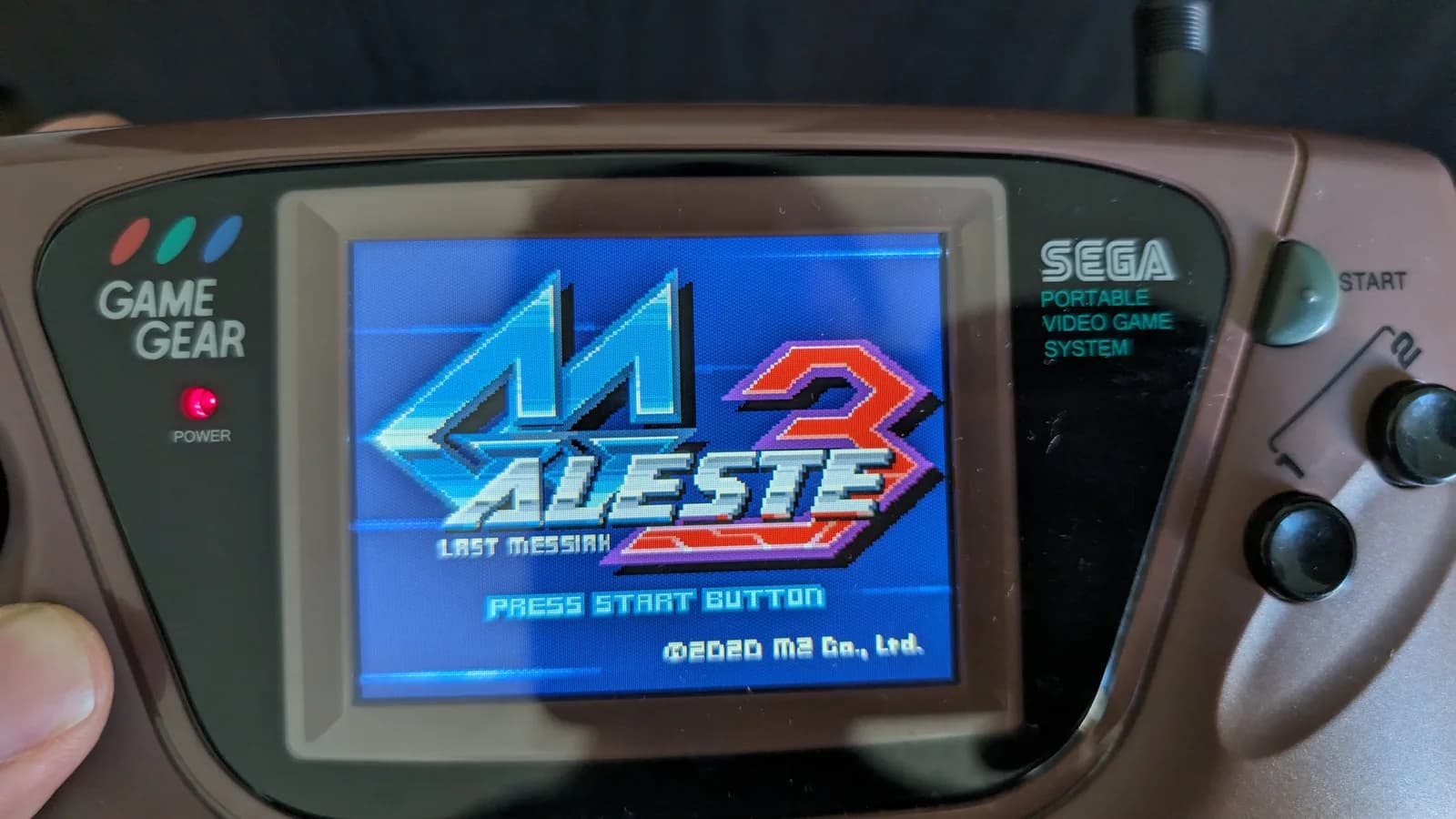

(2/2) Here are some screenshots of Aleste 3 with and without scanlines. #RETROGAMING #Sega #GameGear

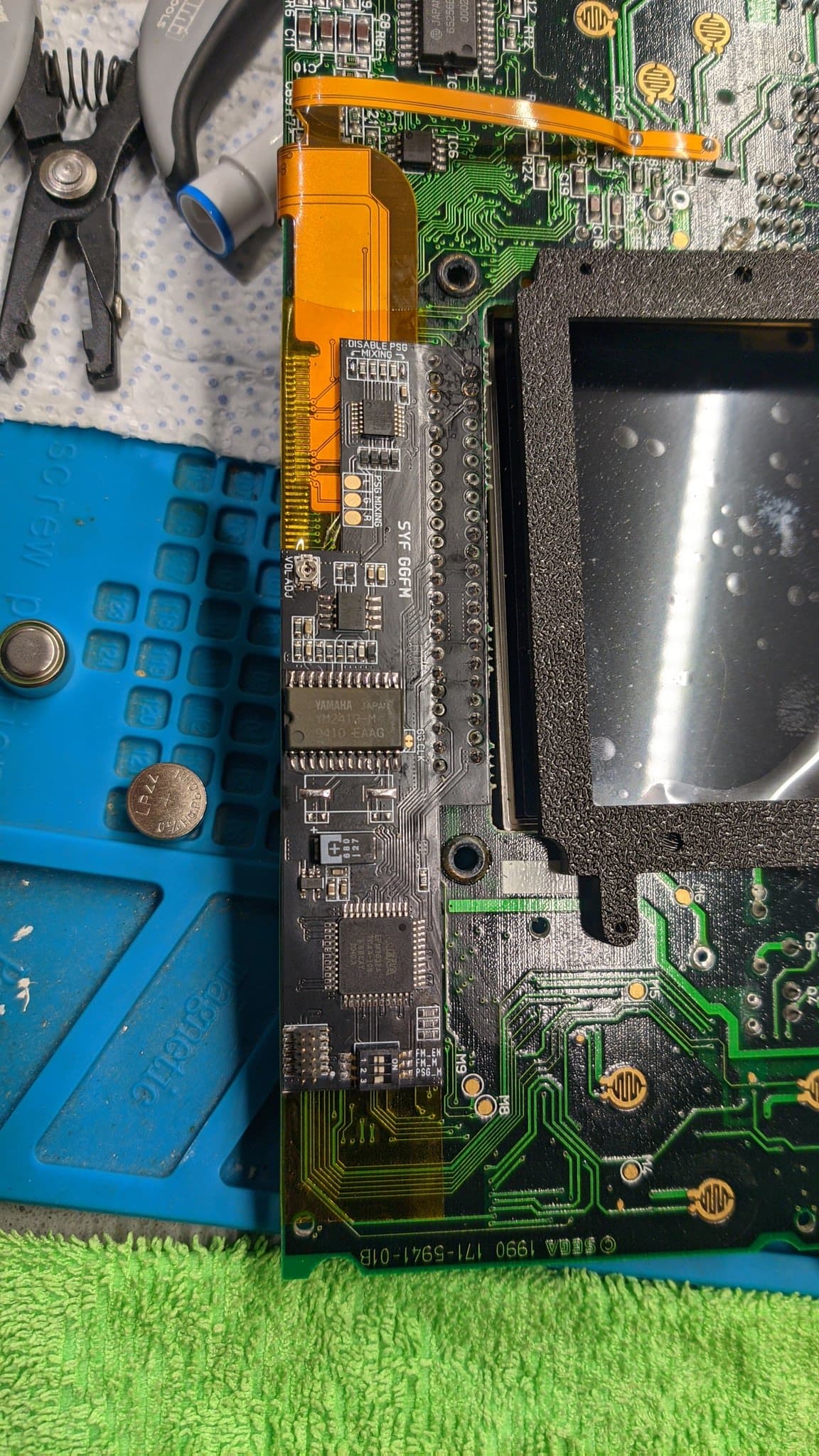

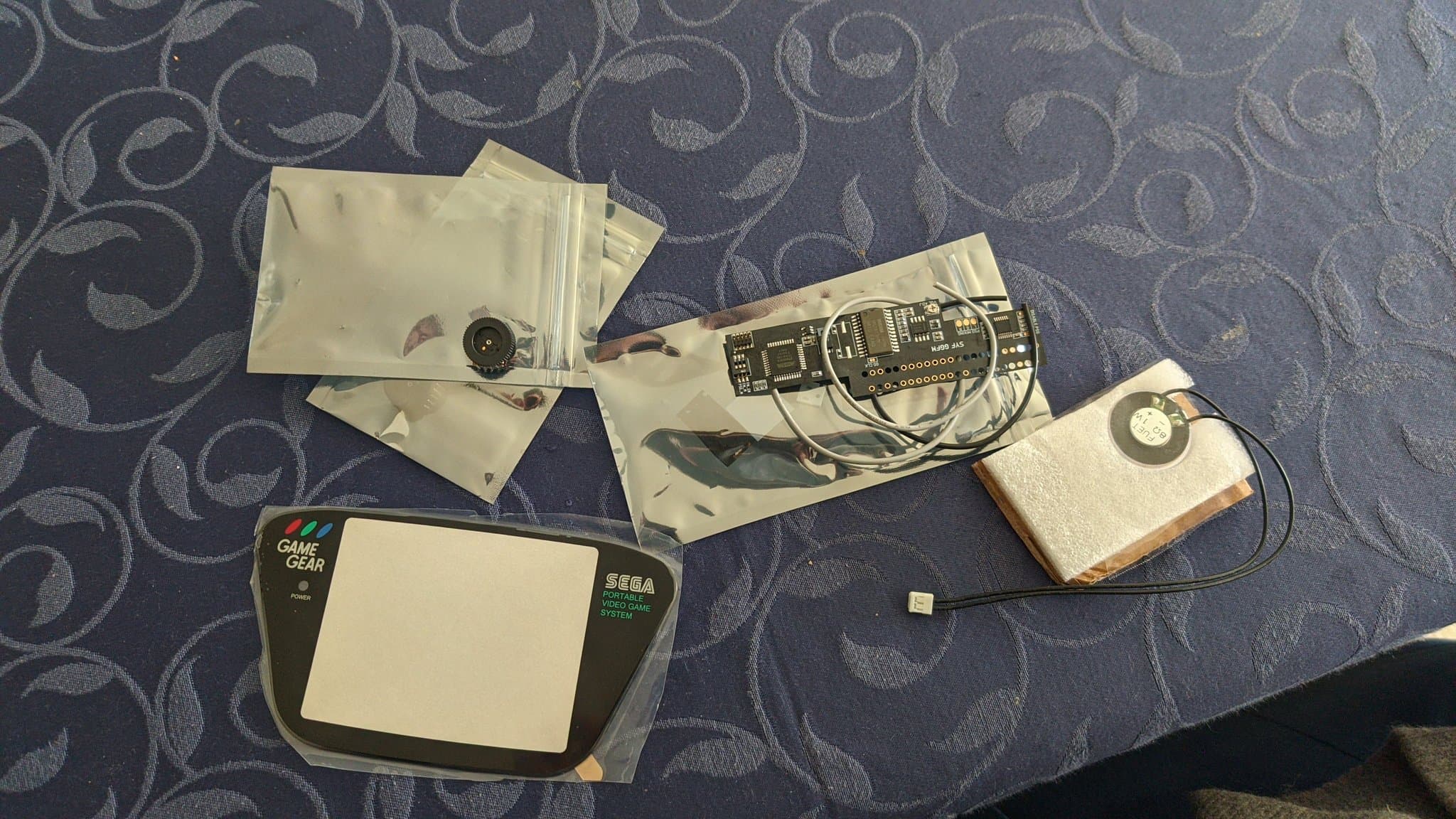

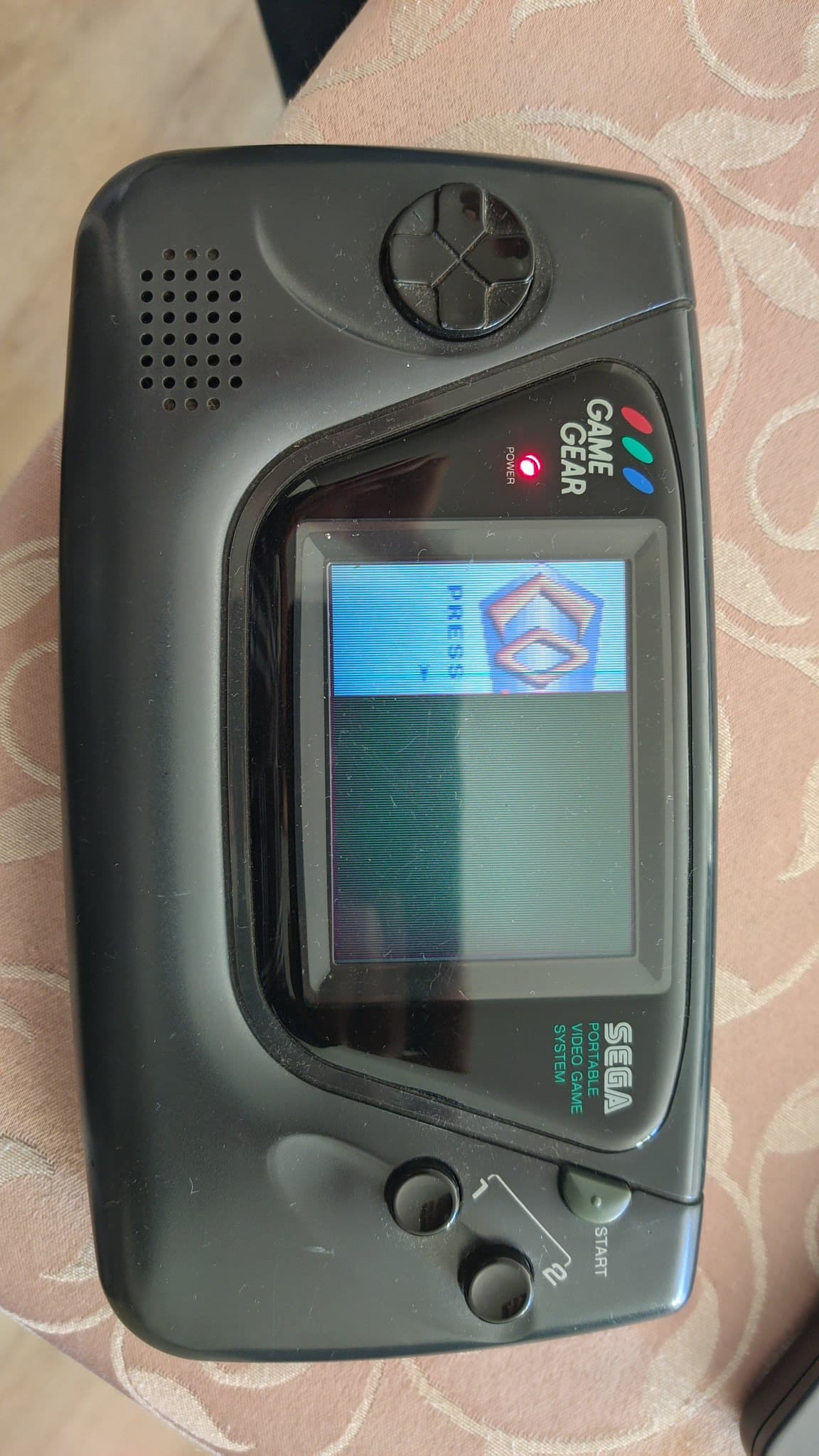

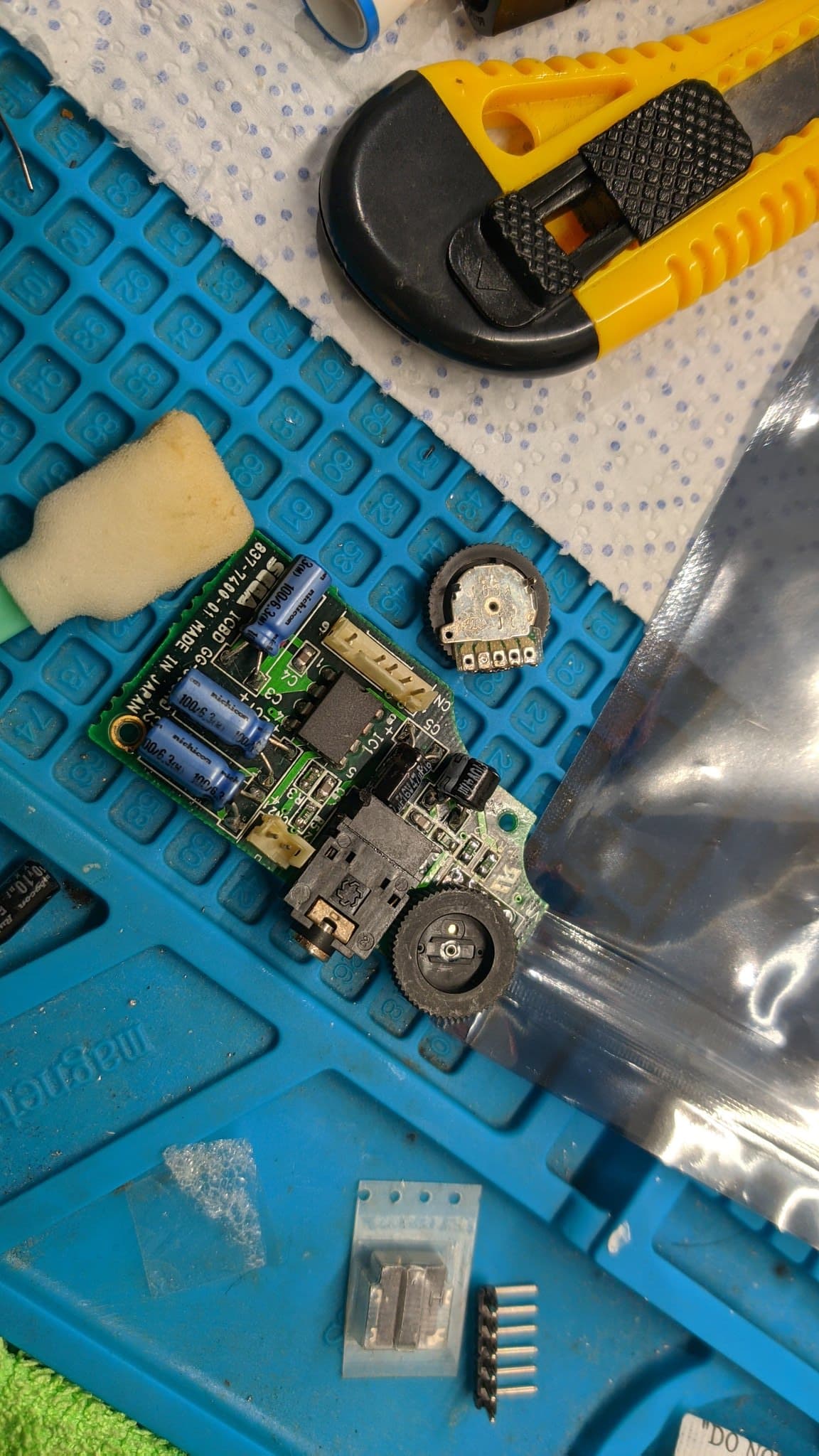

Got the final parts to complete my Game Gear modifications today. A new speaker, a a new volume wheel, a glass lens and an FM module. These pair up nicely with the IPS kit I had already installed. #RETROGAMING #Sega #GameGear

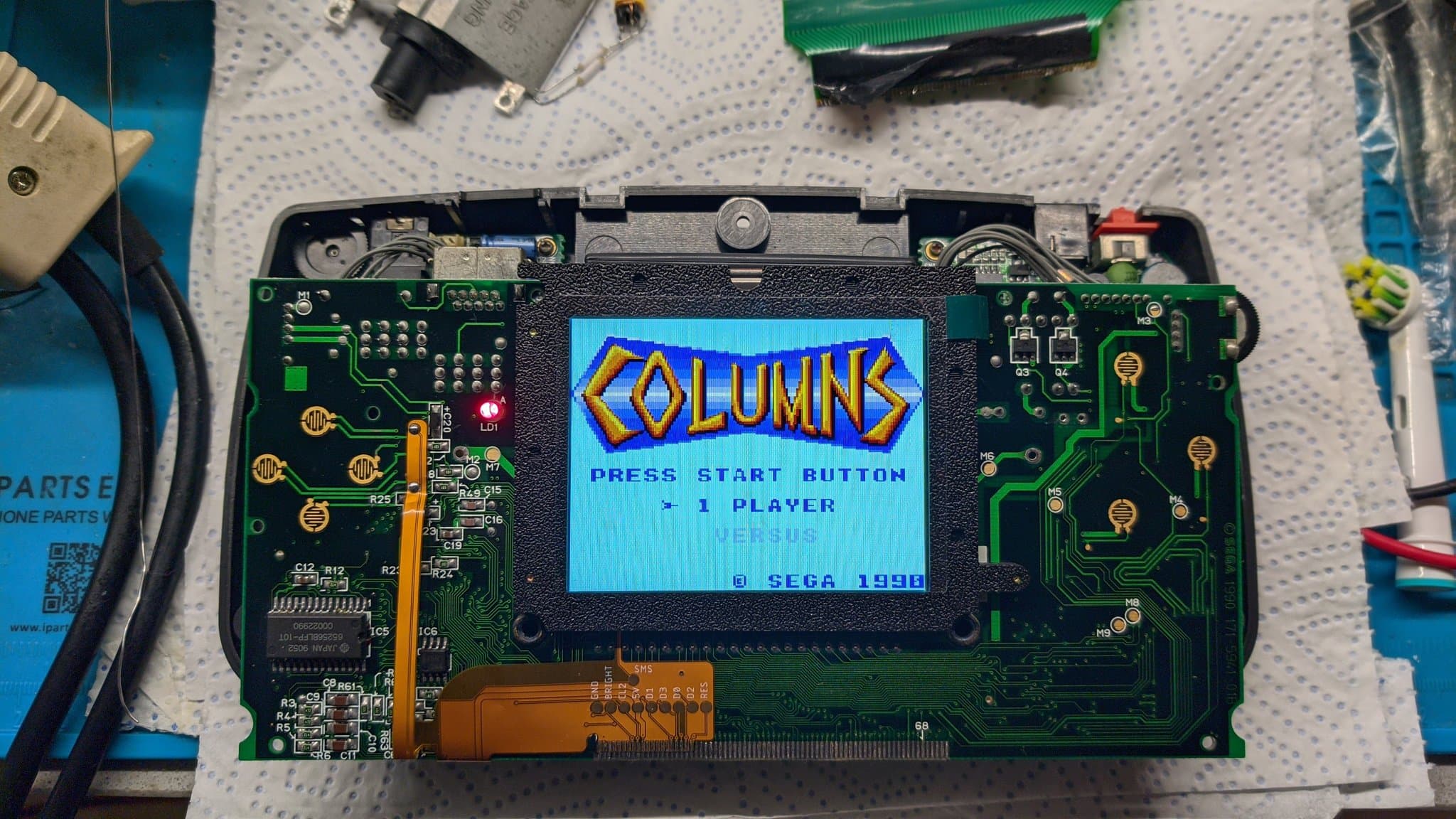

(1/3) When your 1 year old decides you're modded Game Gear with very fragile flex ribbons needs a trip to the flower. No sound and no picture ensues. 🙄 Let's fix this thing! 🧵👇 #RETROGAMING #Sega #GameGear #repair

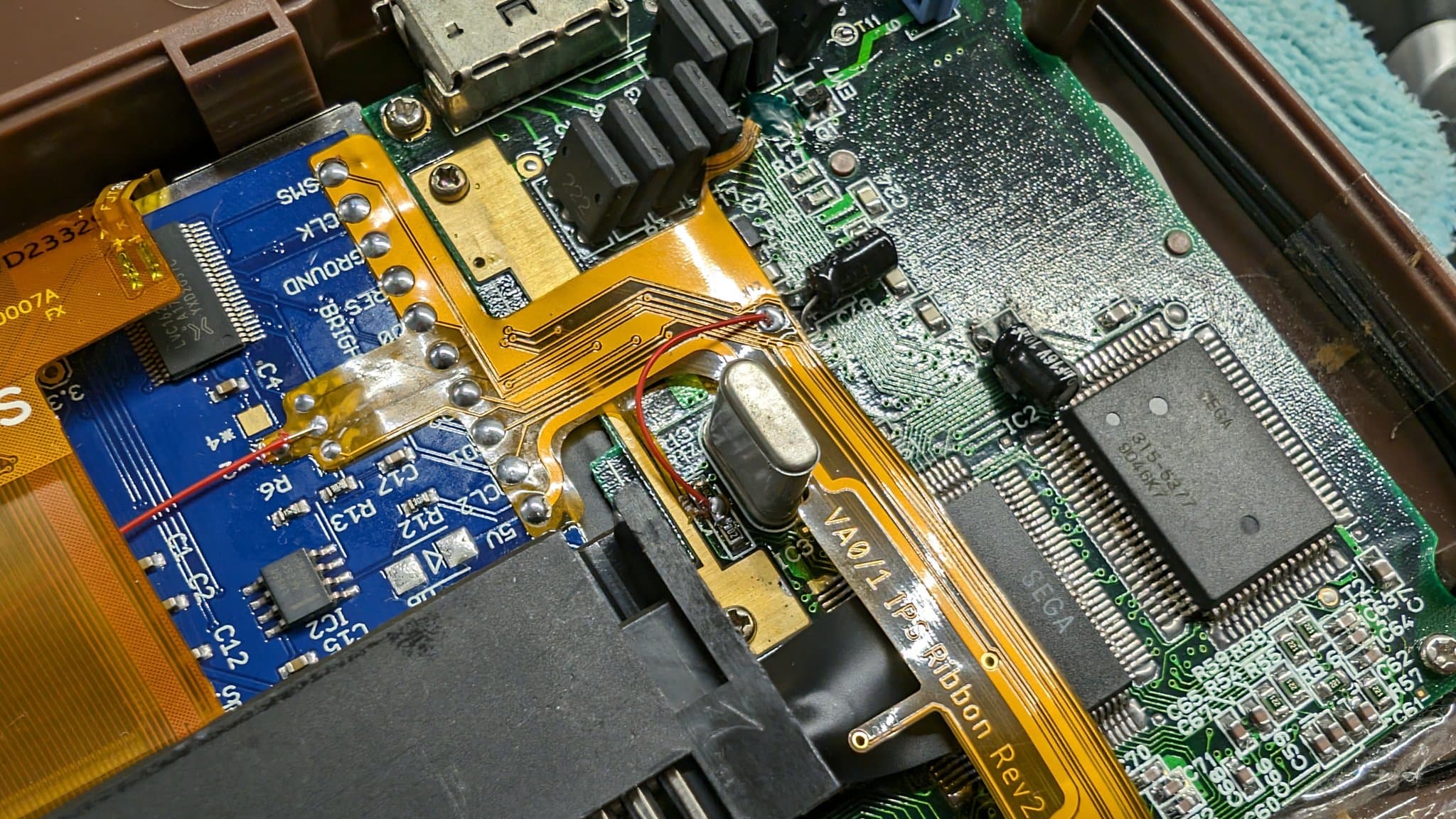

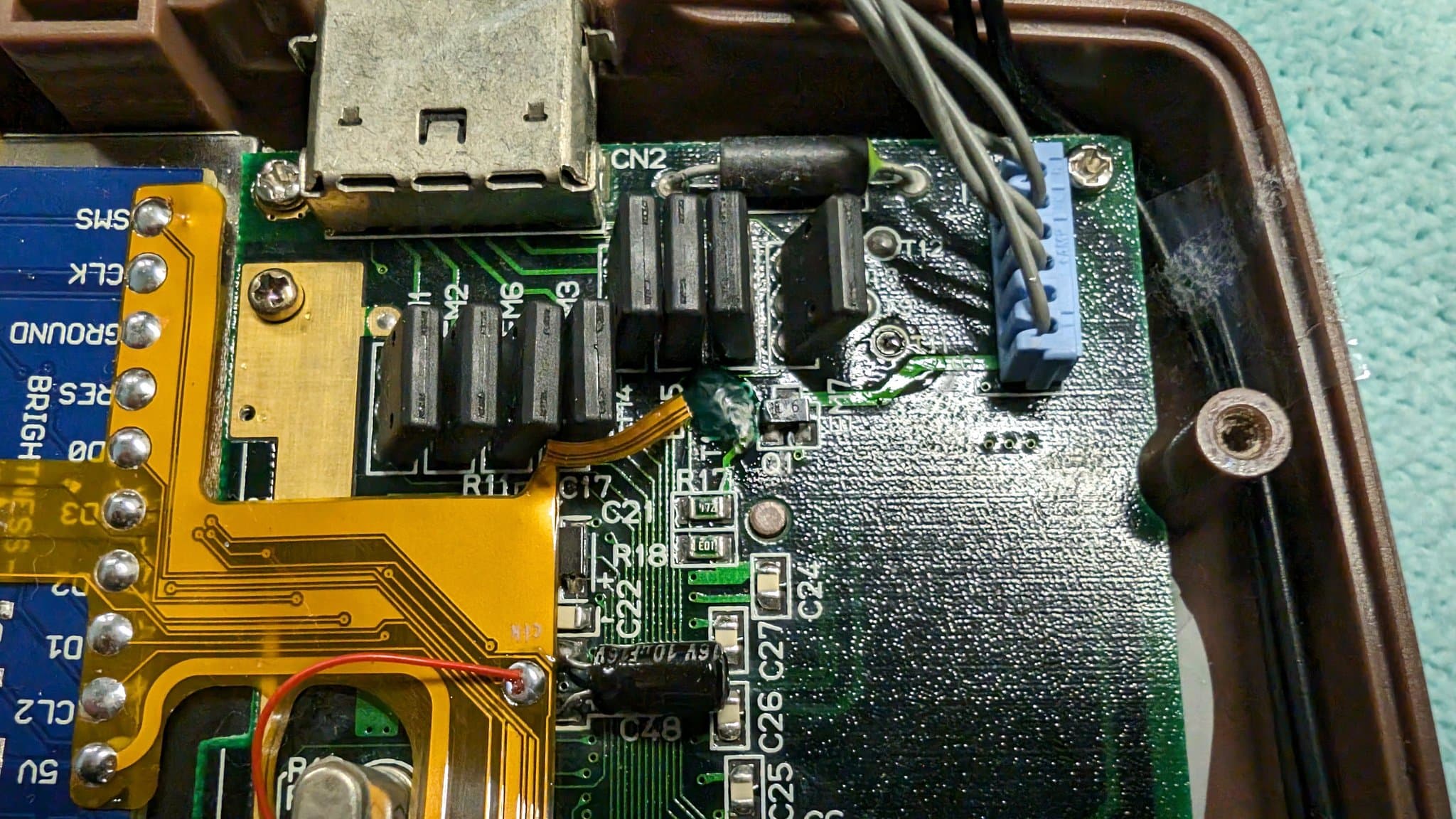

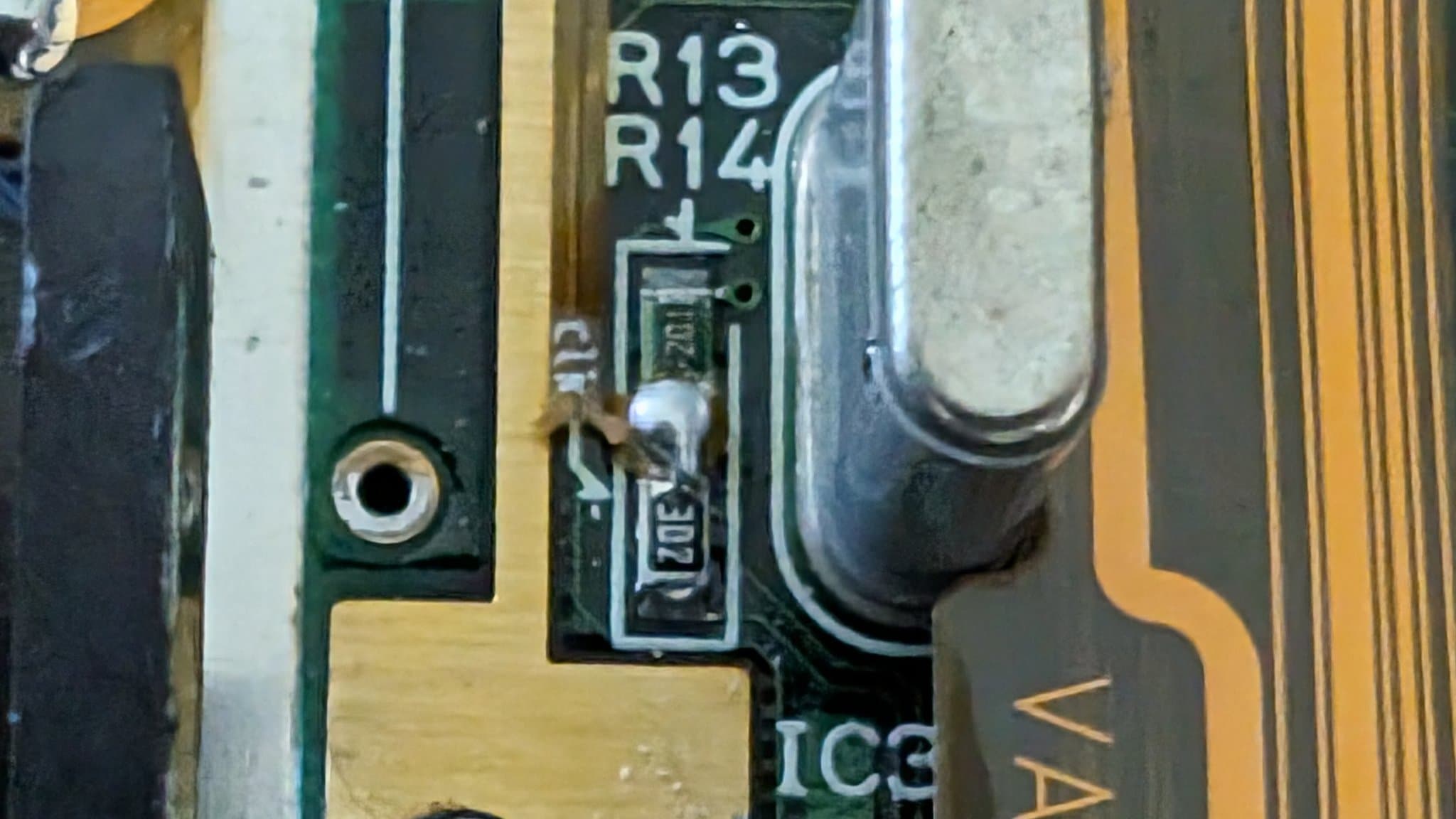

(2/3) Clock line bodge wire, since the pad flex tore in the intended position for this. TP10 pad barely hanging on, so I soldered what little was left of it and put some UV curing solder mask on top of my it. ✅

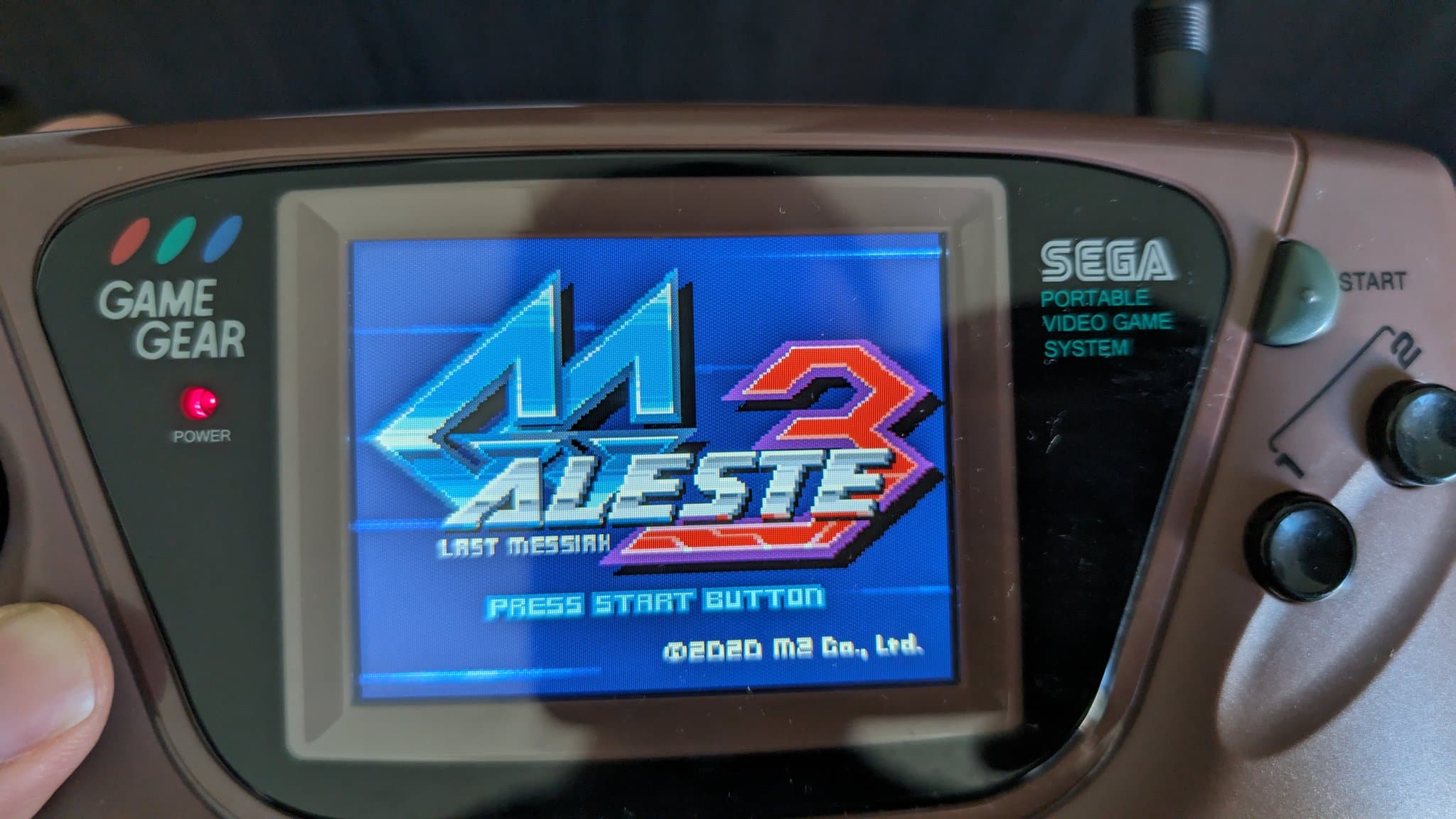

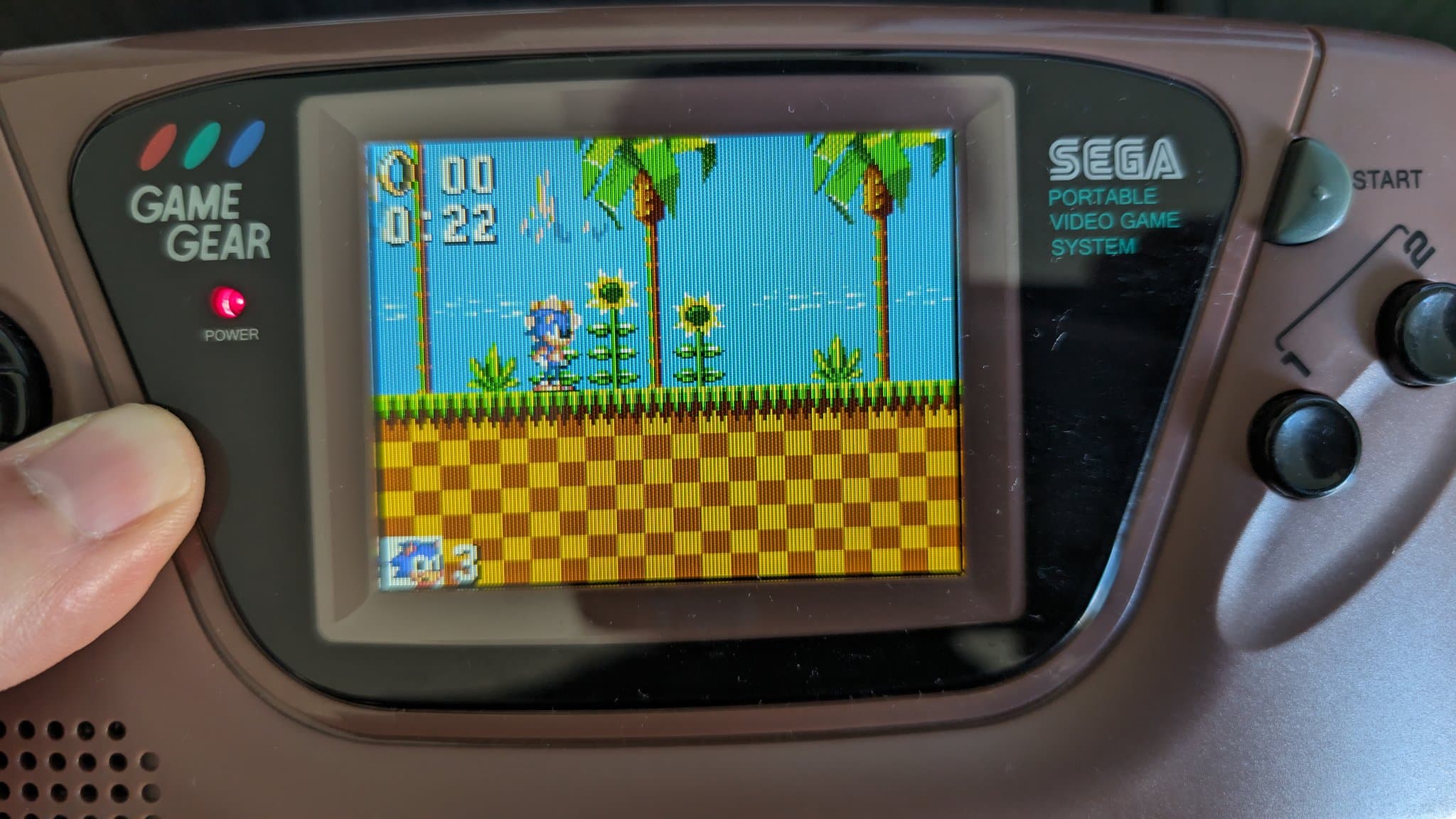

(3/3) Picture, sound and, scanline and scaling functions restored. 😊
Fucking auto-correct... flower was supposed to be floor 🙄
Double whammy, mfer... you're -› your 🤦

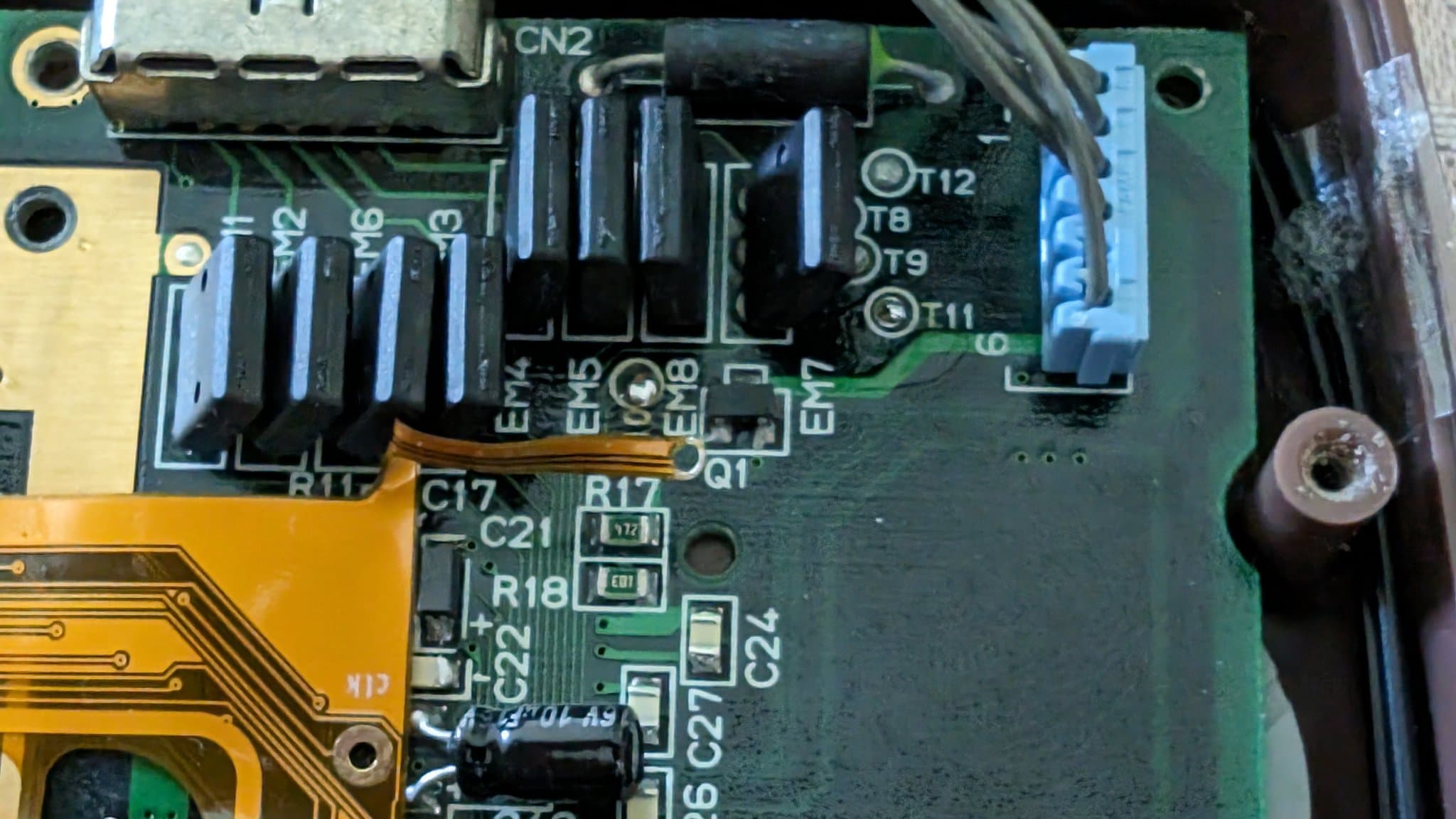

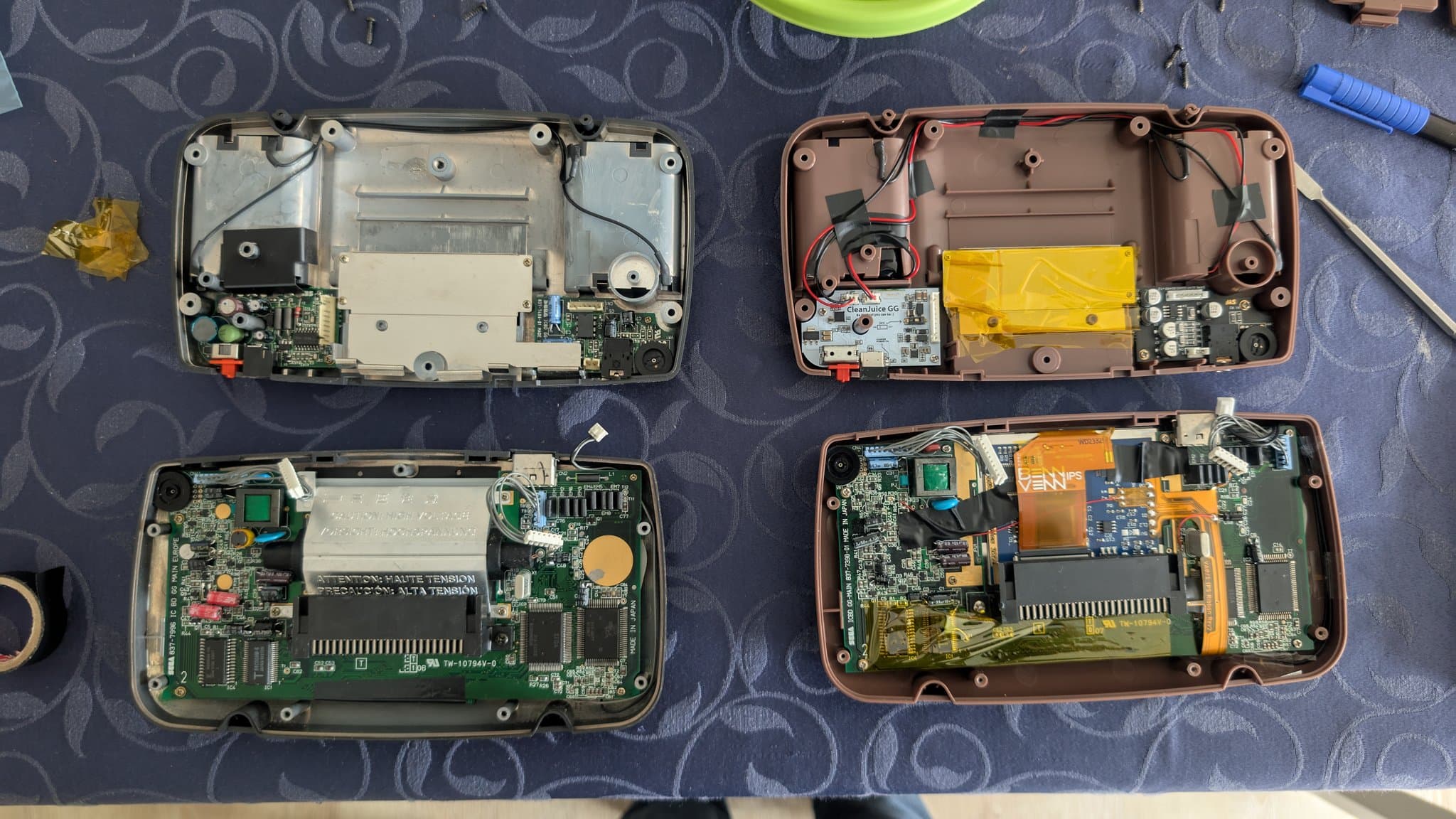

This one is less about righting wrongs and more about putting stuff where it makes sense. I had in the past installed some mods (power and audio) in a Game Gear with a stock screen so, now I'm just switching them over to a modded one. #RETROGAMING #Sega #GameGear
