Nintendo — Sharp Twin Famicom
Recap and drive belt replacement on this Sharp Twin Famicom (AN-500B), the original belt completely hardened and broken, then the quality of life upgrades: an NESRGB board installed with a wireless mod, topped off with Jeff Chen's TwinDiamond accessory.

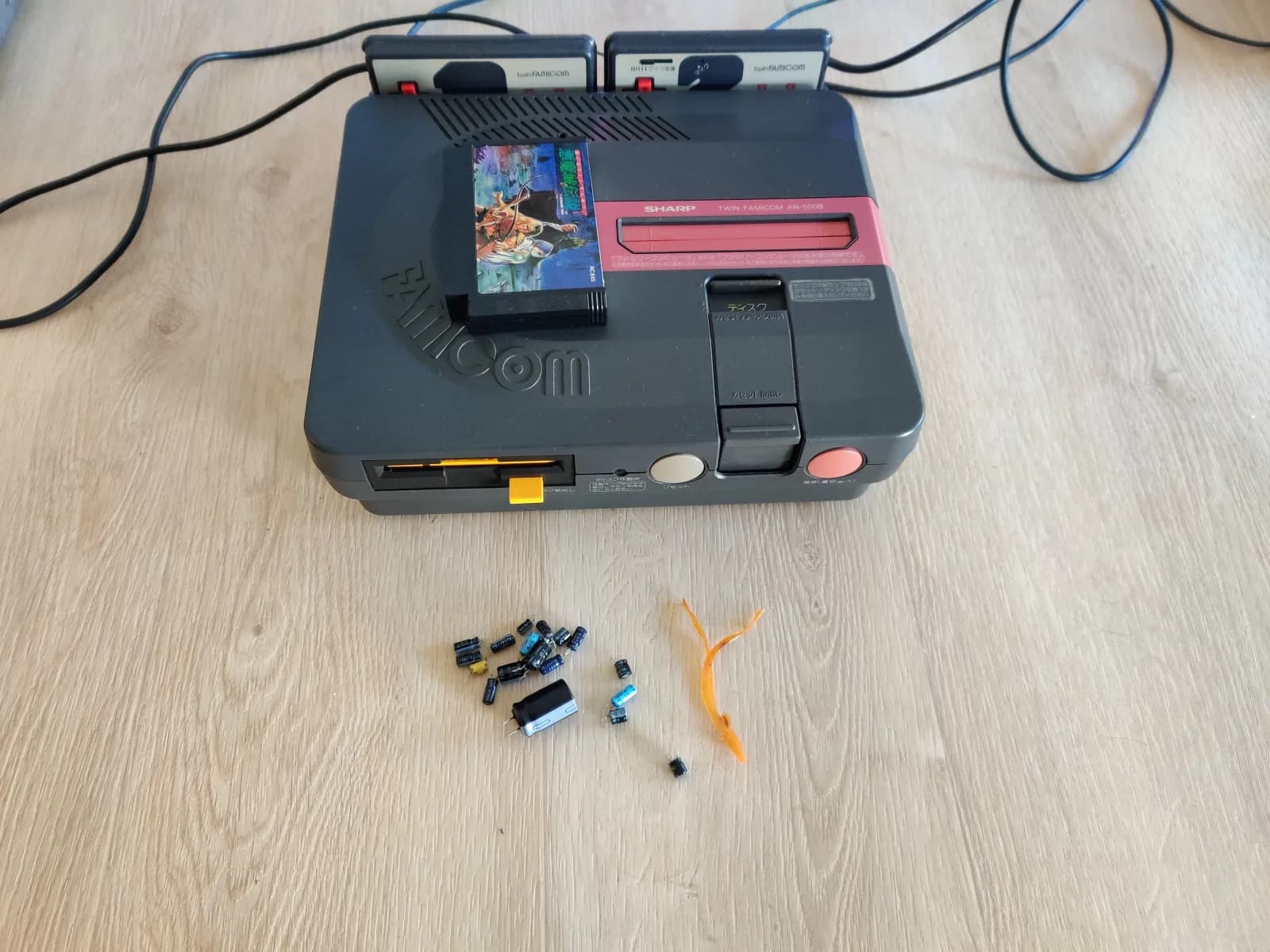

A long time ago, I recapped and RGB modded this Twin Famicom. For completeness sake, I'm adding some pics of the process in a new thread, so that I can import it to my blog. This is the console post-recap. Look at that belt! Completely hardened and broken.

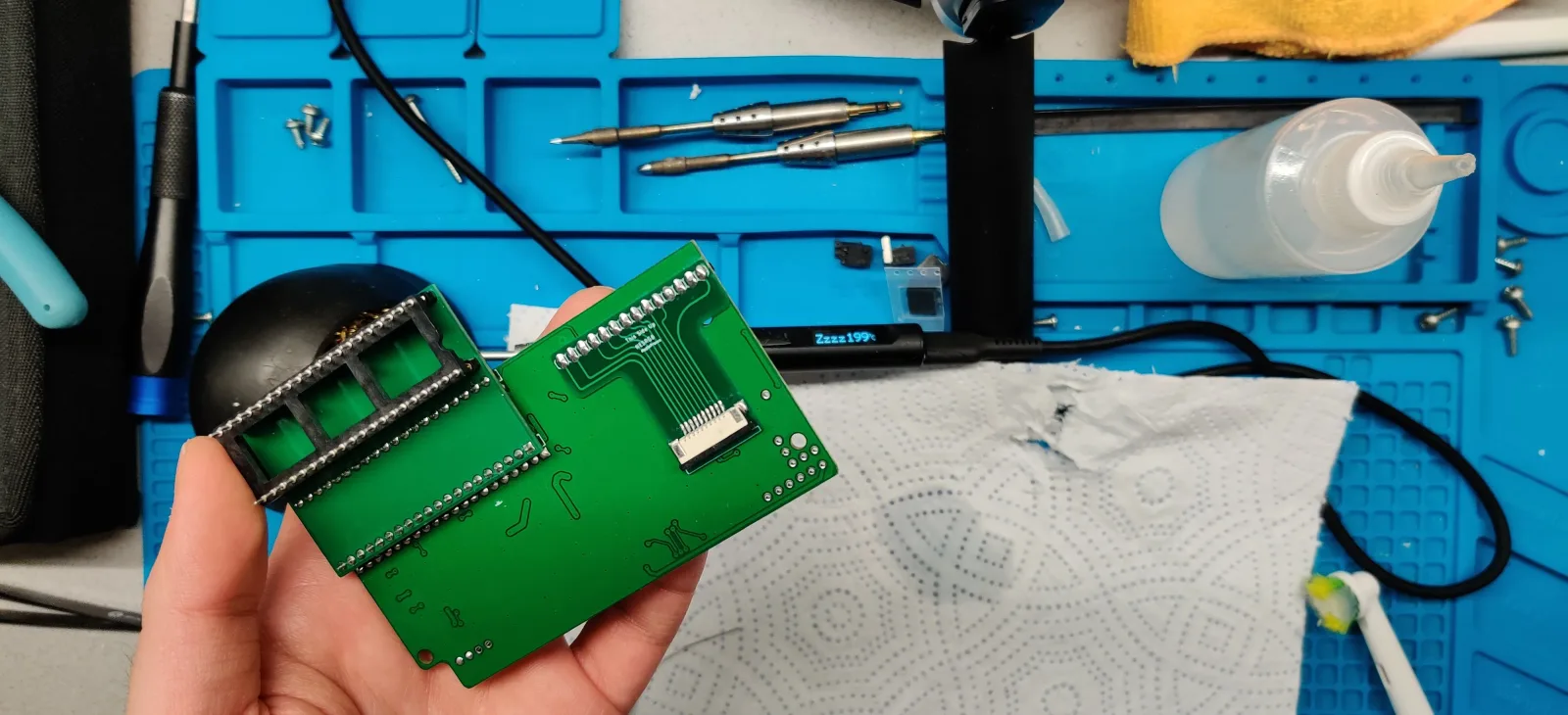

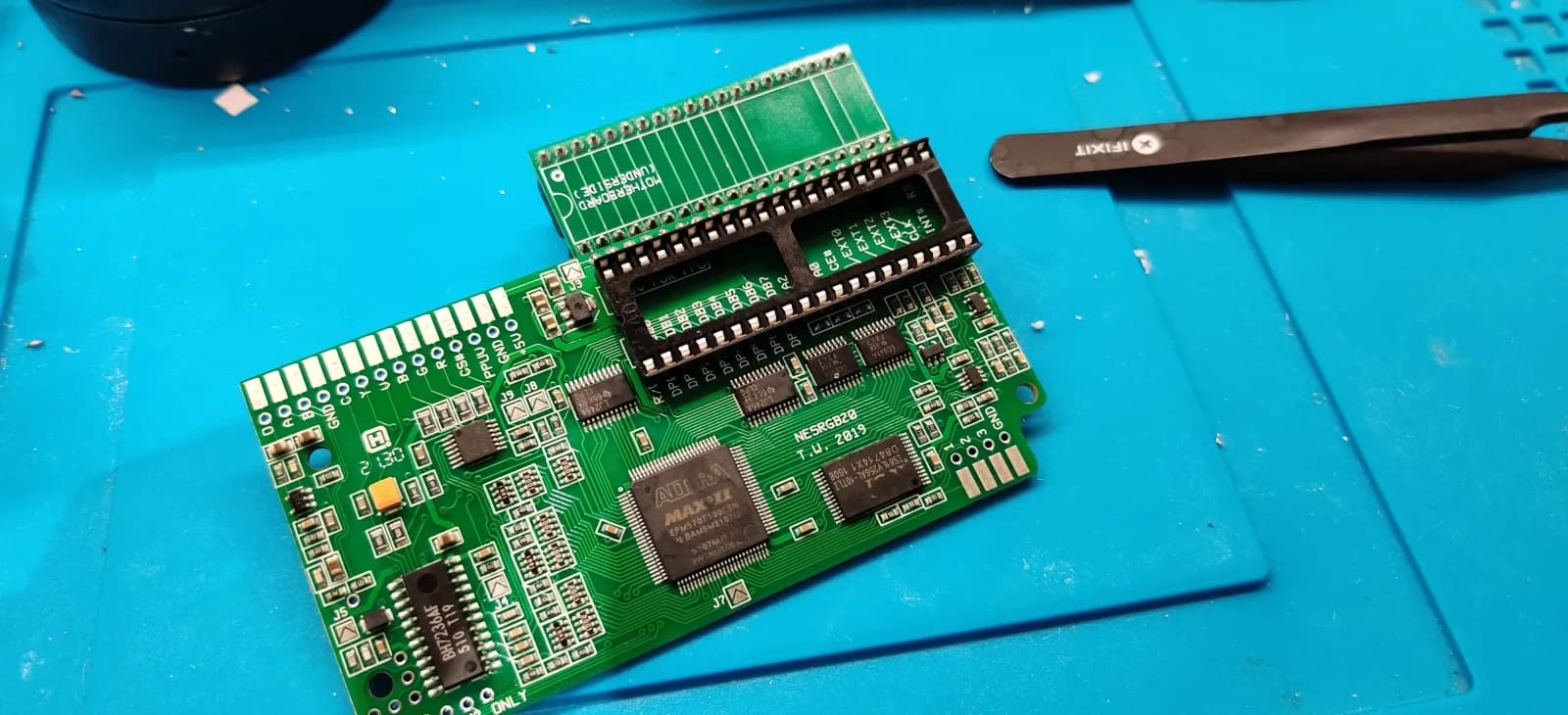

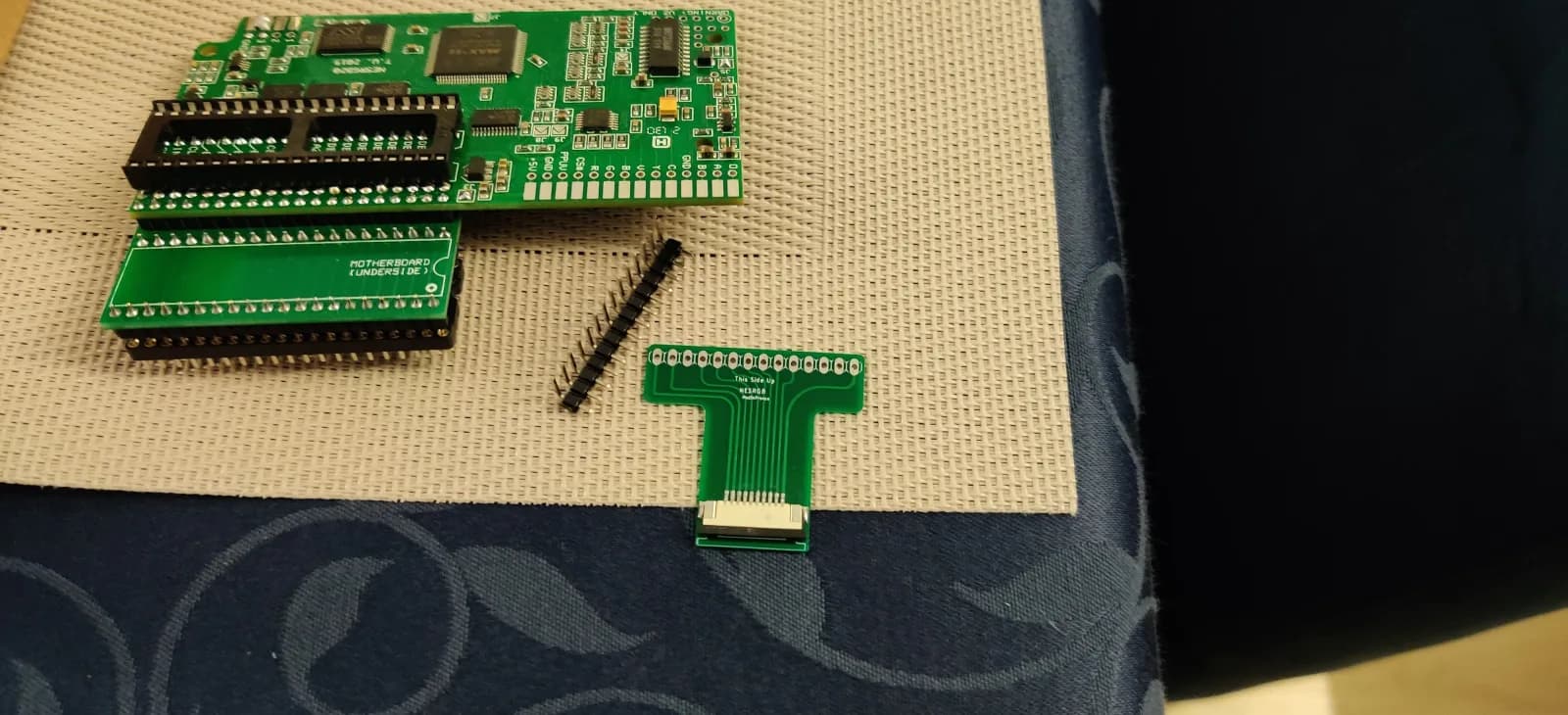

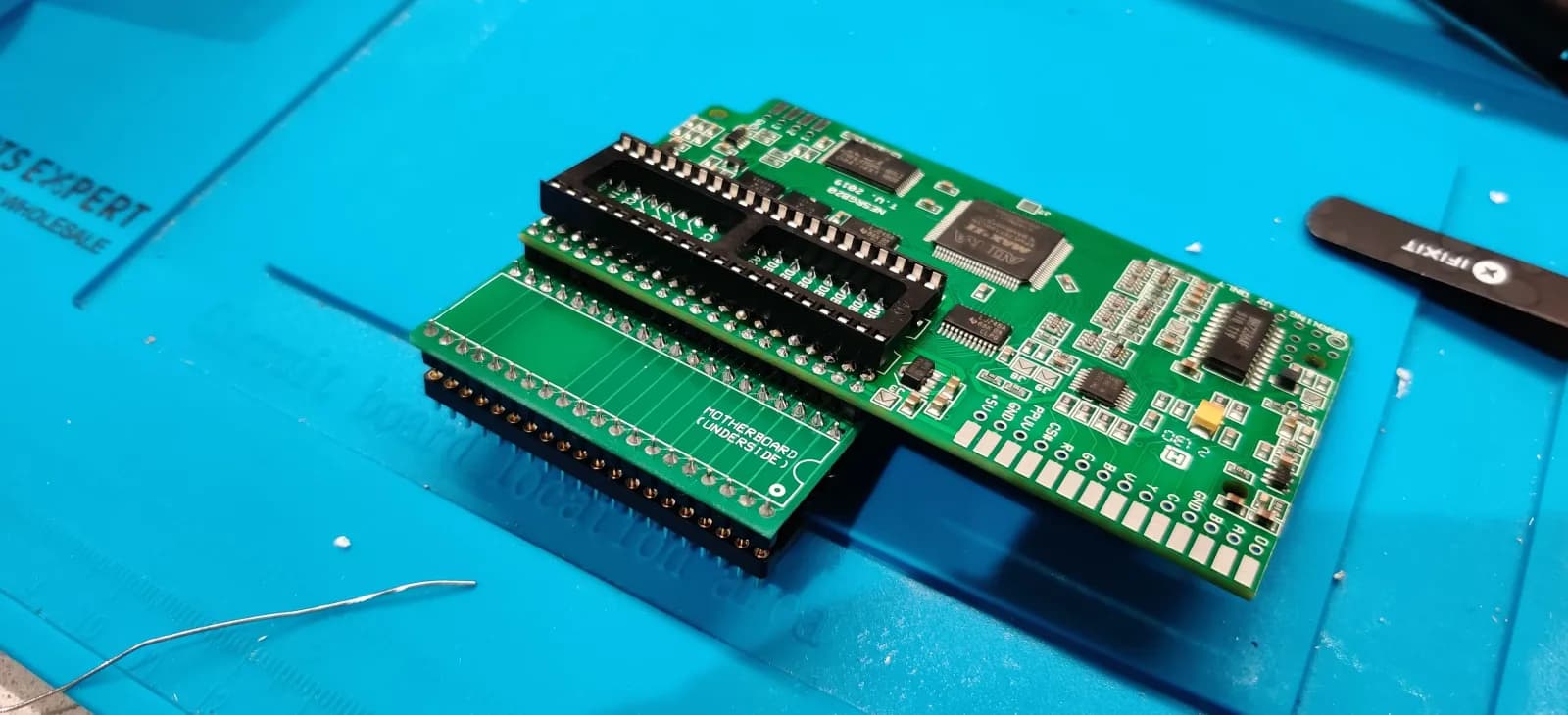

Here are some pics of me building up the NESRGB kit.

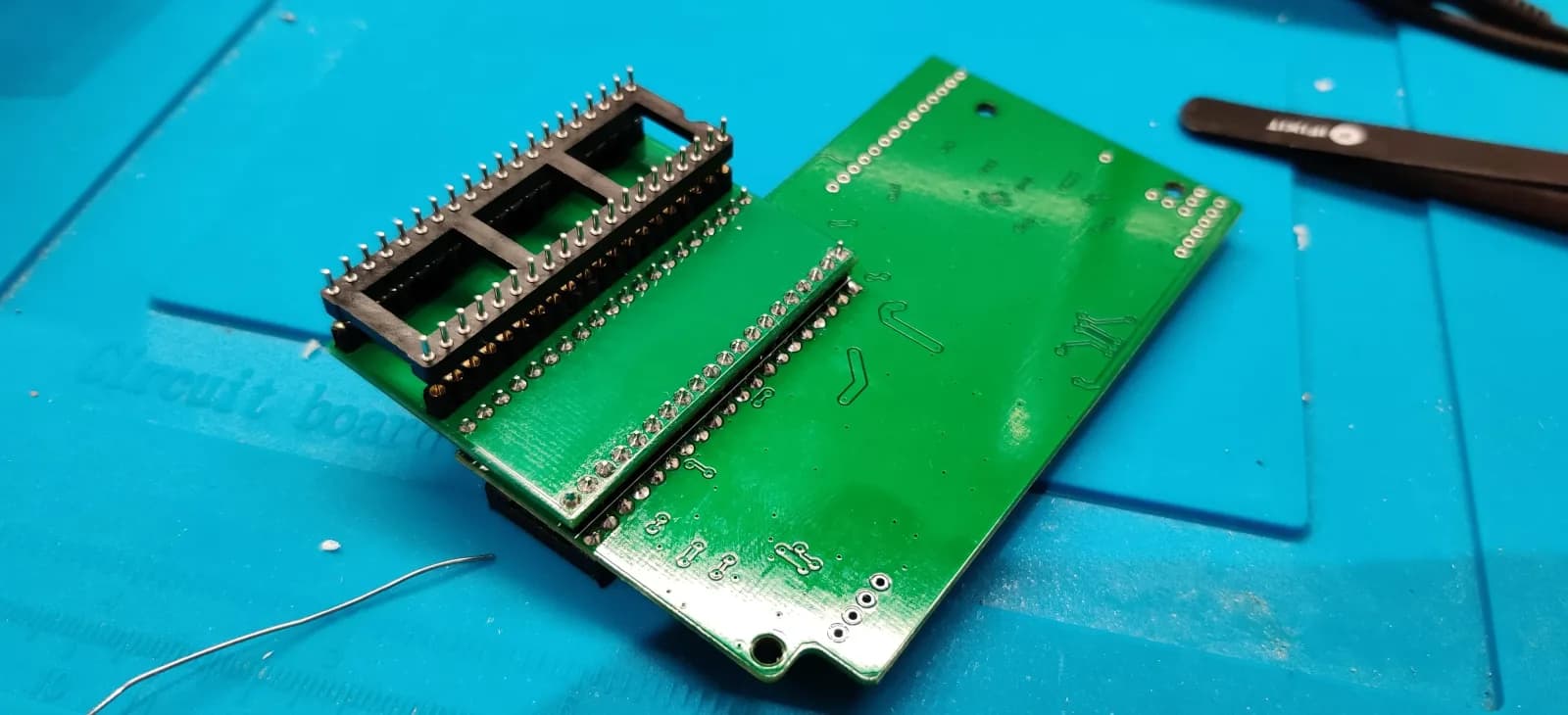

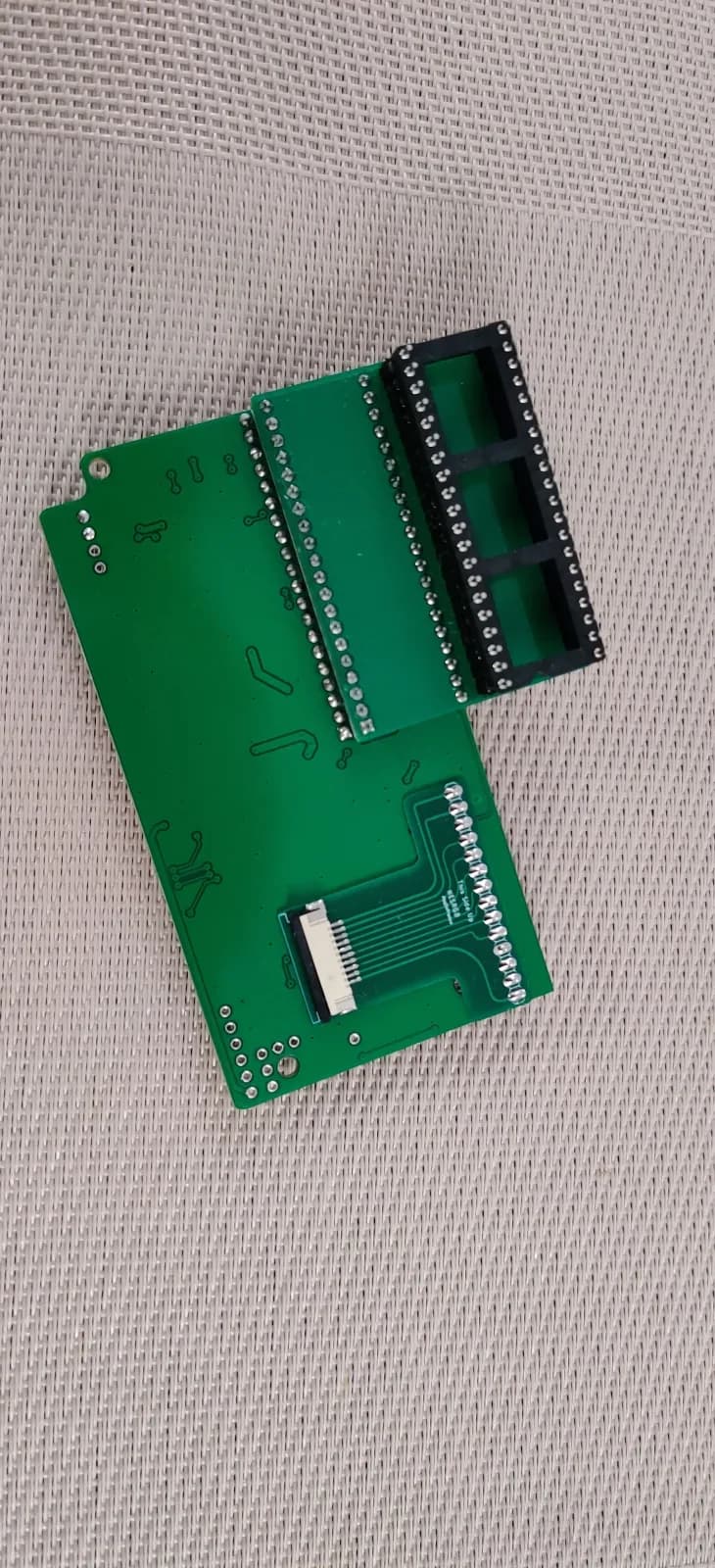

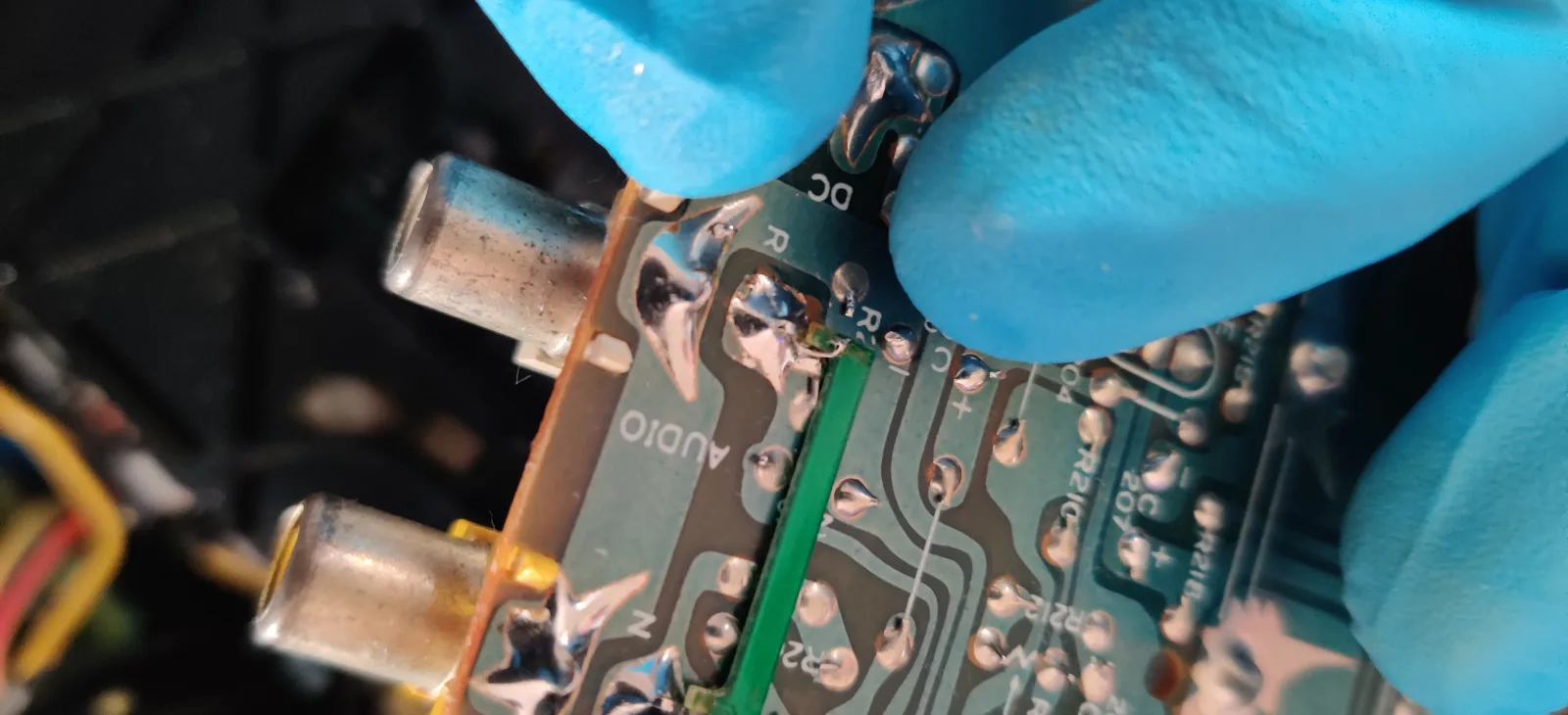

More pics of building it up to it's final form. As well as a picture of a bodge I had to make because I singed a very tiny and necessary pad, for audio.

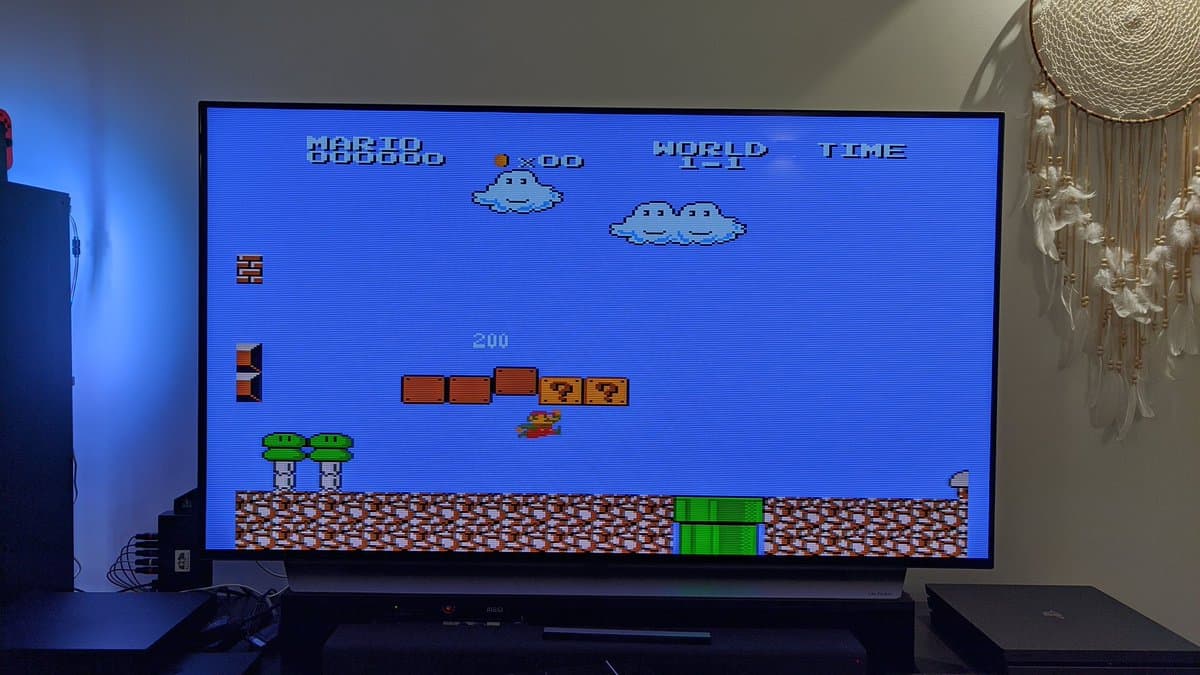

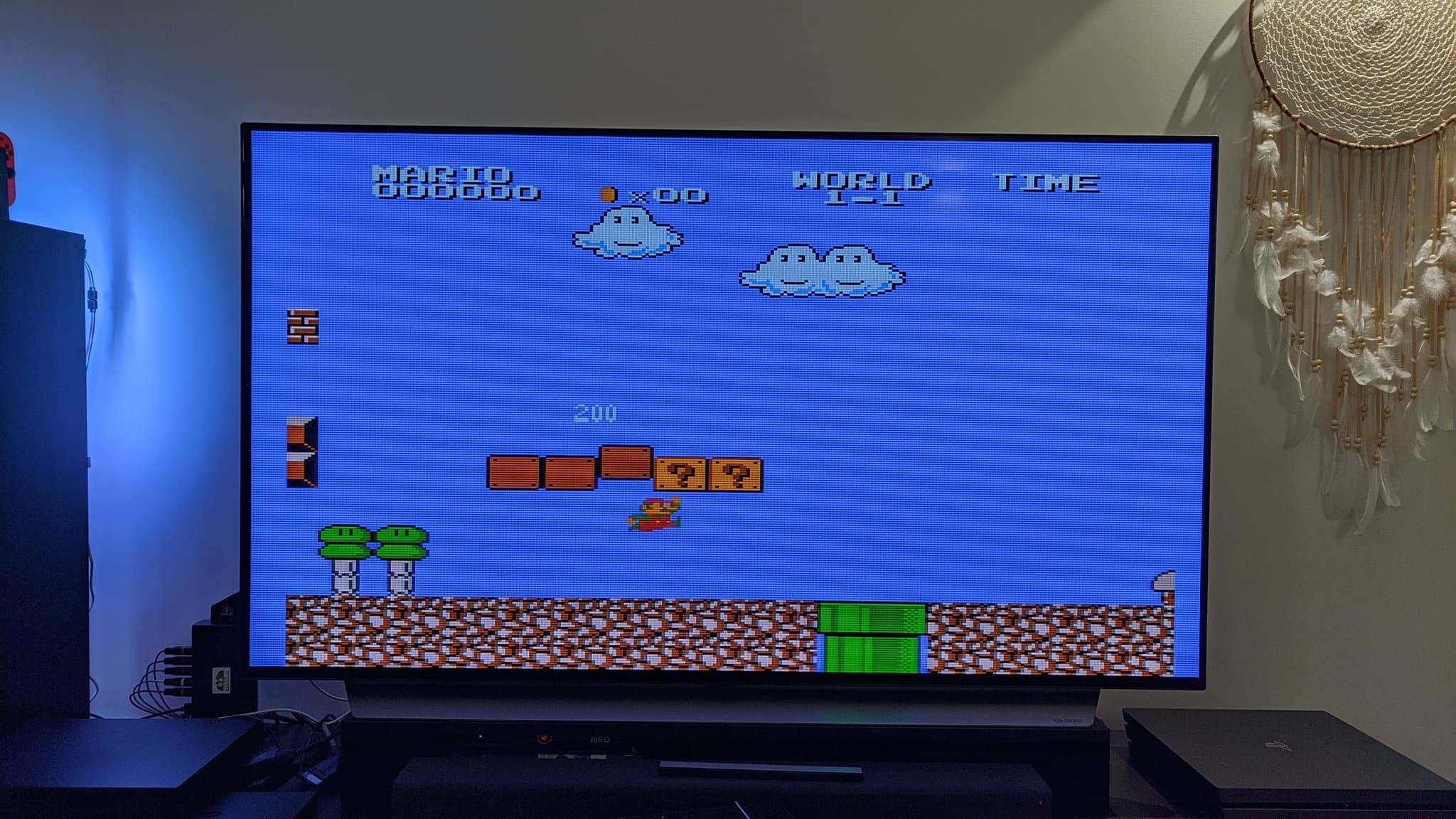

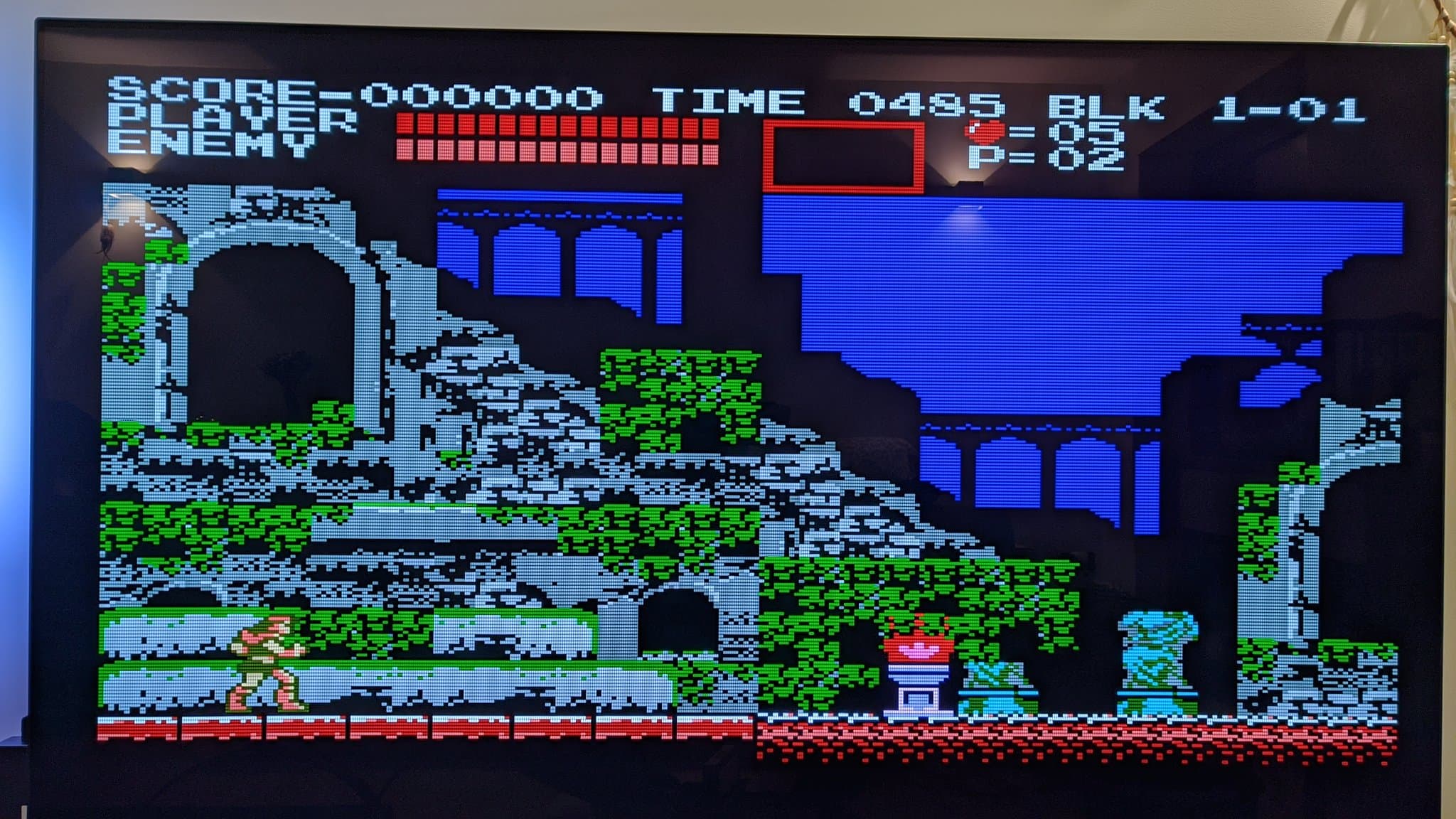

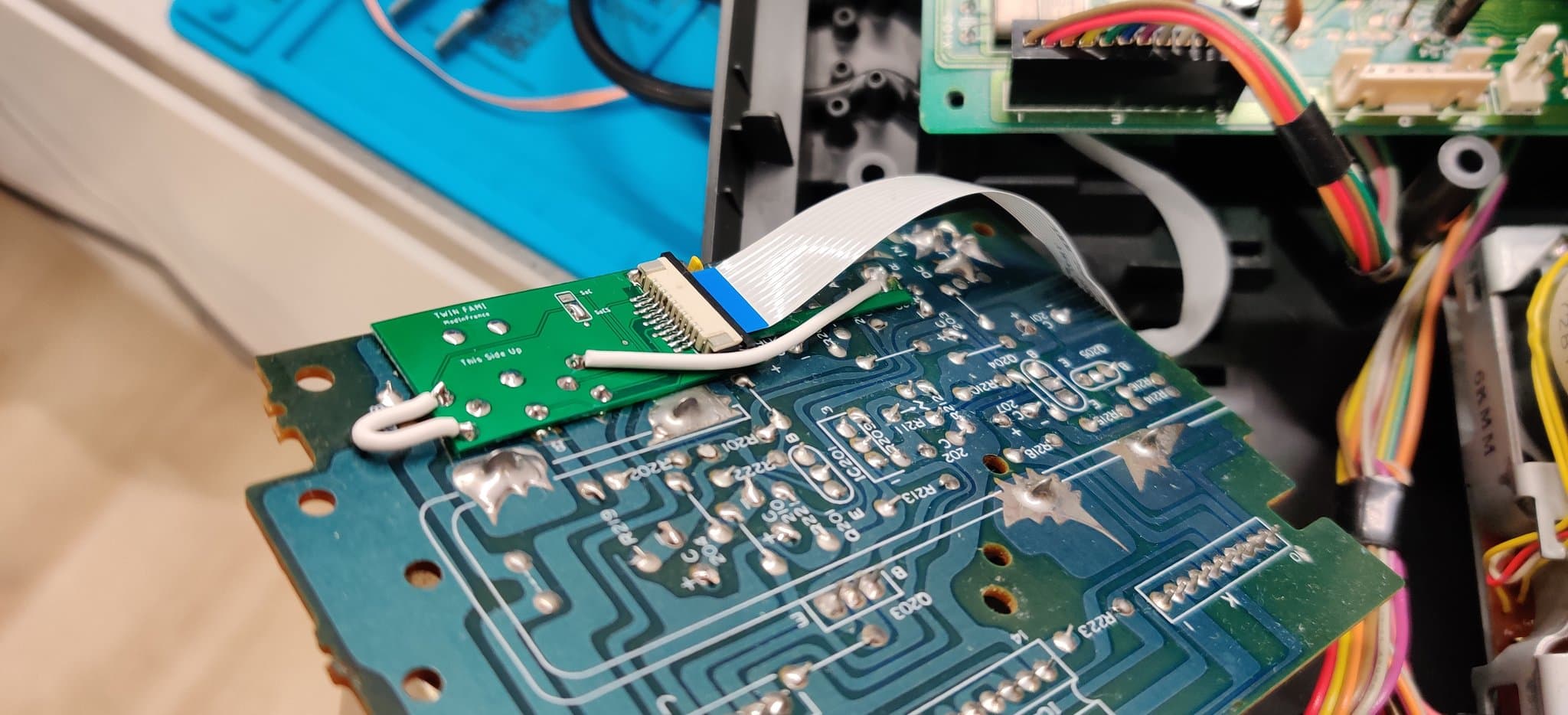

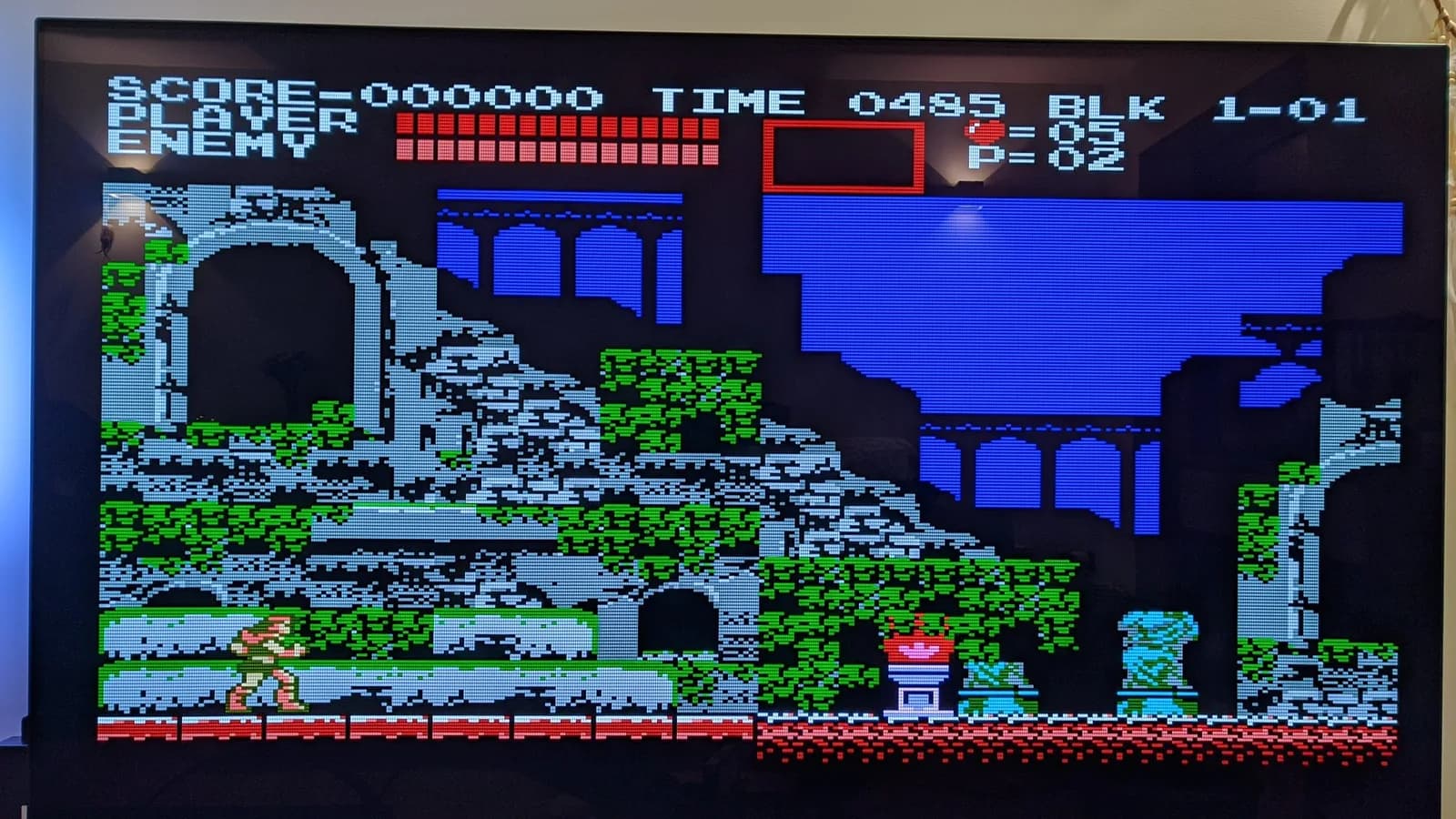

NESRGB install on Twin Famicom. Wireless kit from @romainbrami (ModInFrance). Thank you Romain for your invaluable assistance in answering any questions and doubts I had throughout the installation process. 🙏 This kit makes the picture so beautiful through @retrotink2's 5X pro👌

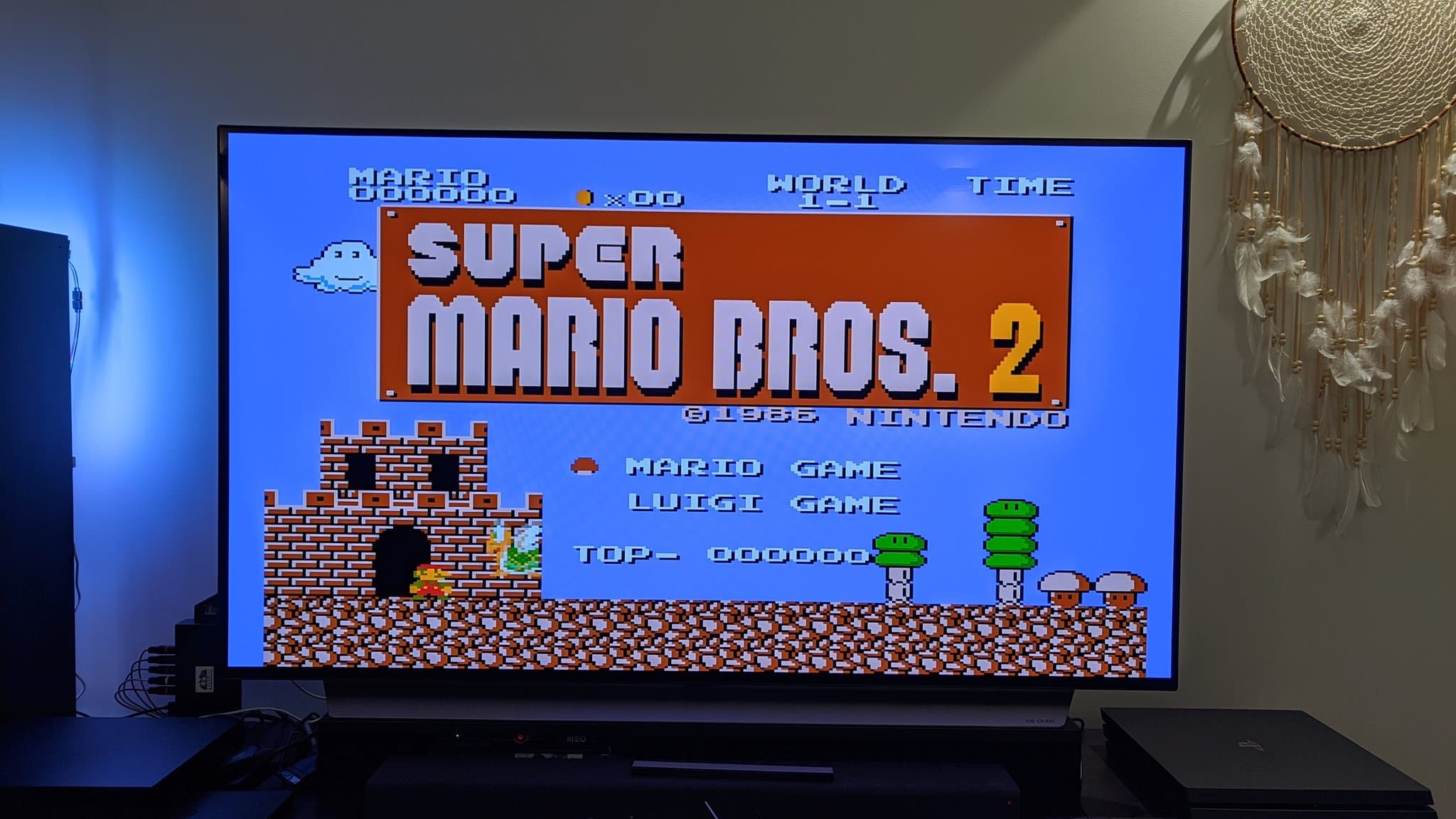

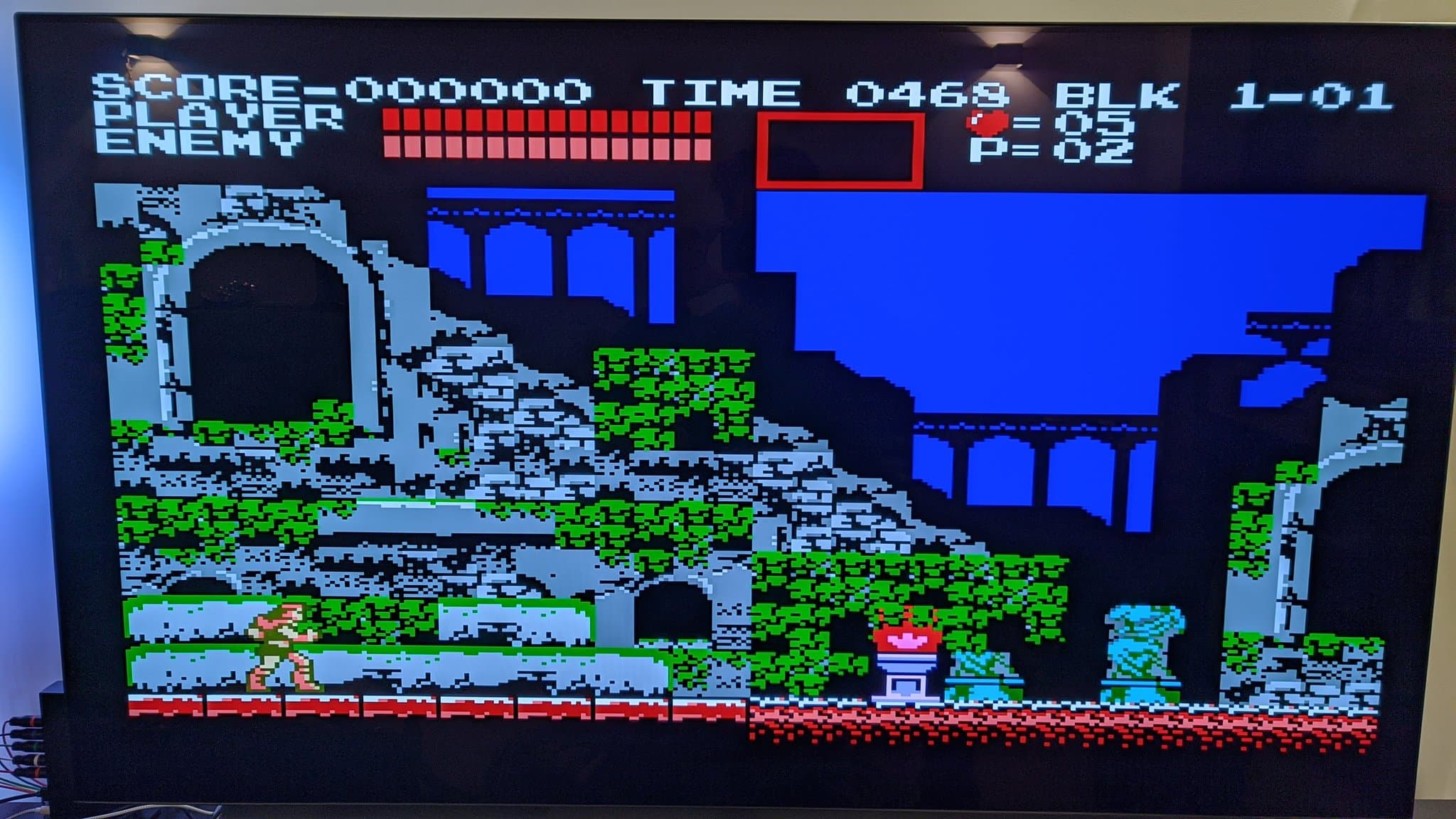

Pics without scanlines for reference.

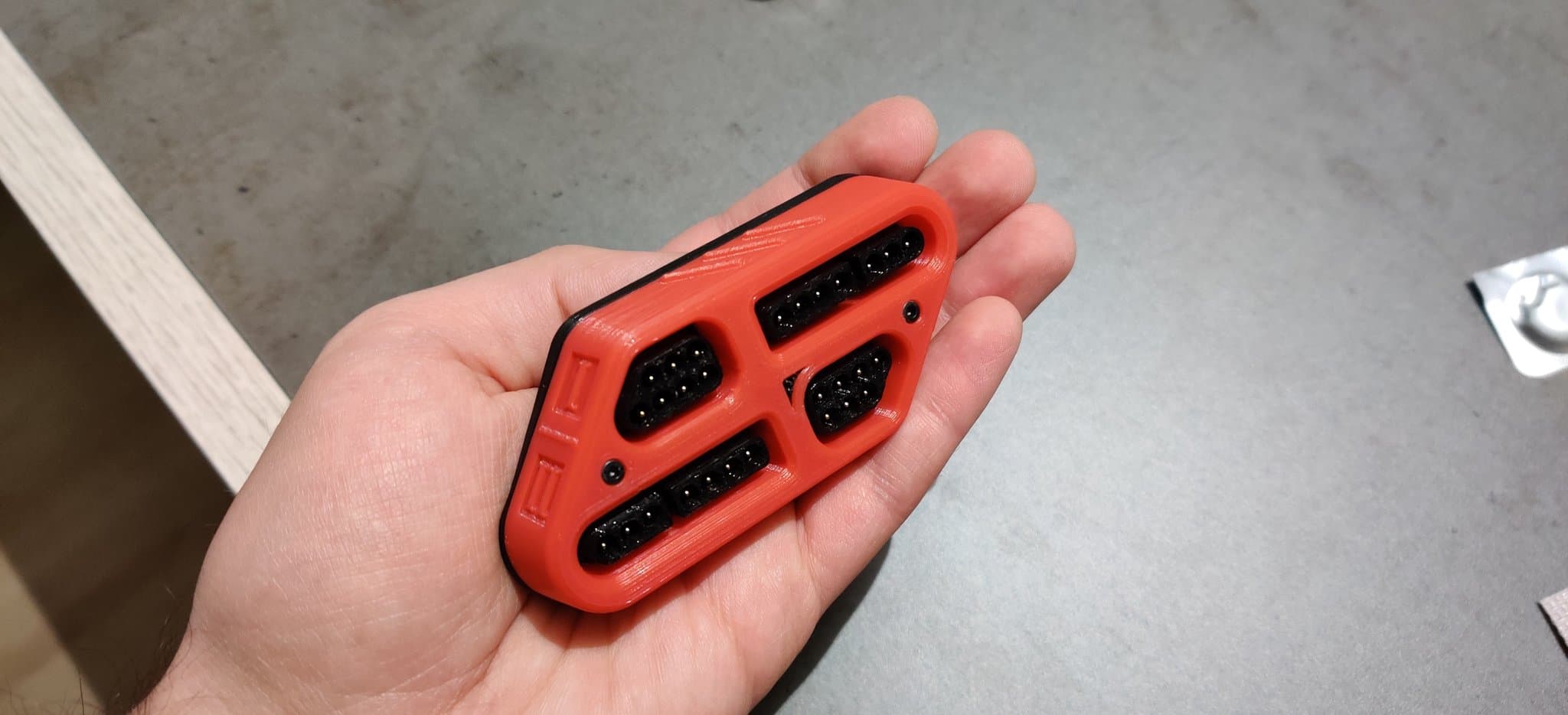

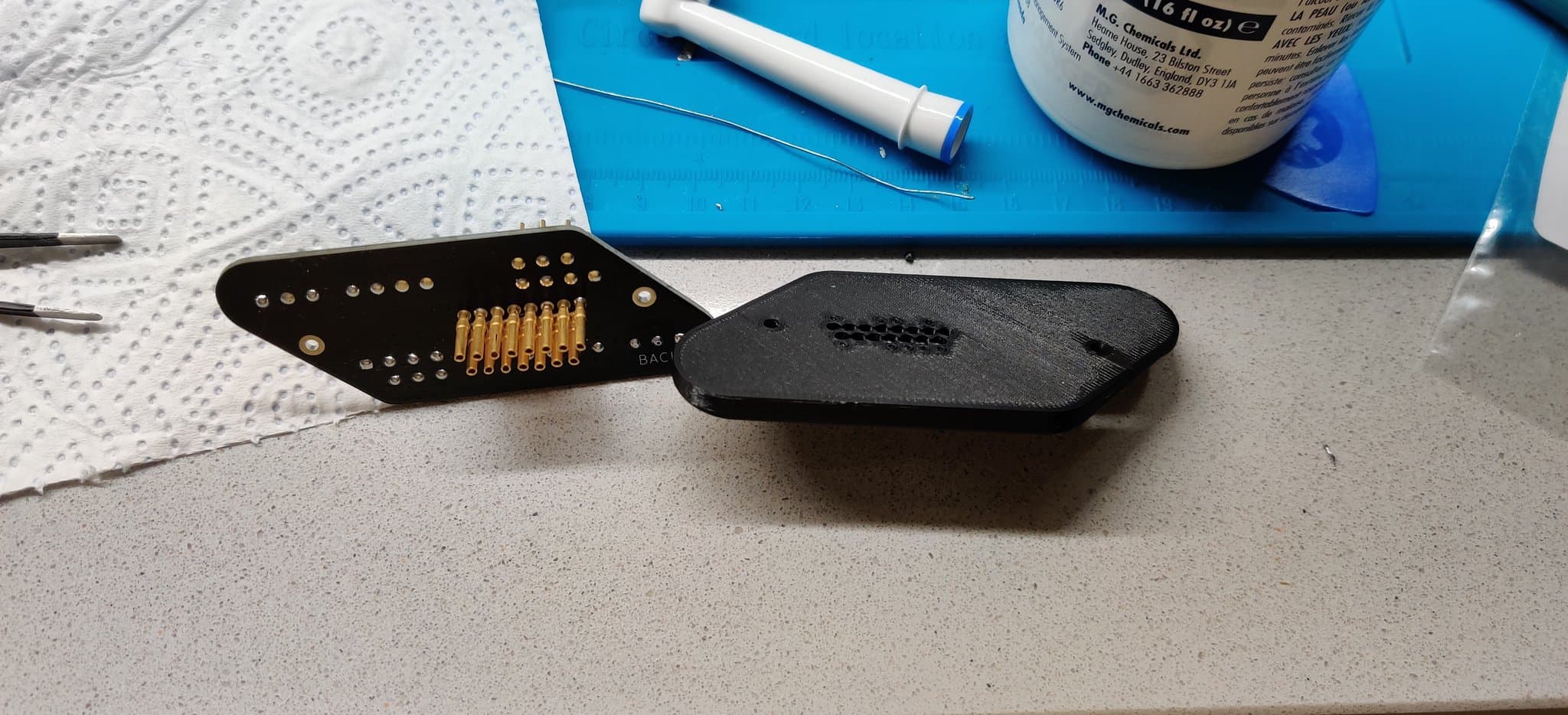

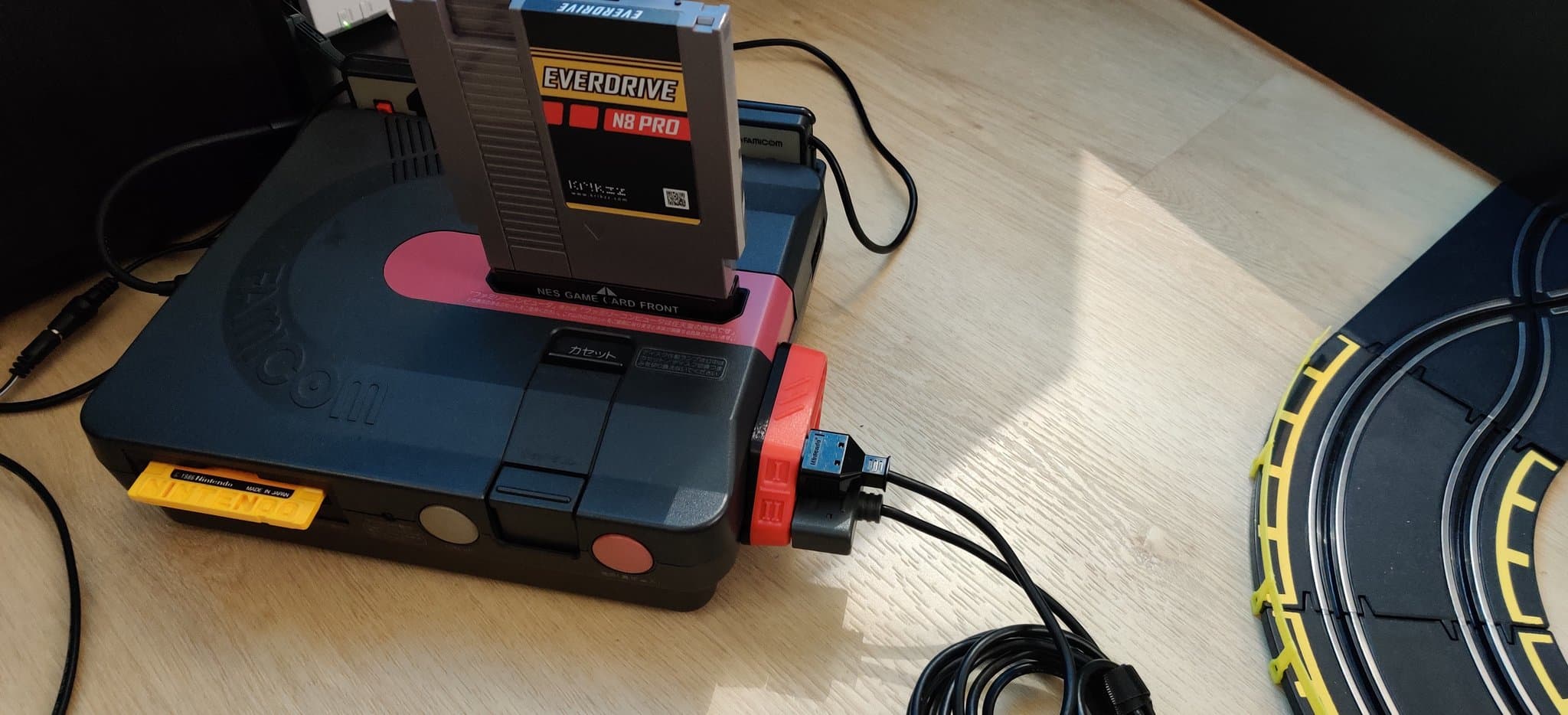

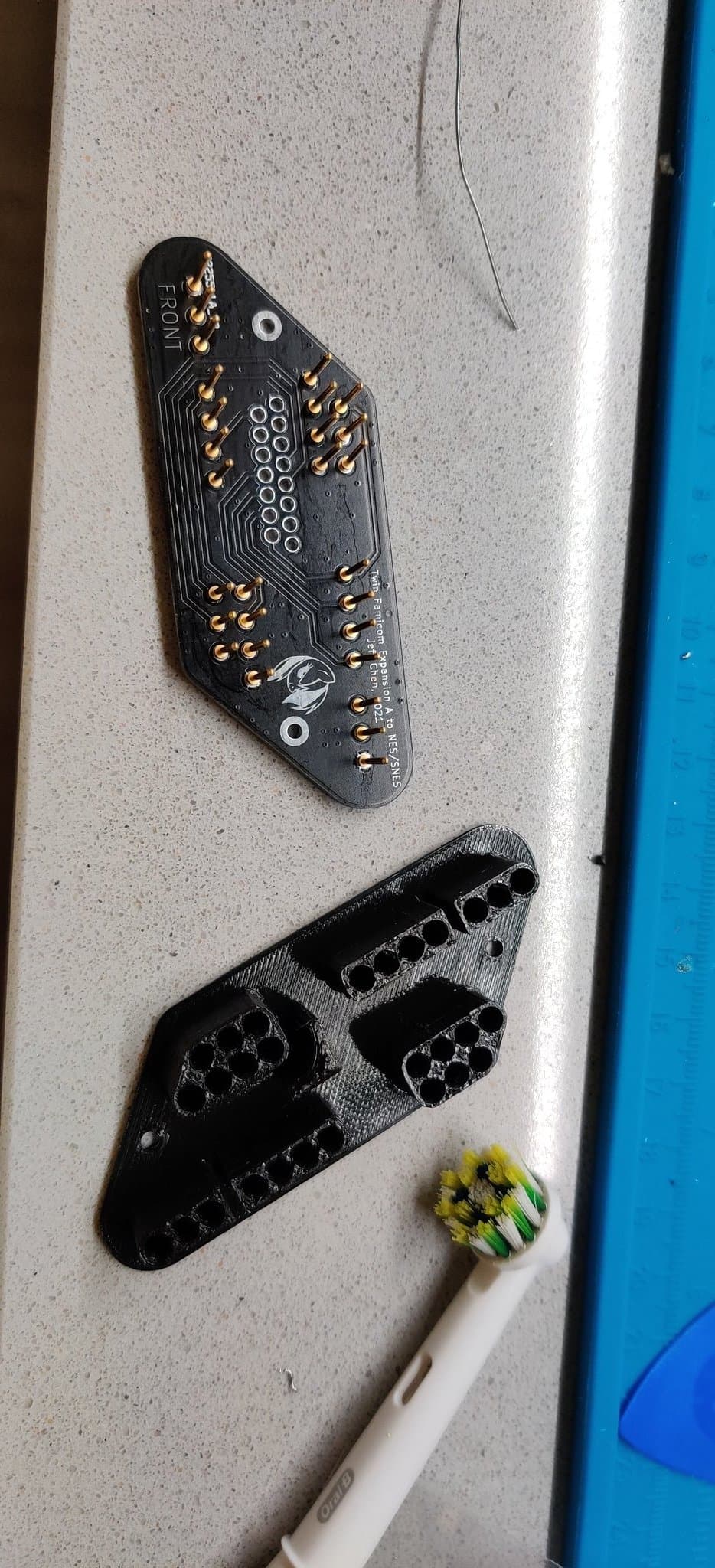

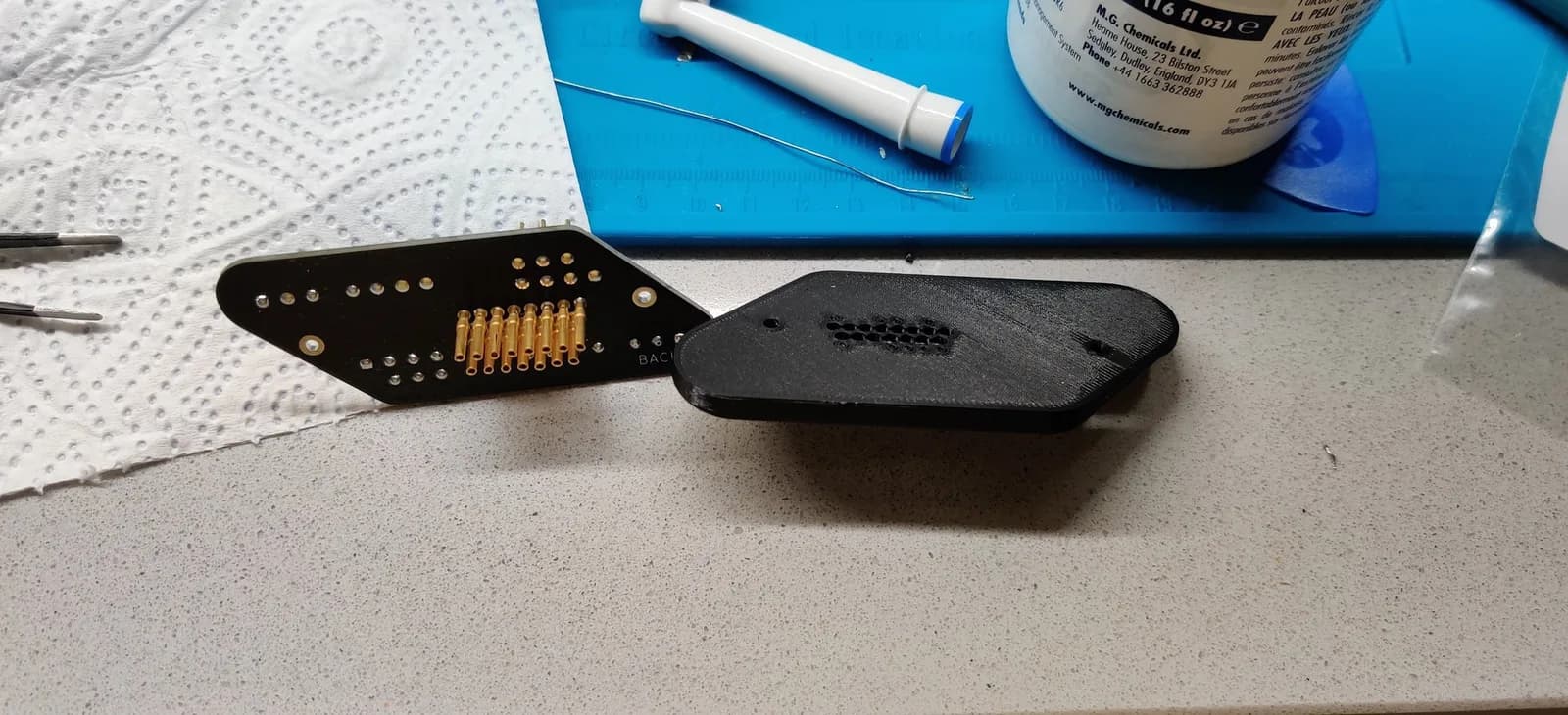

@jeffqchen thanks for publishing the twin diamond designs, they are awesome and make the twin famicom easier to use. Also, as usual, thanks to @nunofgs, for the 3d prints! #NES

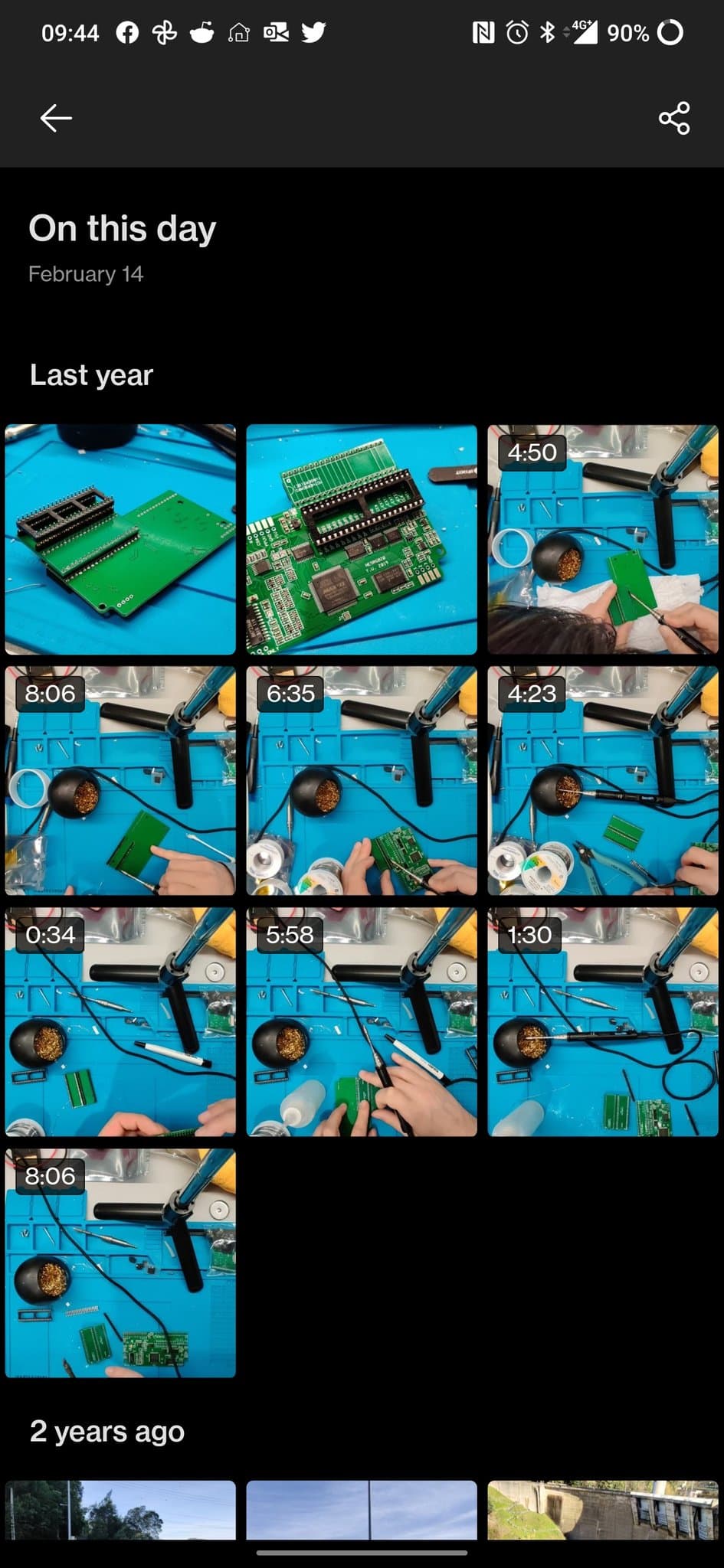

1 year ago, I was celebrating Valentine by installing an NESRGB in a Twin #Famicom. Happy #Nintendo Valentine folks! #RETROGAMING
