Nintendo Famicom Fuse Fix & Composite Mod

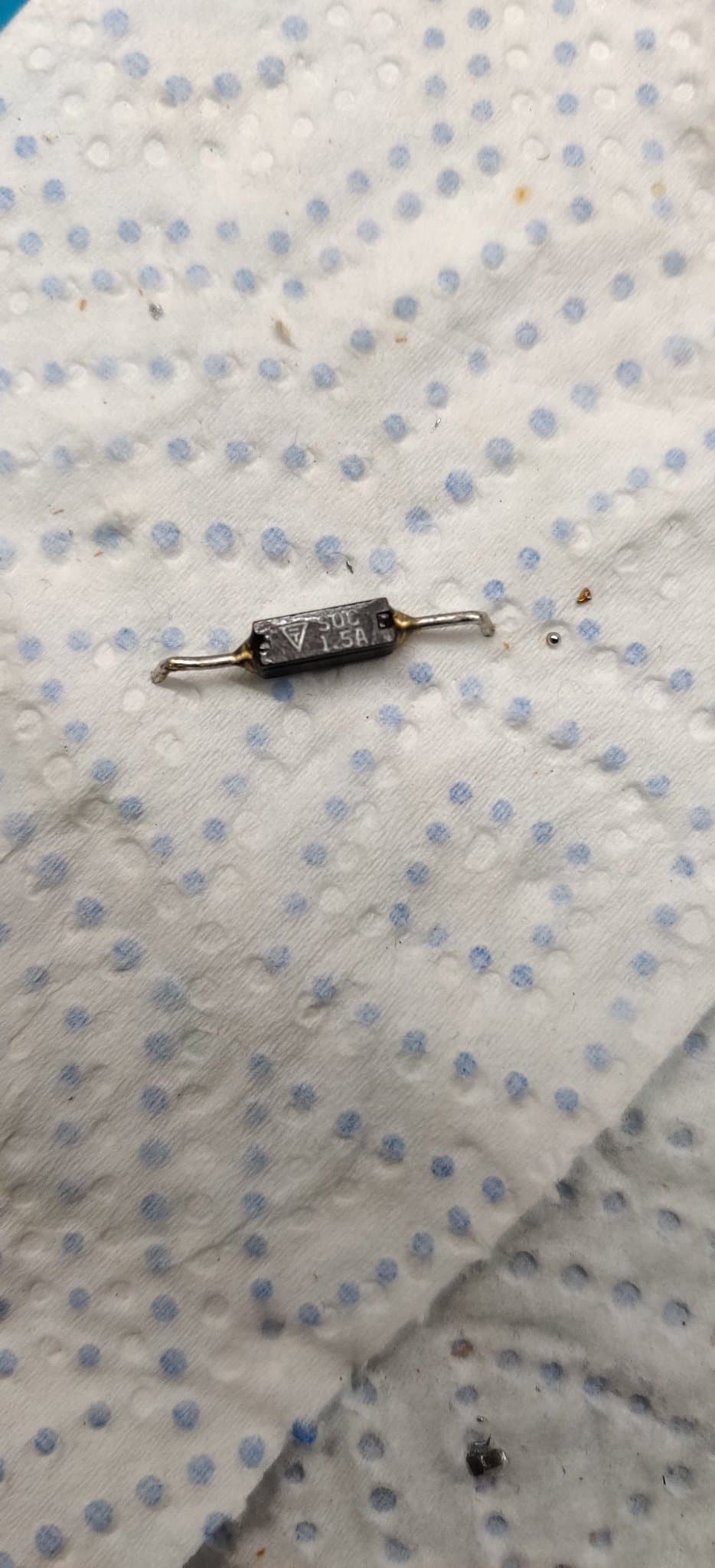

Dead Famicom. One day fuse measured fine, couldn't get the TV to tune into the Famicom's channel. Next day, fuse had no continuity, replaced it, console works fine. 🤷‍♂️ #Nintendo #Famicom #Castlevania

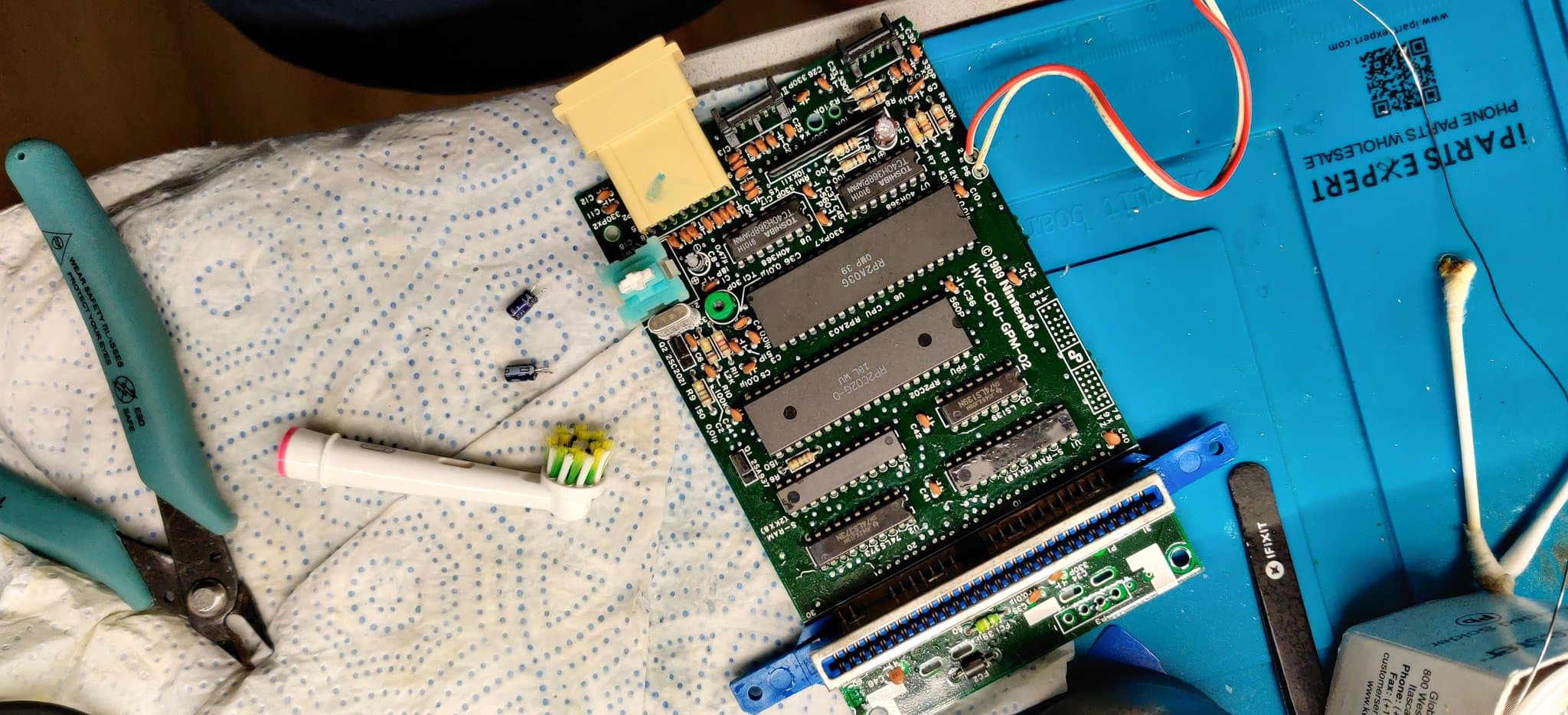

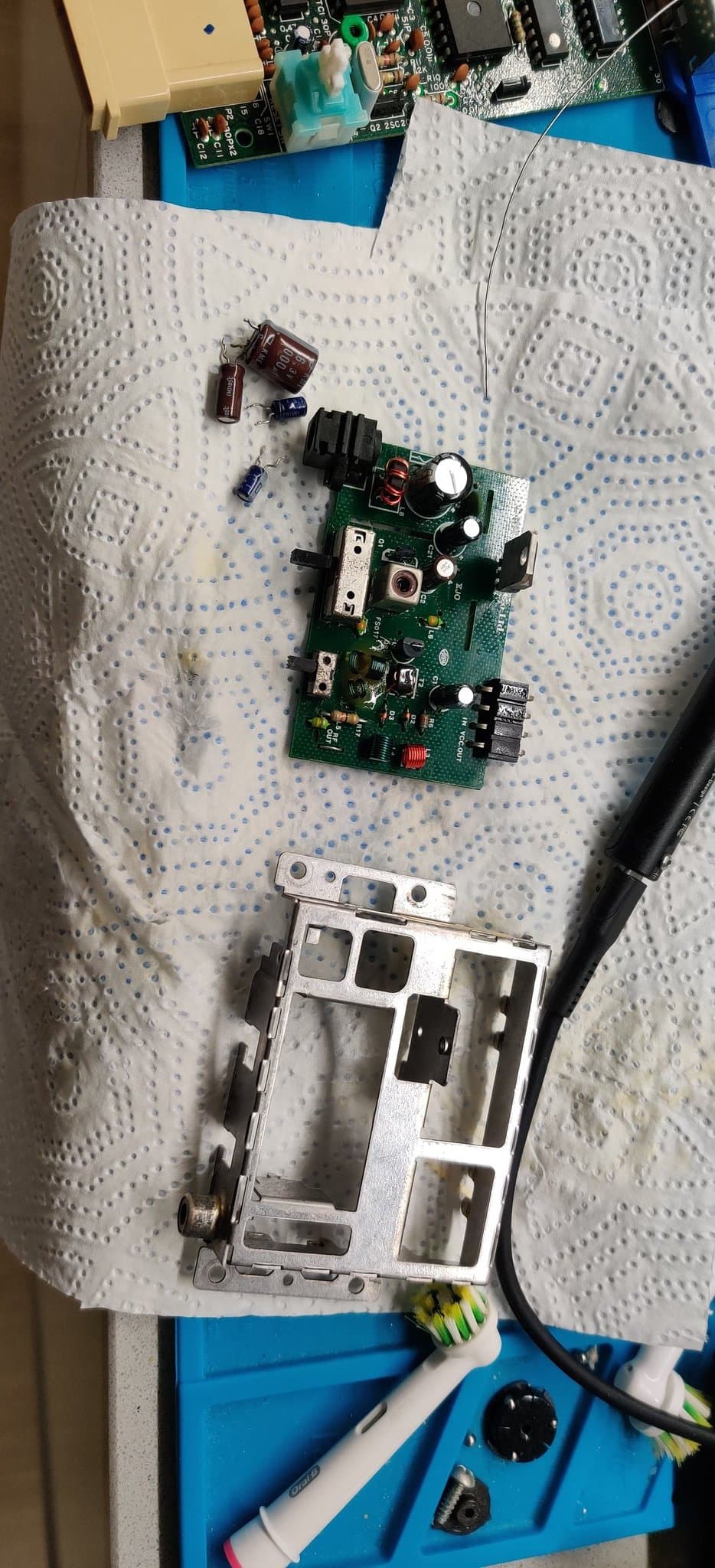

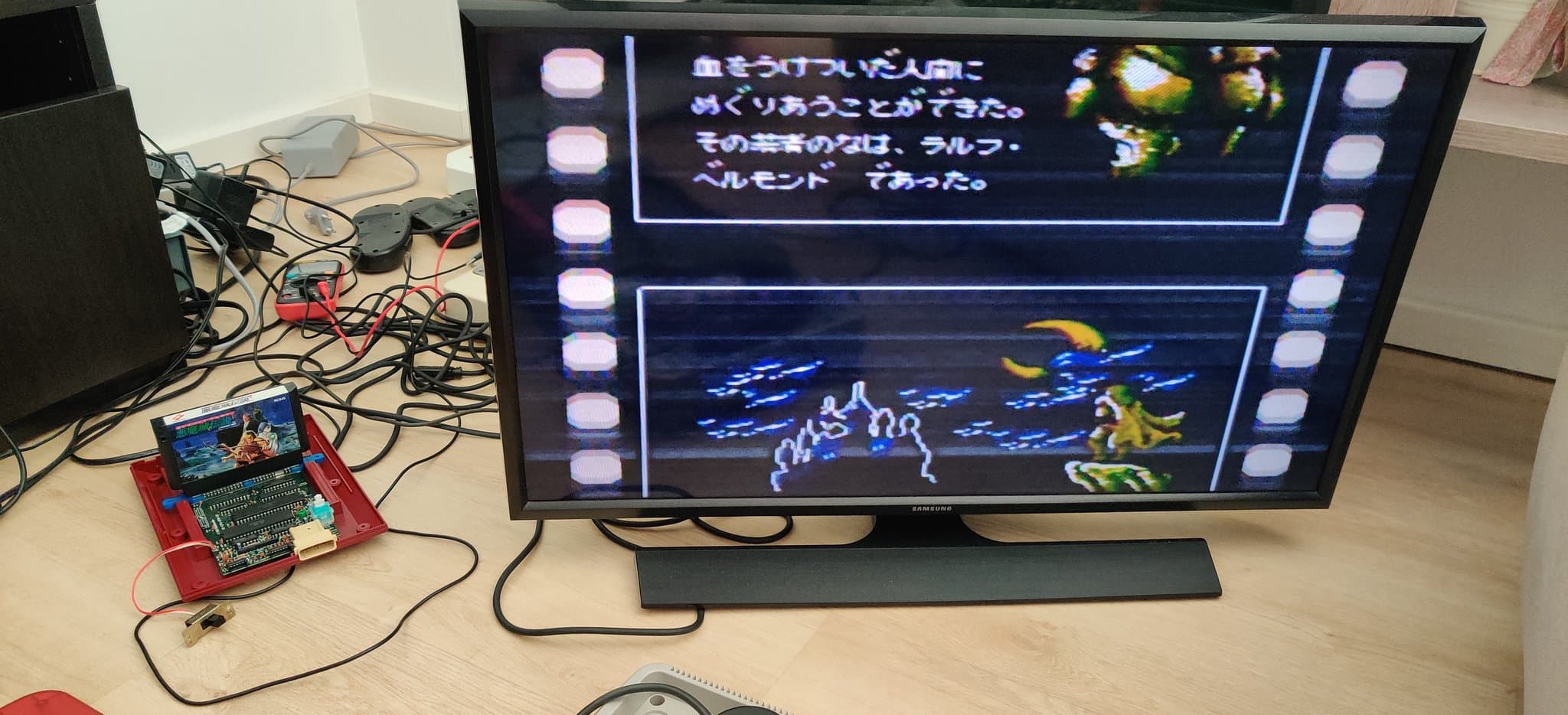

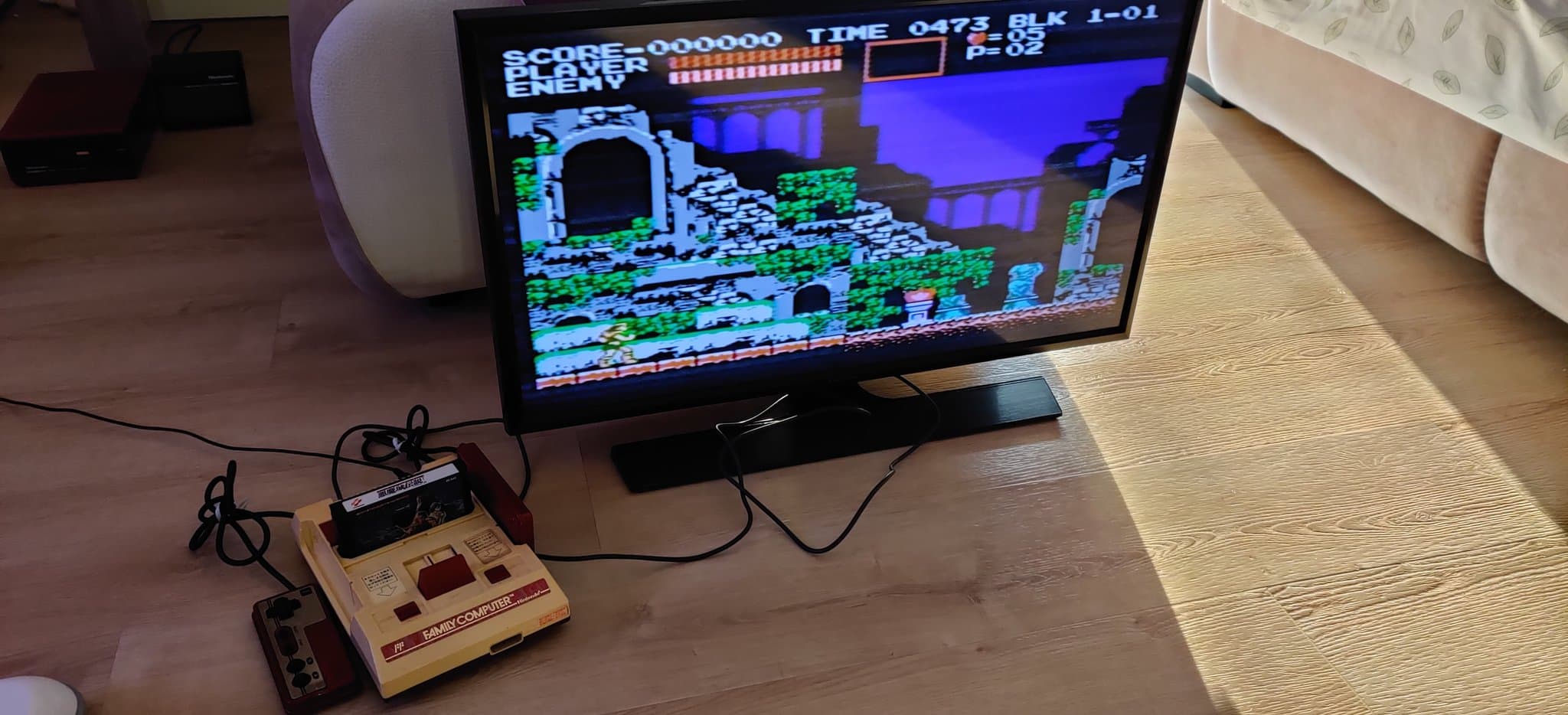

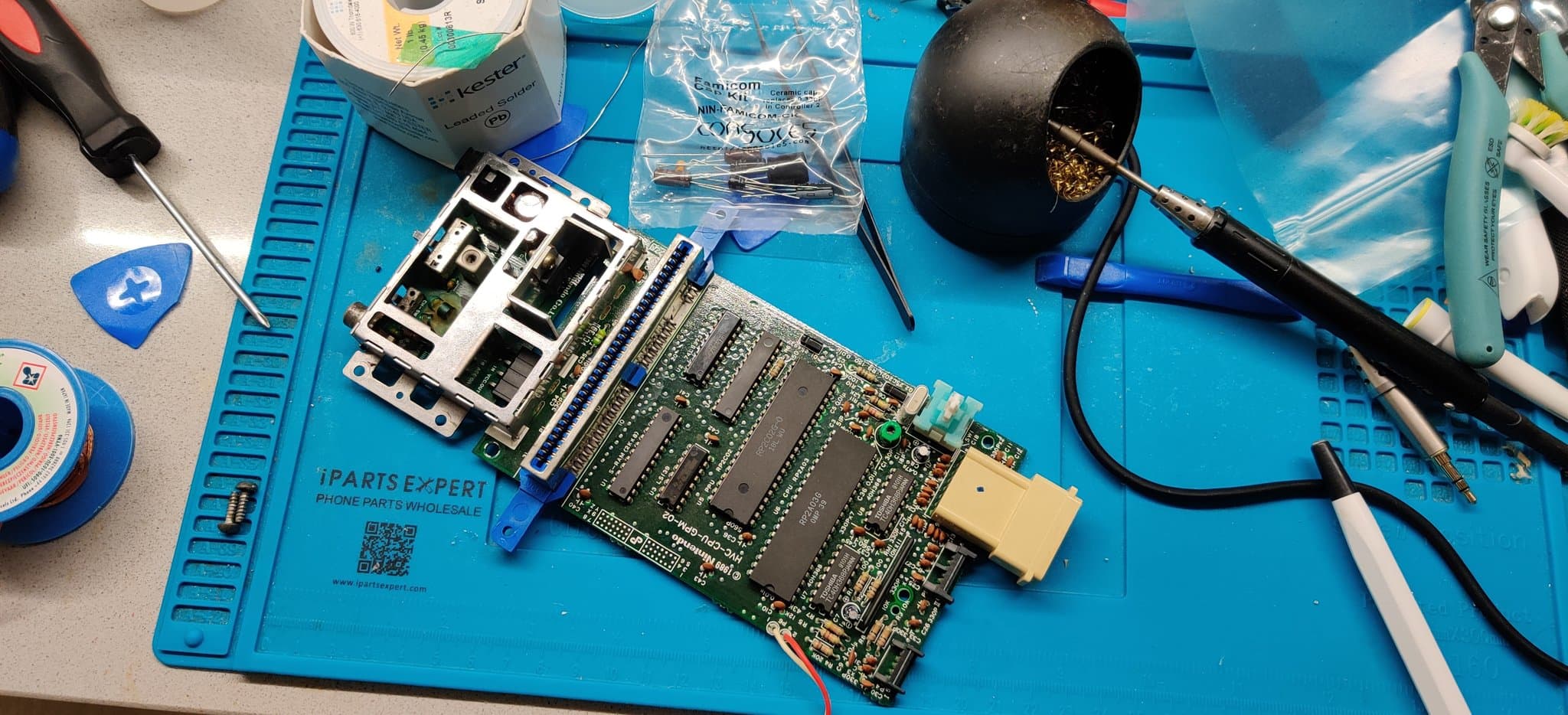

Next was the #Famicom itself. New capacitors and some #Castlevania III for testing. The console seems happy. In time, some retrobrighting will take place as the final piece of maintenance. #Nintendo #RETROGAMING

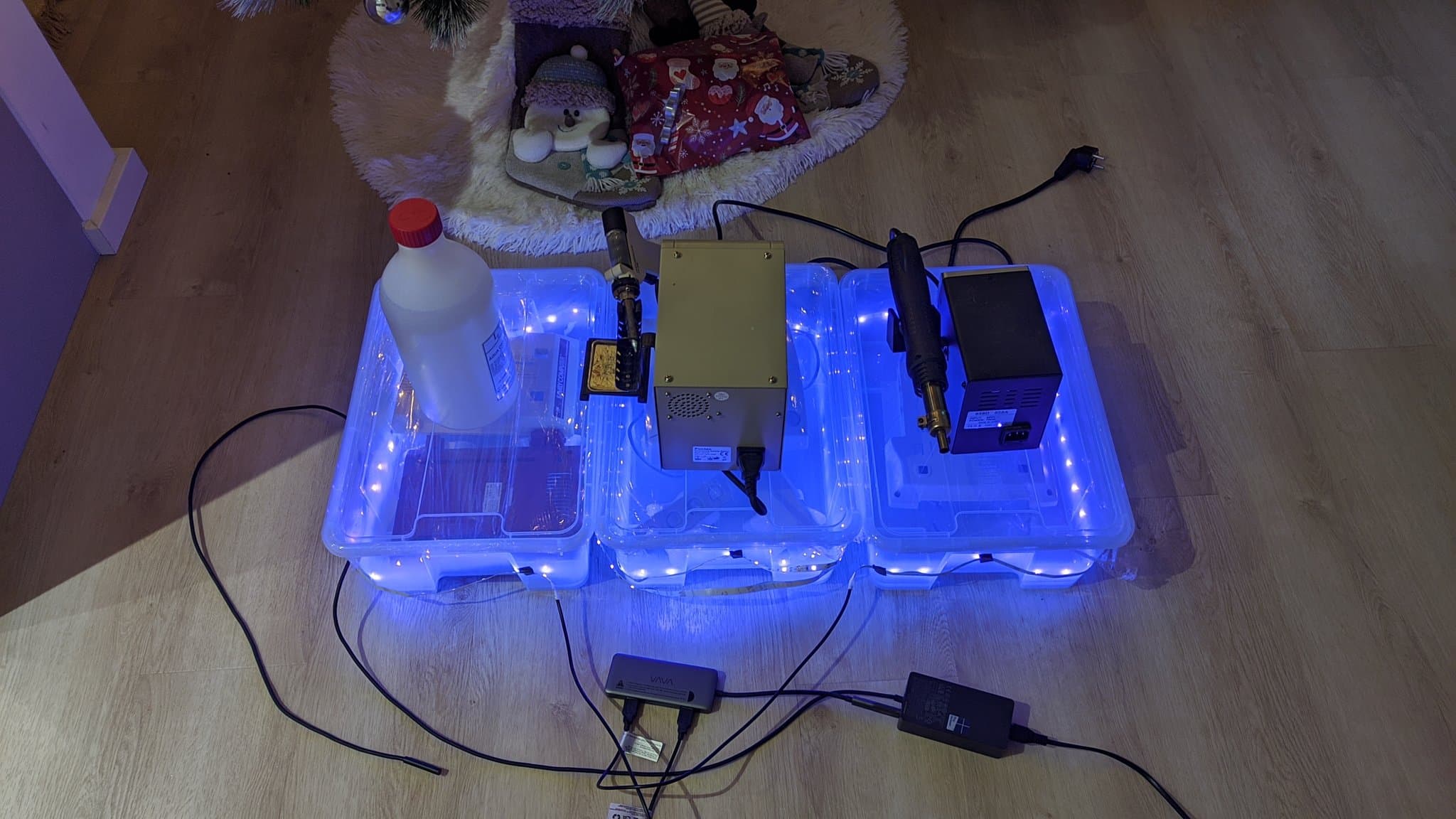

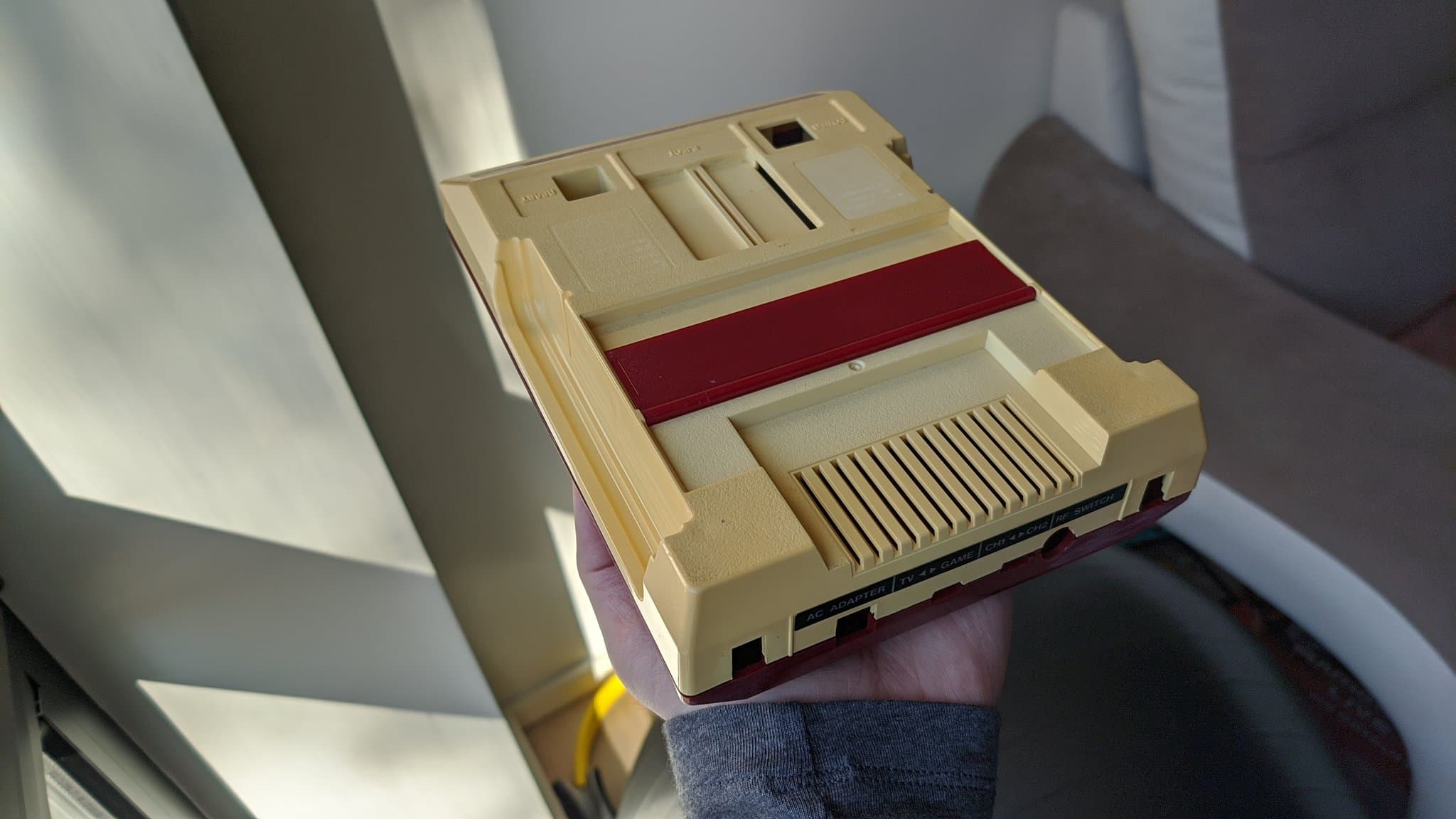

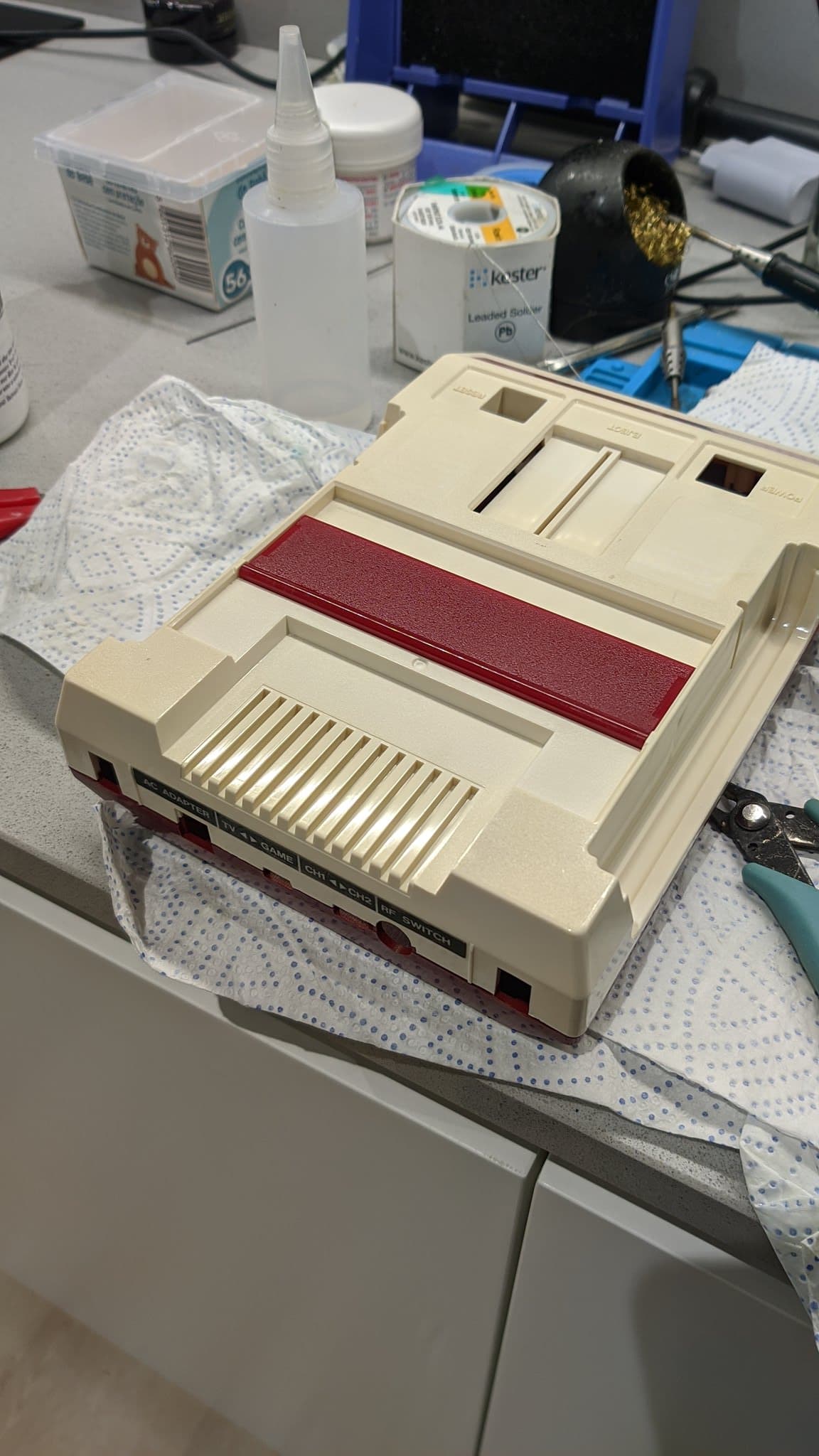

1/3 Well, sometimes things are really just too far gone, as evidenced by the #Nintendo #Famicom shell that I left inside the container for 1 week. It is better but it seems like it hit a point past which the plastic colour, simply does not improve. #RetroGaming #retrobrighting

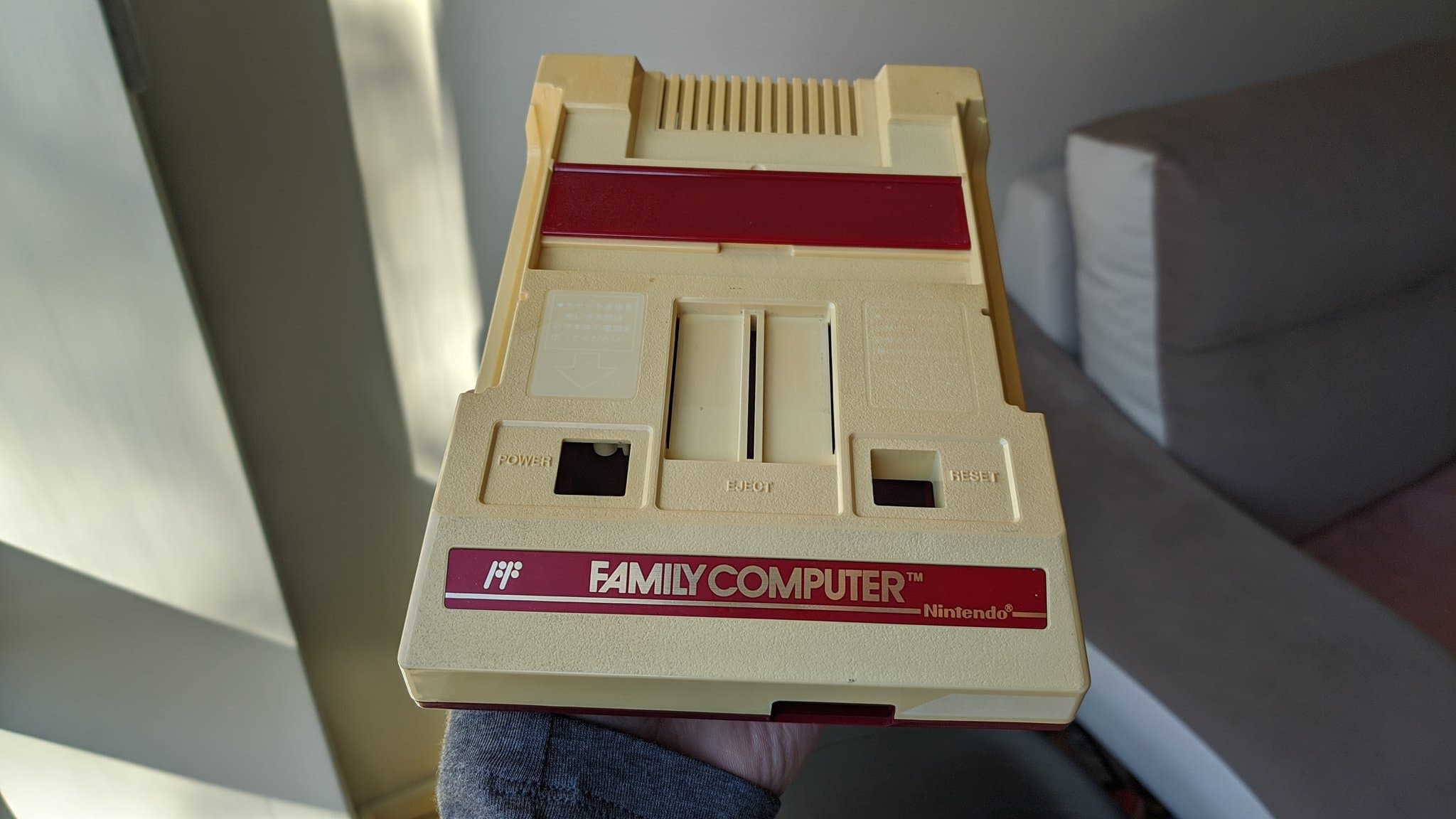

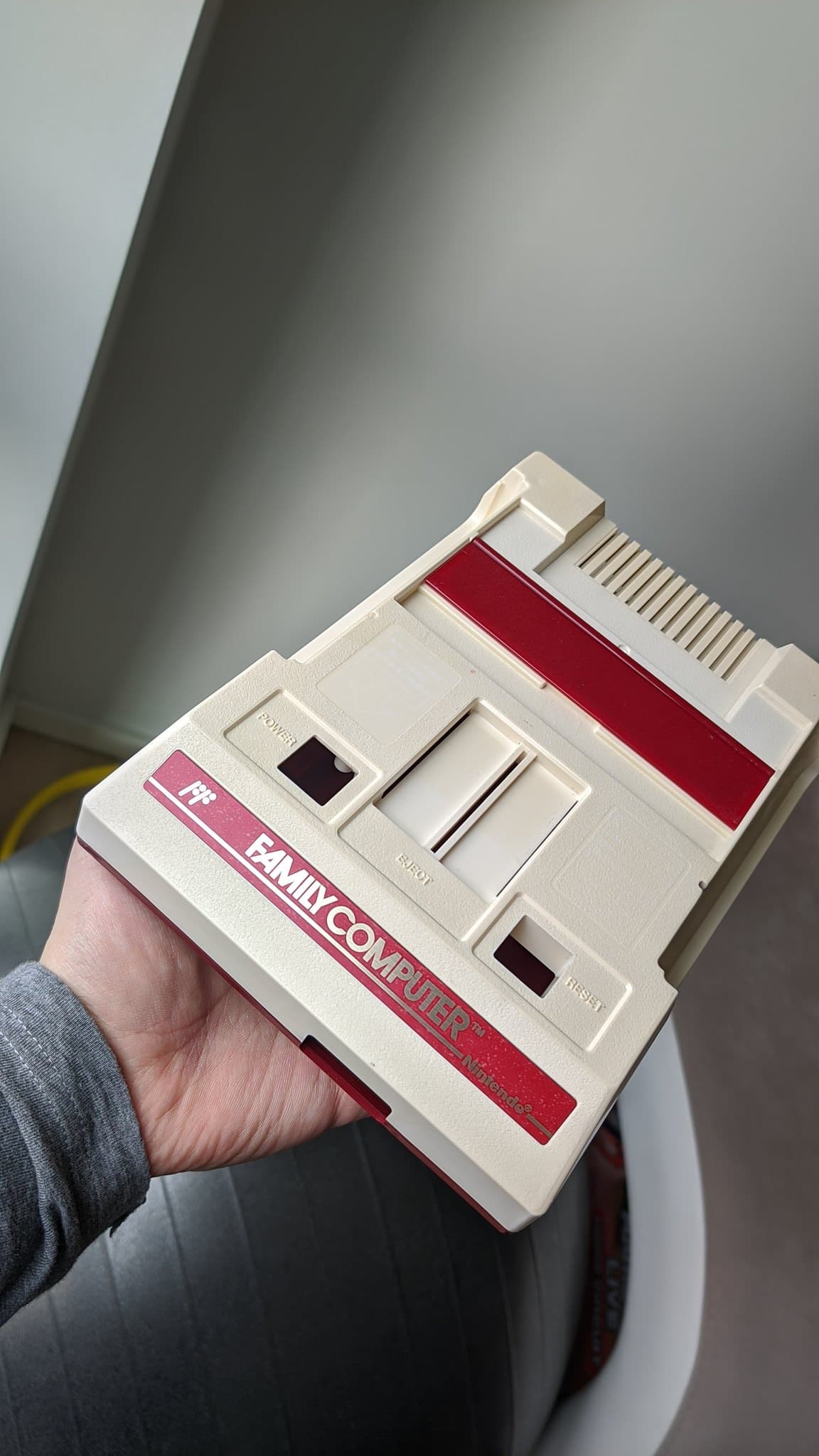

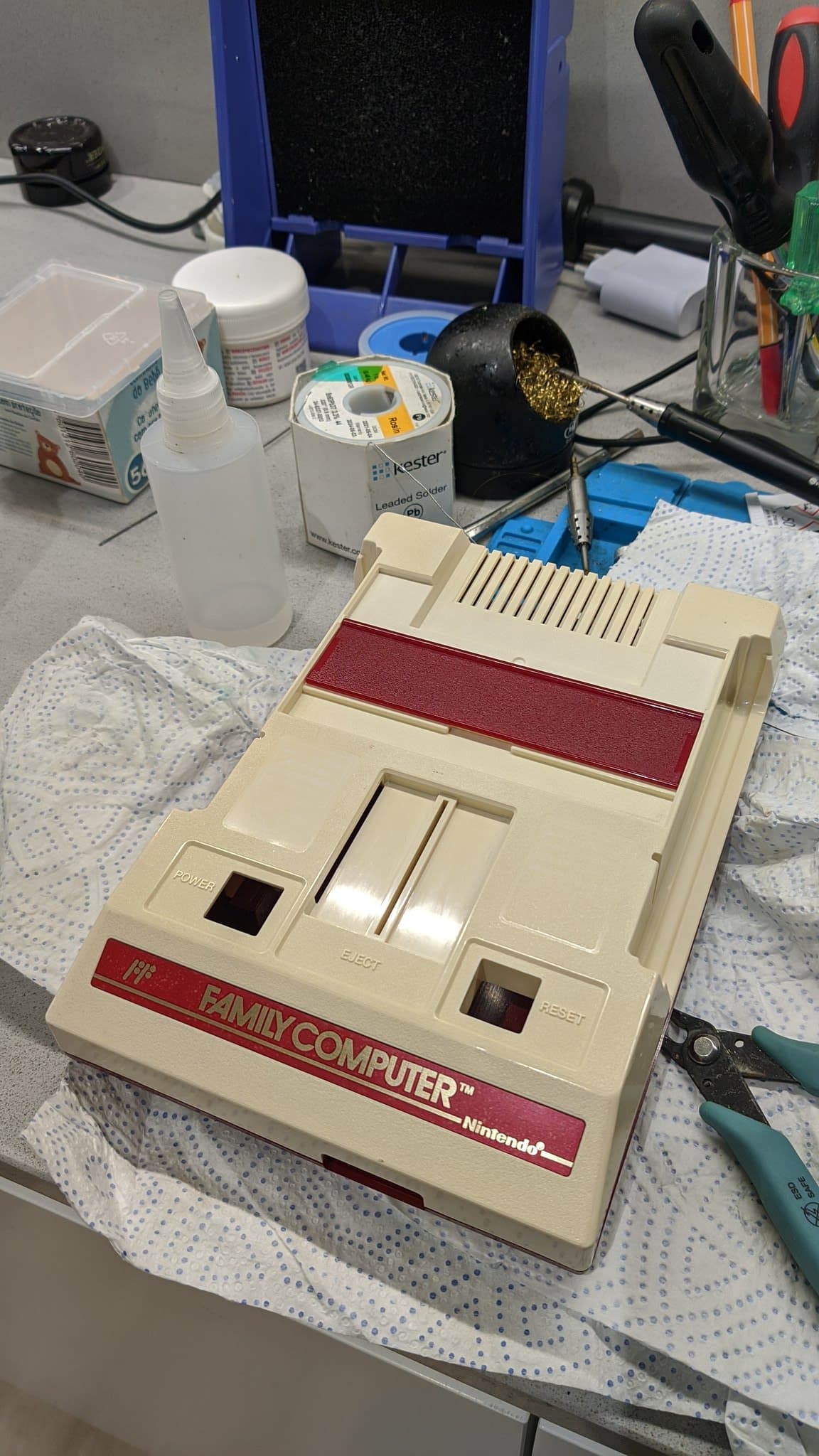

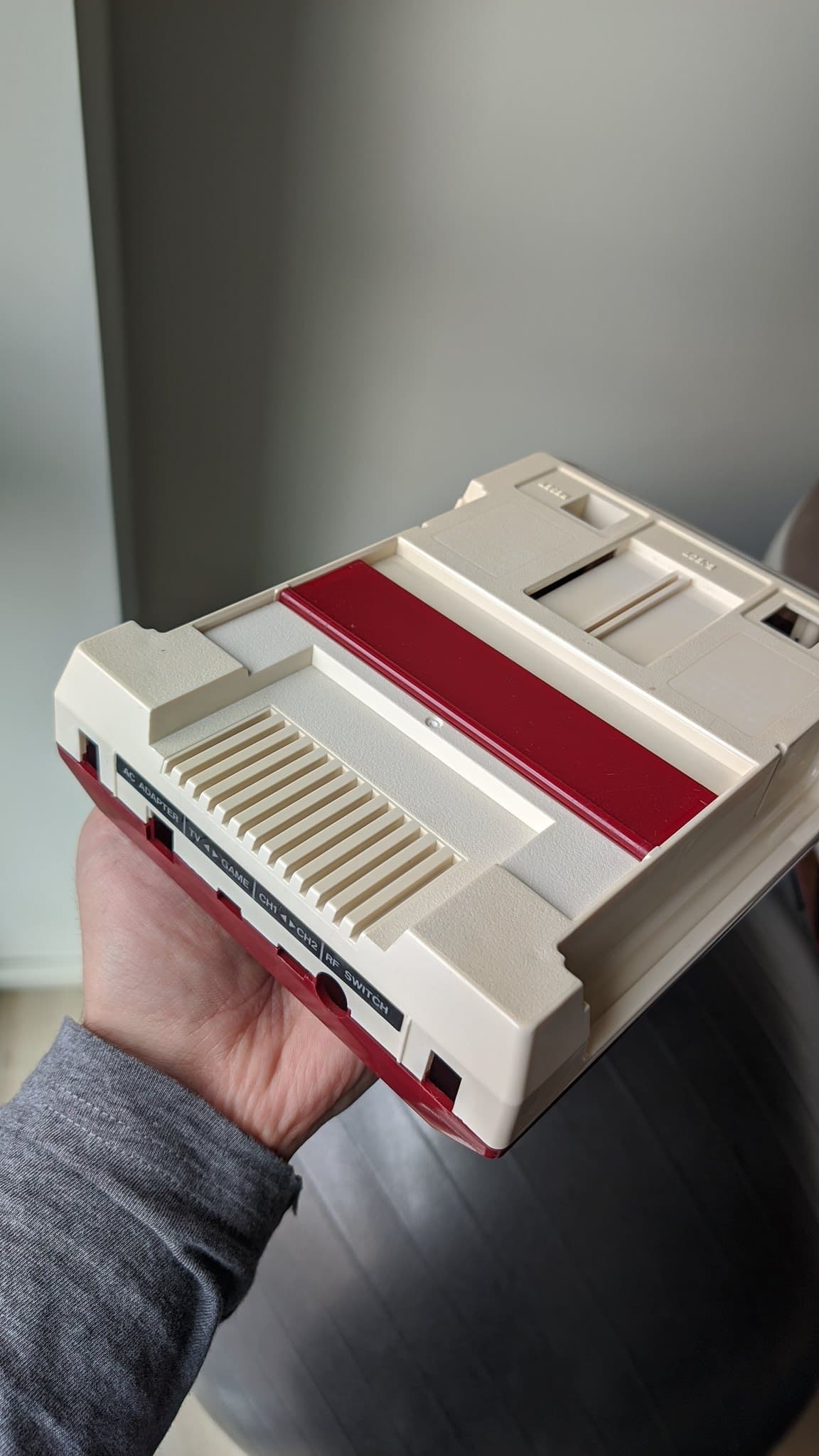

2/3 End result in these pictures.

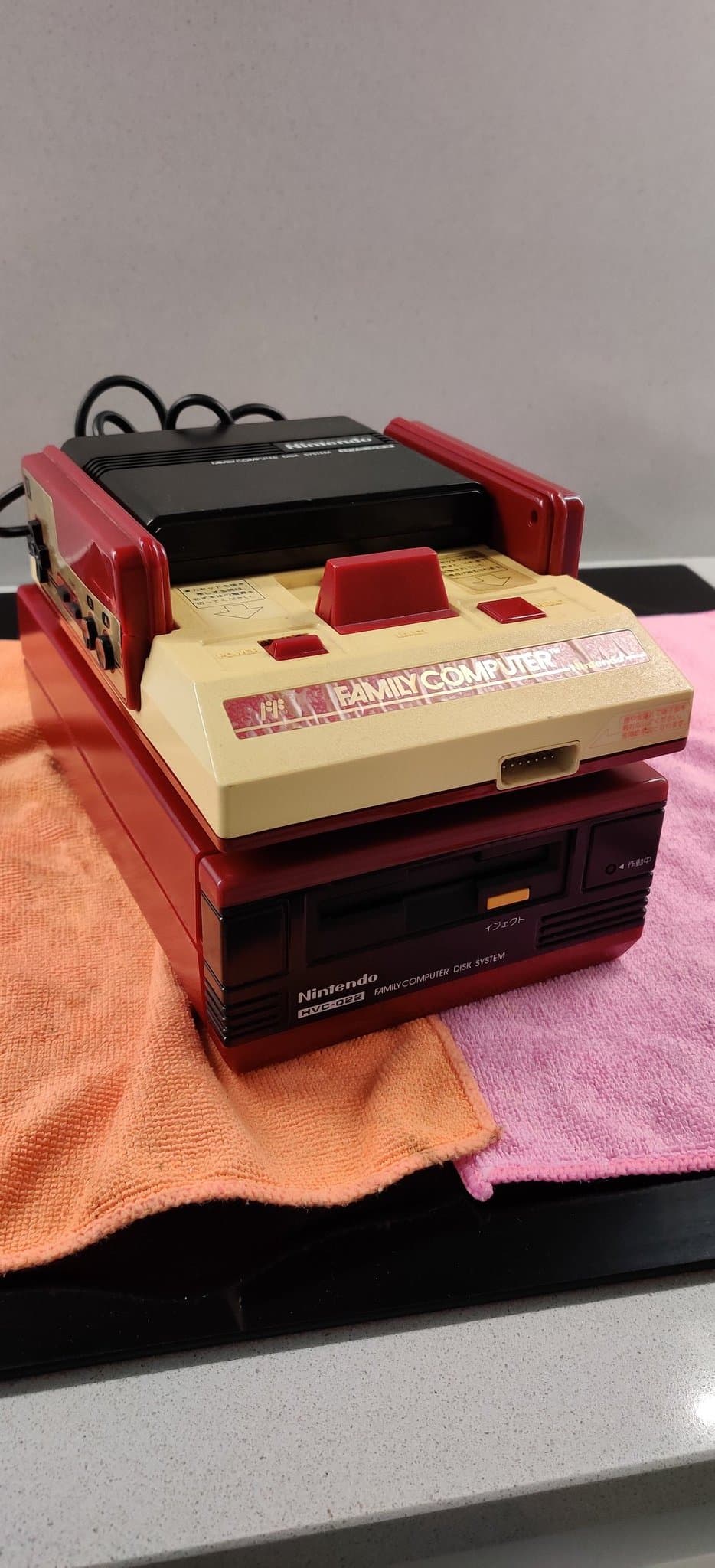

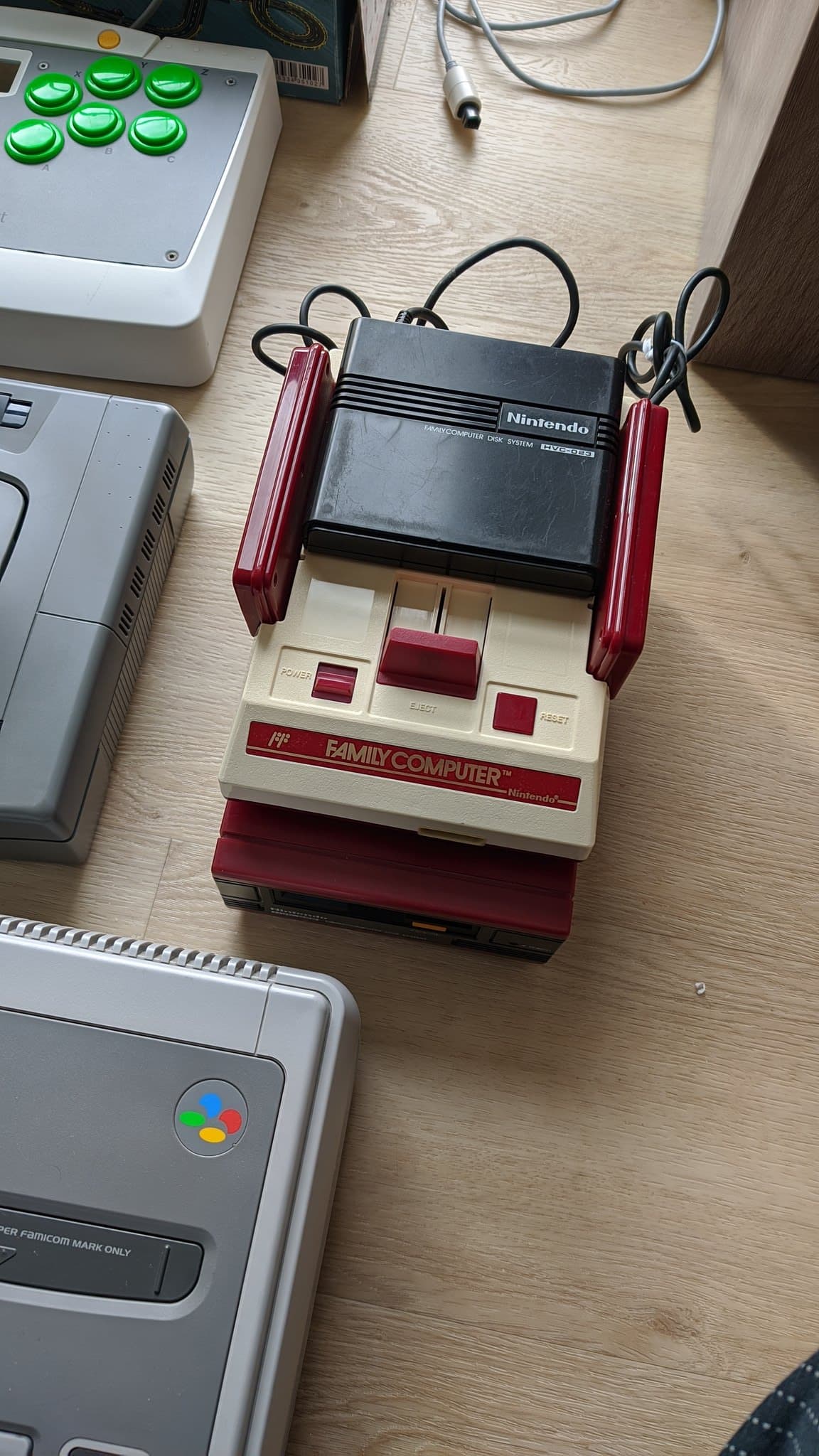

3/3 Completely assembled and paired again with its Disk System buddy. These two are inseparable. 😄

I bring you today, the Christmas #Famicom to spread joy and cheer. Merry Christmas folks! I hope this year has been filled with gaming and overall goodness for all of you out there. #RETROGAMING #Nintendo #Christmas #XmasEve

Hey @RgRDev, got my Famicom Power Board in the mail. Sadly, with the instructions on the site I'm not sure on how to assemble it. The connector has more wires than a GPM-02 board requires, I don't know which to use. Can you provide some directions please? Your DMs are closed BTW.

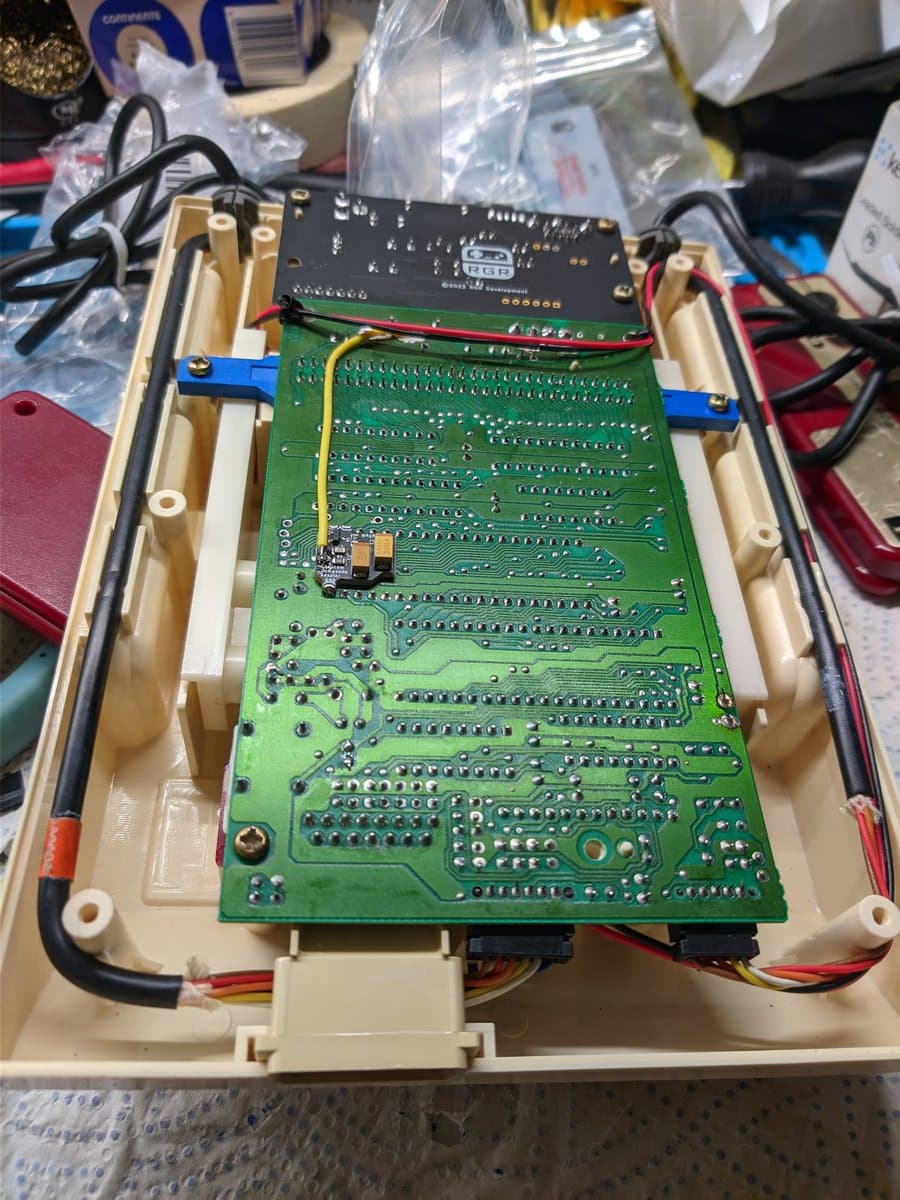

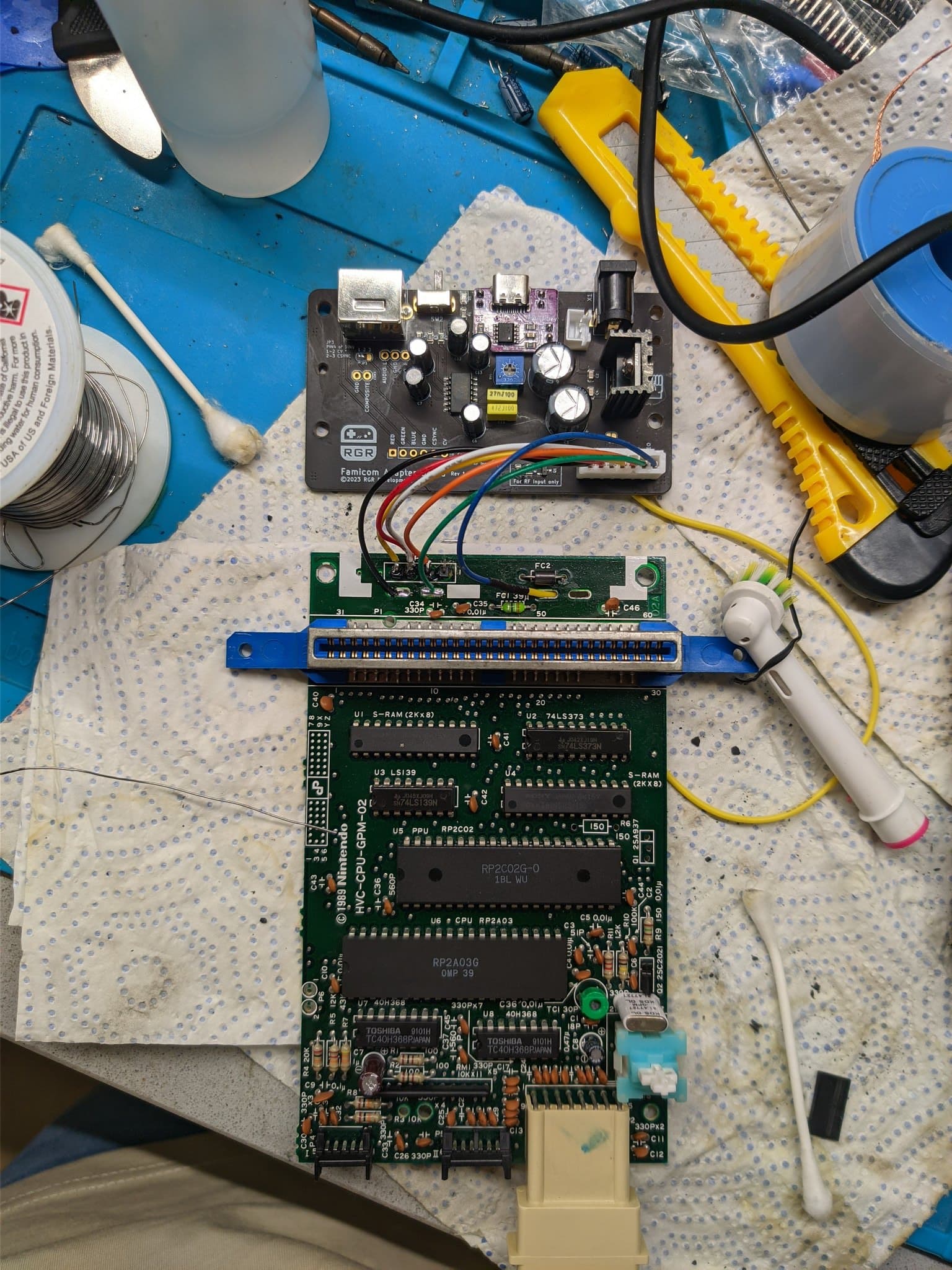

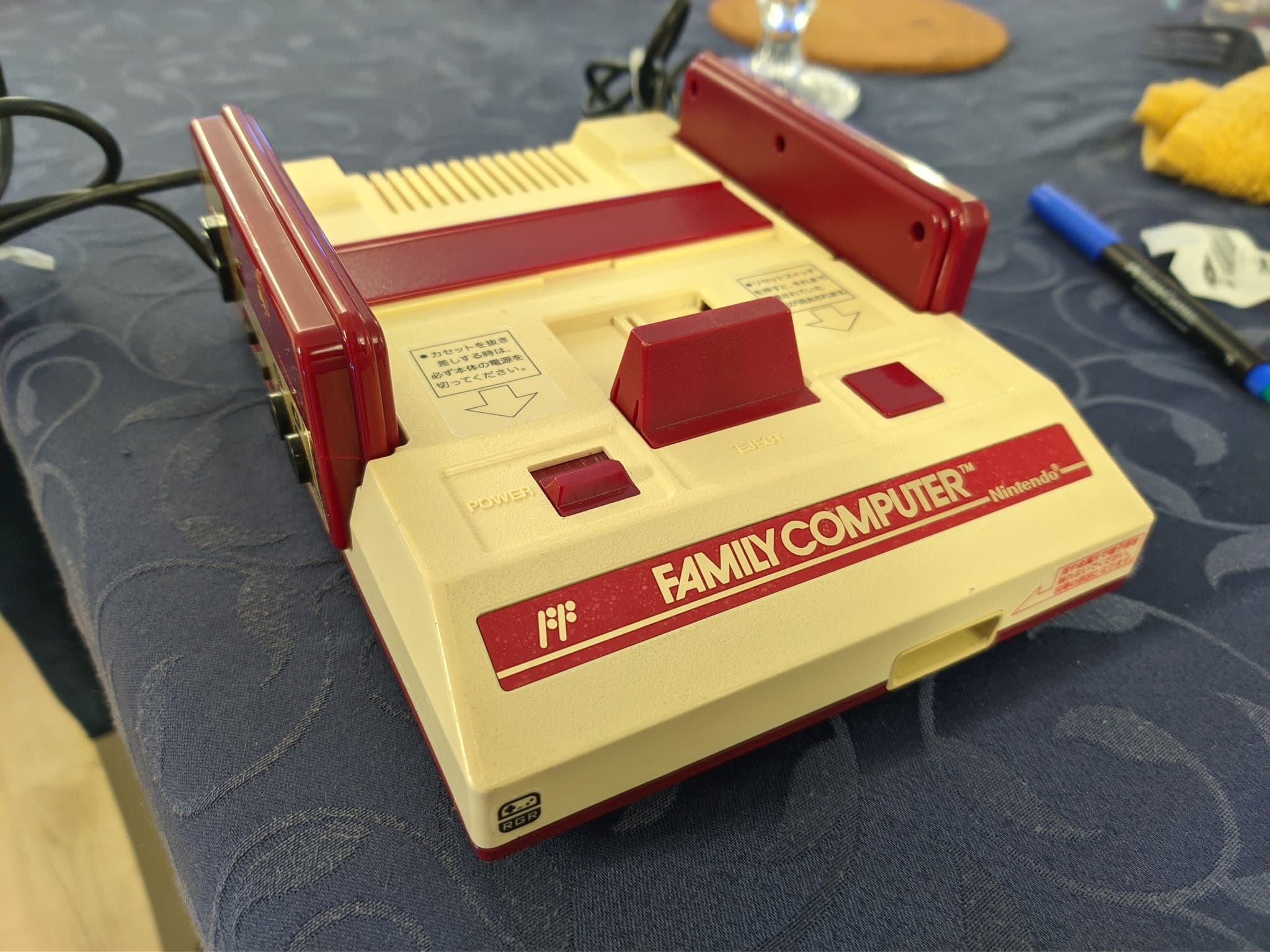

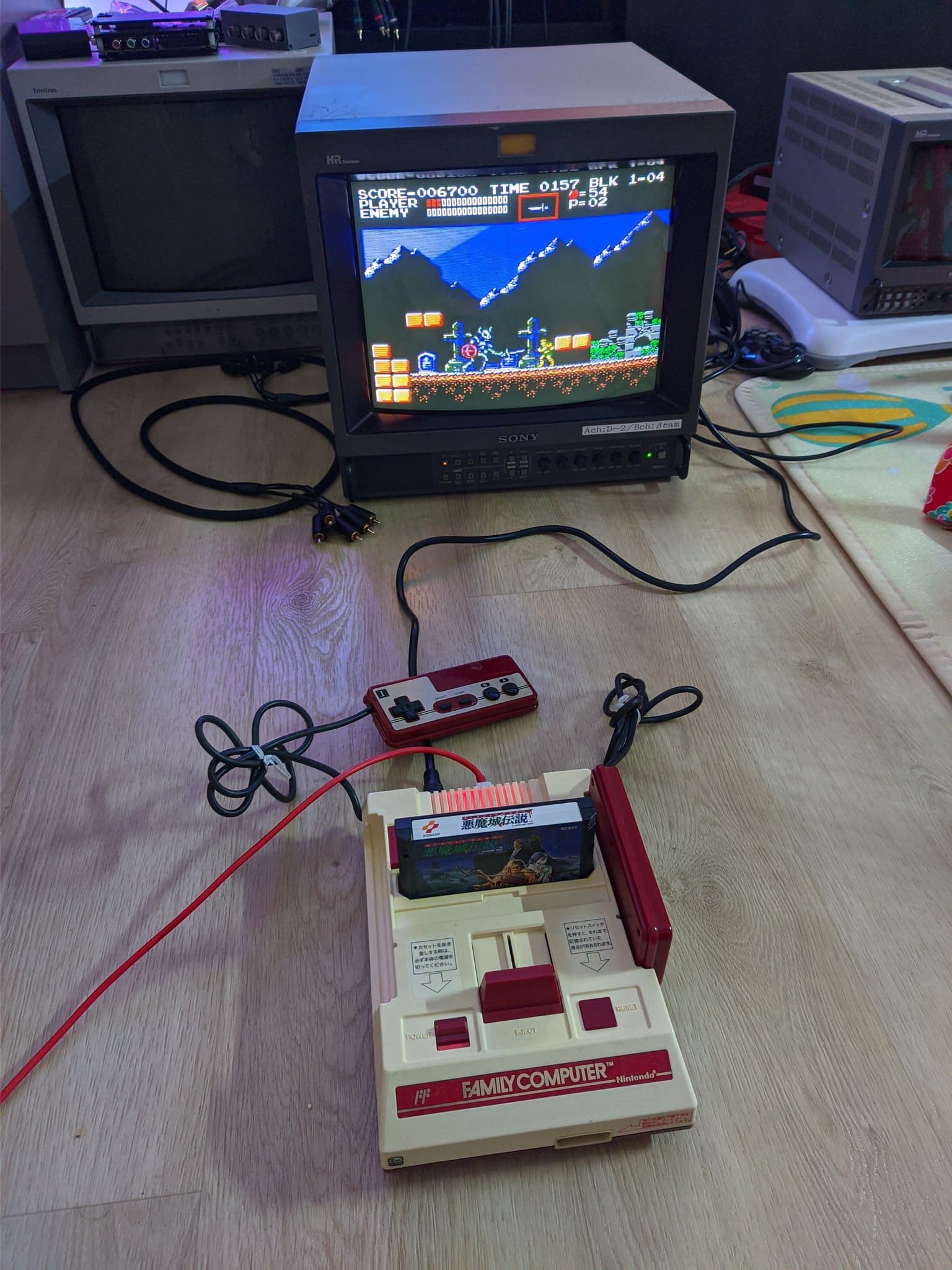

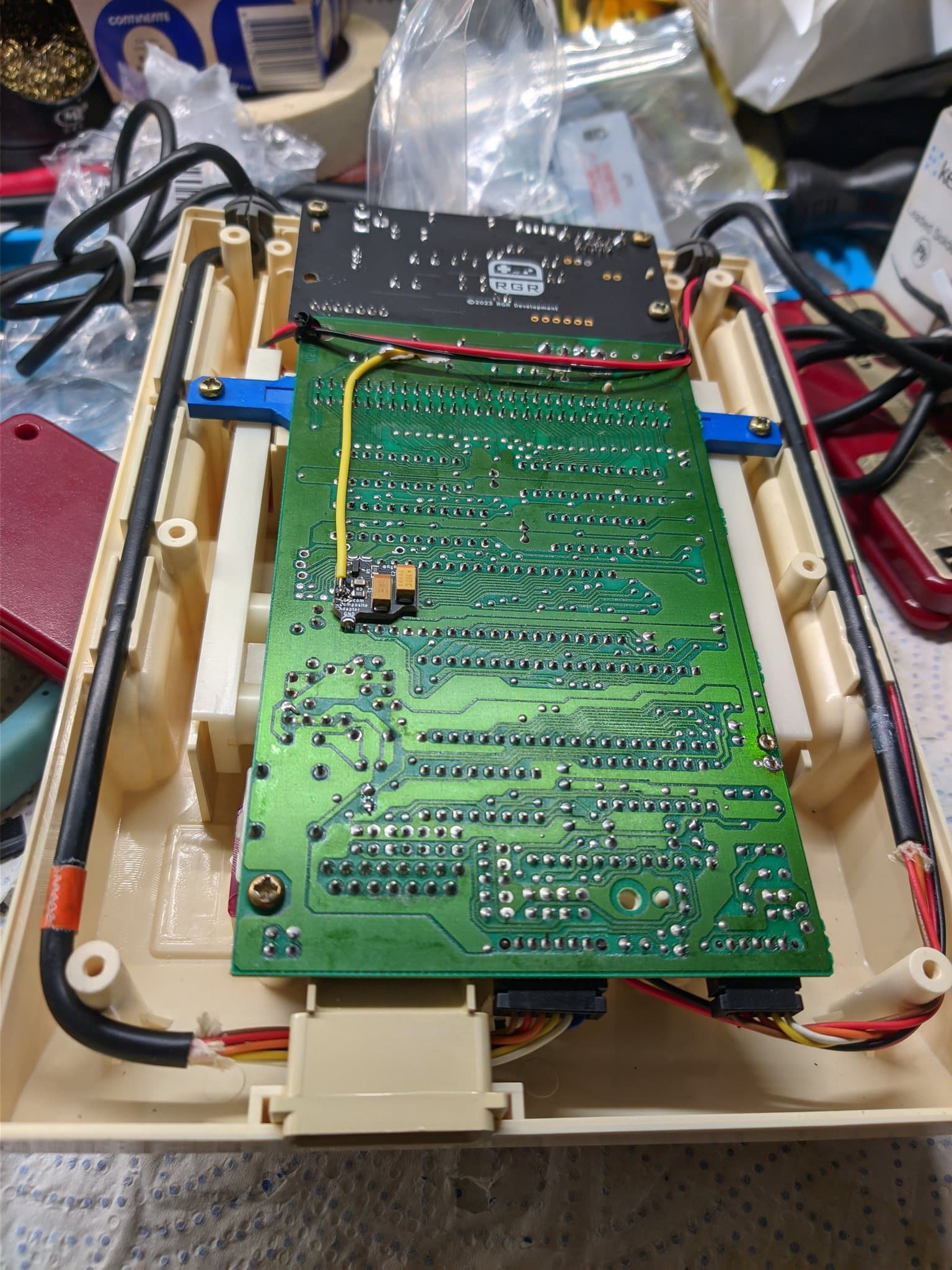

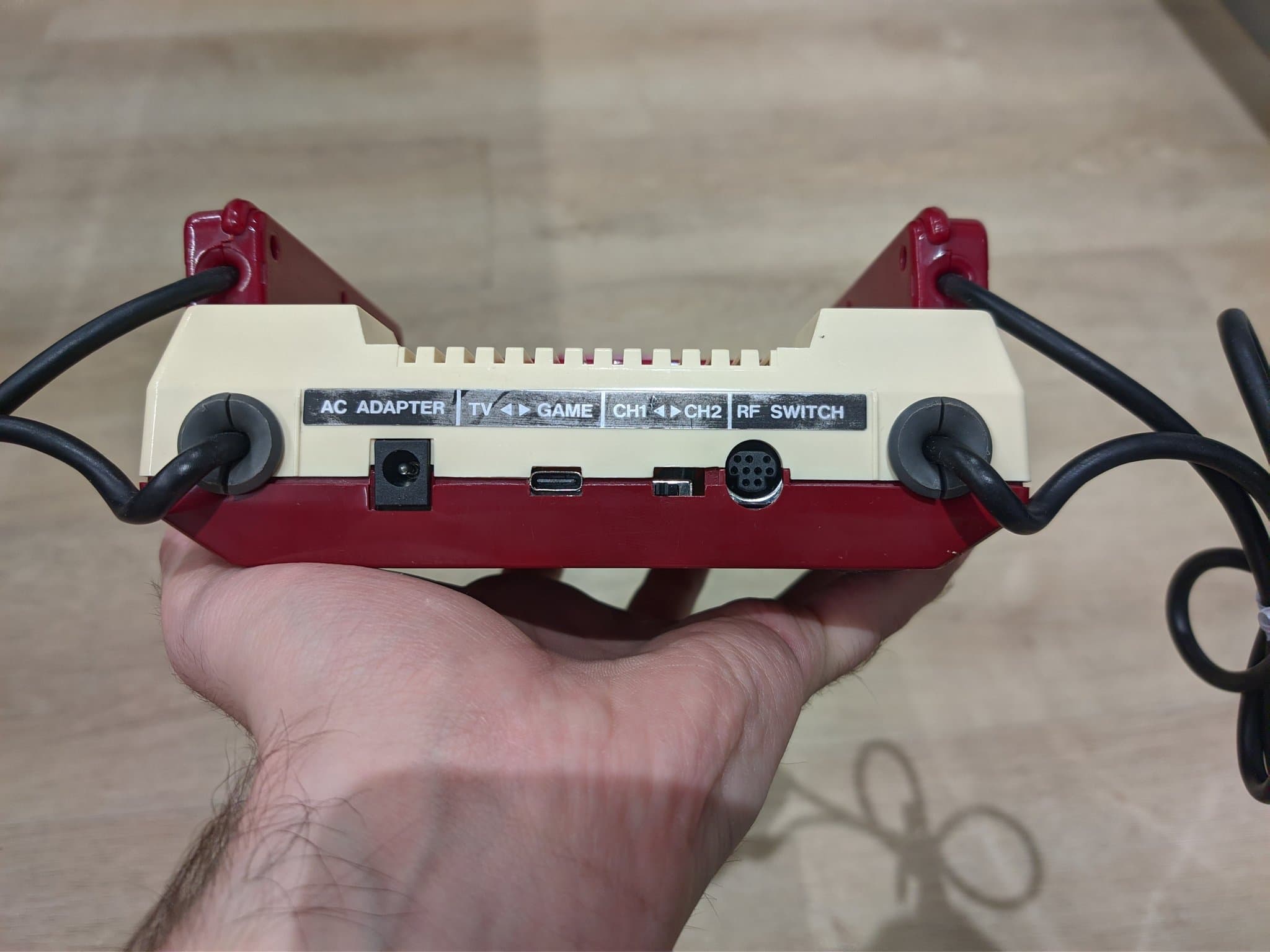

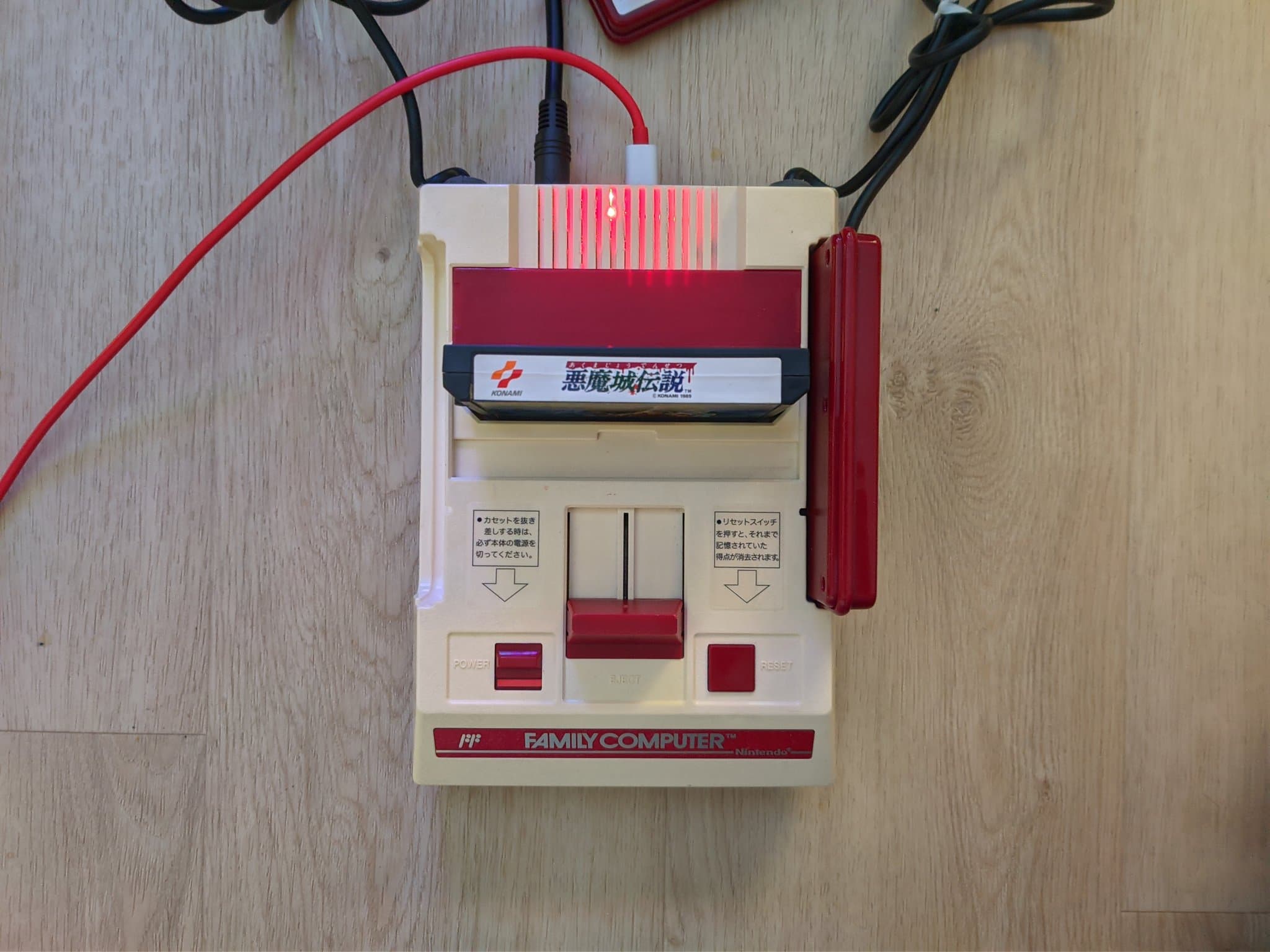

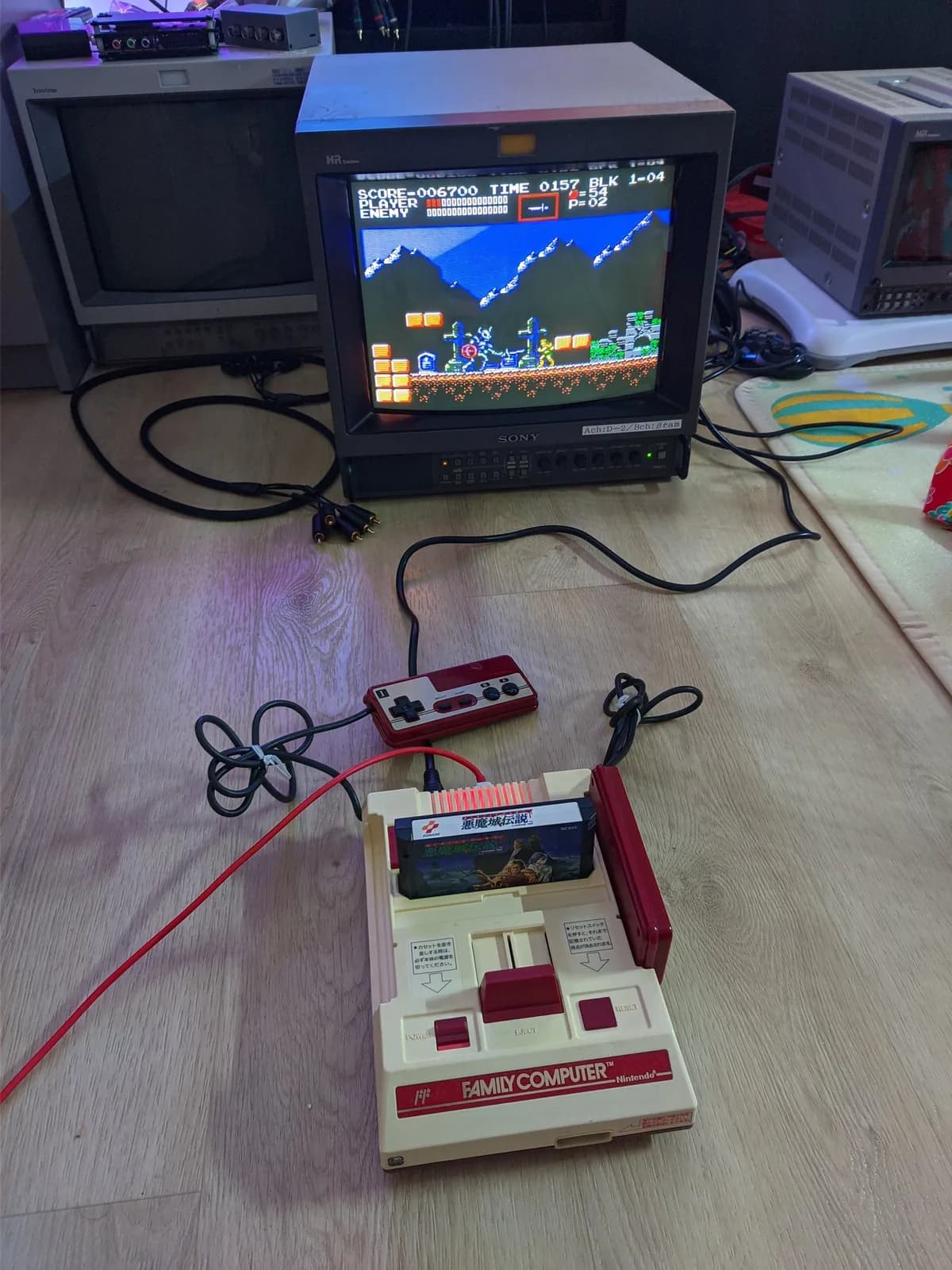

I might improve the wiring in the future but for now it is working well. Shoutout to @RgRDev for making a #Famicom power board and a sweet composite adapter. It's nice to have a no cut way of getting composite out of these consoles. Added some new stickers too. #RETROGAMING

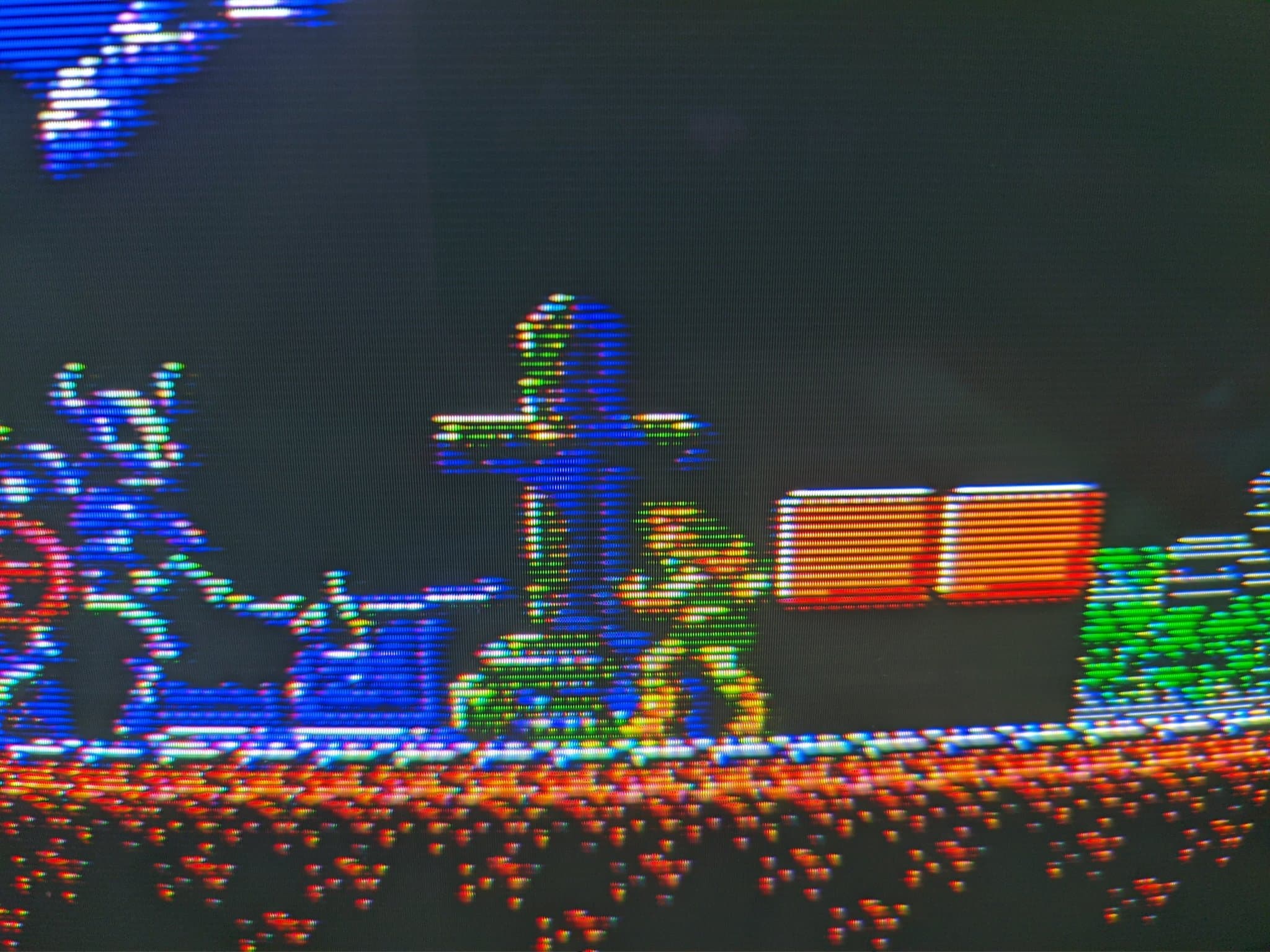

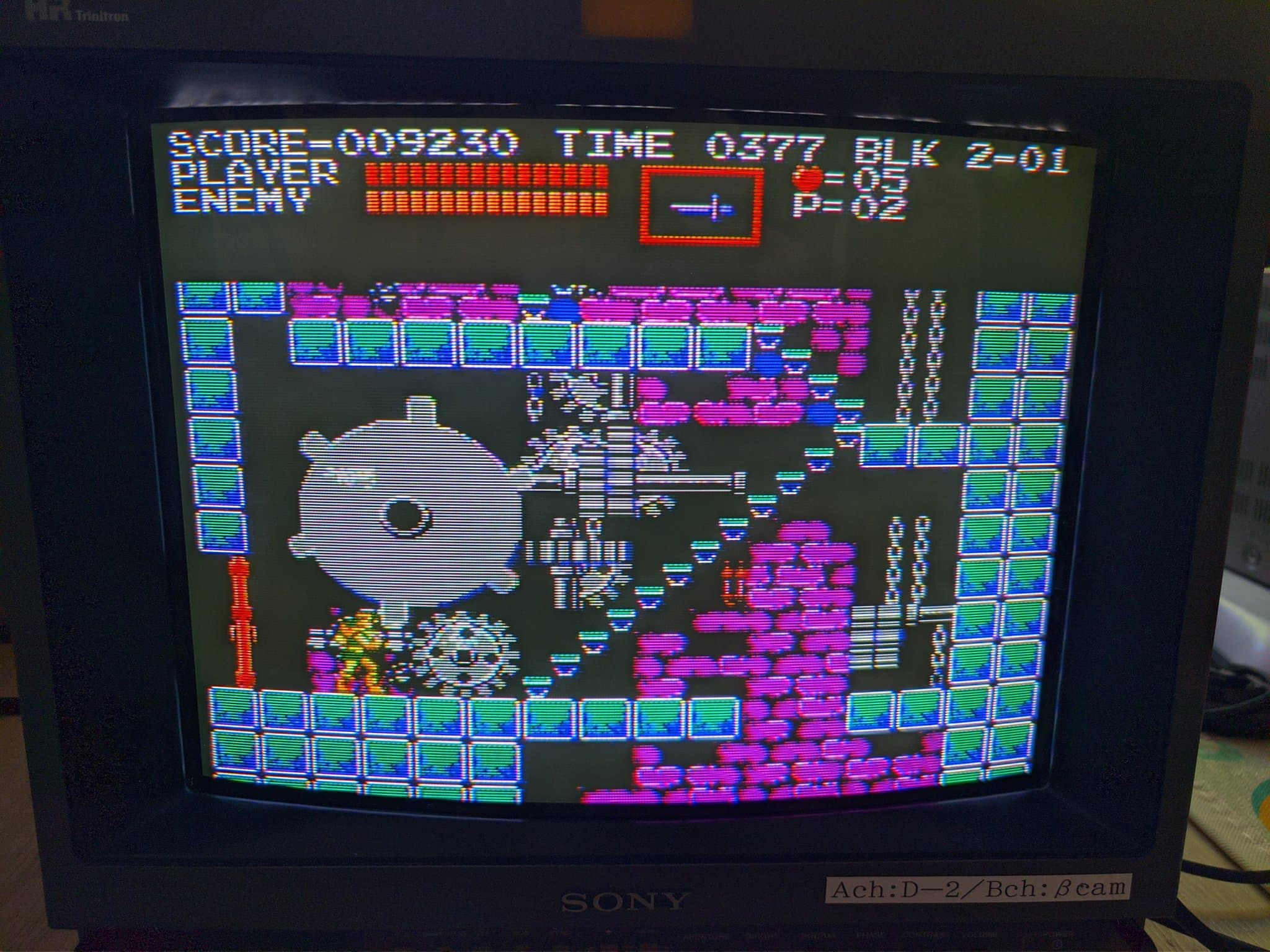

Playing one of my favourite games to celebrate, #Castlevania 3. #RETROGAMING #Nintendo #Akumajou
