Nintendo Super Famicom Jr. (SHVC-101) Recap & Upgrades

September 12, 20253 threads~1 min read

Recap Voltage-regulator swap AV output mod

Full refresh on this well-kept Nintendo Super Famicom Jr. (SHVC-101): recap, 7805 voltage regulator swap, shell clean, and a Borti4938 RGB bypass board install with brightness and ghosting fix component swaps.

Parts & Tools (1)

1-Chip / SNES Jr. RGB bypass + csync mod

PCPTech RGB bypass / video enhance / csync mod for the SNES Mini / Super Famicom Jr. / 1-chip SNES.

hitmanmcc

September 12, 2025· Thread 1· 4 tweets

View on X ↗View on Bluesky ↗

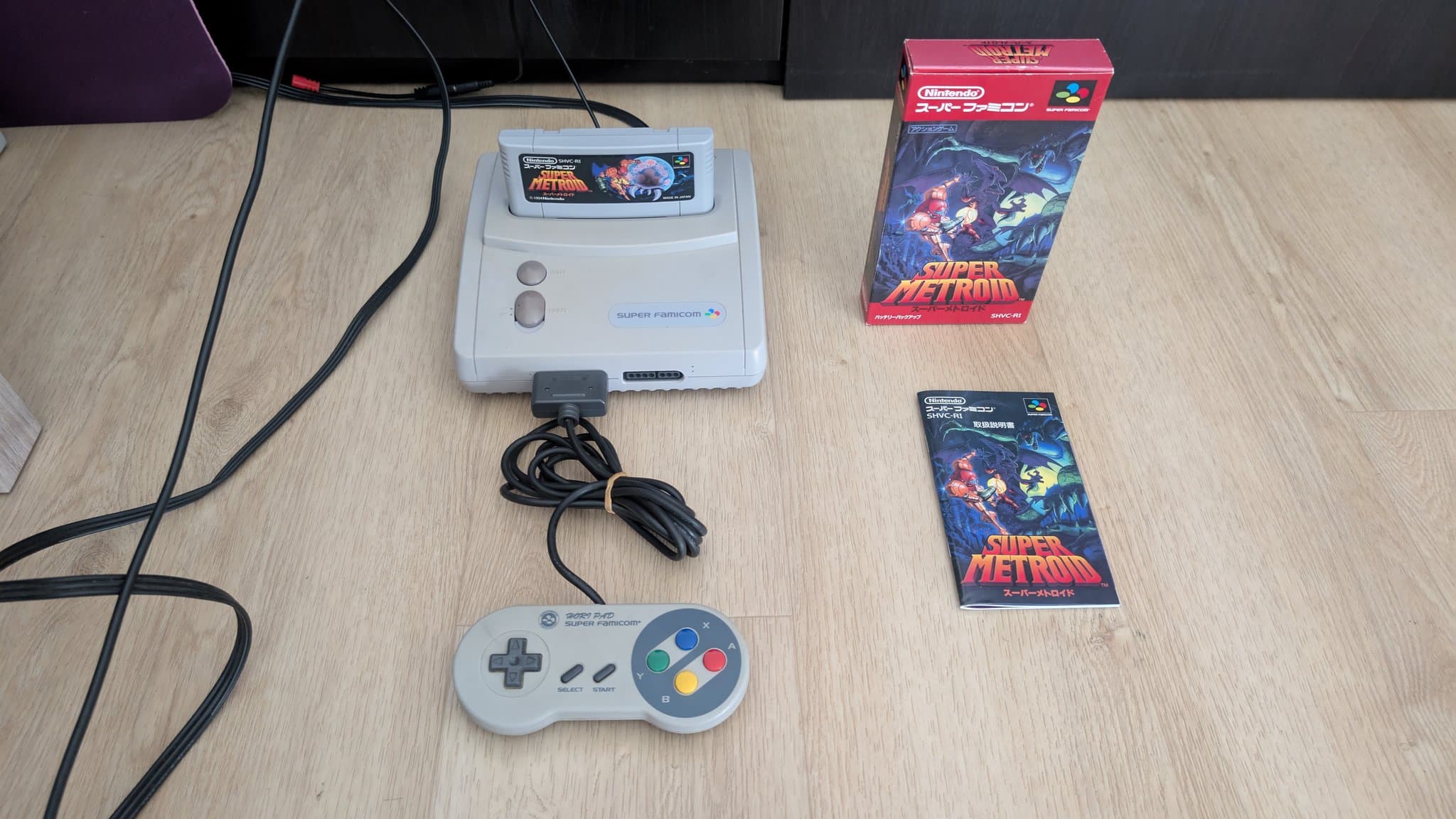

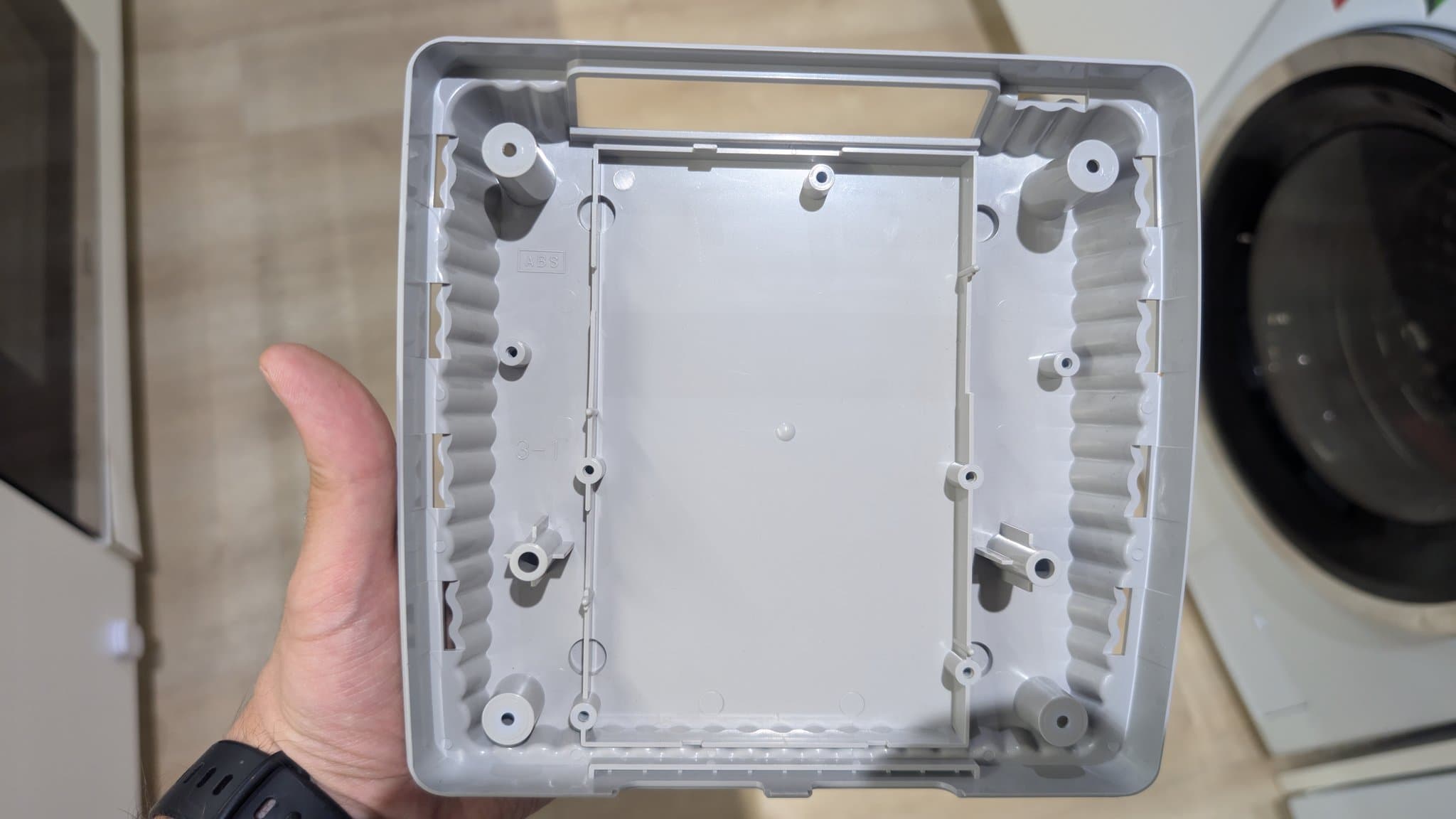

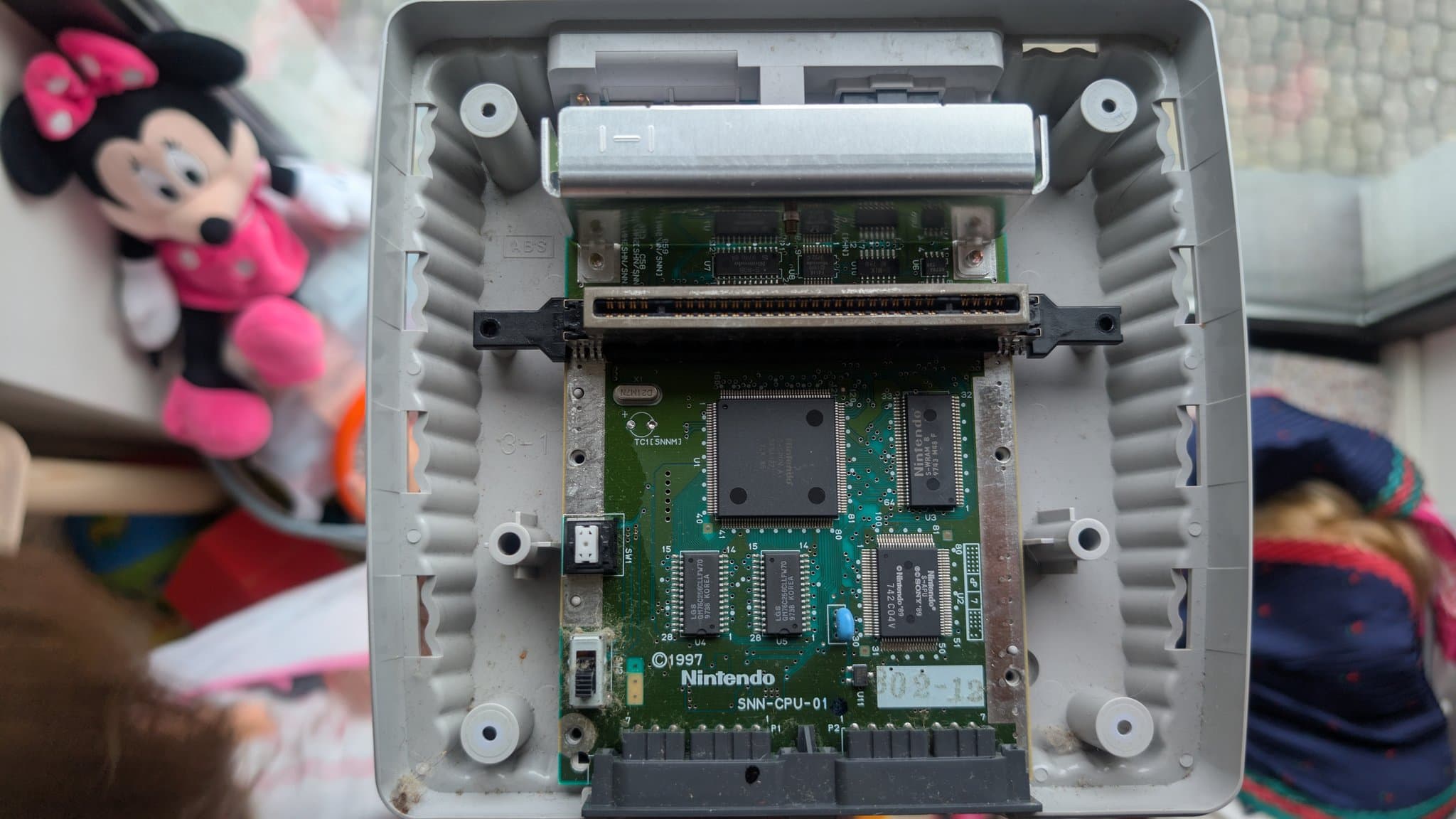

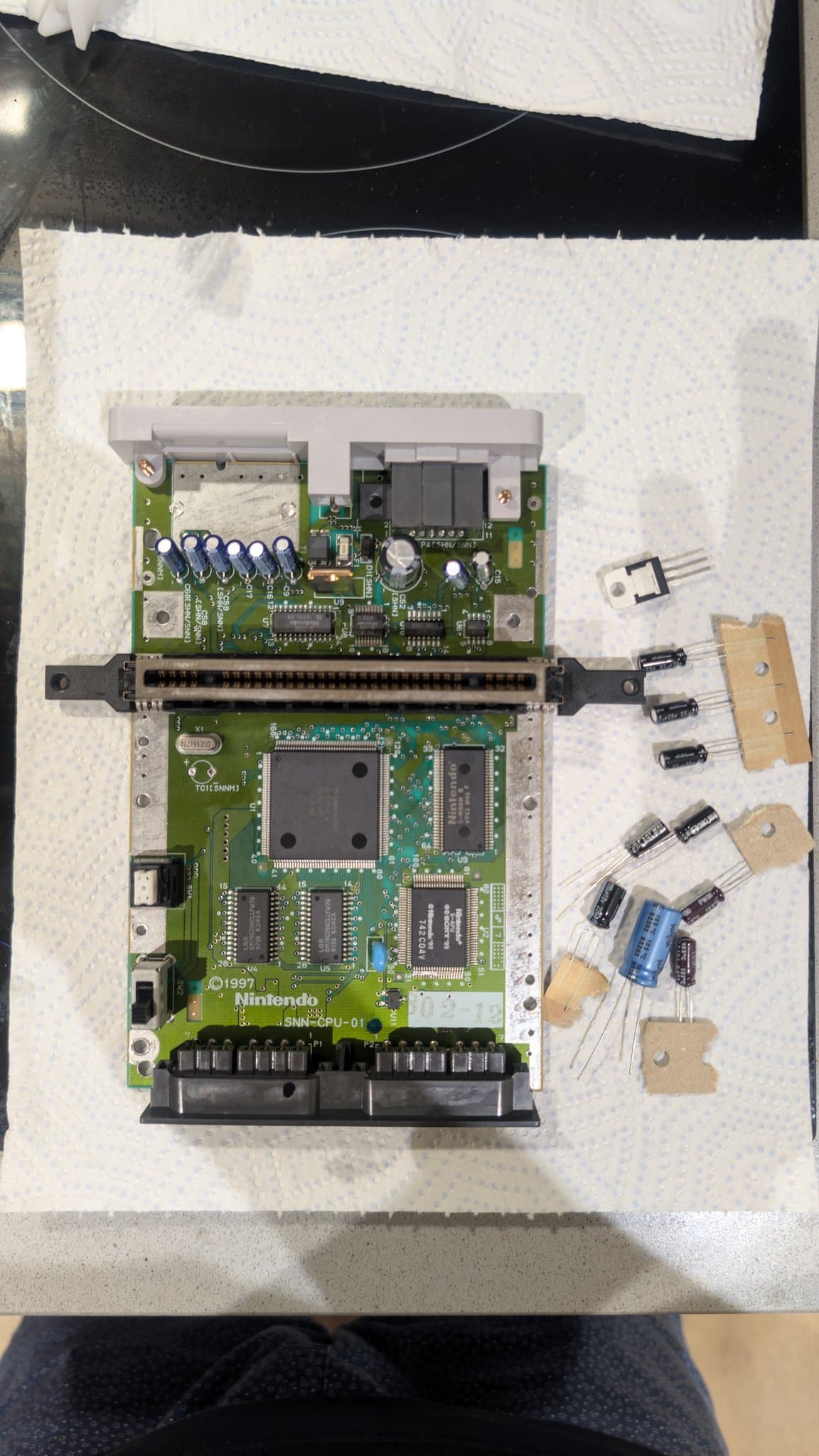

1/4 Opened up the Super Famicom JR. to recap and found some dust bunnies. #SNES #Famicom

2 / 4

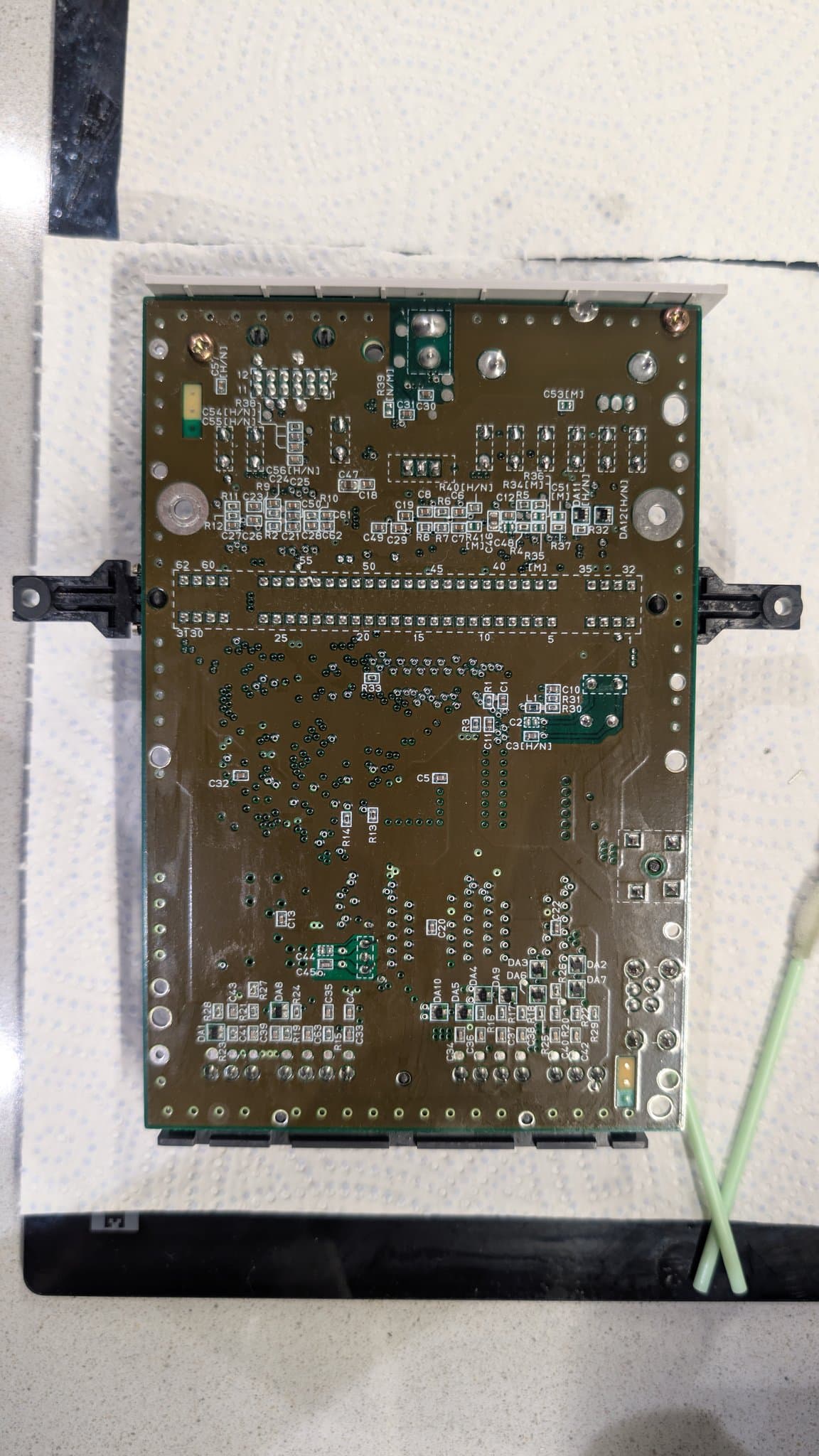

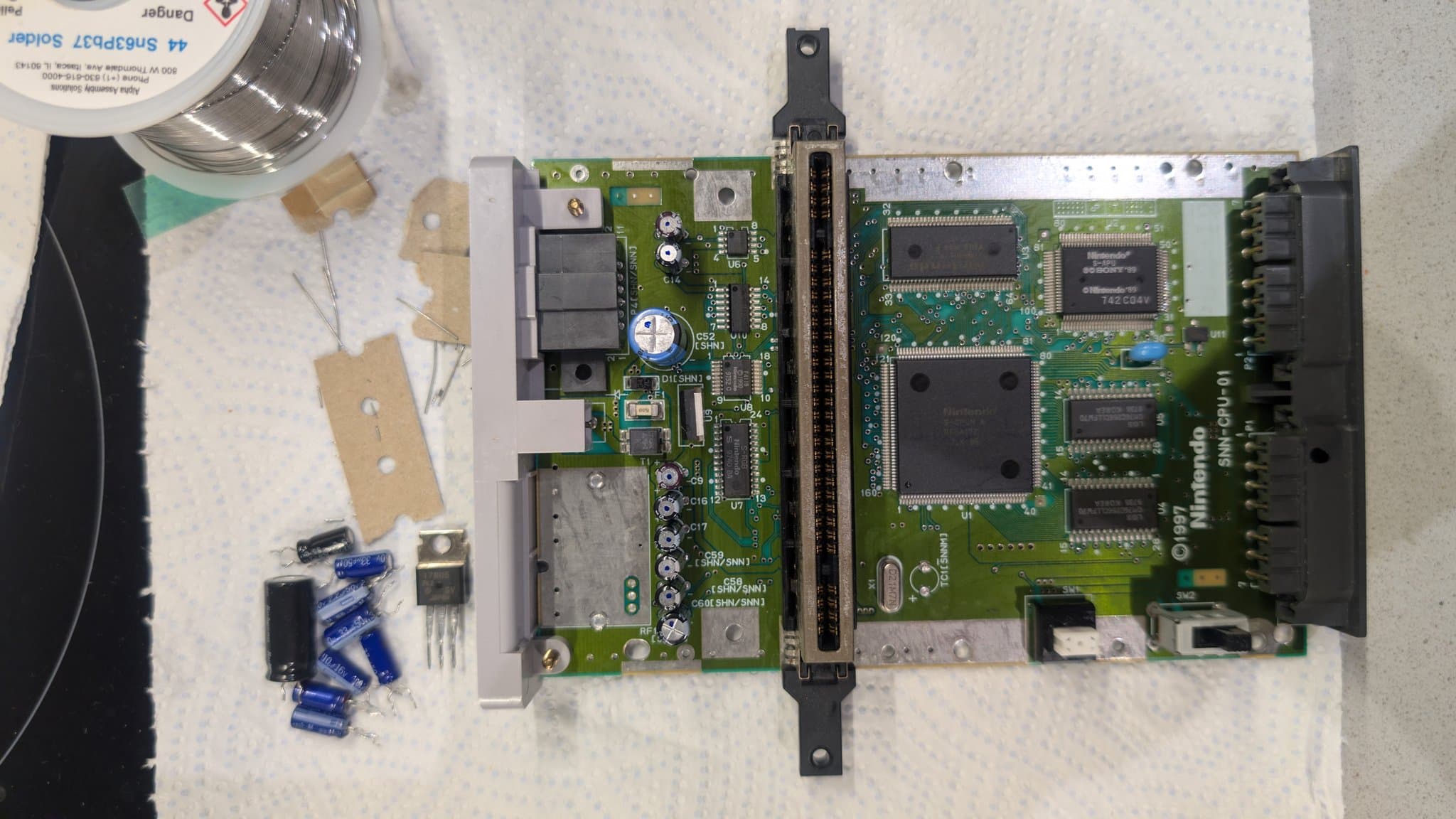

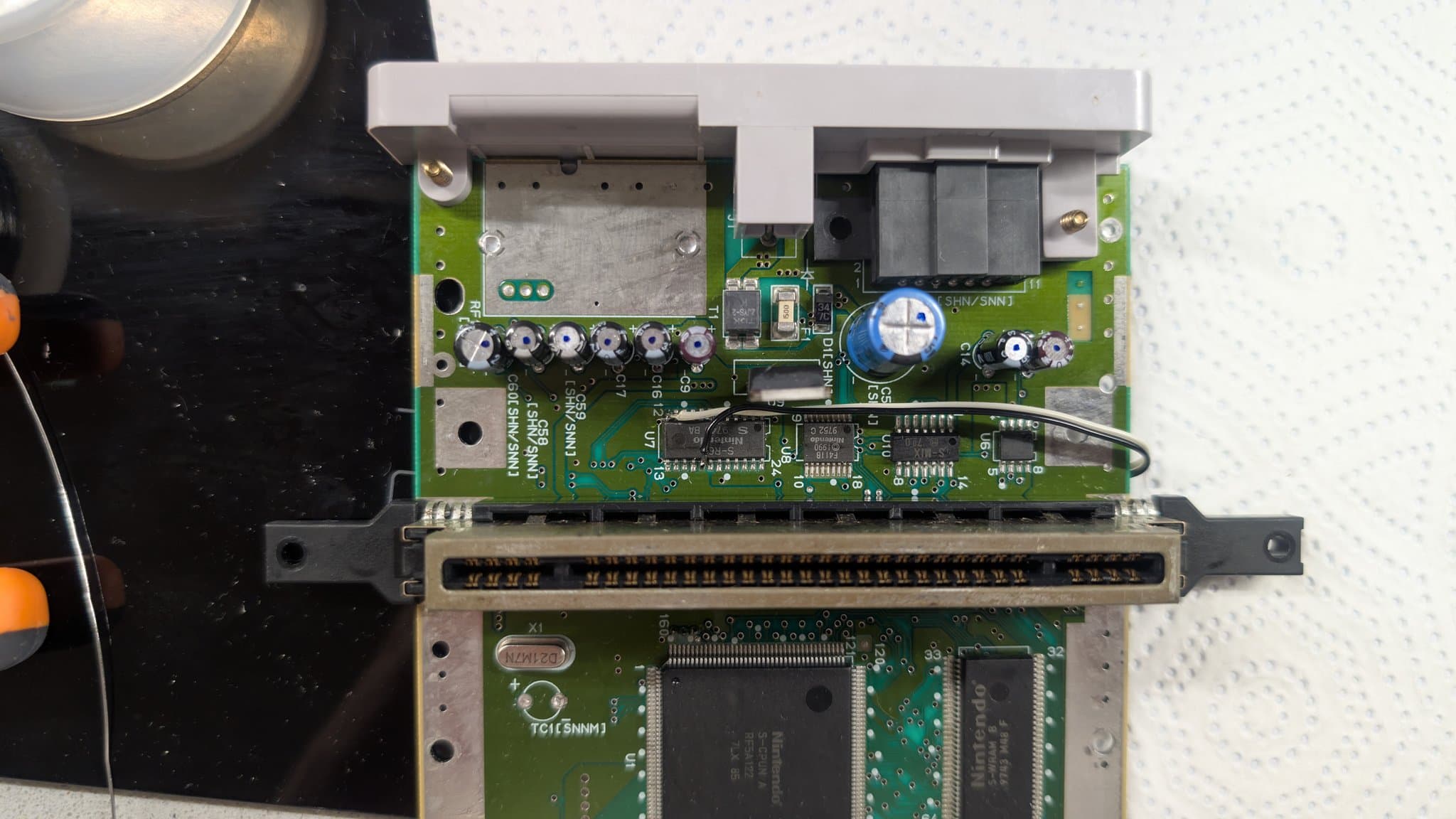

2/4 Here it is, recapped, new regulator and a cleaned shell. #restoration

3 / 4

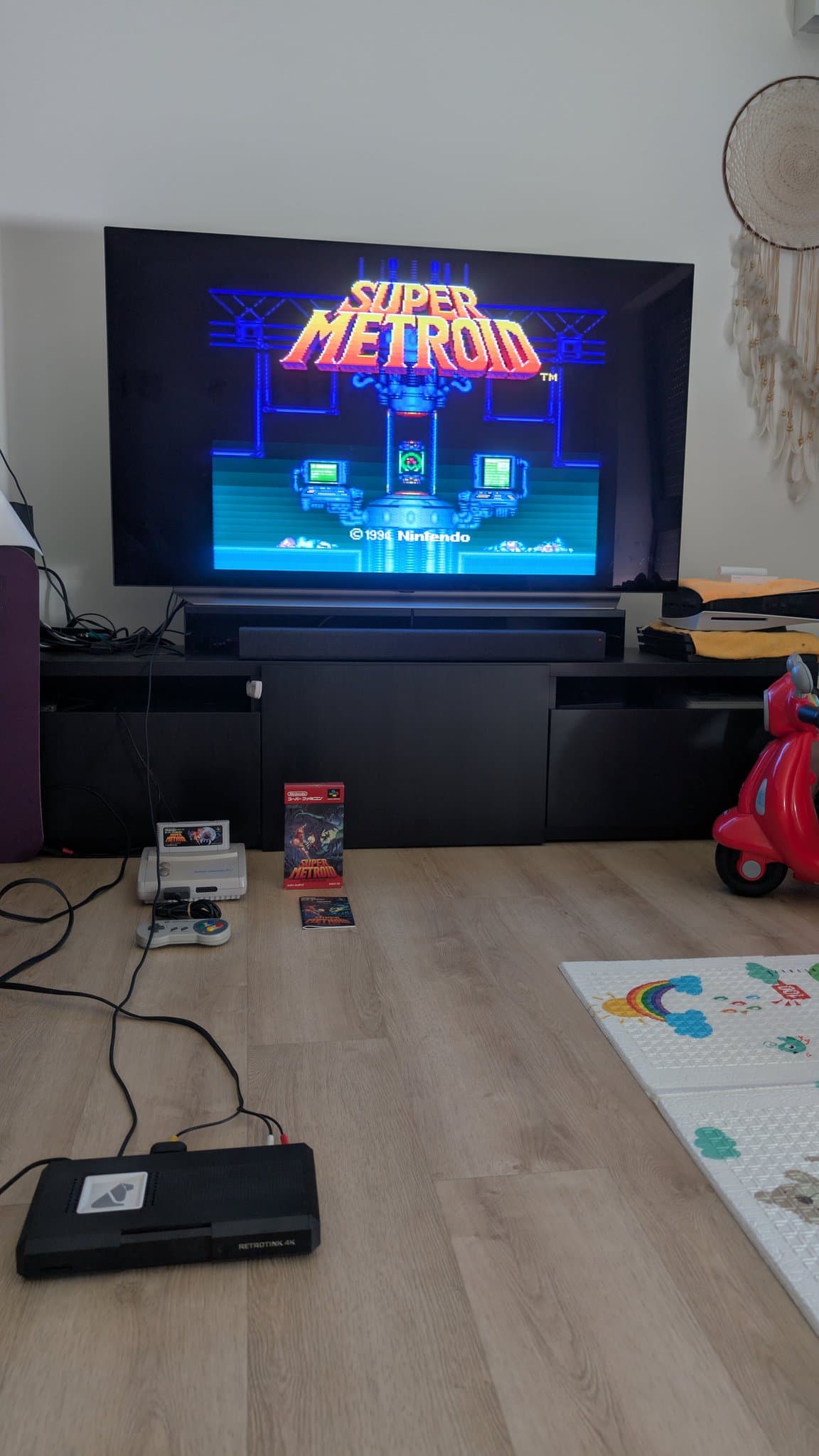

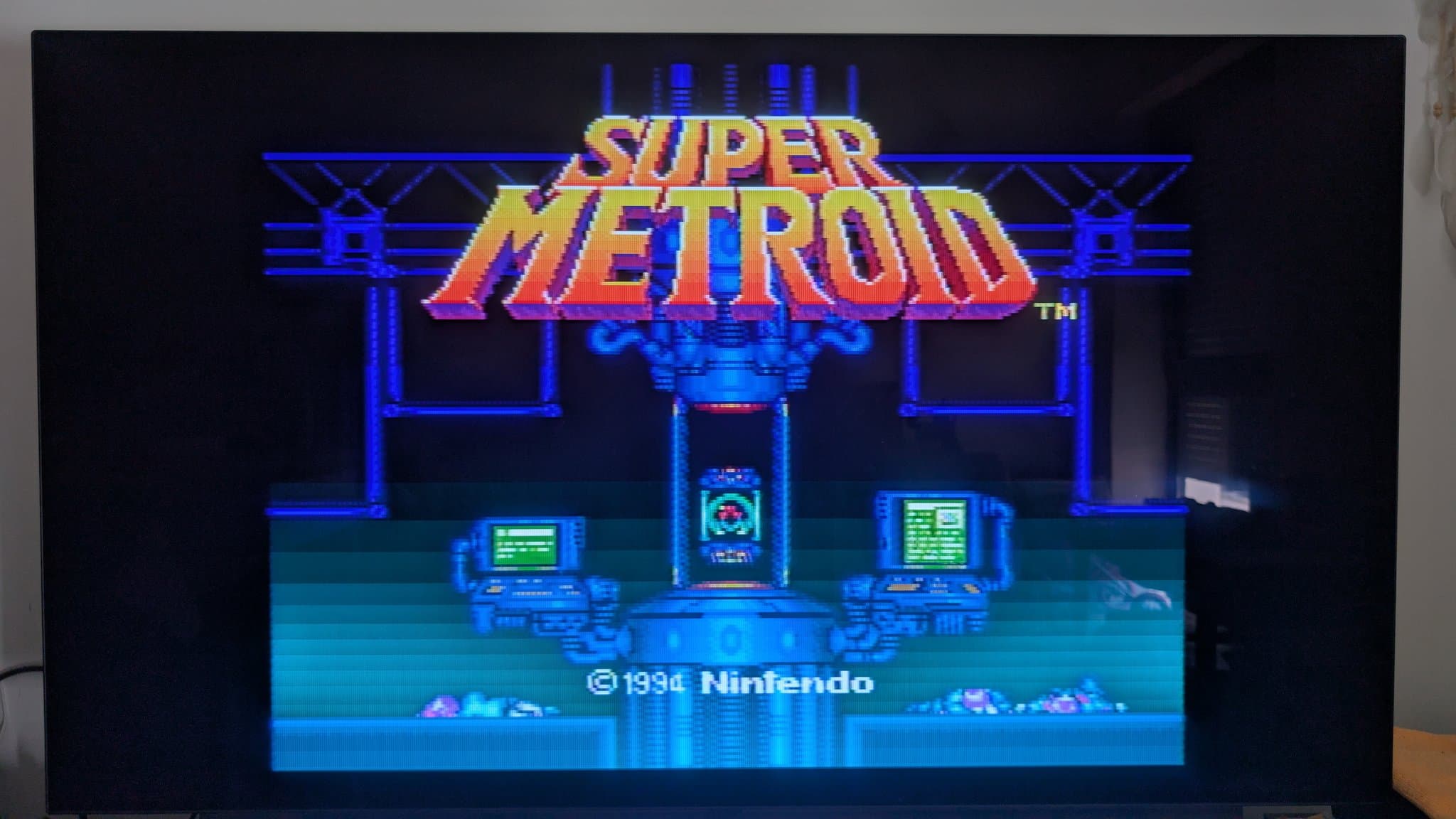

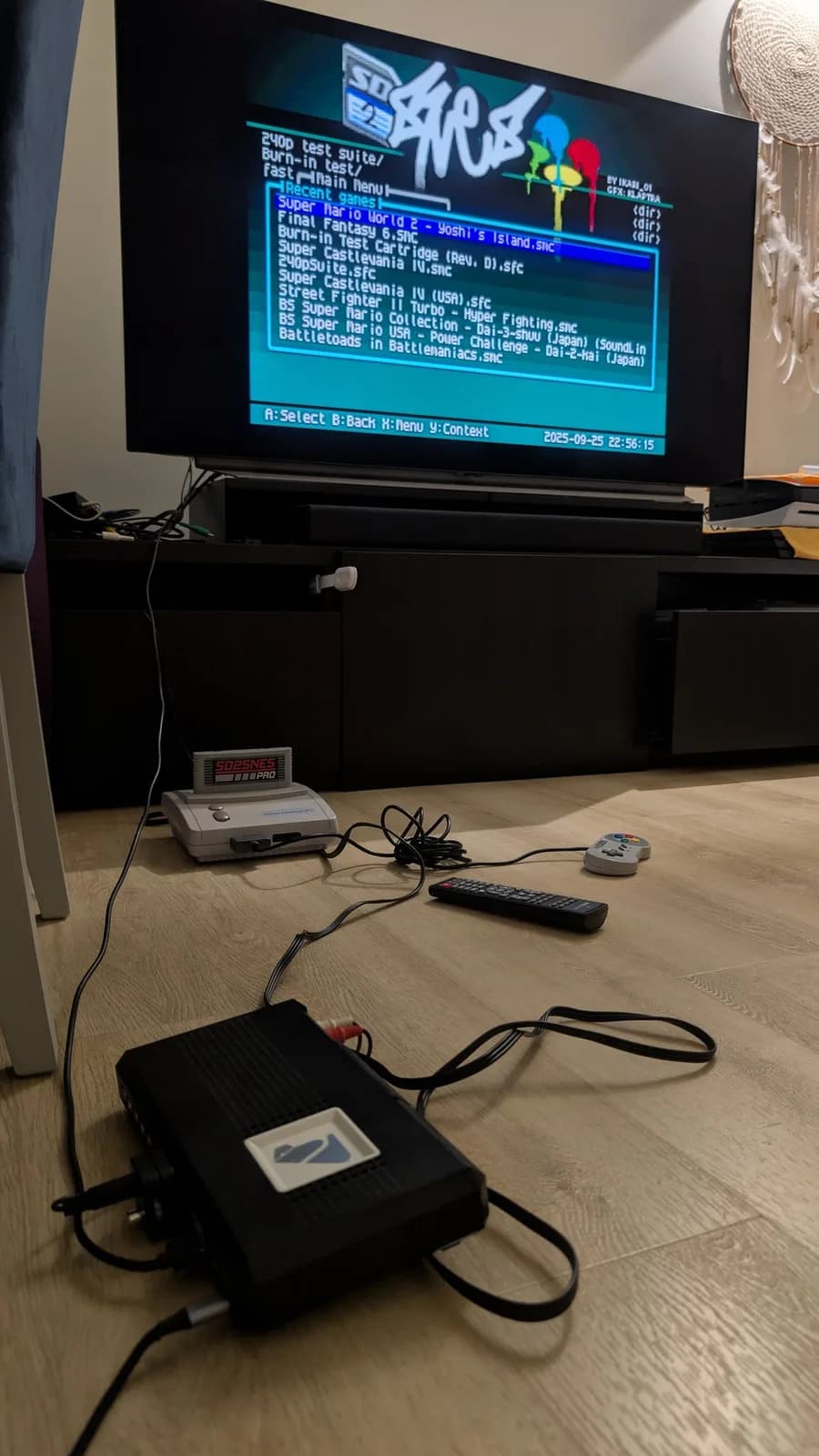

3/4 Broke out my Tink4K and installed the latest firmware. Popped on my copy of Super Metroid and... the tink does clean up composite quite a lot. #Nintendo #Metroid #RETROGAMING

4 / 4

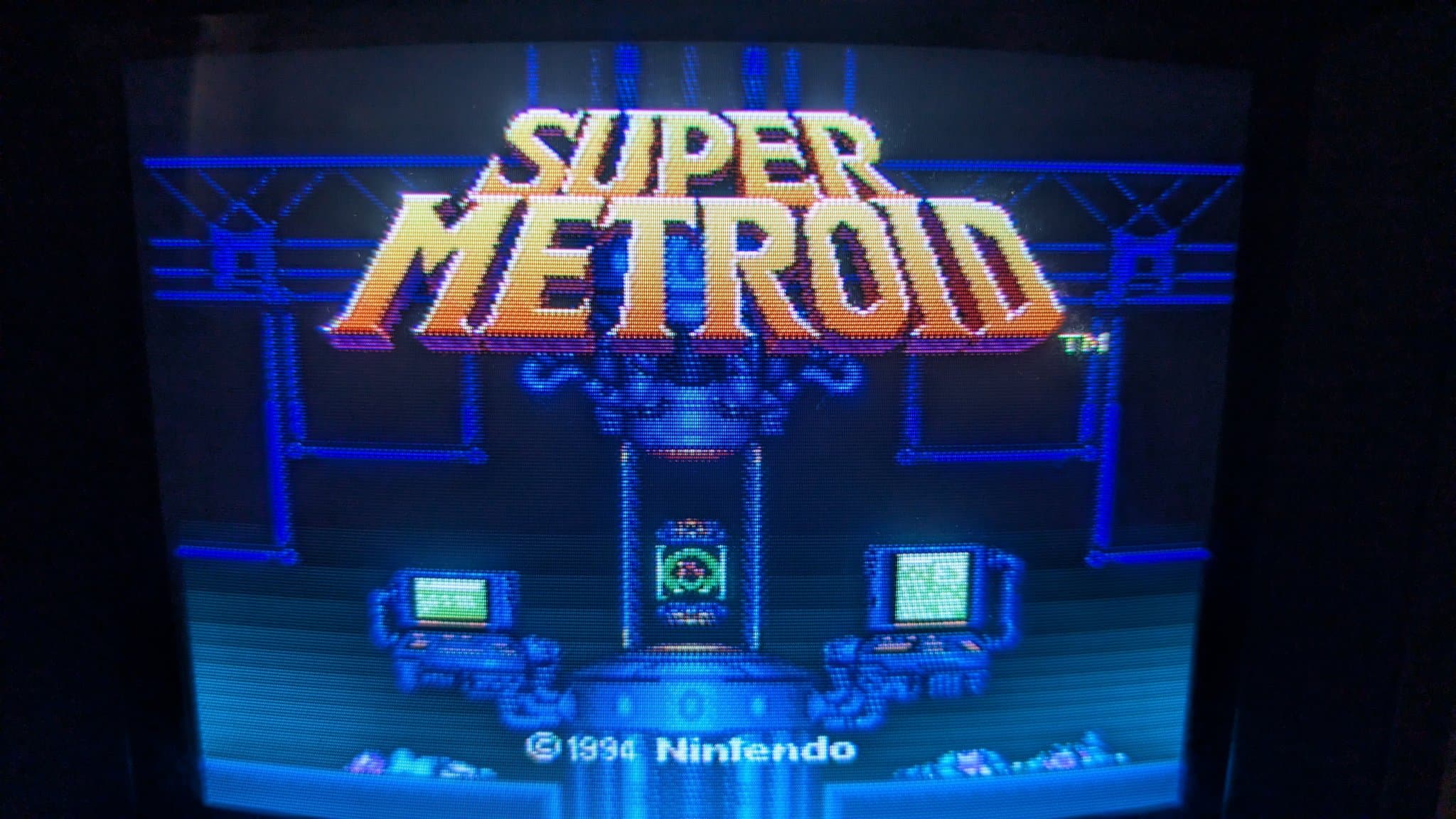

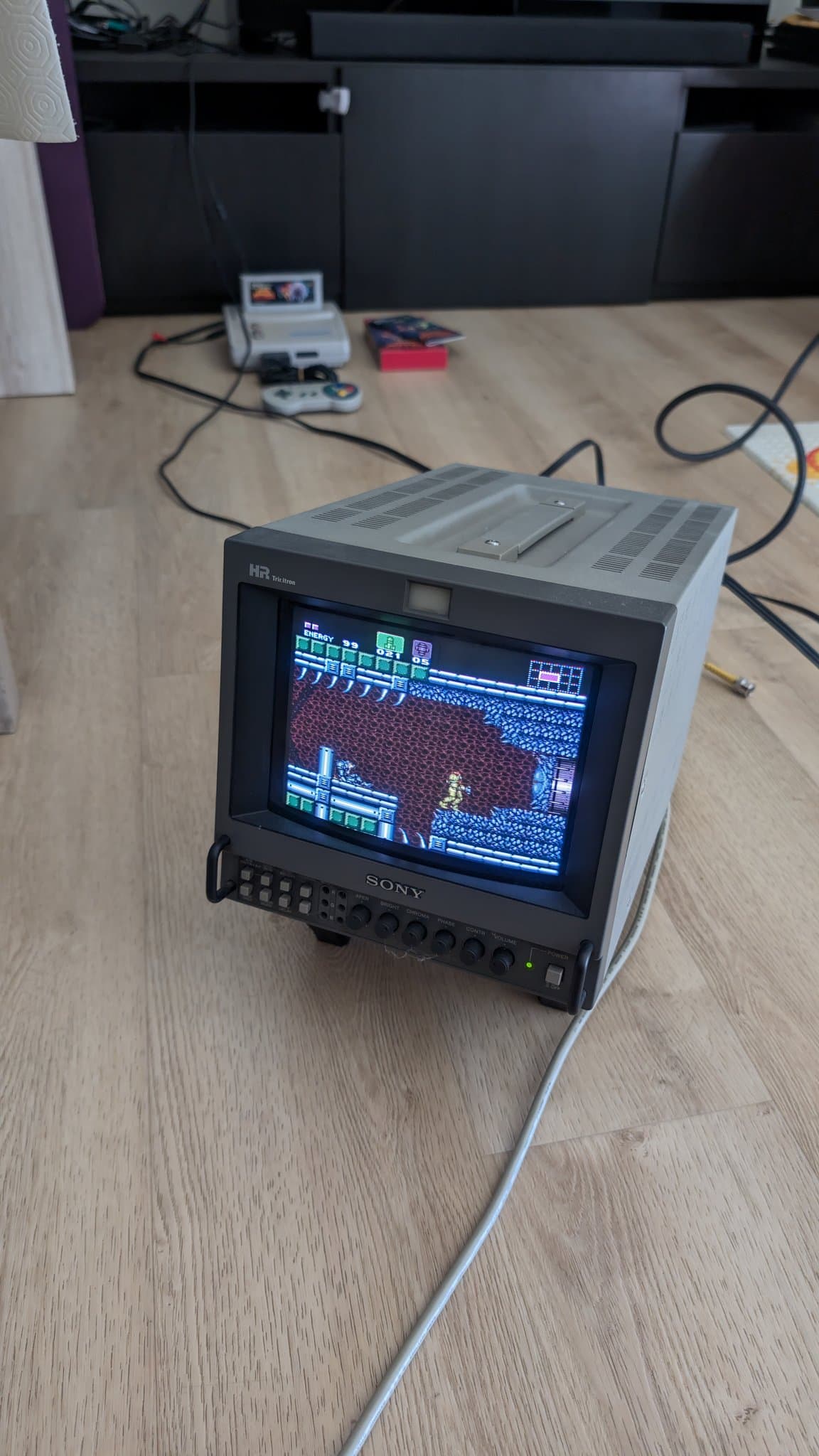

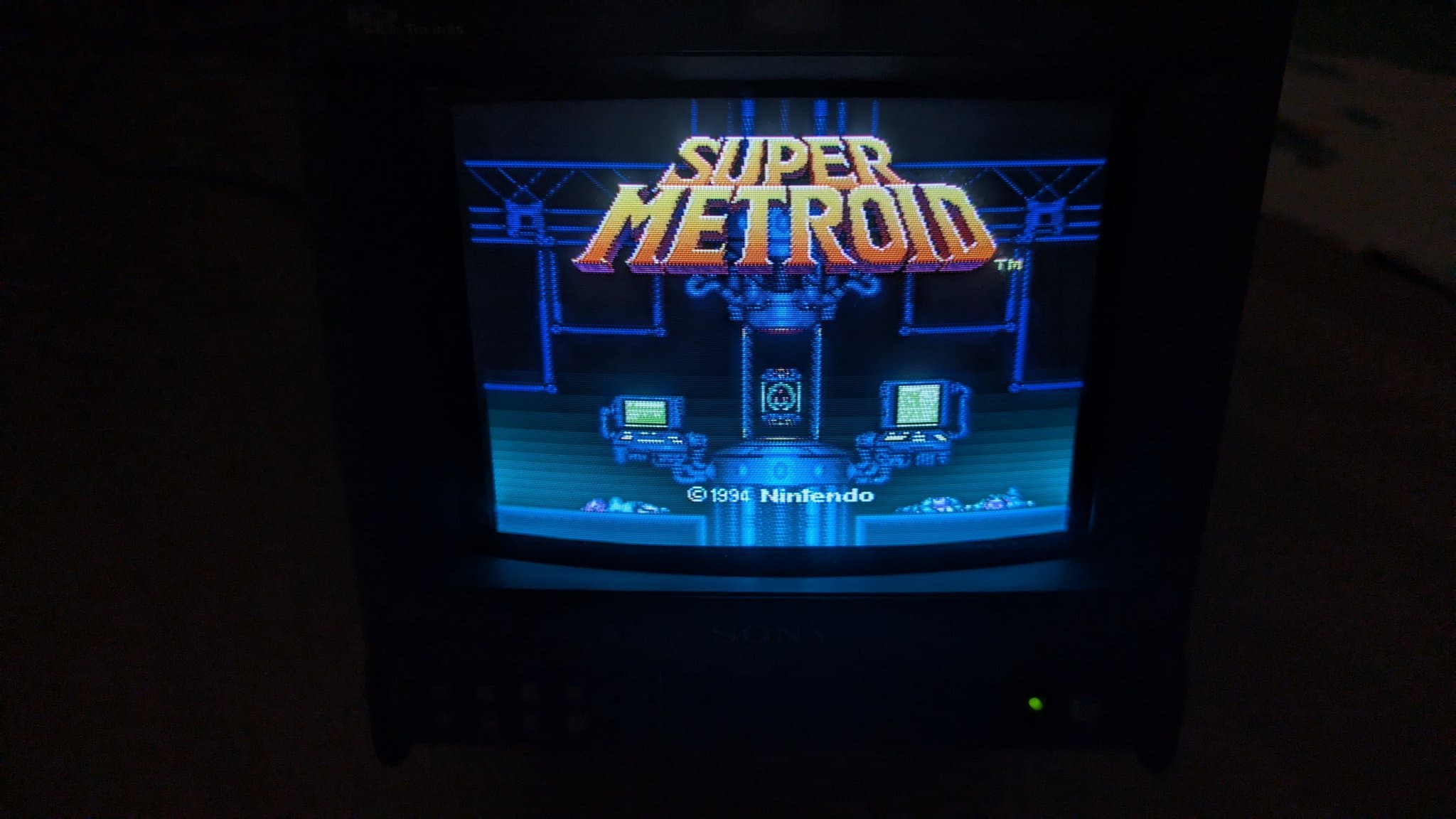

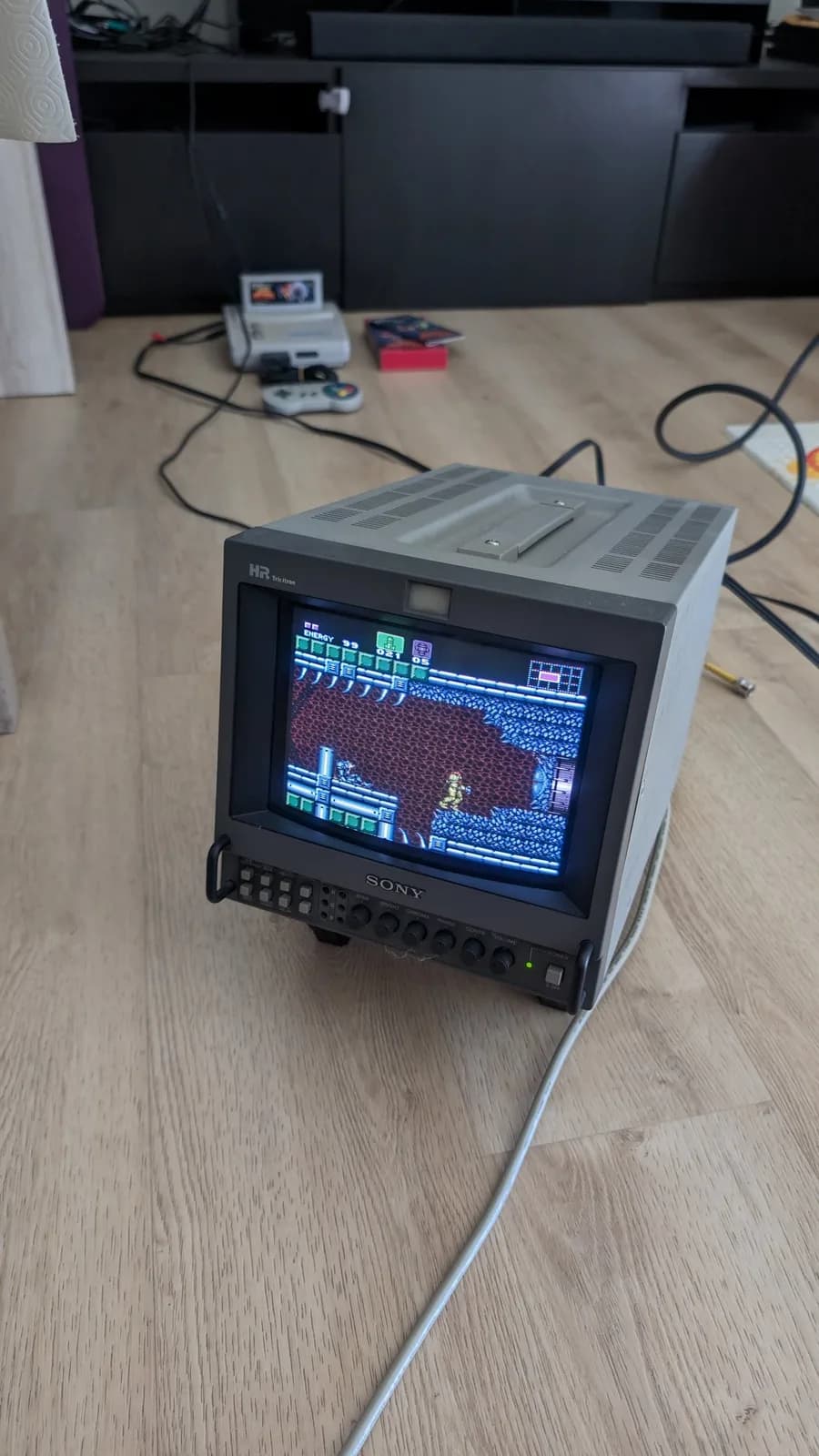

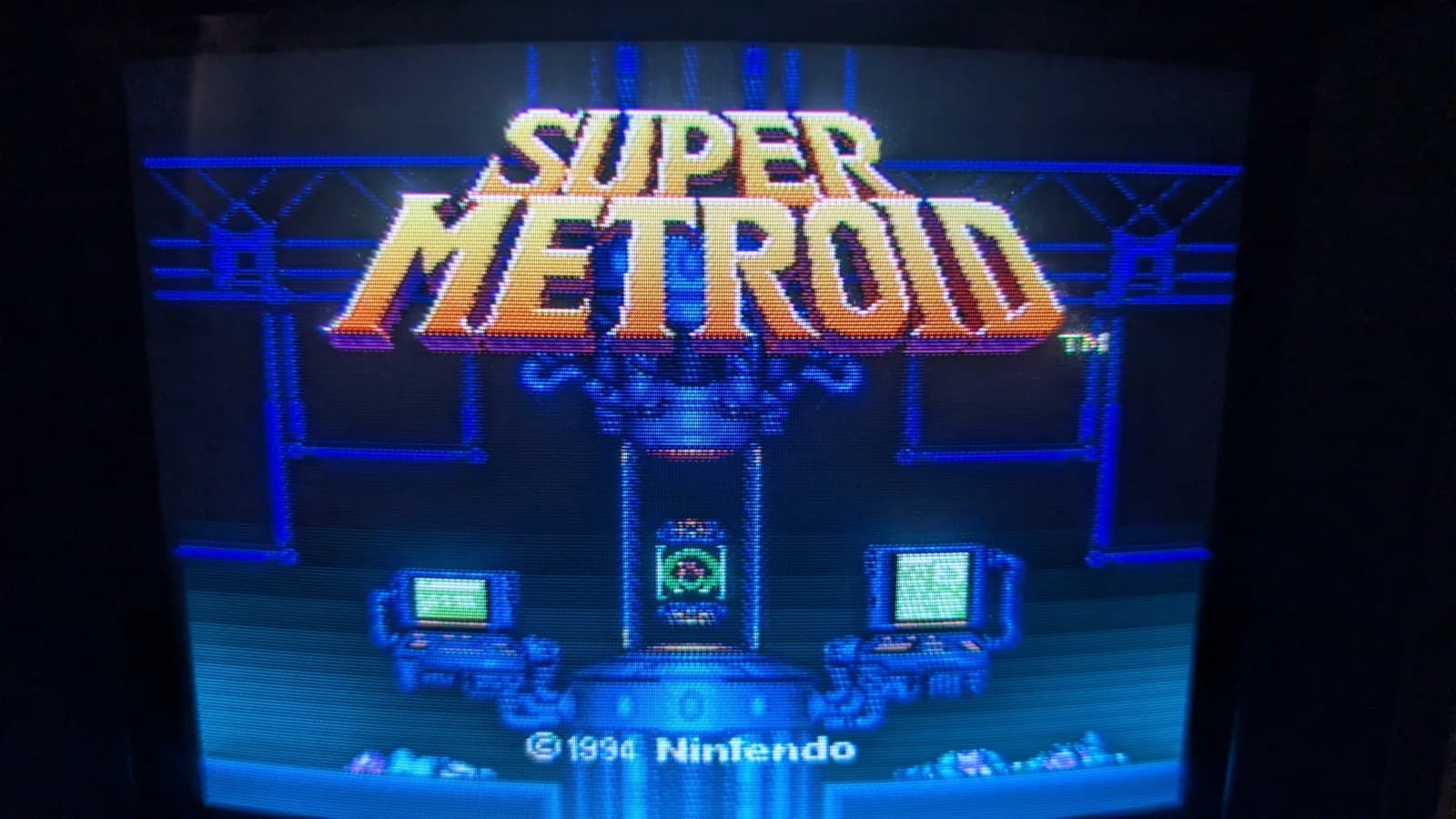

4/4 For good measure also figured I'd try it on a PVM as well. #CRT #Sony #PVM

hitmanmcc

September 23, 2025· Thread 2

View on X ↗View on Bluesky ↗

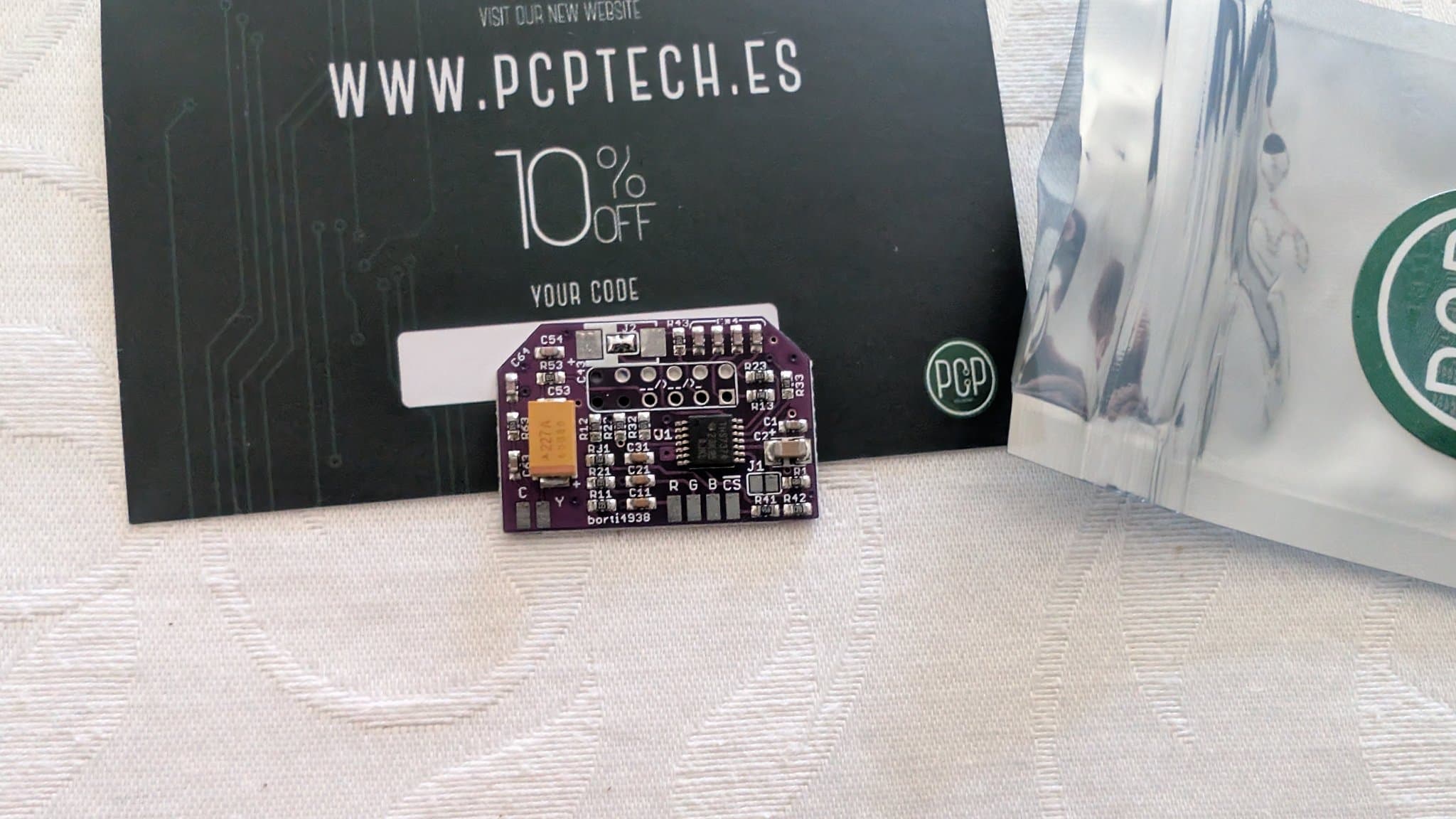

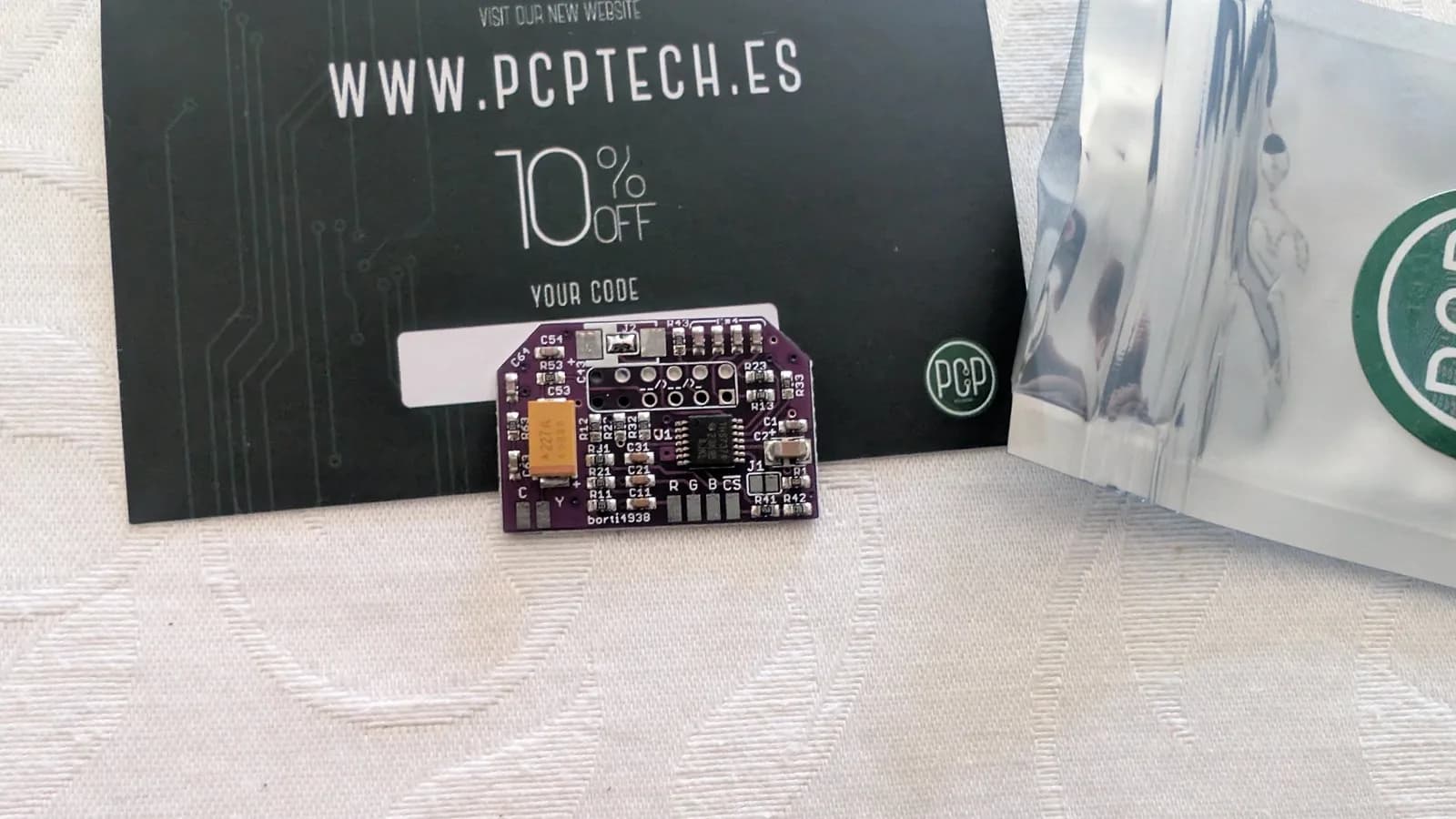

Got something in the mail today. This will be a nice upgrade to the Super Famicom Jr., when I find the time to do it. #SuperFamicom #RetroGaming

hitmanmcc

October 22, 2025· Thread 3· 2 tweets

View on X ↗View on Bluesky ↗

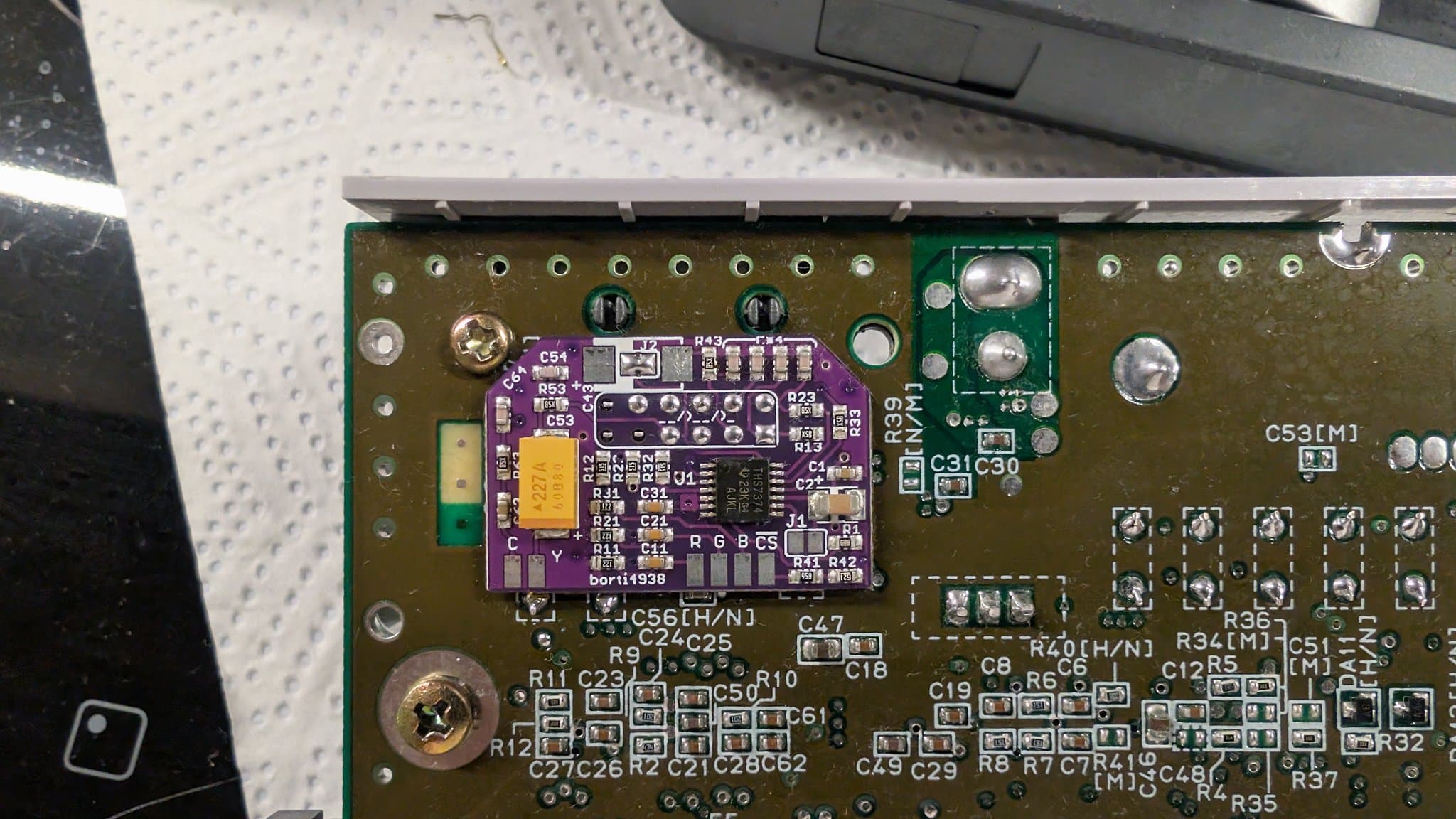

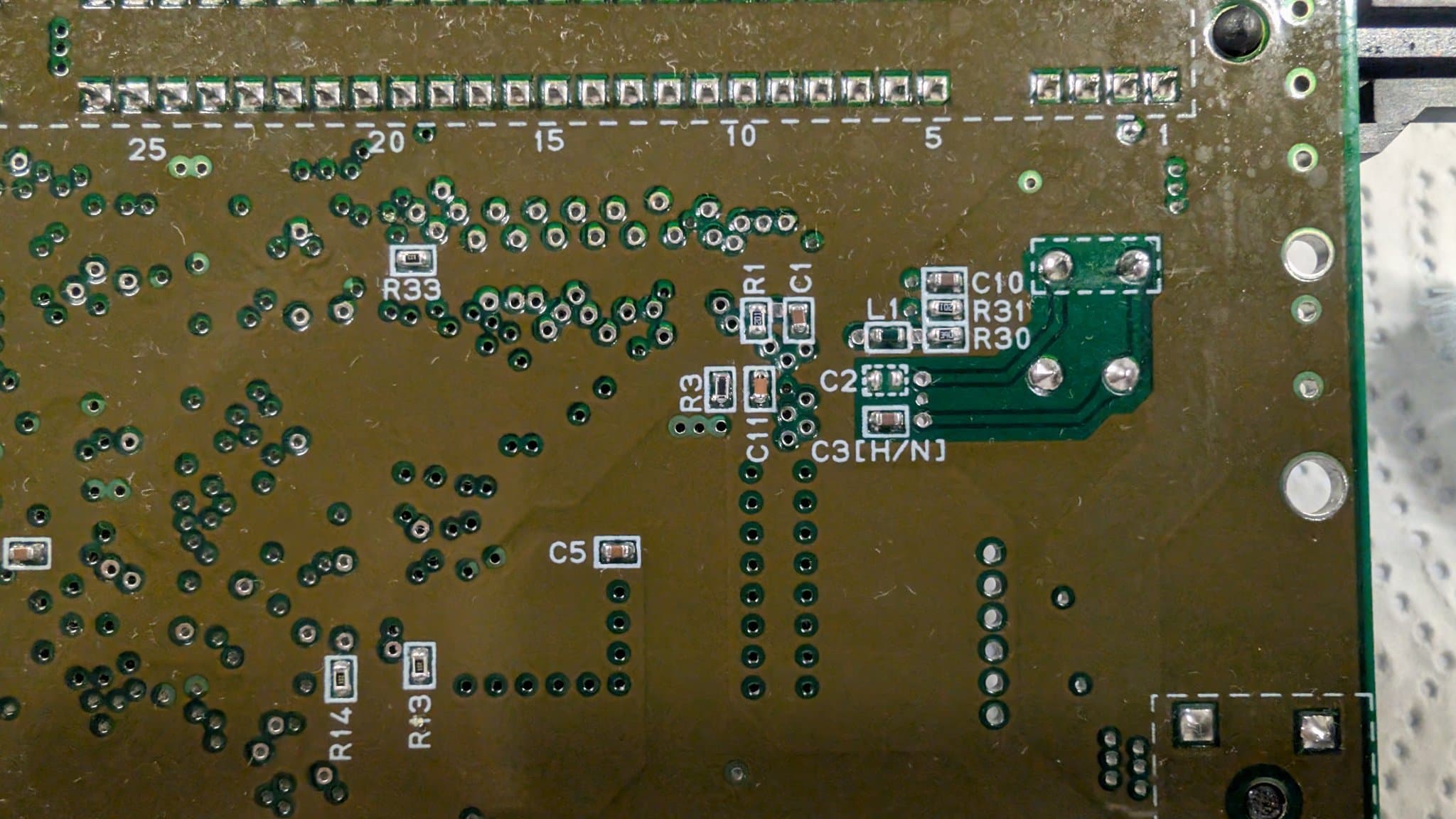

Here's a fun little mod for the Super Famicom Jr., designed by @borti4938 and purchased from @PCP_Tech. Also switched out the components for the brightness and ghosting fixes. #RETROGAMING #SNES

2 / 2

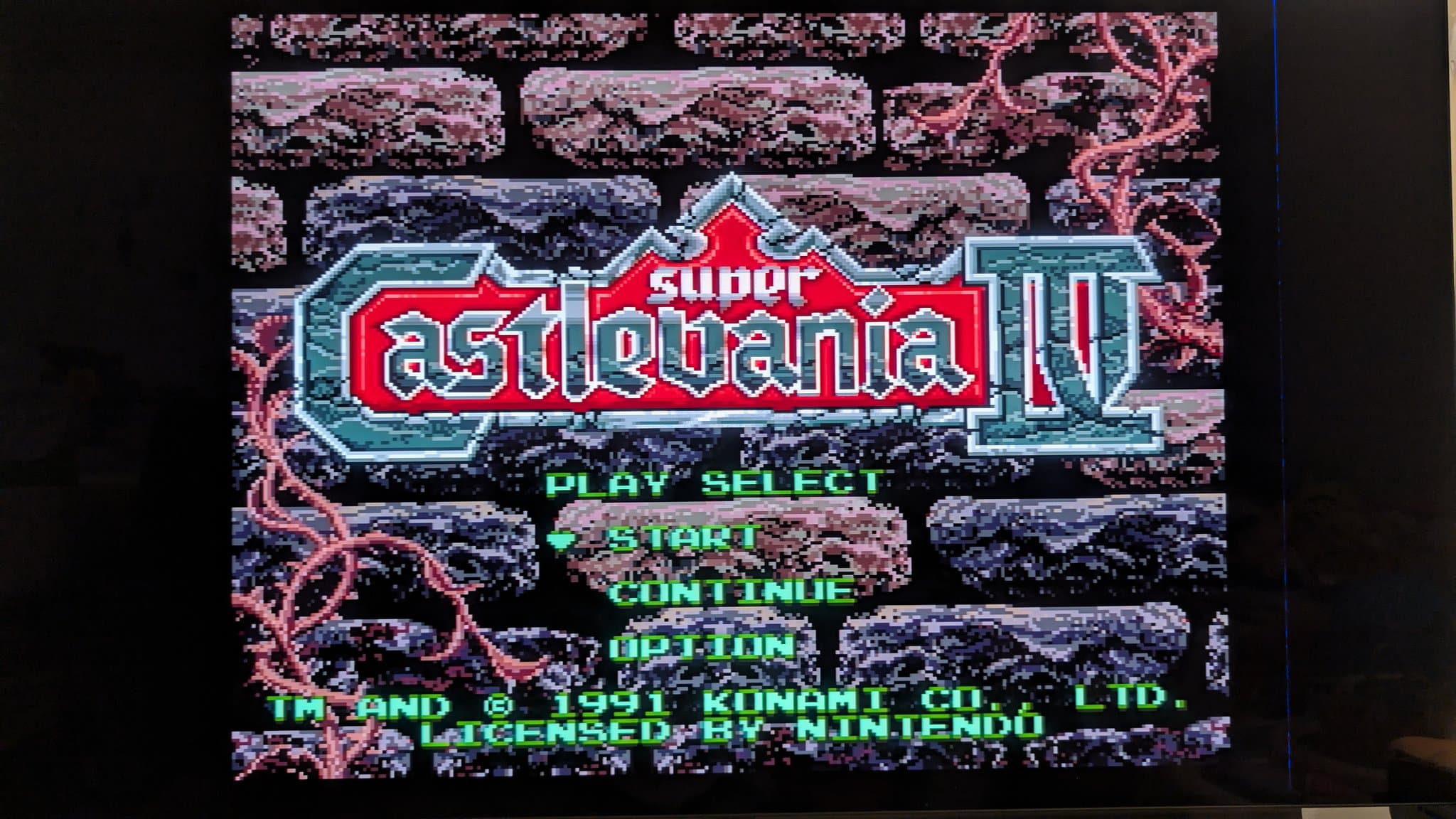

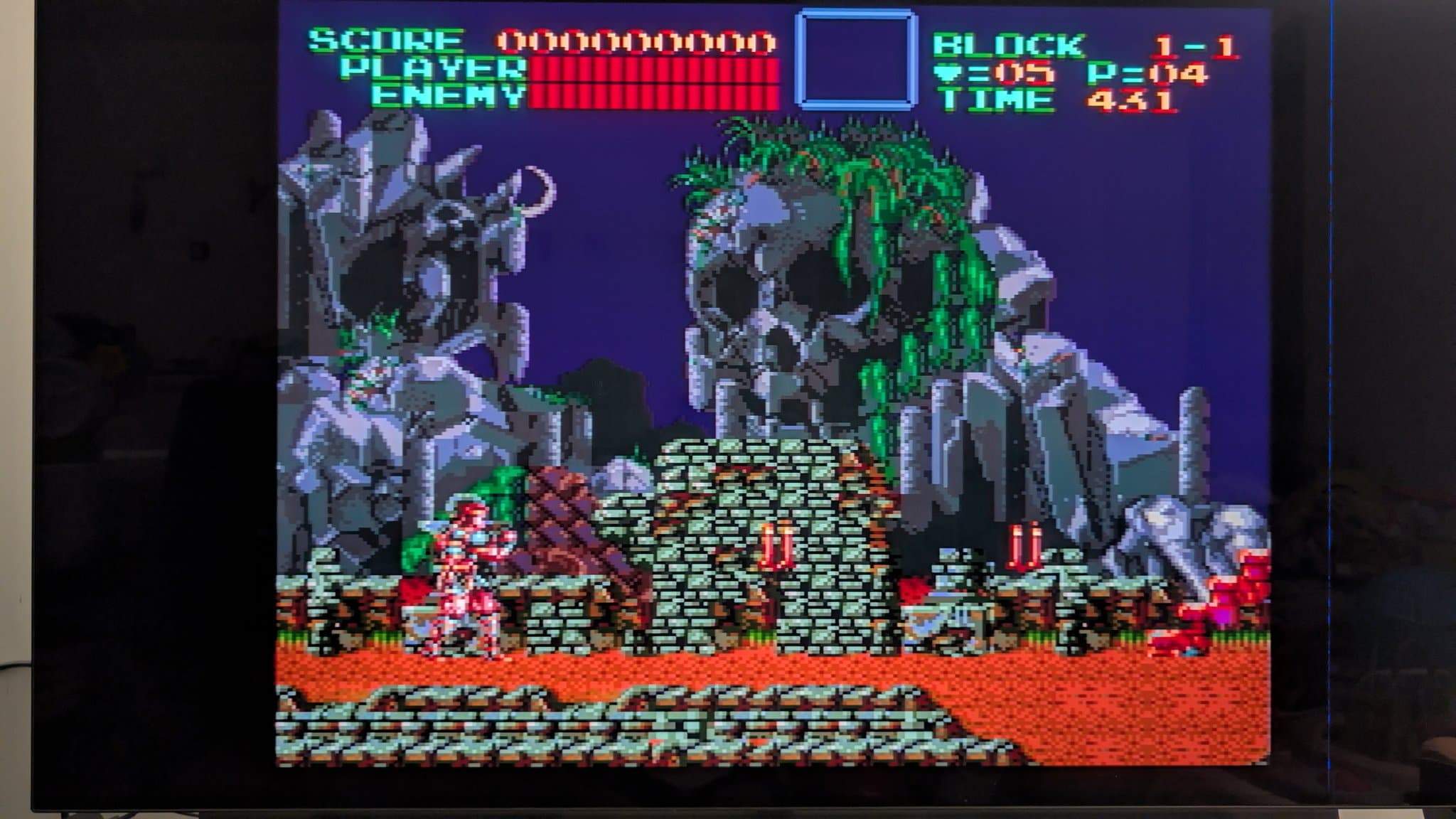

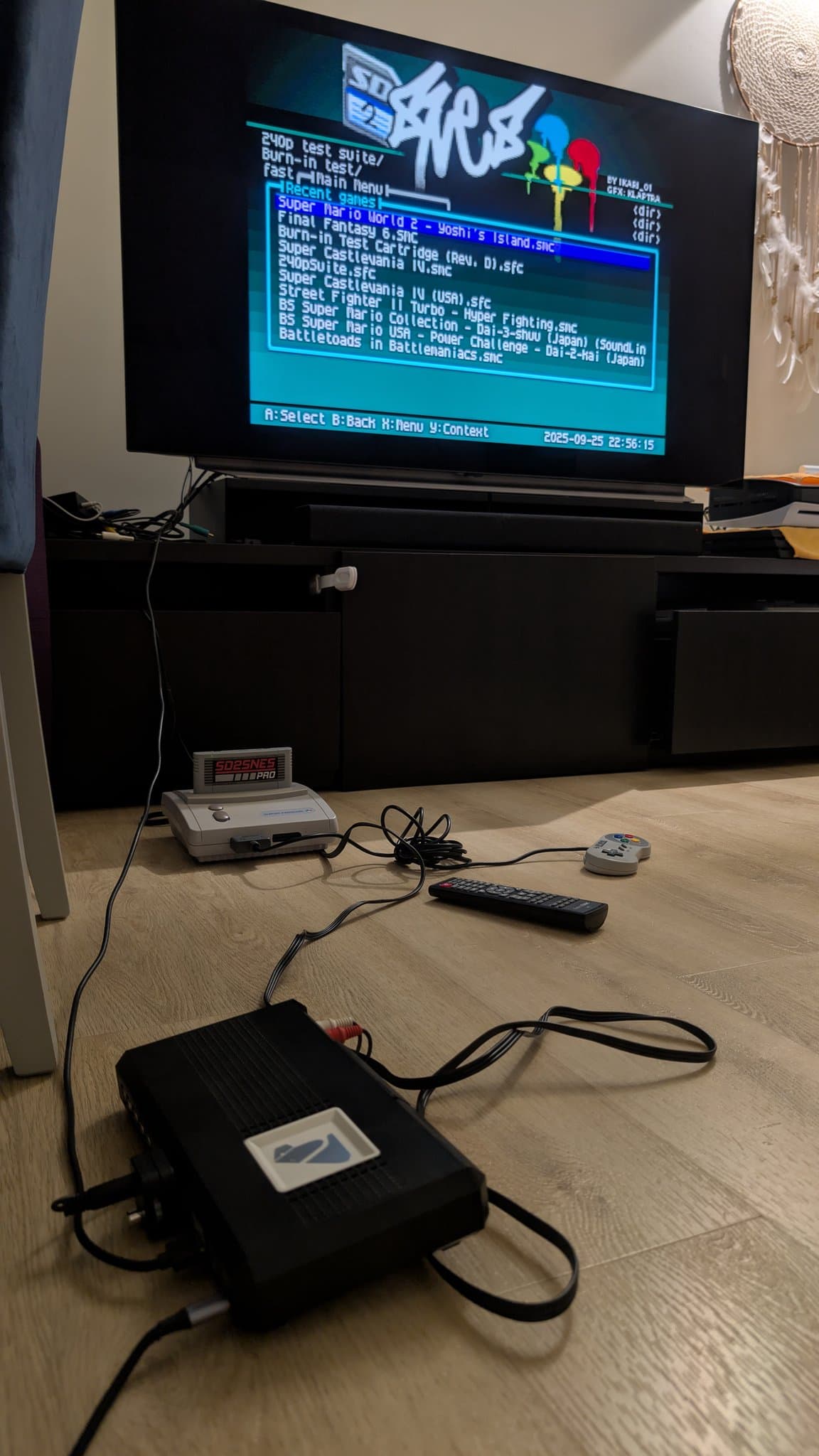

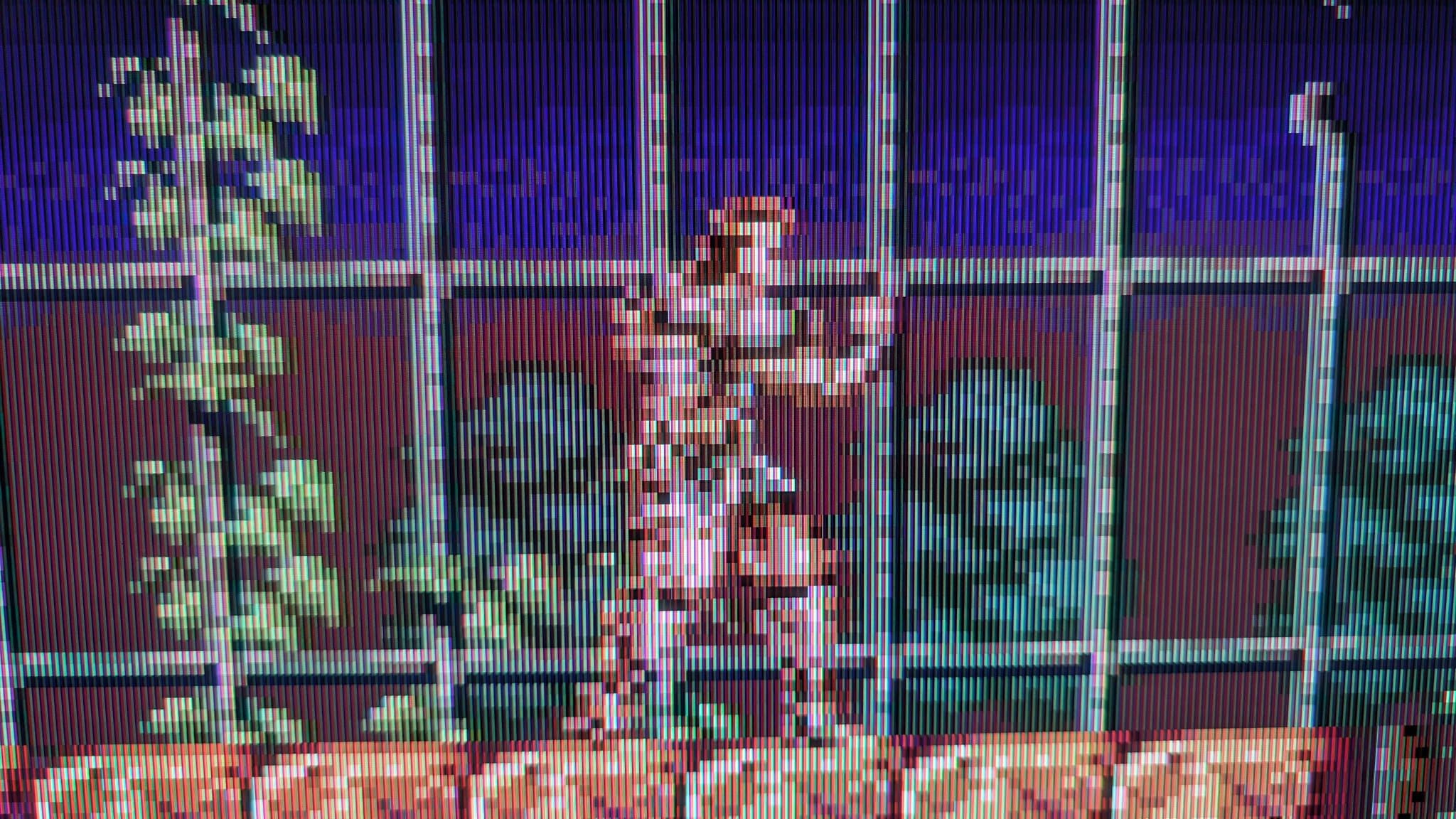

Hey look at that, it works. This is enhanced S-video on the Tink4K Pro because I couldn't find my RGB cable. #Castlevania
