Sega — Mega Drive II

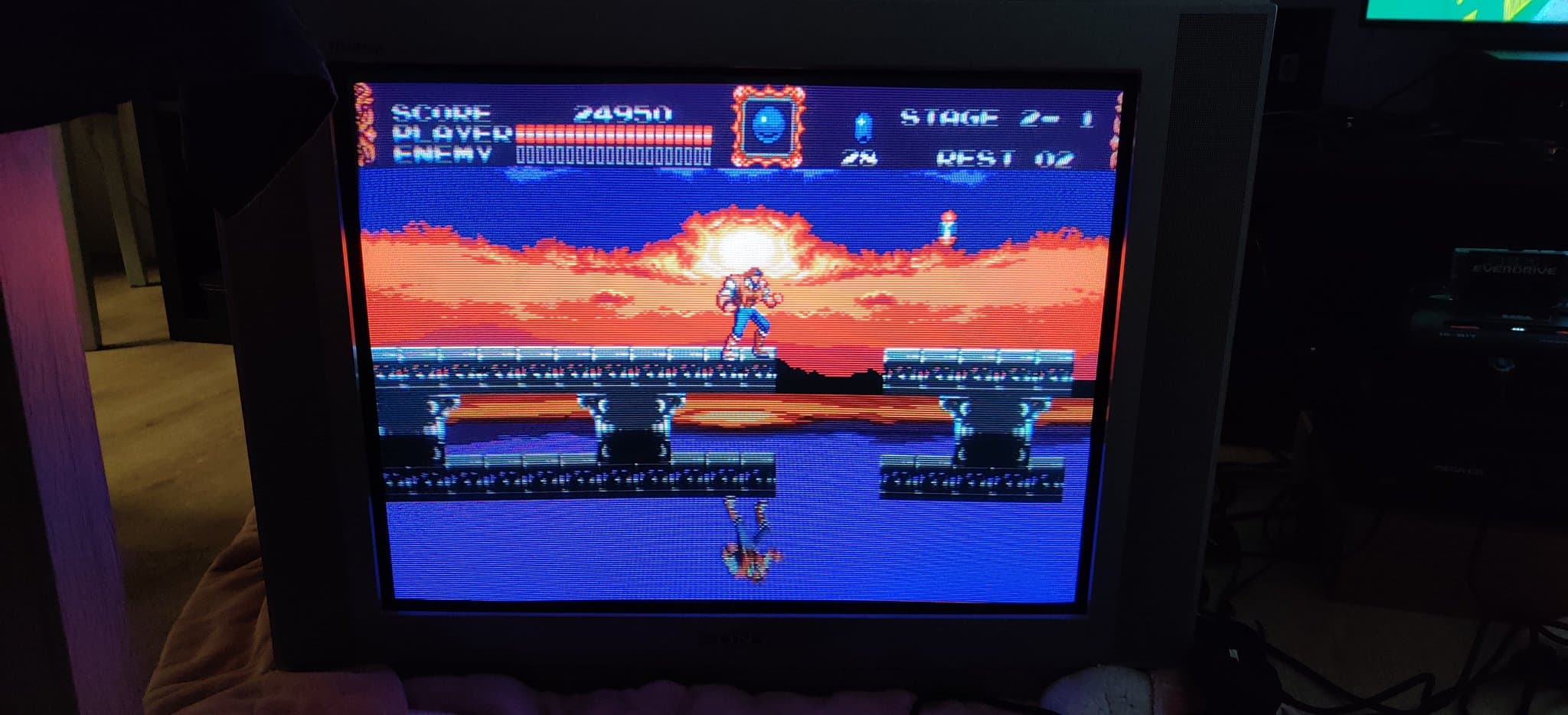

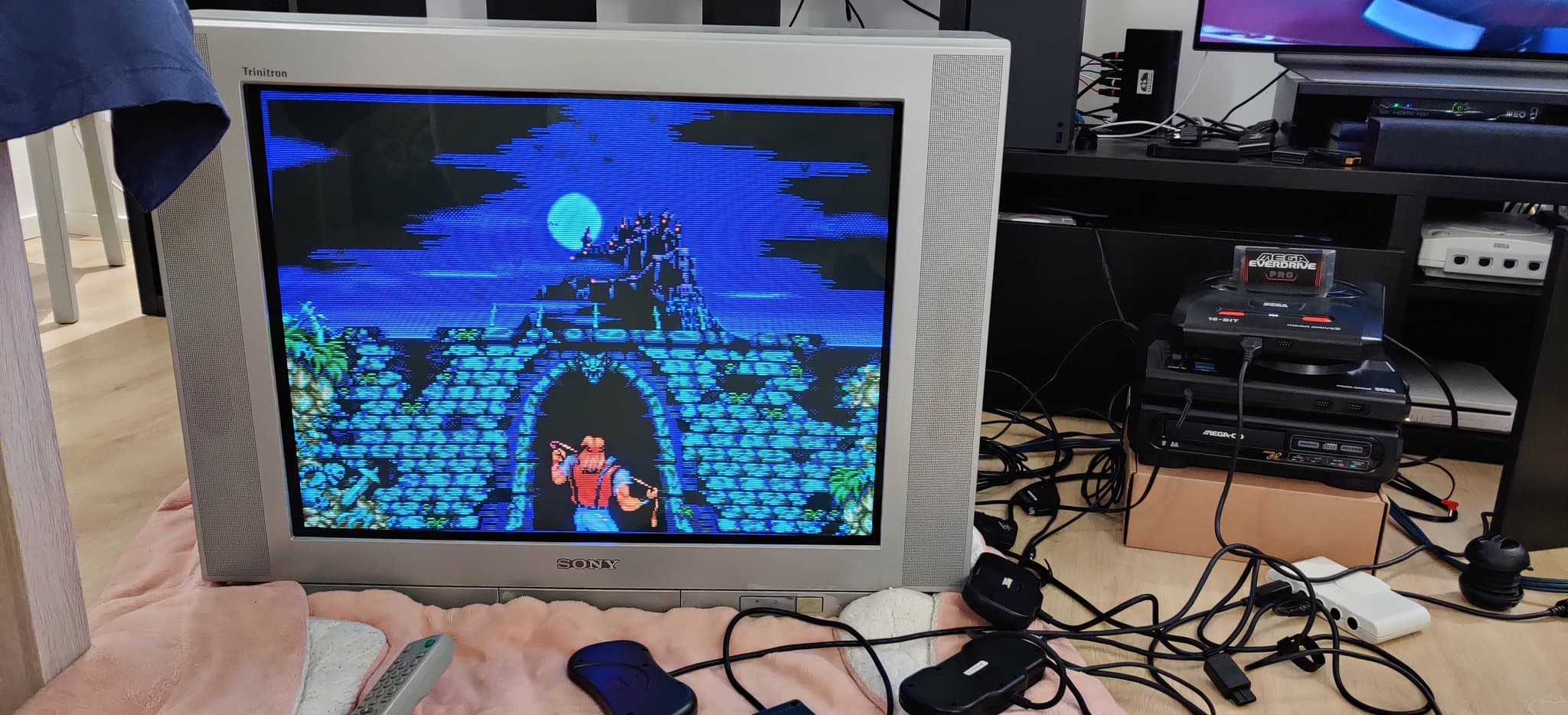

Triple Bypass V2 Plus mod by Zaxour (self-assembled) installed on a Sega Mega Drive II (first unit), along with a 7805 voltage regulator replacement. The Triple Bypass mod cleans up the RGB and audio output paths.
Triple Bypass V2 Plus mod board

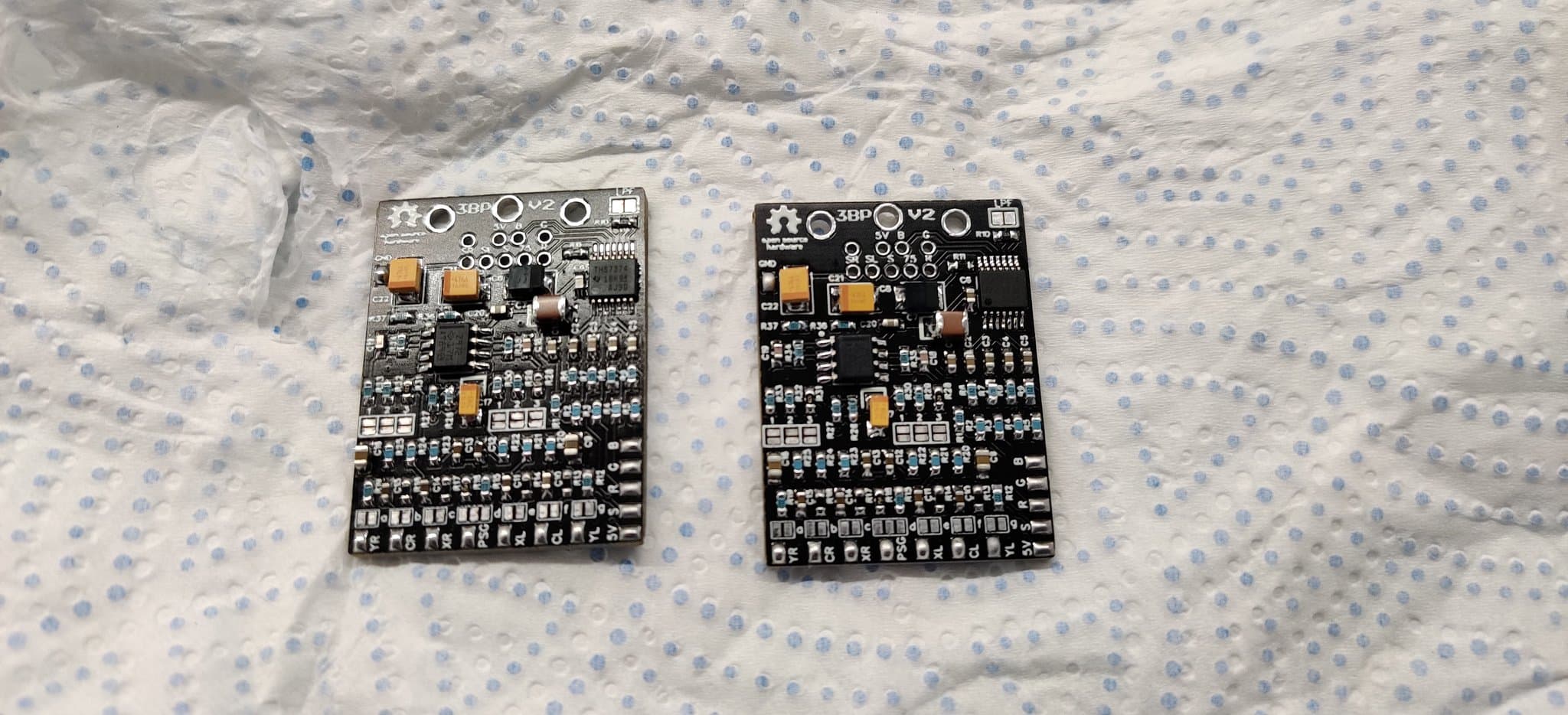

Triple Bypass V2 Plus by Zaxour for Sega Mega Drive II video and audio output cleanup. Board assembled by me.

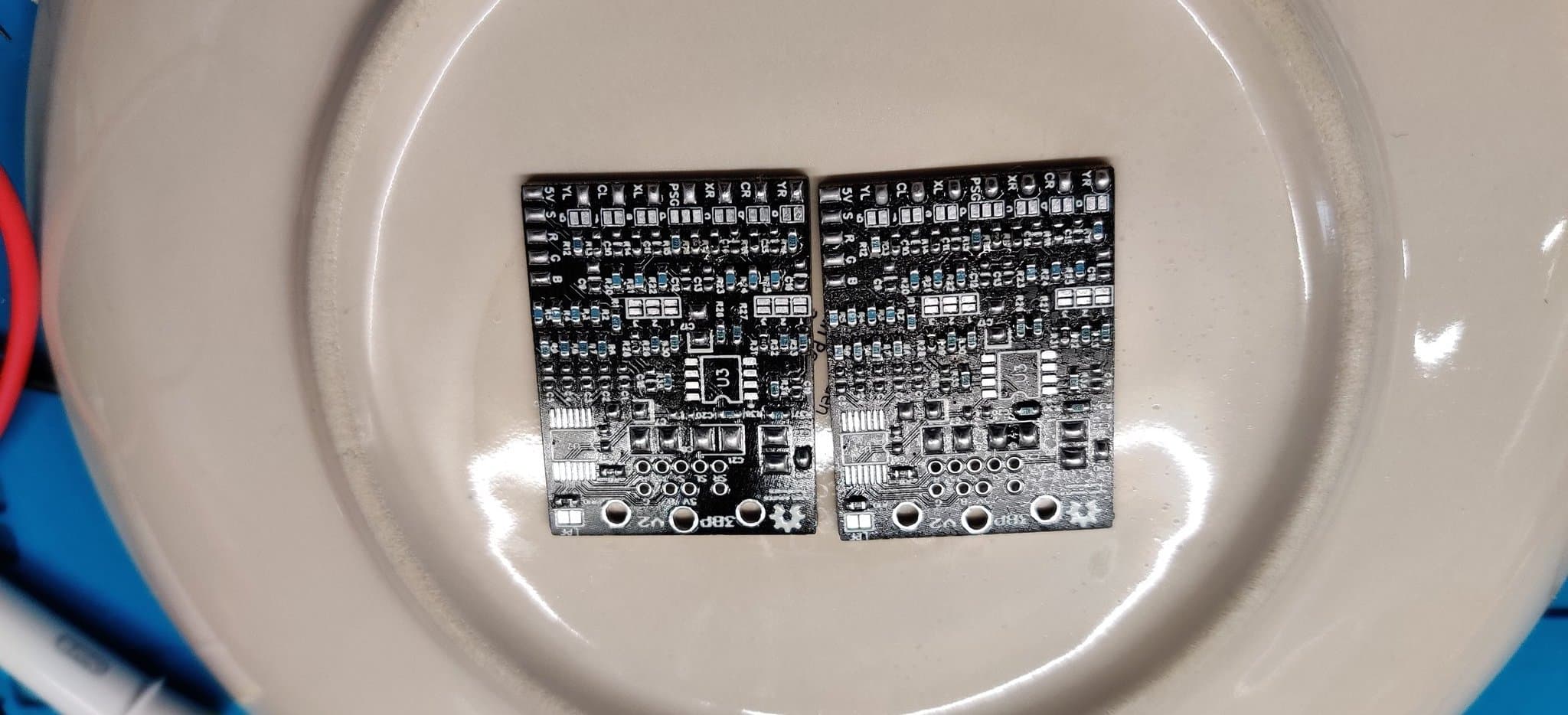

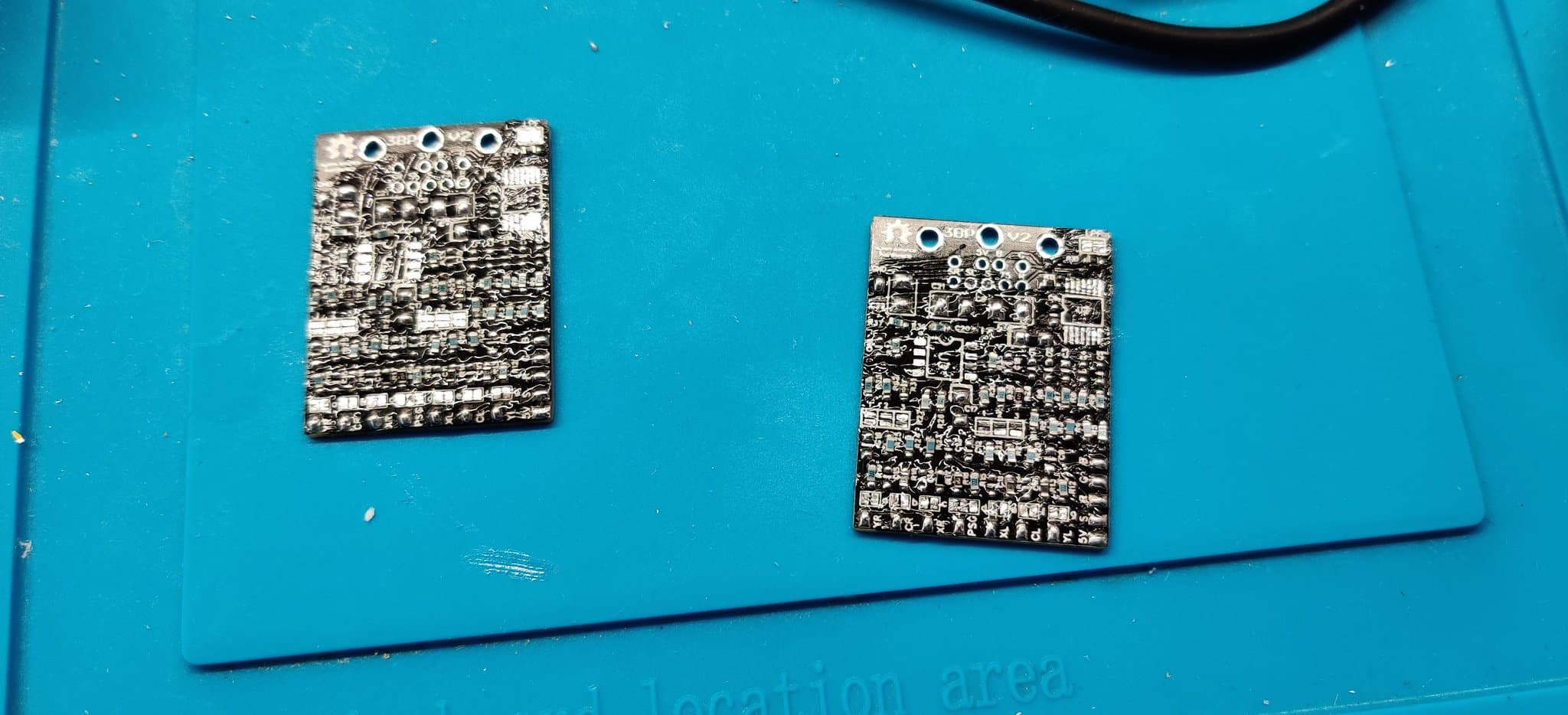

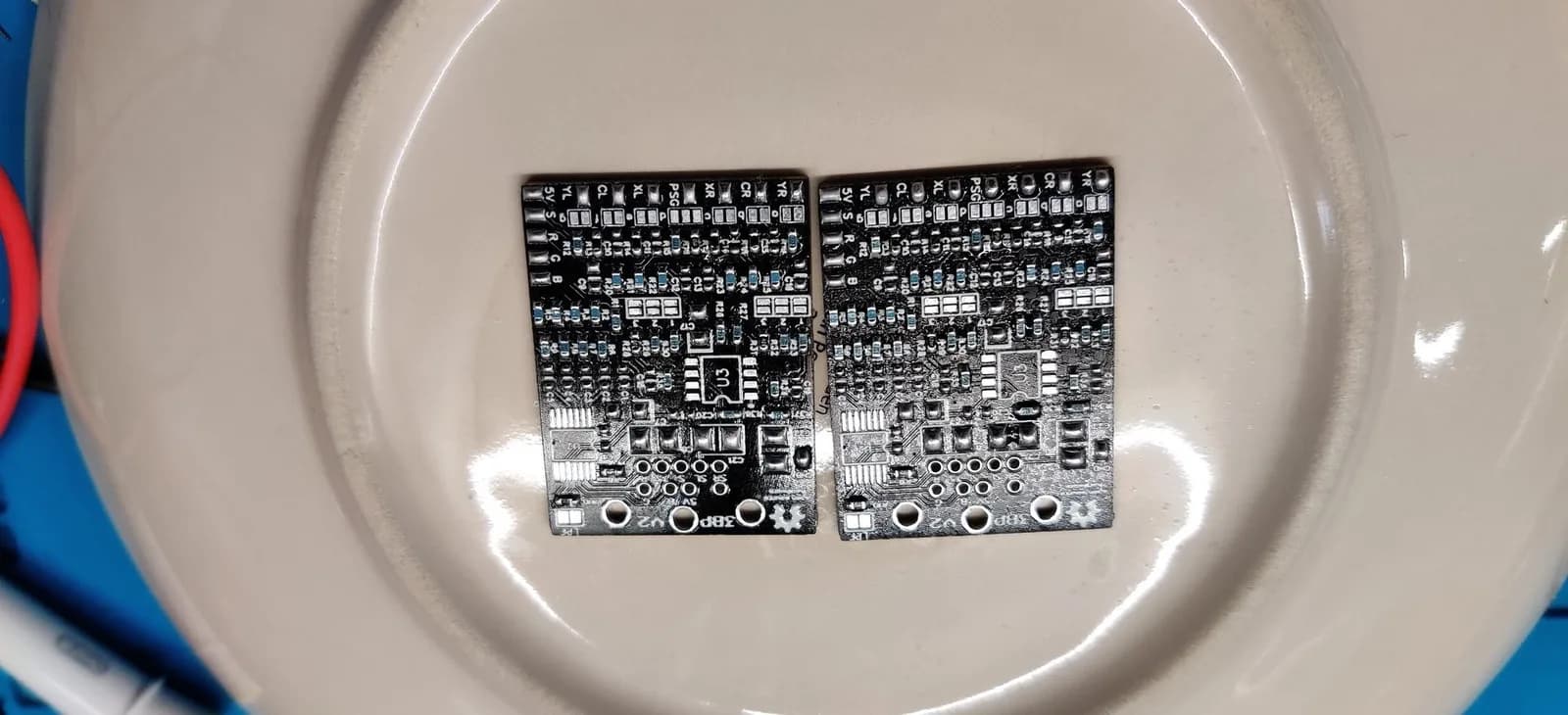

Manual assembly of #SegaGenesis triple bypass v2. 1 - Flux paste and all resistors placed. 2 - Resistors in place after hot air reflow. 3 - All done, capacitors with hot air, ICs with iron. Cleaned with isopropyl. #consolemodding #RETROGAMING #sega

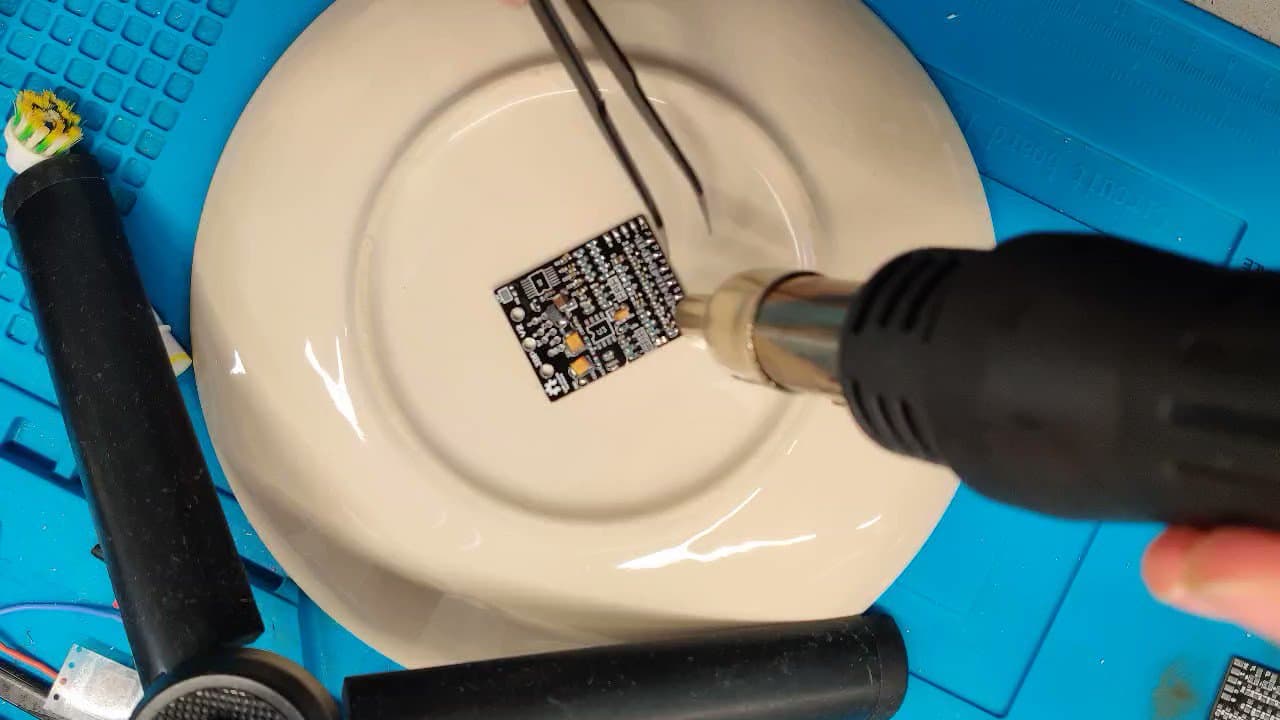

A short video of the assembly process during the phase in which I was soldering the placed capacitors into place.

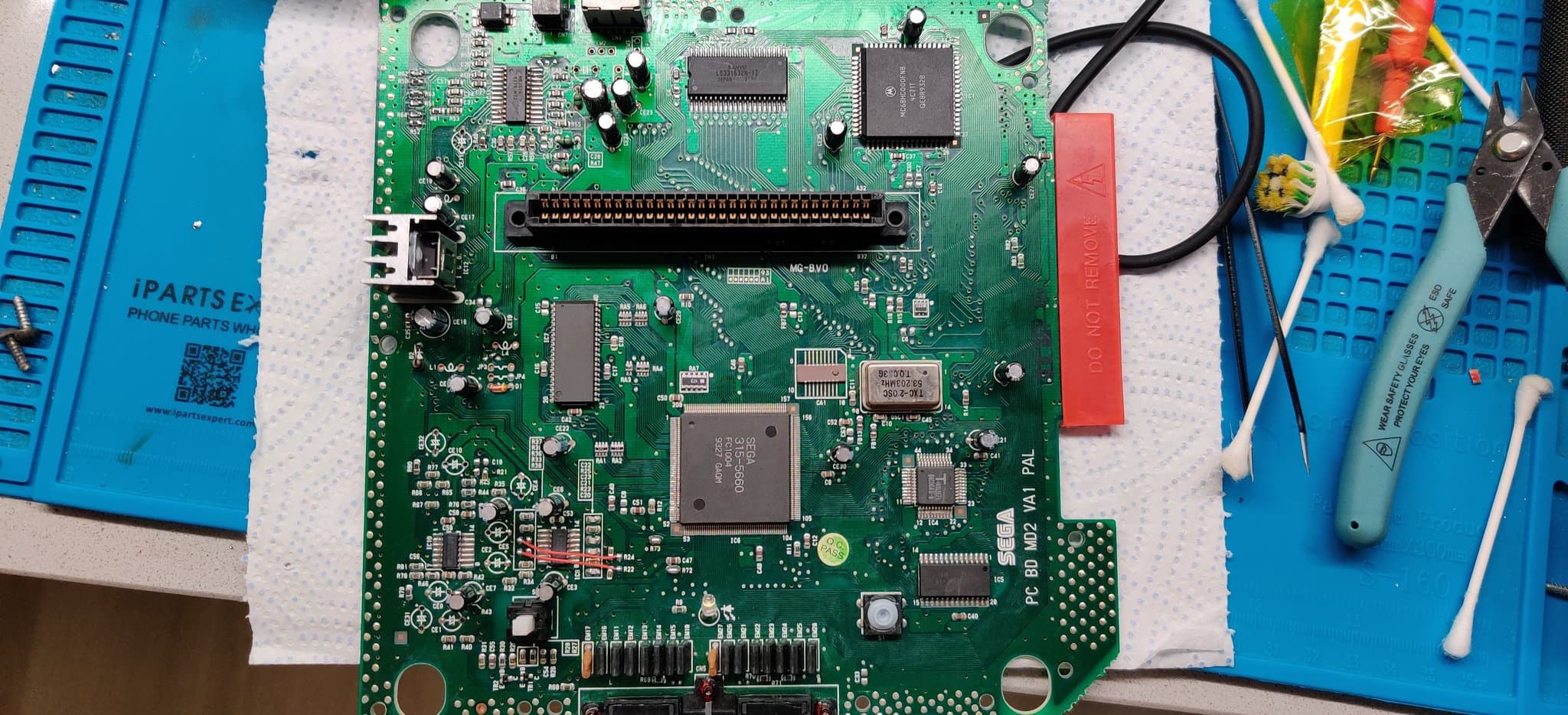

Now for the party piece, triple bypass on the Mega Drive 2 VA1. Thank you to @Tian_Feng44 for publish the PCB designs and BOM. Shoutout to @RetroRGB @Cruzlink2 @Artemio @Mobiusstriptech @FBXGargoyle @Ace9921Tweets for their roles too. #RETROGAMING #MegaDrive #SegaGenesis
