Sega — Master System II

Sega Master System II Recap & 7805 Voltage Regulator

September 5, 20221 thread~1 min read
RecapVoltage-regulator swap

Recap and 7805 voltage regulator replacement on an already RGB-modified Sega Master System II.

hitmanmcc
hitmanmcc

September 5, 2022· Thread 1· 2 tweets

View on X ↗Without login ↗

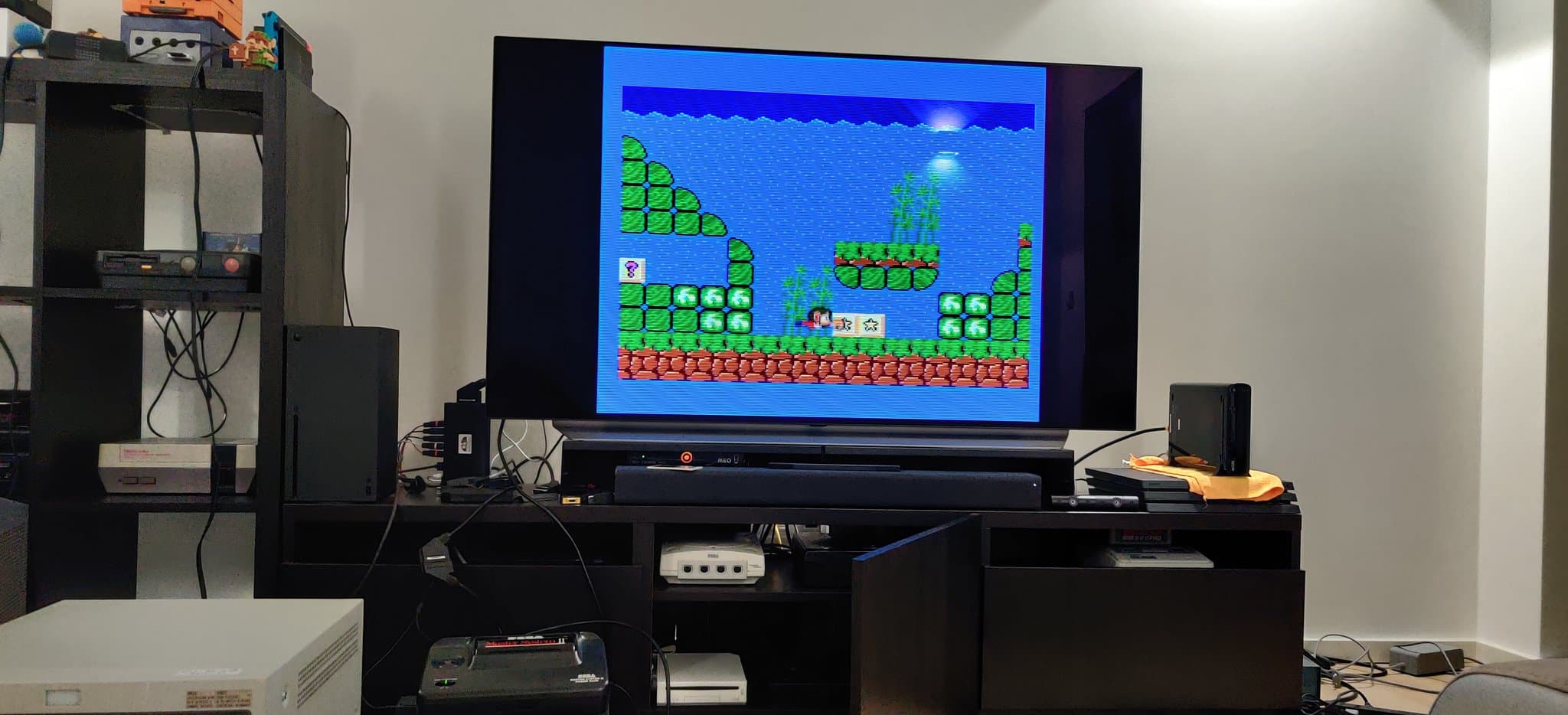

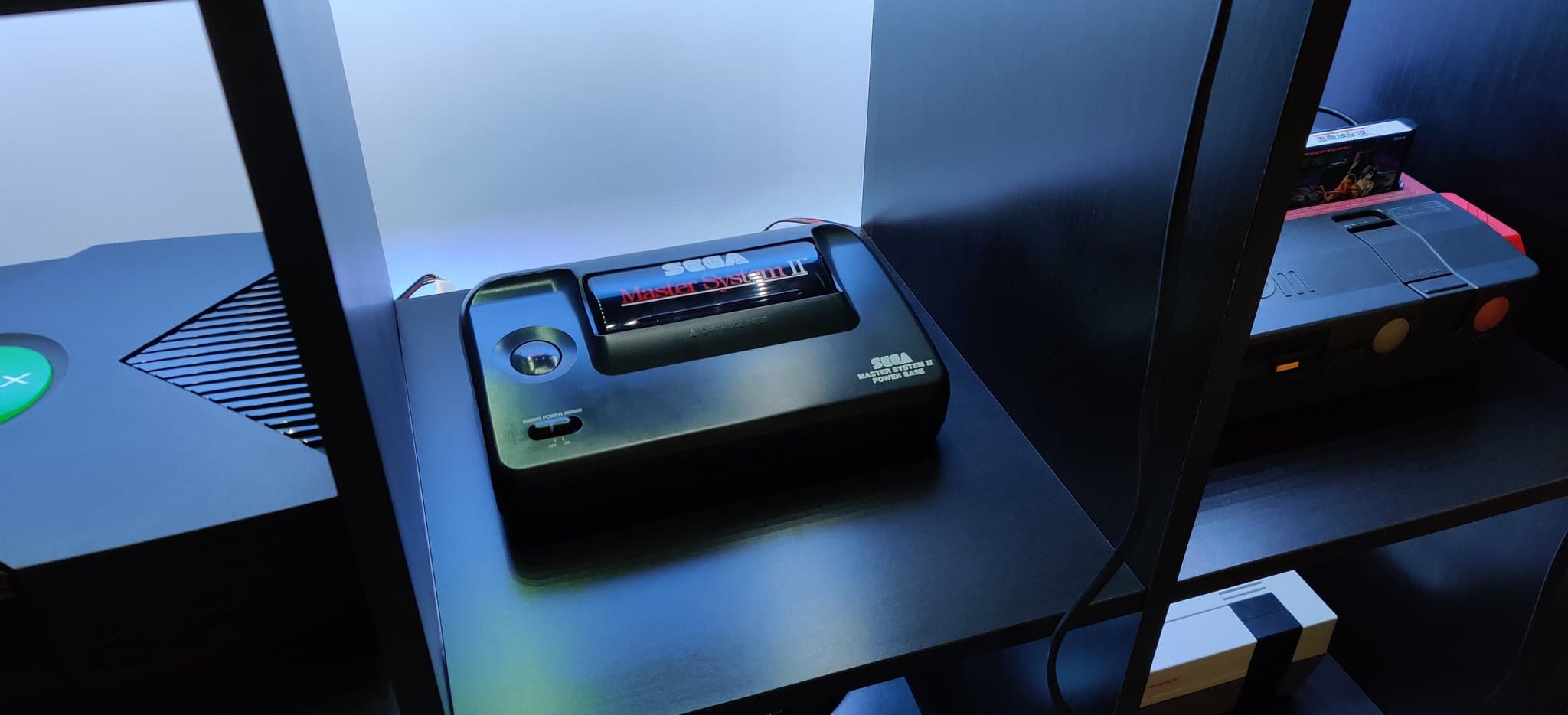

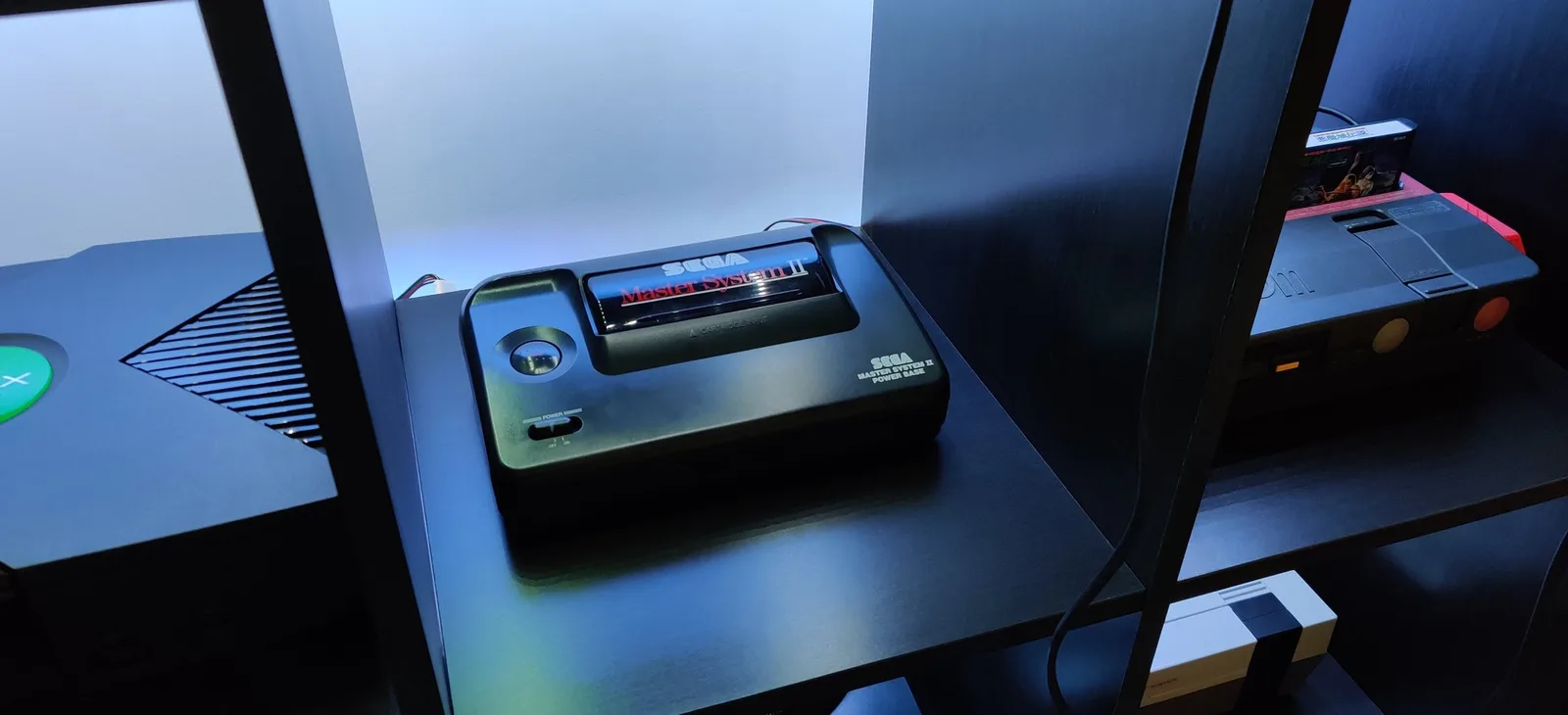

Next on the menu we have an RGB-modified #Sega Master System 2. New capacitors and new voltage regulator. Playing some Alex Kidd in Miracle World for validation. #RETROGAMING #consolemodding

2 / 2

@slr_mod_shop This is the one you sold me a couple of years back. :)
