Nintendo — Game Boy Player

Nintendo Game Boy Player (DOL-017) Recap: Leaking Caps

September 5, 20251 thread~1 min read
Corrupted graphicsCartridge slot oxidationLeaking capacitors
Recap

The first time I've actually encountered genuinely leaking capacitors in Nintendo Game Boy Player (DOL-017) units. These were memorable for that alone.

Parts & Tools (1)

Game Boy Player SMD cap kit

Console5 GameCube Game Boy Player module SMD cap kit, the fresh SMD electrolytic capacitors fitted during the recap.

hitmanmcc
hitmanmcc

September 5, 2025· Thread 1· 2 tweets

View on X ↗View on Bluesky ↗

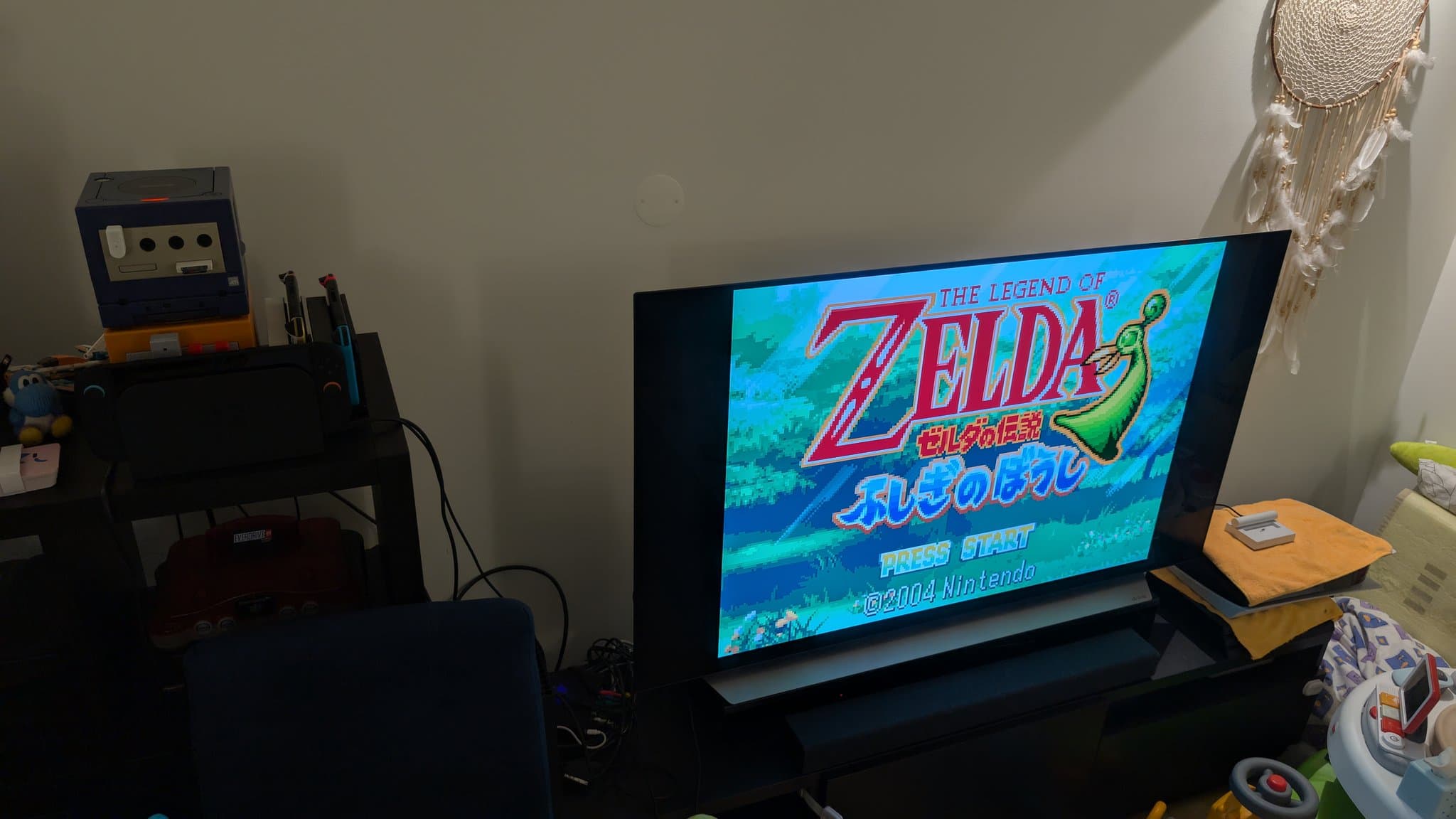

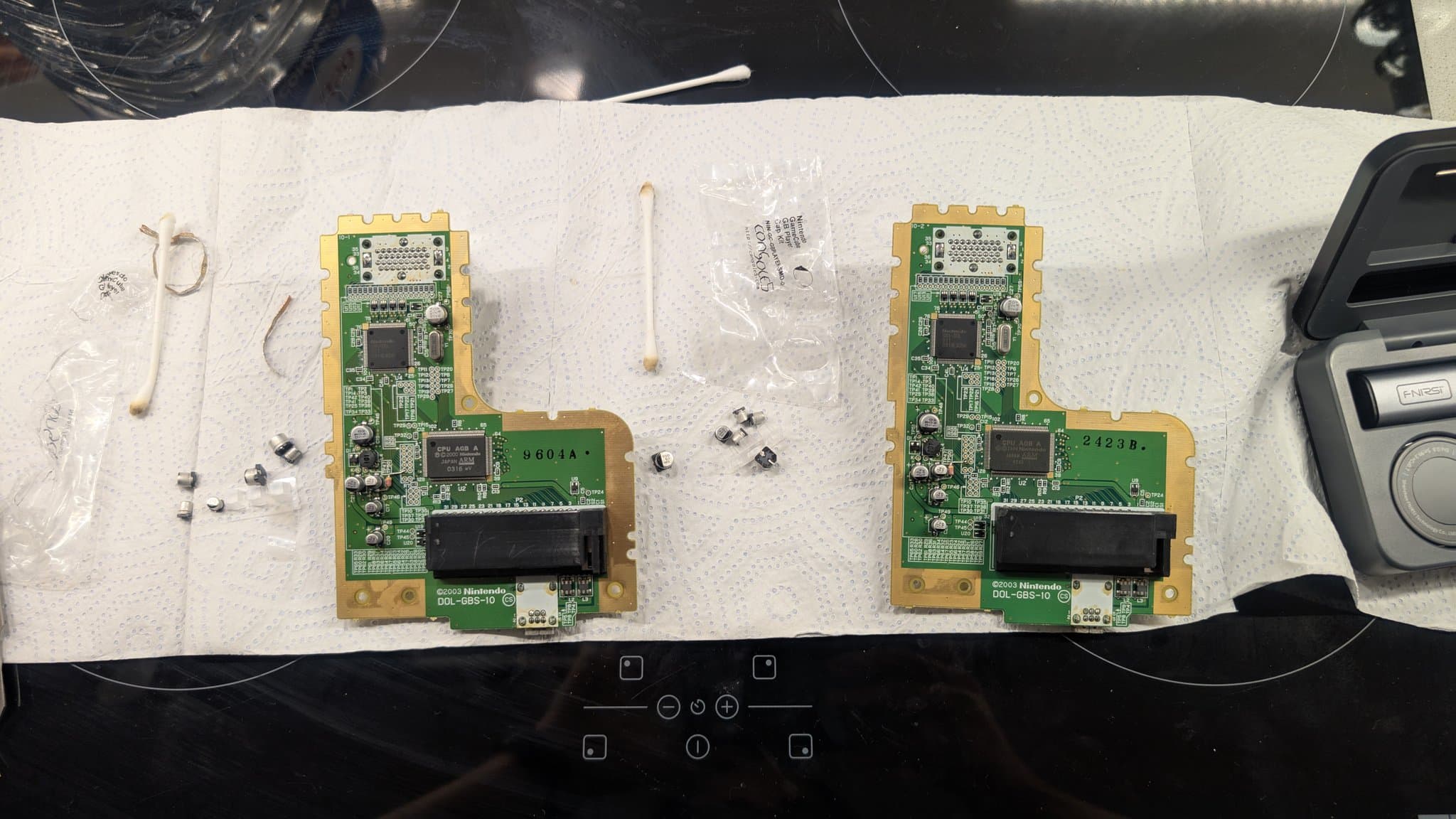

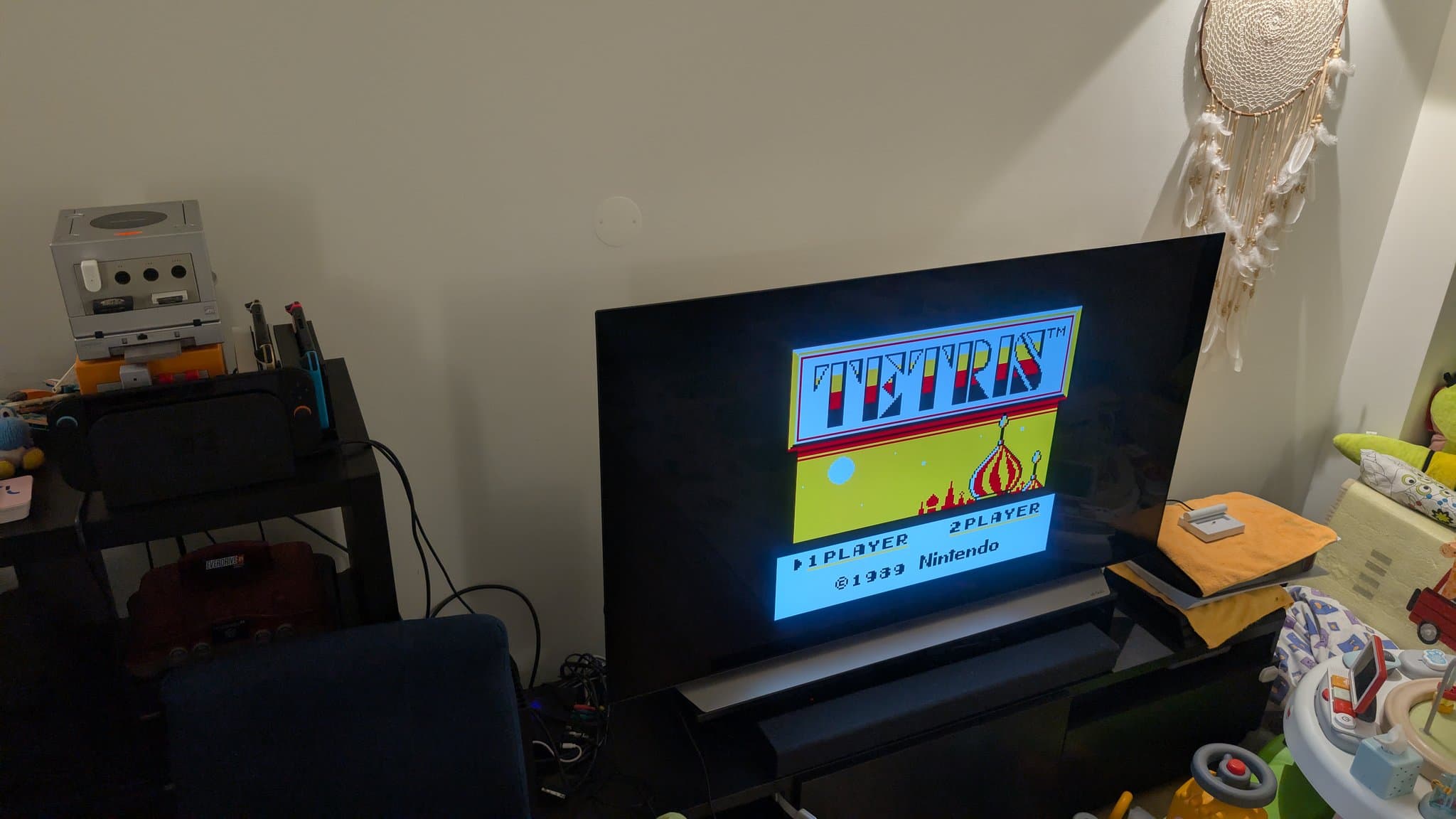

1/2 Today I took to recapping the GameCube GB players that arrived a while back. Funnily enough, these were the first units I ever handled that actually had leaking caps, judging from the smell when removing them. I tested them afterwards and everything works fine. #GameCube

2 / 2

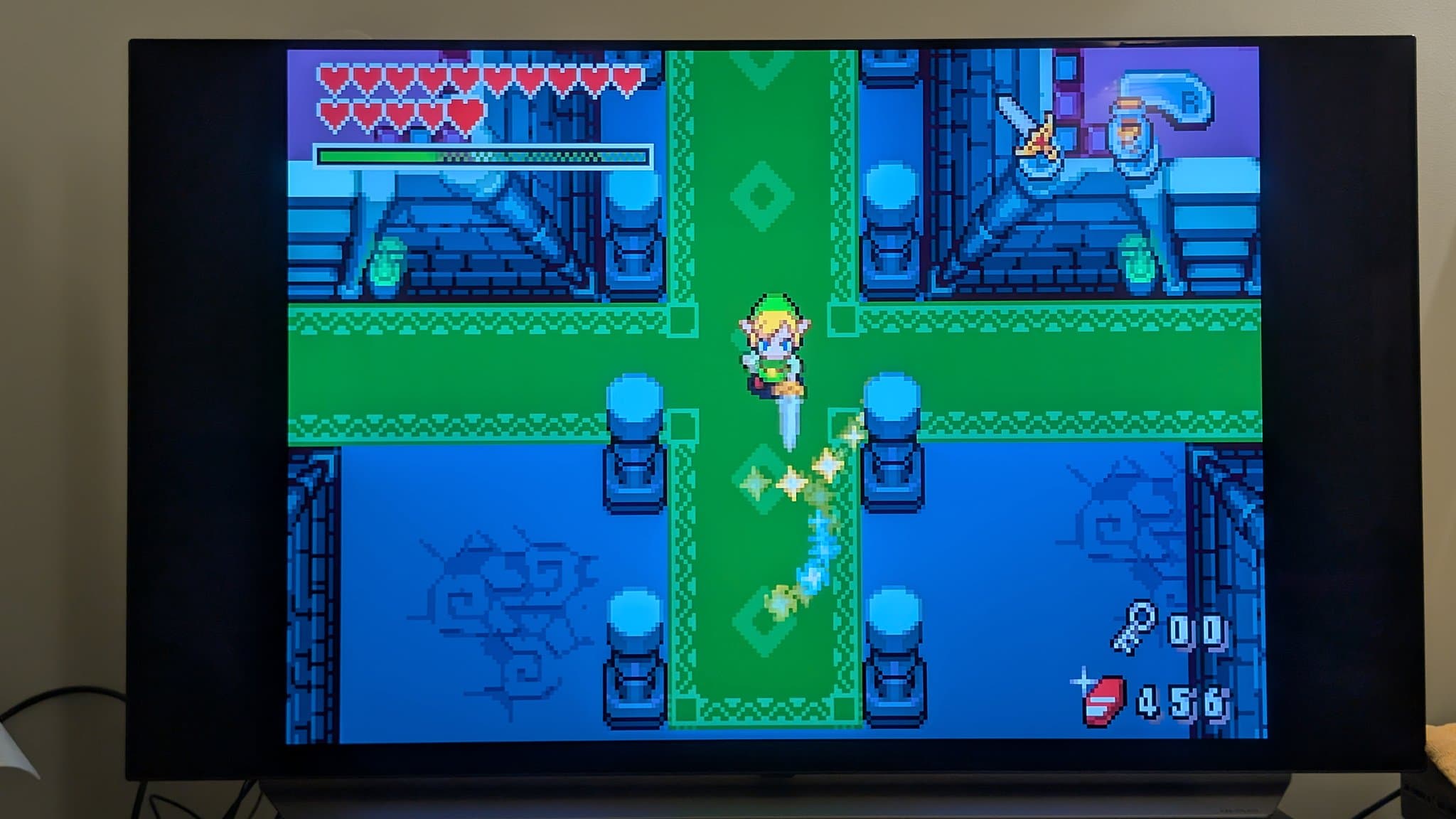

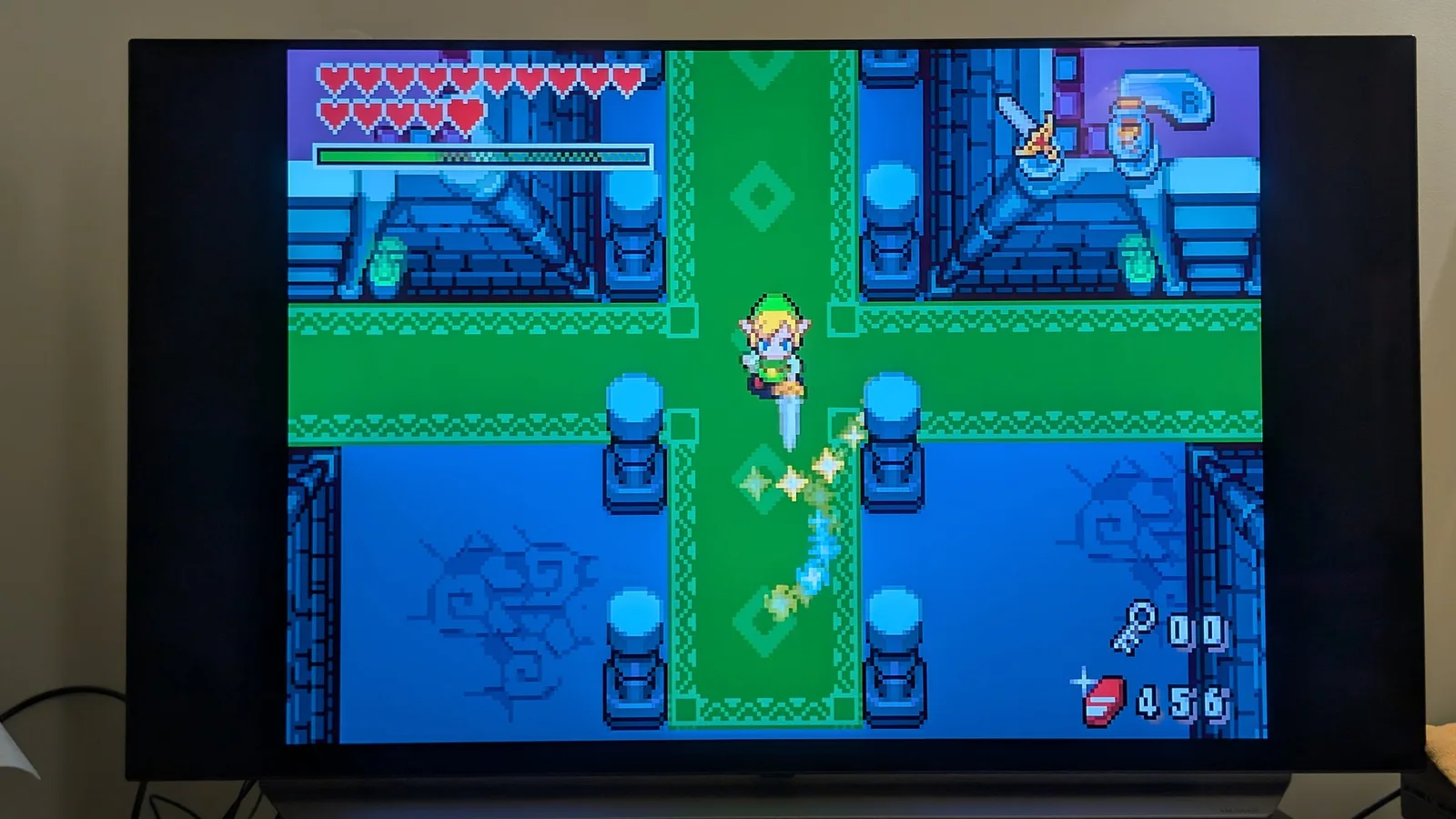

2/2 Bonus screenshot because I love this game. I had to clean out the cart slot on this unit, otherwise the games wouldn't boot and the Nintendo logo kept showing up with corrupted graphics. #Zelda

Related repairs

Two recapped Game Boy Players on blue mat: black unit with capacitors nearby, orange unit with reassembled housing during repair work.

Nintendo — Game Boy Player

Nintendo Game Boy Player Recap: Spice Orange & Black

AV Famicom motherboard on a paper-towel work surface, with the old desoldered electrolytic capacitors, a removed 7805 voltage regulator, a spool of Kester Sn63Pb37 solder, used cotton swabs, and a black brass-sponge tip cleaner laid out around it.

Nintendo — AV Famicom

Nintendo AV Famicom (HVC-101) Recap, 7805 & Clean

One of the two Sega Game Gears powered on after the work, its screen showing Columns broken up by defective horizontal lines, the partial-success unit.

Sega — Game Gear

Sega Game Gear Heavy Electrolyte Recovery (2 Units)

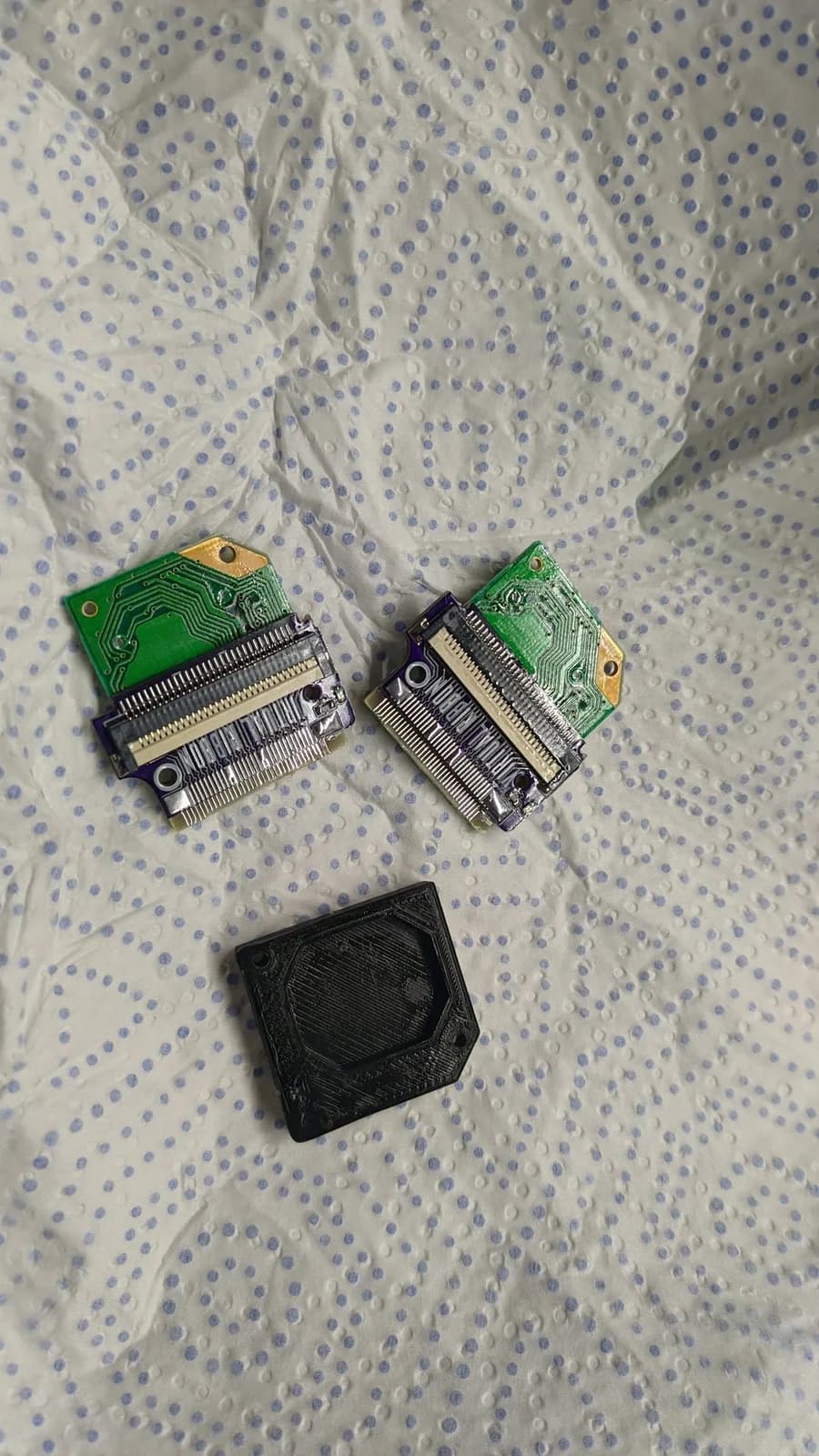

Two green circuit boards with ribbon connectors and a black mounting jig displayed on dotted fabric, showing Virtual Boy 4.0 LED array PCB assembly components.
