Sony — HB-F1XV (MSX2+)

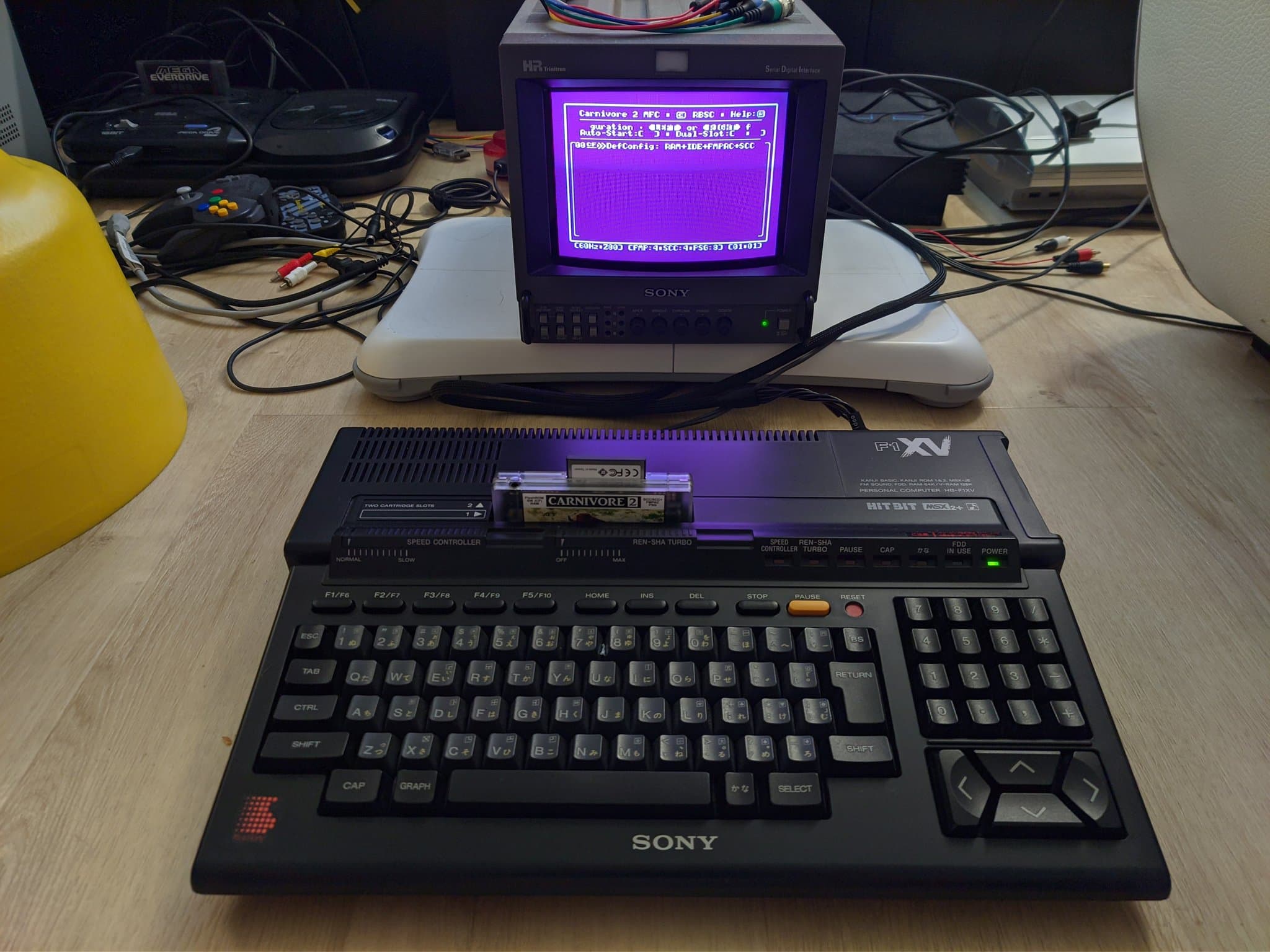

Sound issues on this Sony HB-F1XV MSX2+ traced to the HIC-1 board SMDs, replaced with MLCC caps. Also gained a Carnivore 2 flashcart and a new keyboard PCB.
The original membrane keyboard was replaced as an upgrade, rebuilt from @S0urceror's open-source replacement design. Both gerber sets live in that repo, ready to send to a fab house:
Gerbers/Connector — the connector boardGerbers/MainPCB — the main keyboard matrix boardFab, at least, the connector board at 0.6 mm thickness so it seats in the mainboard's FPC connector. The design targets the HB-F1XD but drops straight into this HB-F1XV.
Design shared by @S0urceror under CC BY-NC — non-commercial use, please keep the credit.

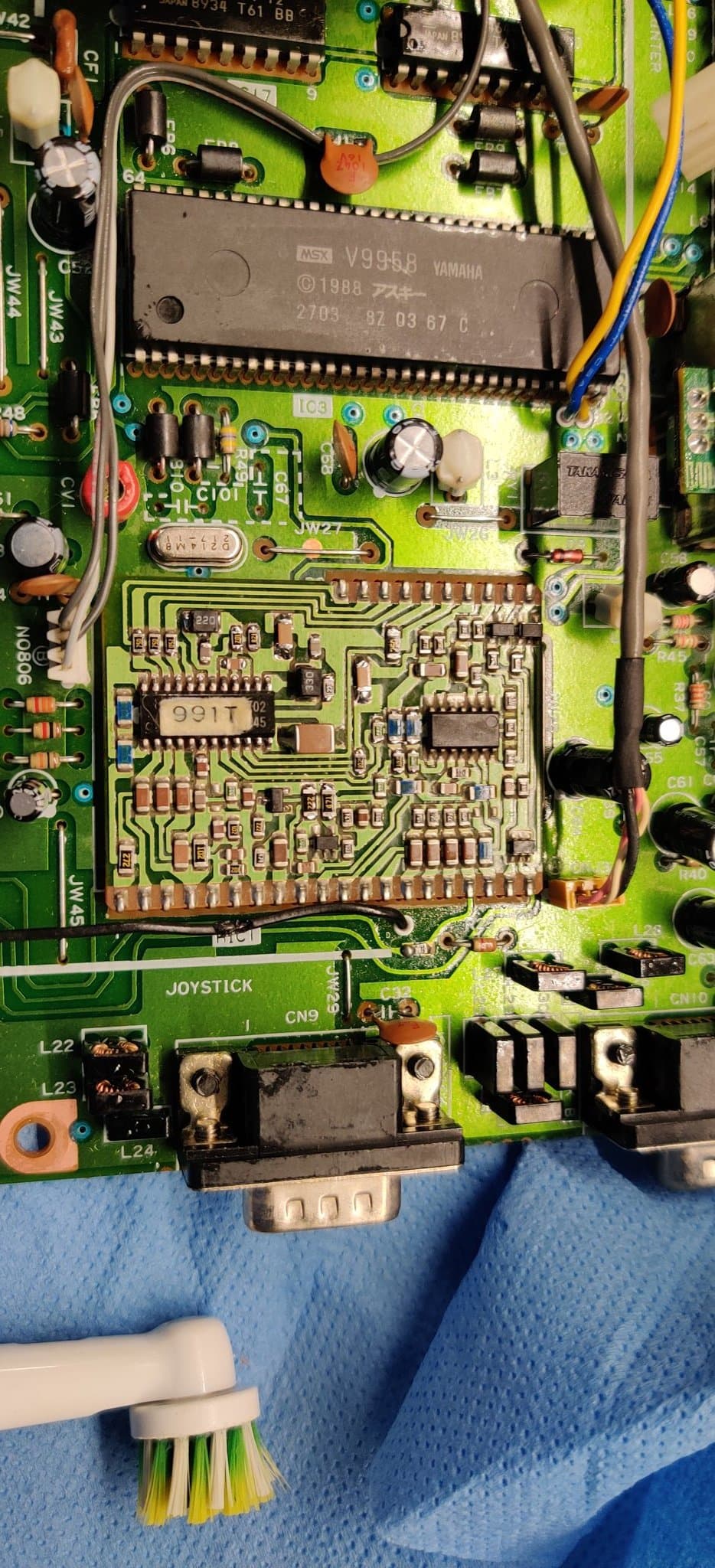

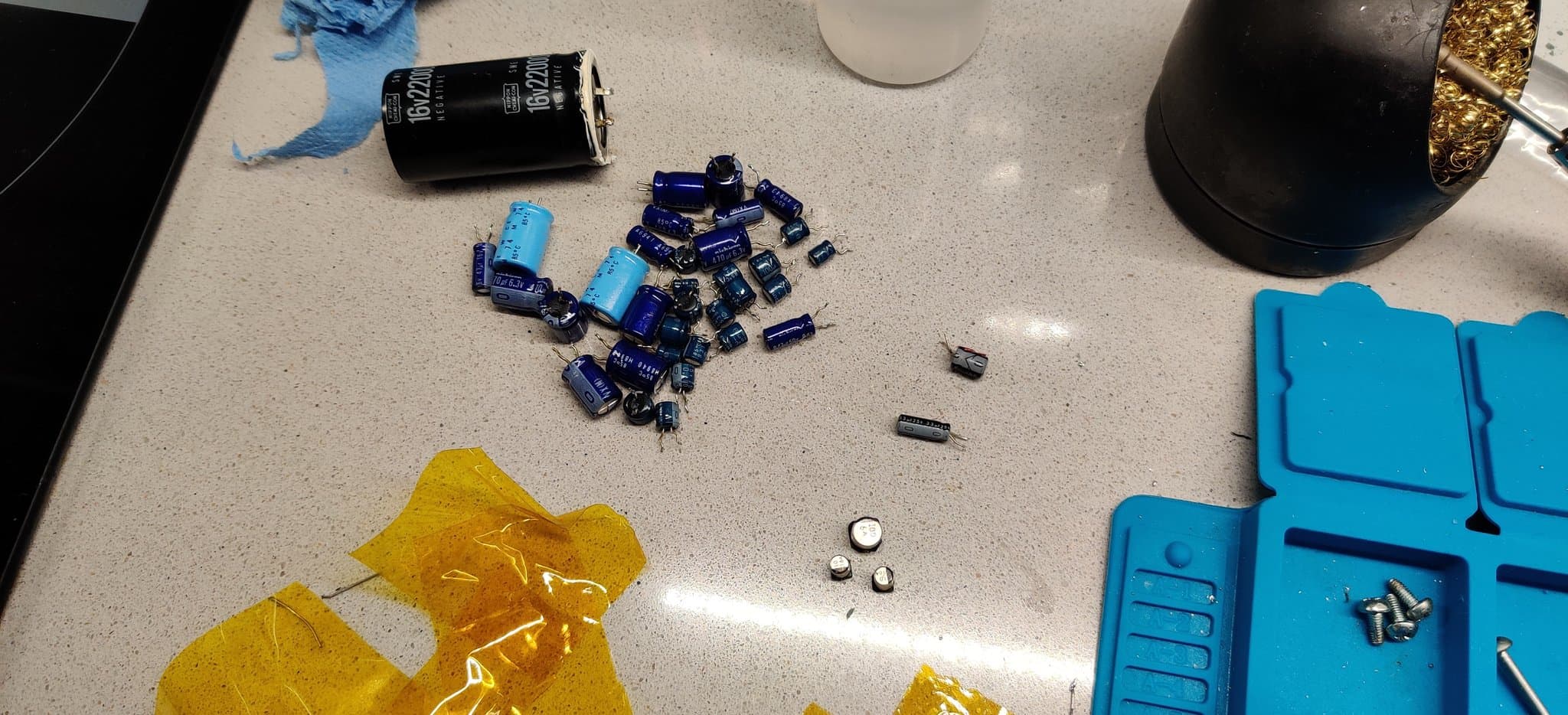

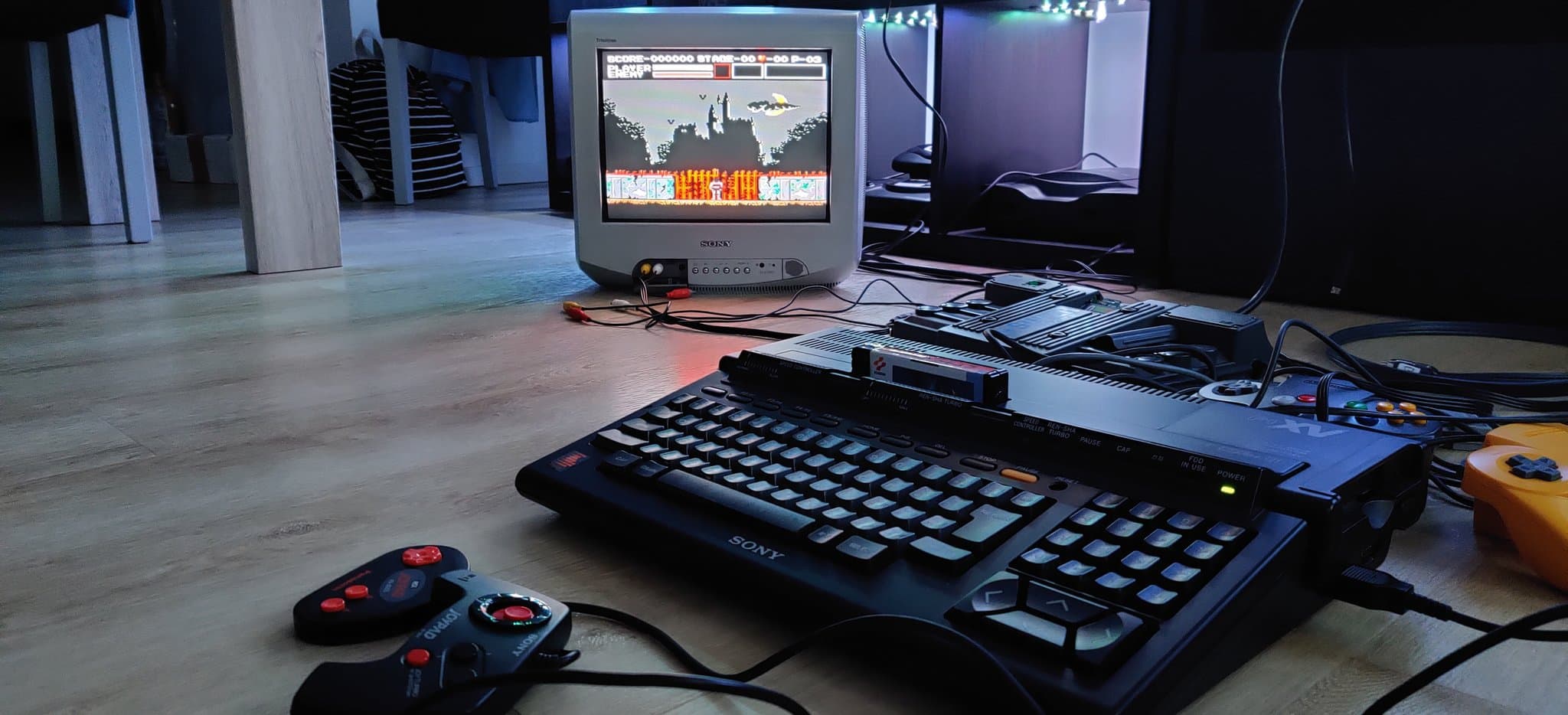

Restoration of a Sony HB F1-XV MSX2+. Sound issues are now gone! HIC-1 board SMDs replaced with MLCC caps. #RETROGAMING #Sony #MSX #retrogamer

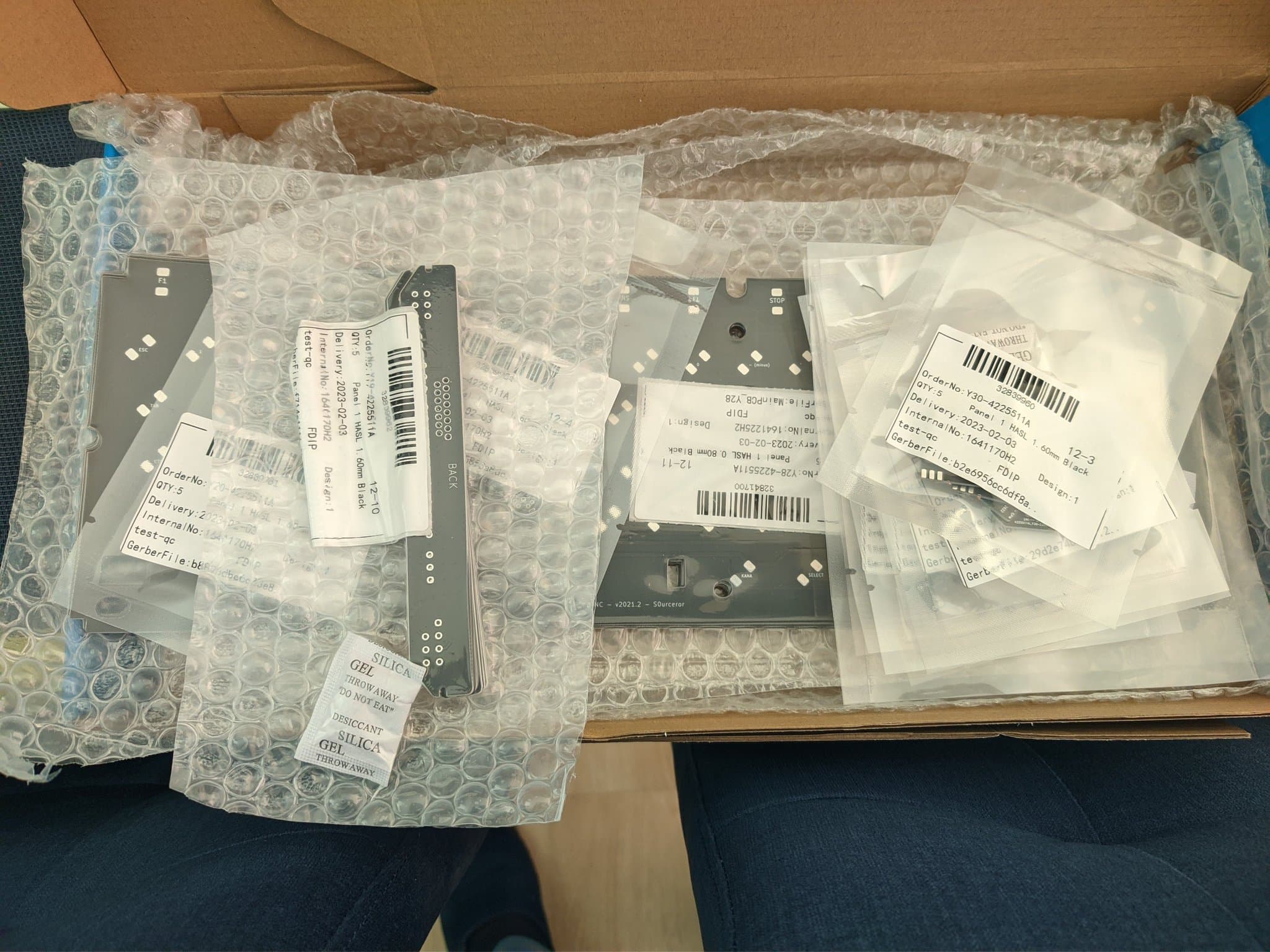

New @JLCPCB arrivals. A lot of stuff by @jeffqchen, as usual and a keyboard PCB for the Sony #MSX by @s0urceror (thanks for the help with getting the gerbers properly recognised on the JLCPCB website 👍). #RETROGAMING

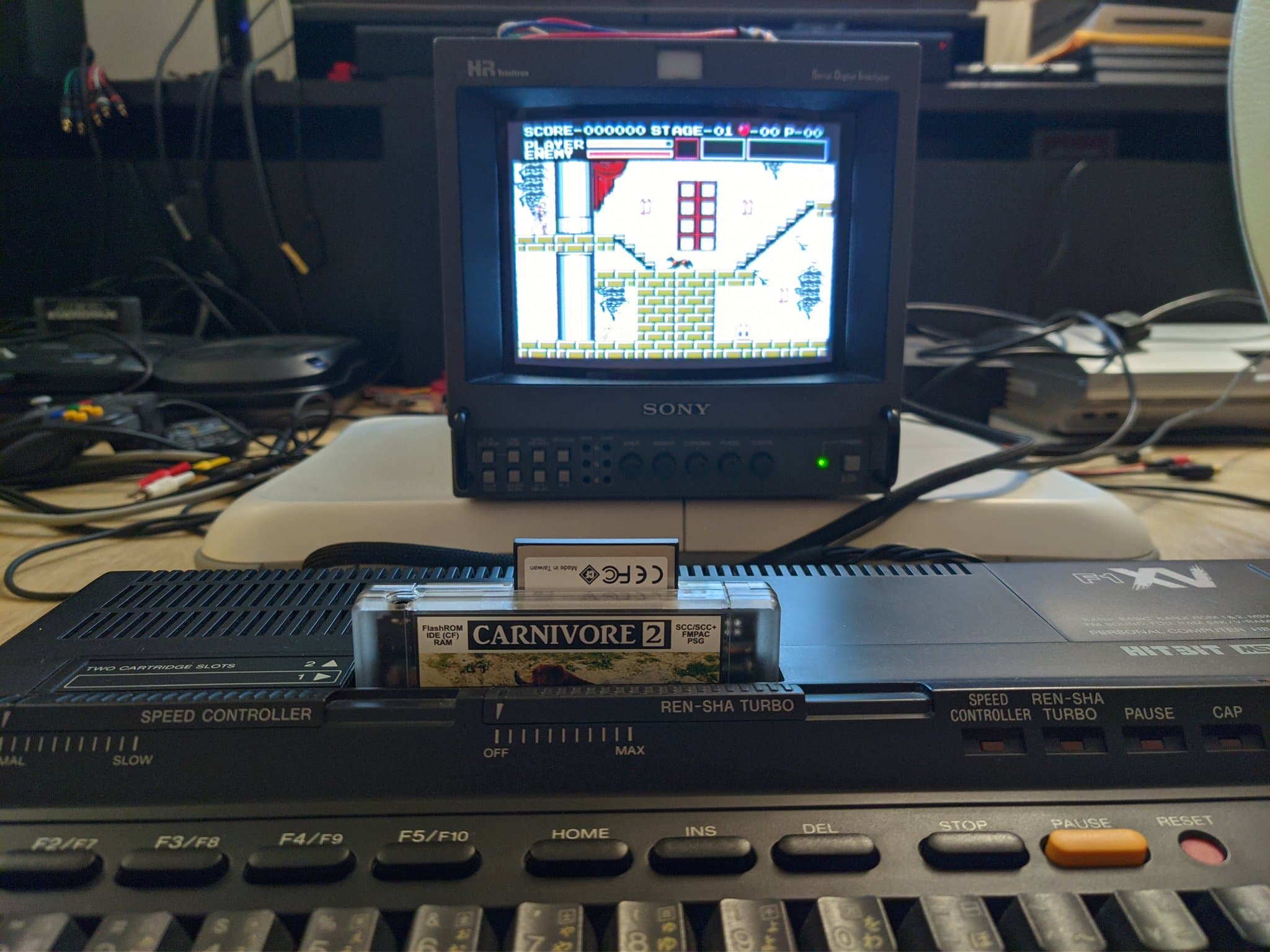

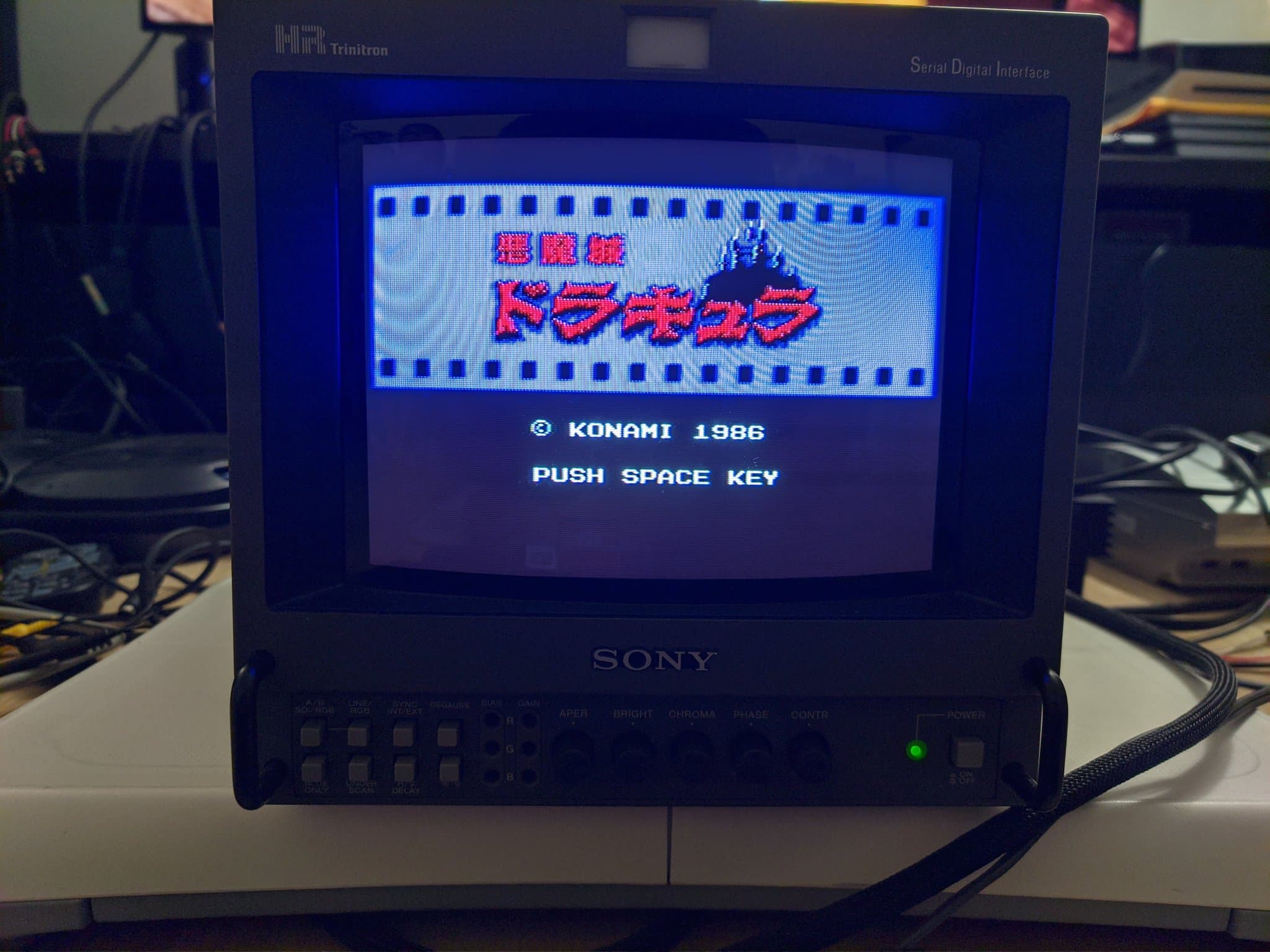

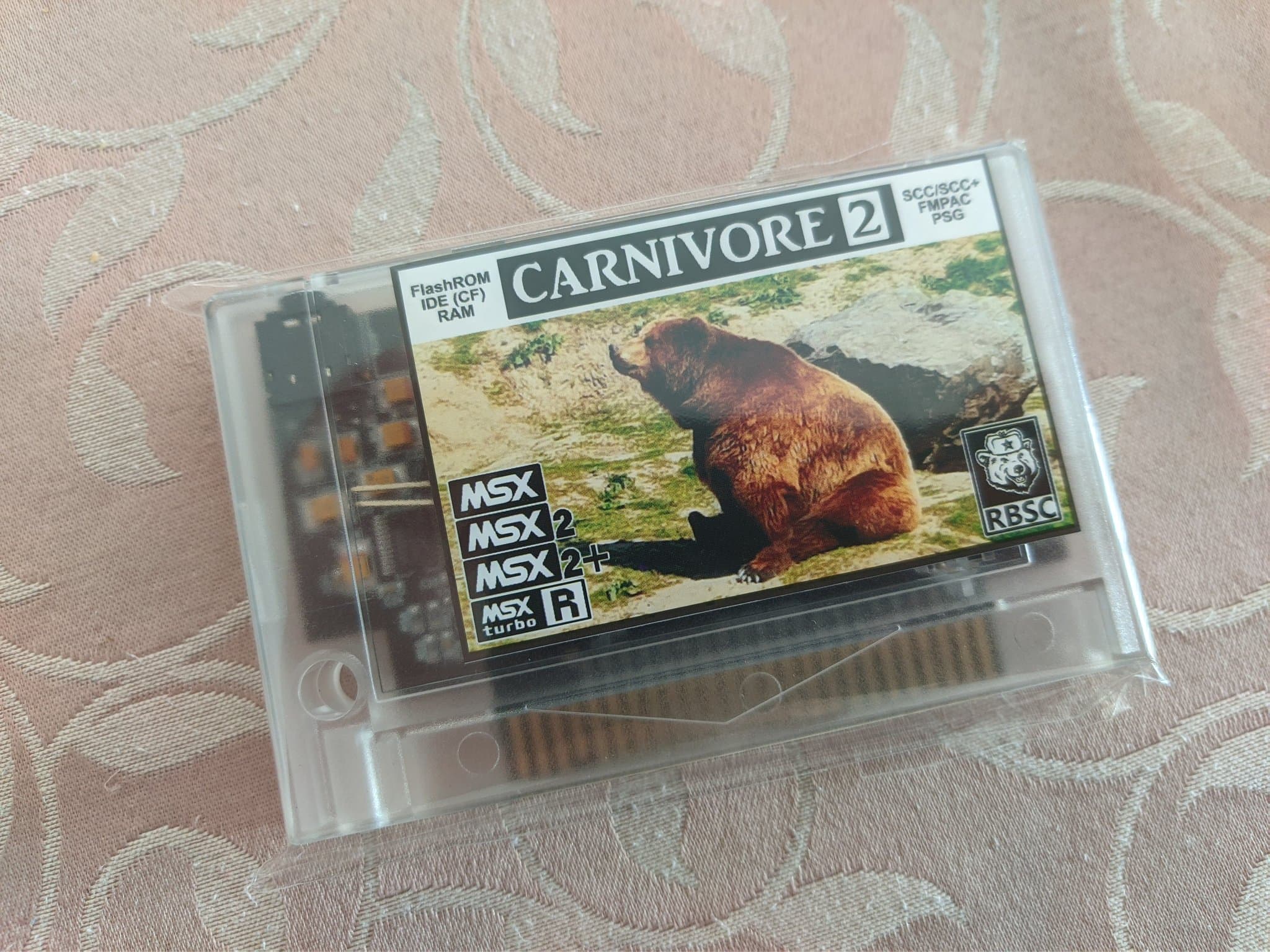

Finally got my Carnivore 2 flashcart for the #MSX from @RgRDev. Can't find my RGB cable so using composite for now. Here's some #Castlevania for you guys. 😉#RETROGAMING
