Nintendo — Super Nintendo Entertainment System (SNES)
Two mods on a Nintendo 1-chip PAL SNES (SNSP-001A): a self-assembled RGB bypass board by Borti4938 and the SuperCIC + UIGR + D4 patch switchless region mod kit from Consoles Unleashed.
RGB bypass board

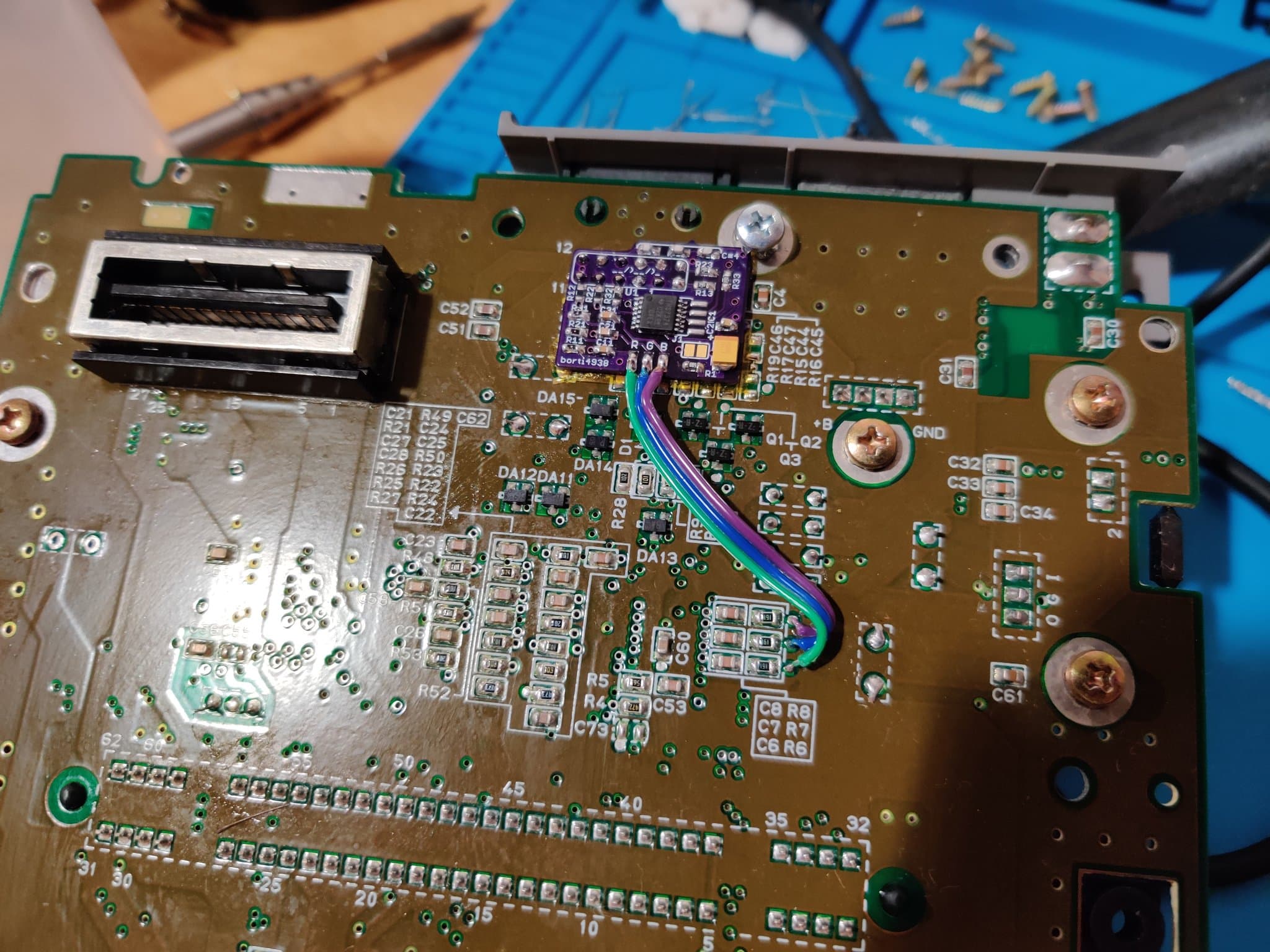

SNES RGB Bypass by Borti4938 for 1-chip SNES, classical big model and SNES2 mini/Jr. Board assembled by me.
Switchless region mod kit (SuperCIC + UIGR + D4 patch)
Consoles Unleashed kit for switchless 50/60Hz region switching on the 1-chip SNES.
@borti4938 Thank you for sharing the design, BOM and installation instructions. This is a really easy mod and it's well worth it.
@ConsoleMods Hello, do you mind sharing the resistor values you use for the LED that comes in your kit?

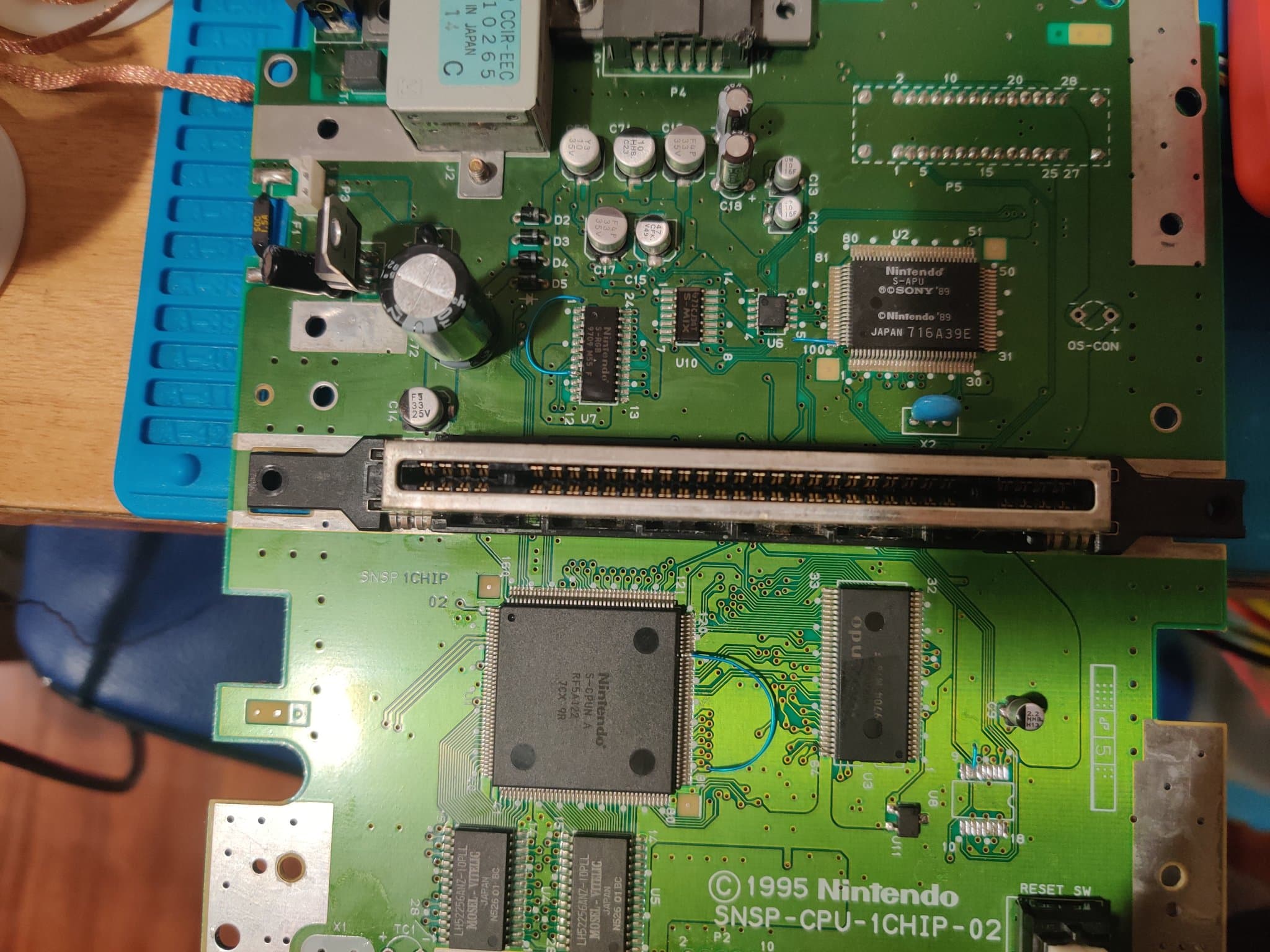

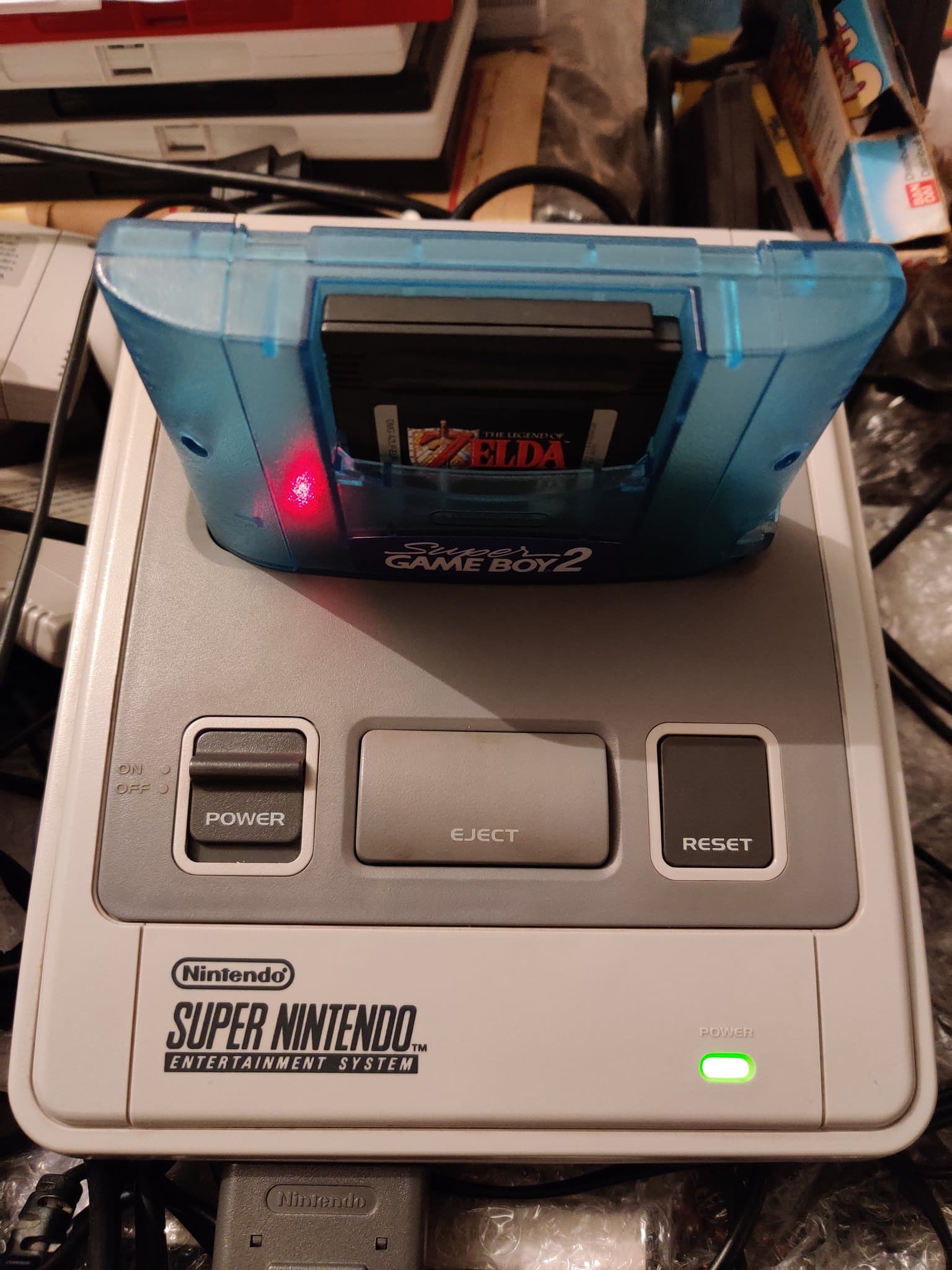

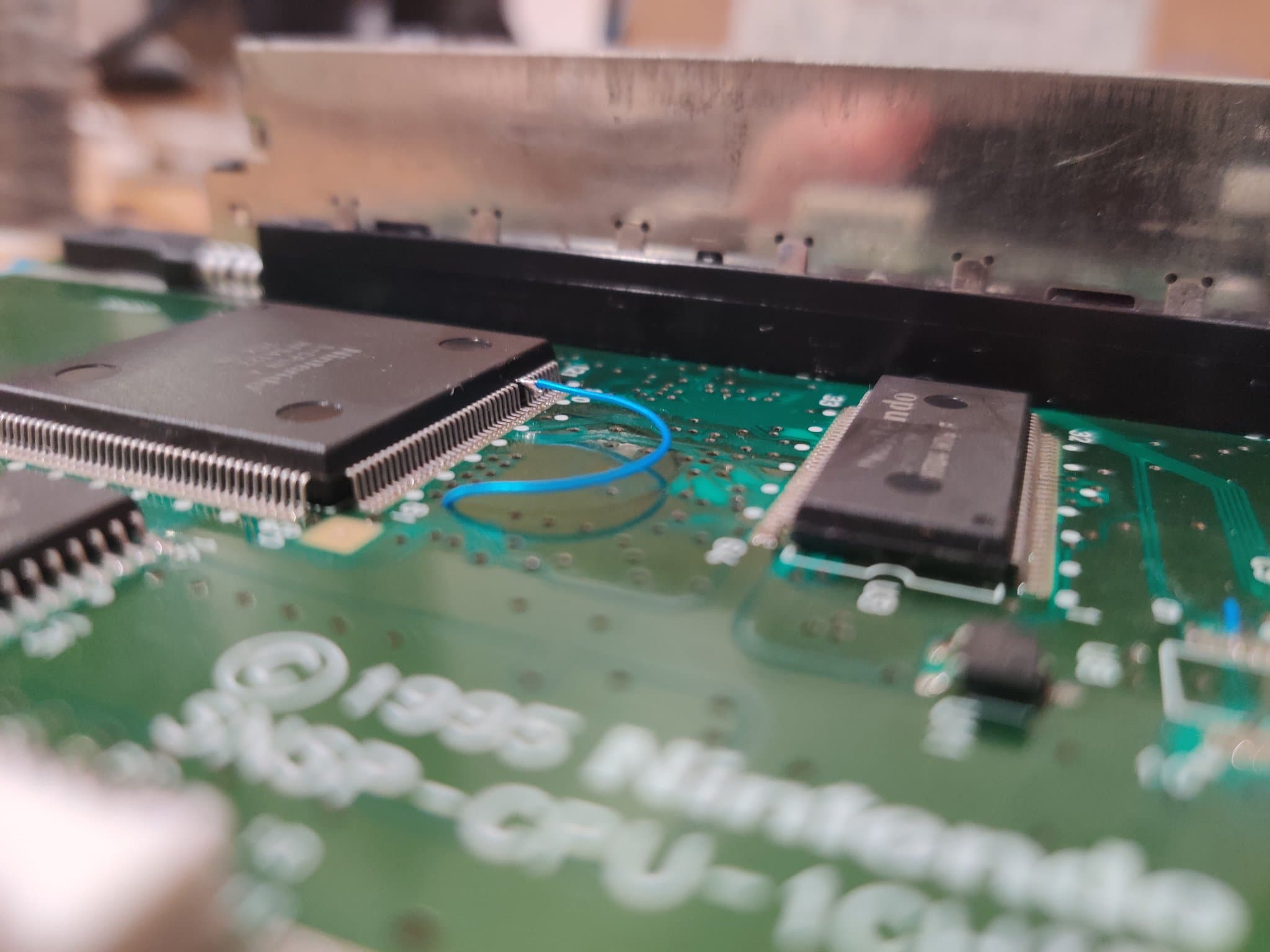

SNES 1-Chip 50/60Hz SCIC. @SLRMODSHOP thanks for the installation video It's so easy to follow! Thanks @Voultar for the many instructional videos on lifting pins, dental picks do make it way easier. Thanks @ConsoleMods for the kit and help with the LED.
