Sega — Pico

Sega Pico (1st Revision) Recap & Clean

October 10, 20221 thread~1 min read
Recap

First-revision Sega Pico recapped and cleaned. Probably not the intended demographic at this point, but it works.

hitmanmcc
hitmanmcc

October 10, 2022· Thread 1

View on X ↗Without login ↗

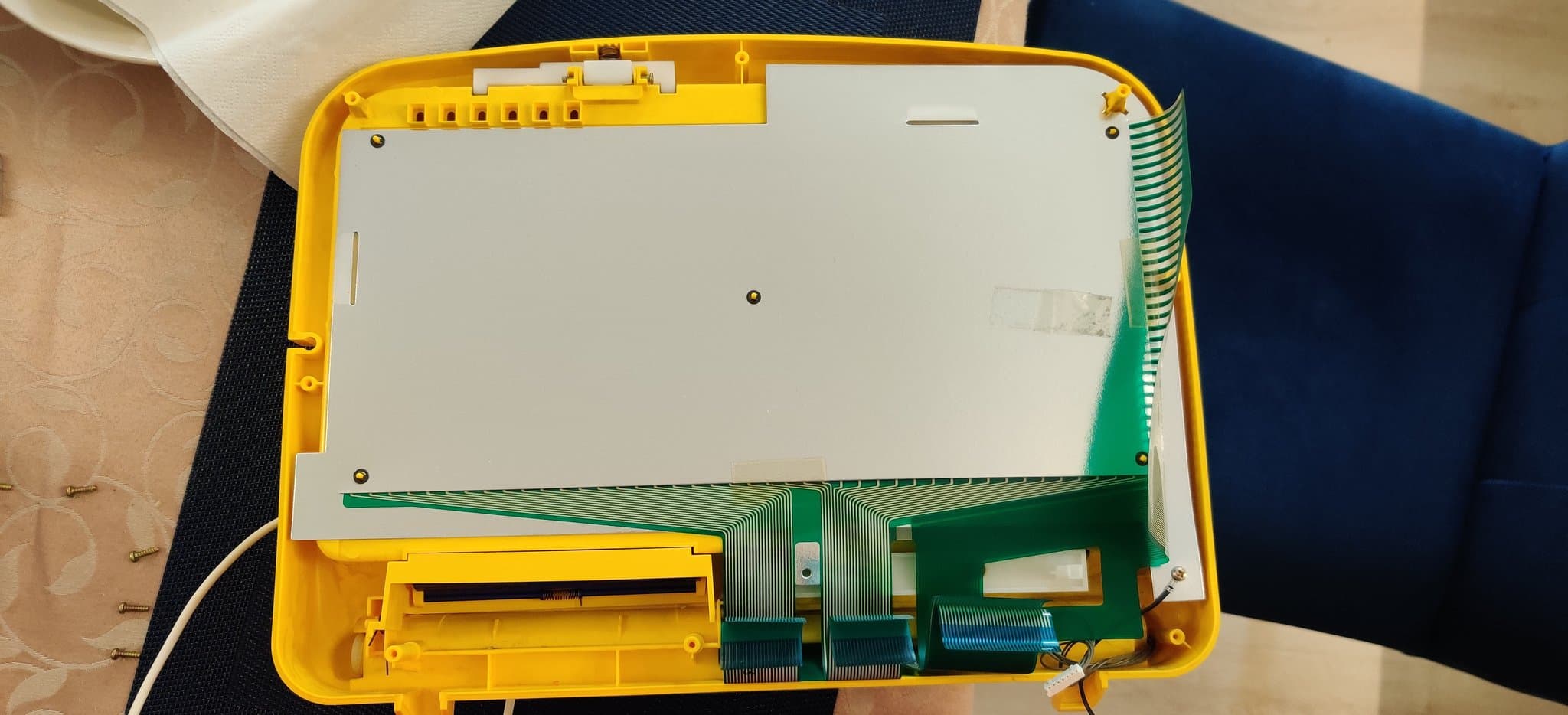

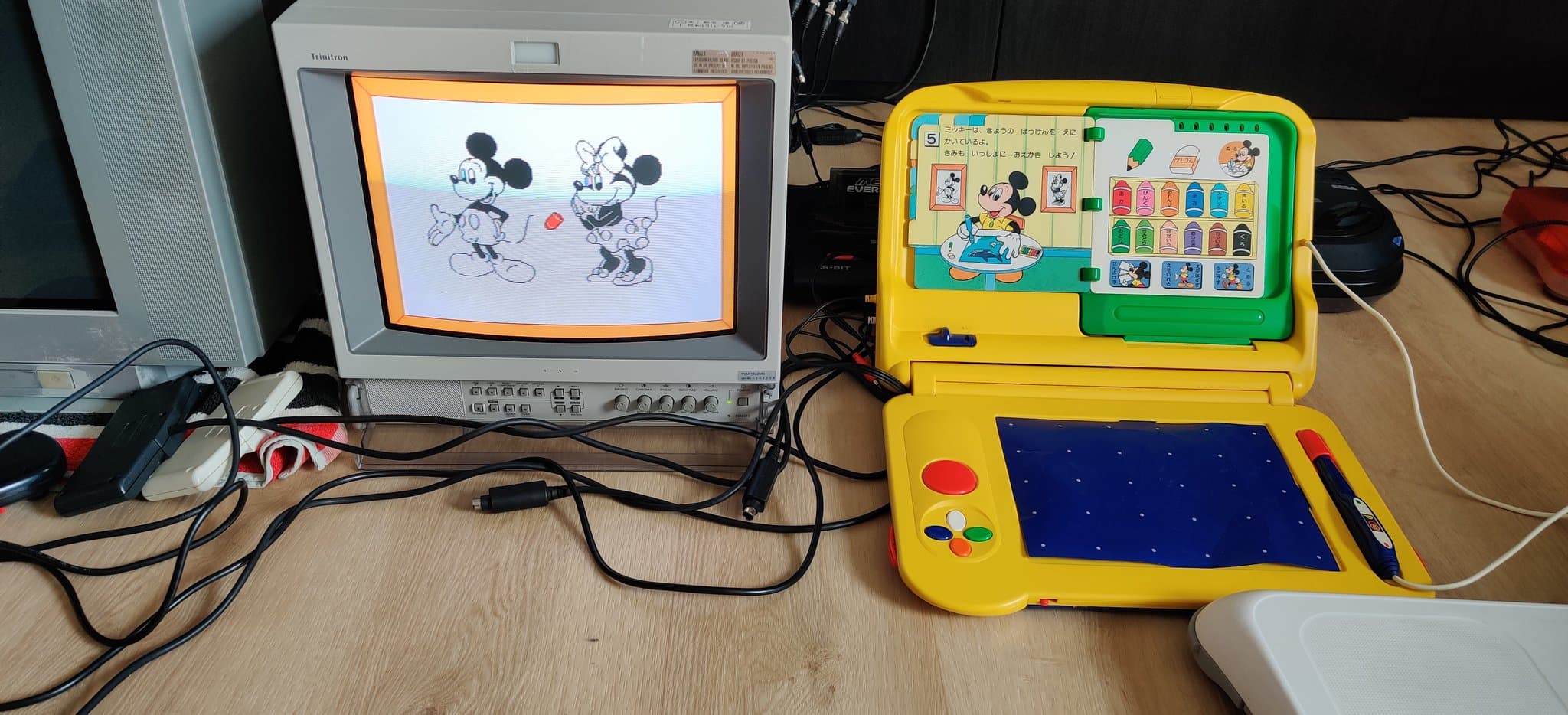

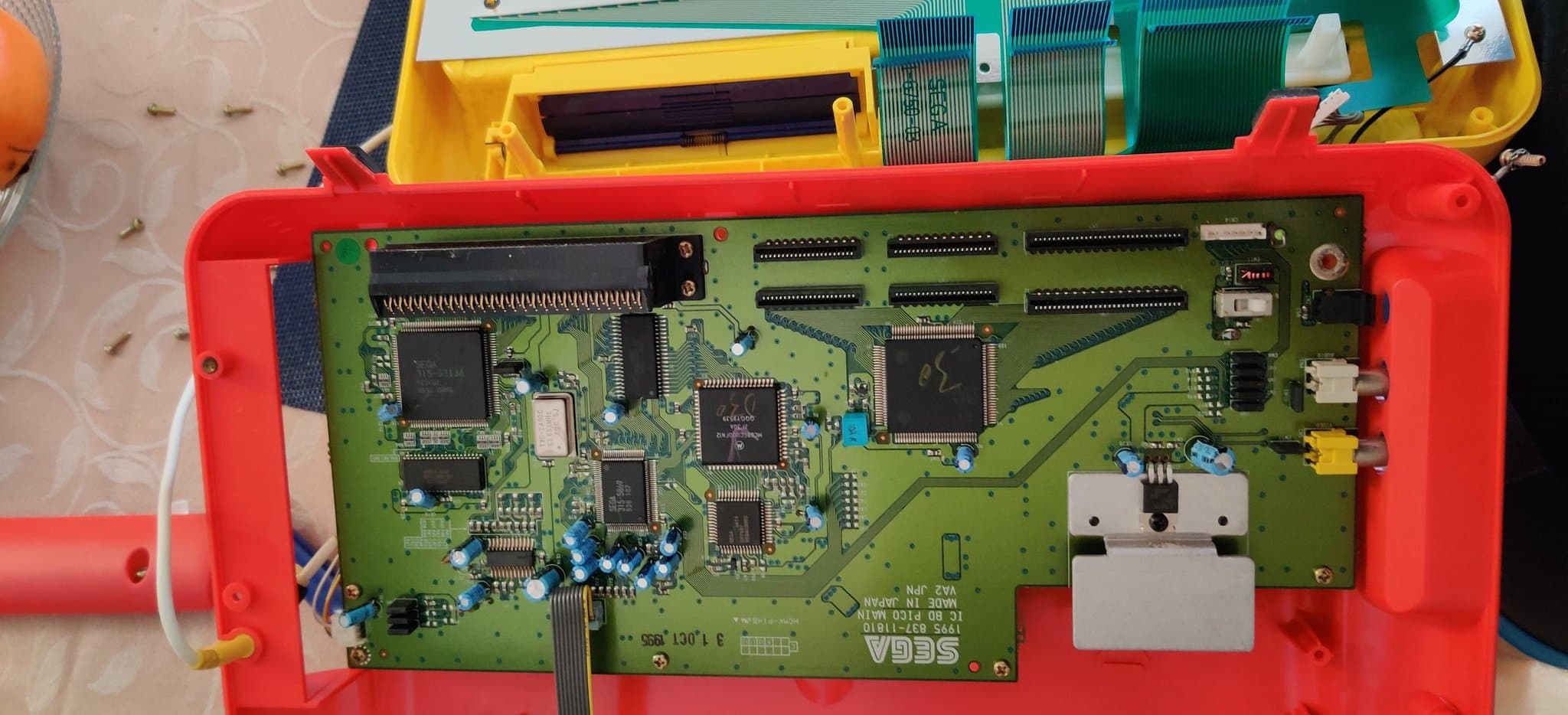

Getting around to recapping some of the latest arrivals. Starting off with a first revision #Sega Pico. Also replaced the 7805, as usual. After some cleaning it's ready for a new lease on life. #RETROGAMING Testing it out with a #MickeyMouse game.
