Sega Dreamcast VA0 Recap, GDEMU & Mods (For a Friend)

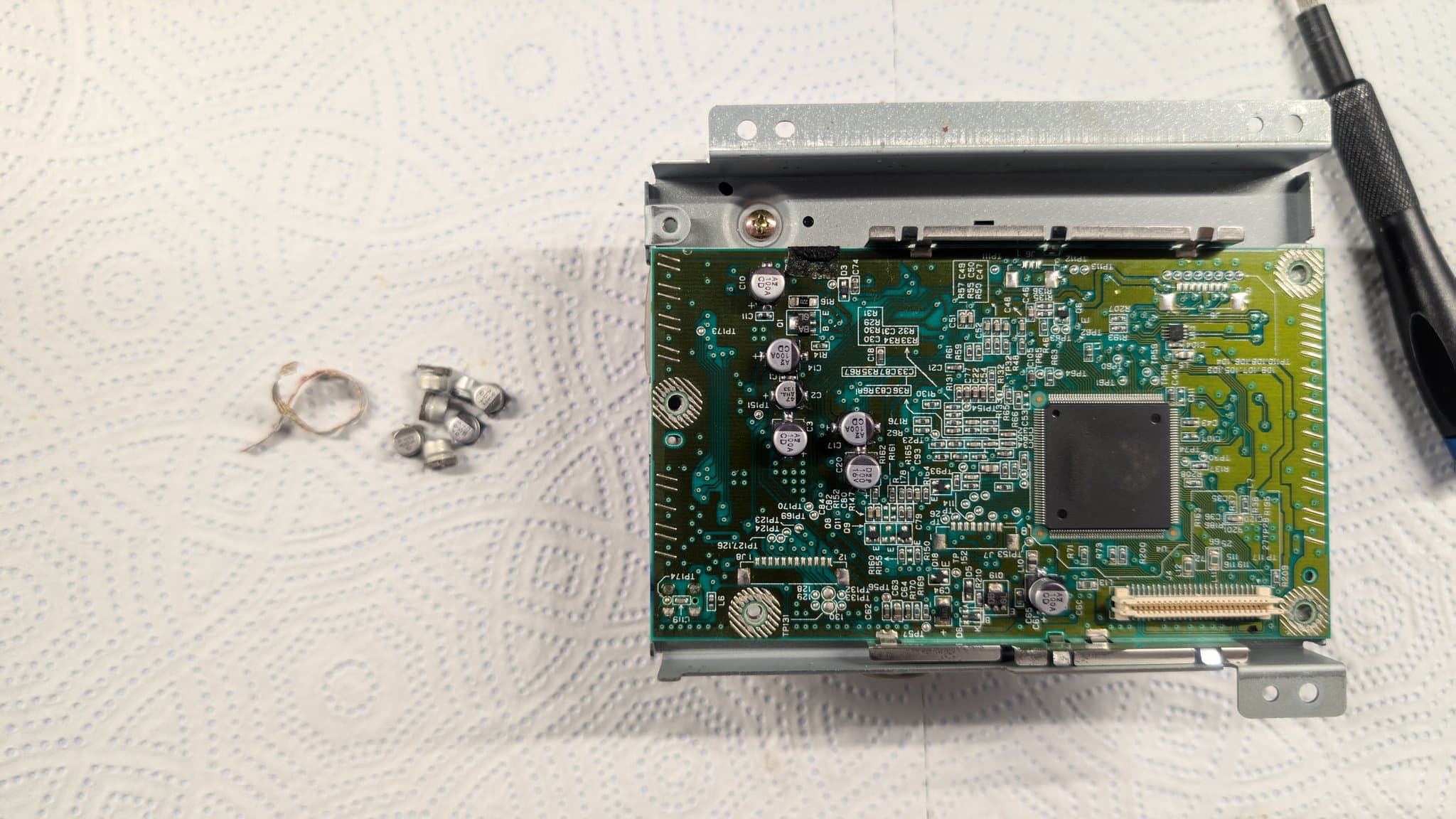

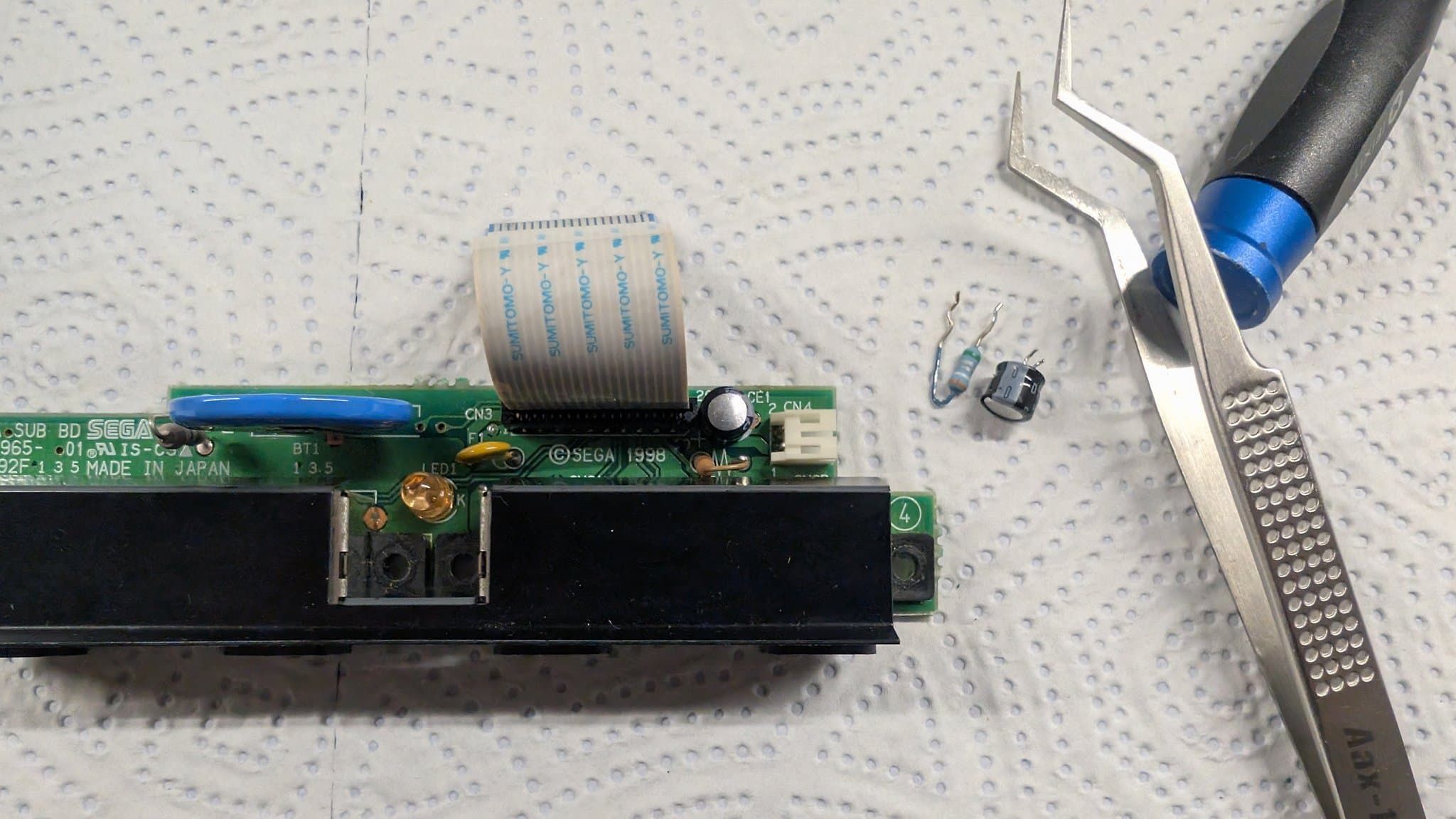

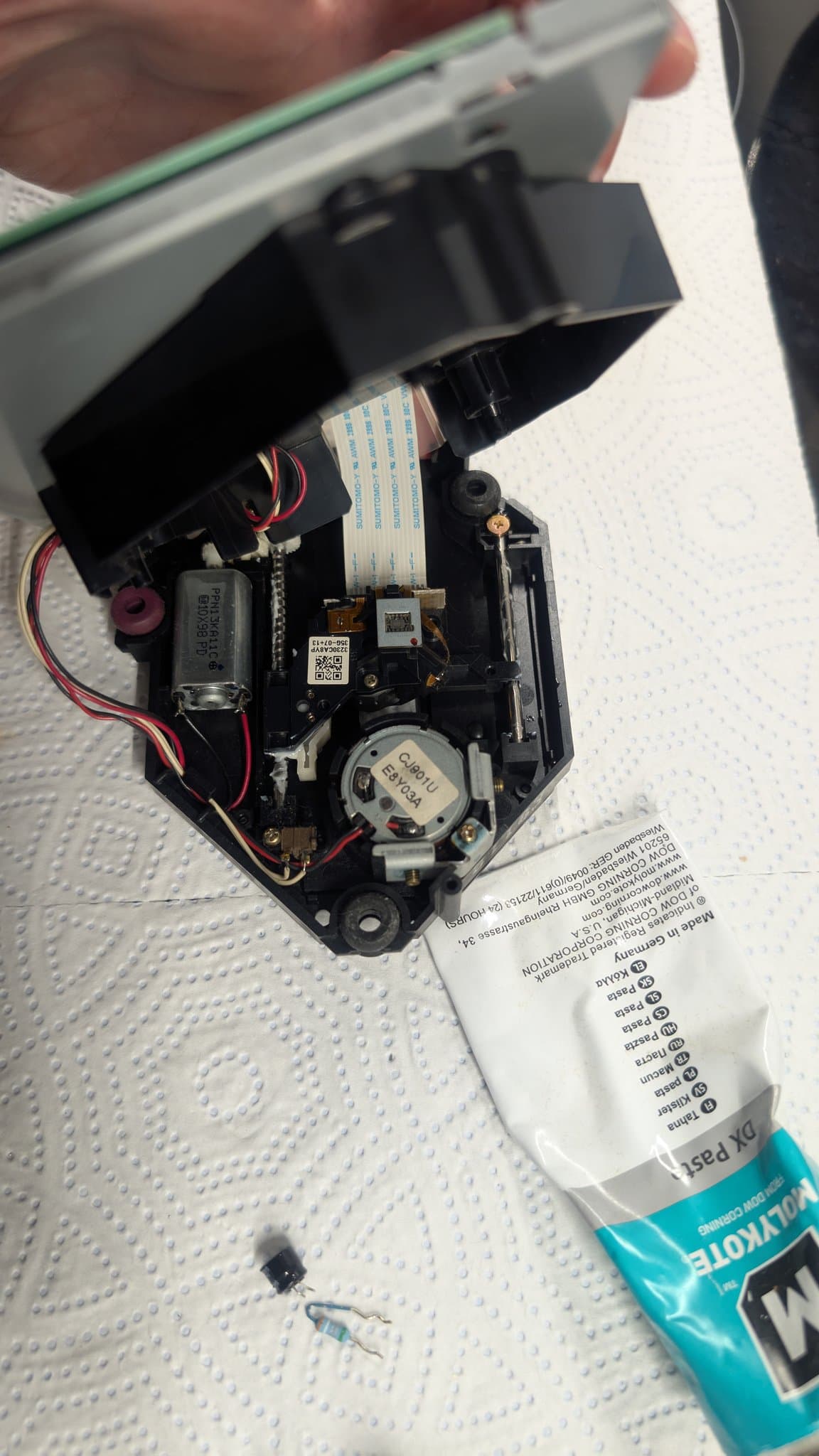

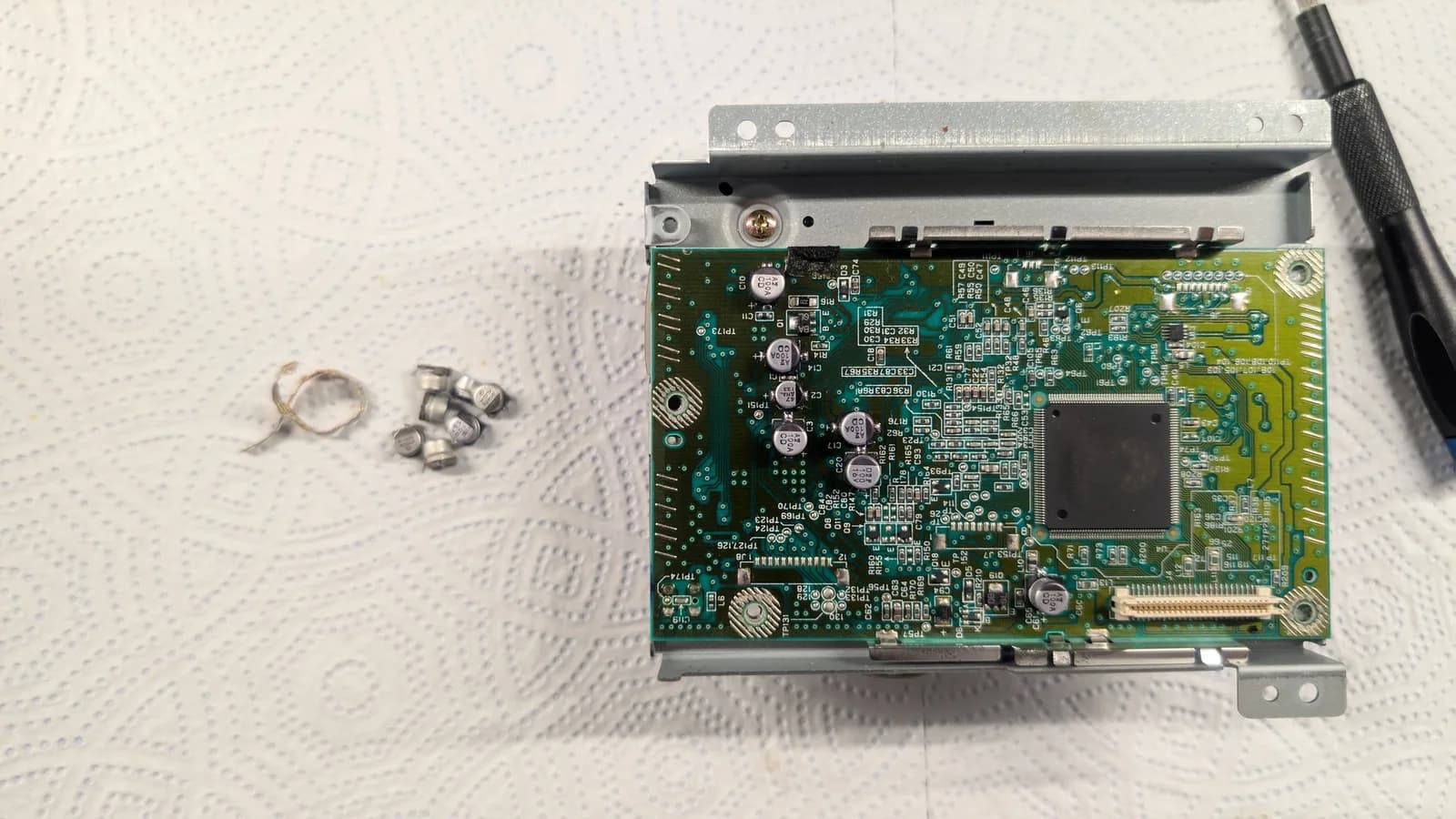

Refurbishing that VA0 Dreamcast. New capacitors on the motherboard, GD-ROM PCB and controller PCB, also replacing the fuse with a resetable one. Cleaning and lubricating the optical drive mechanism. #Dreamcast

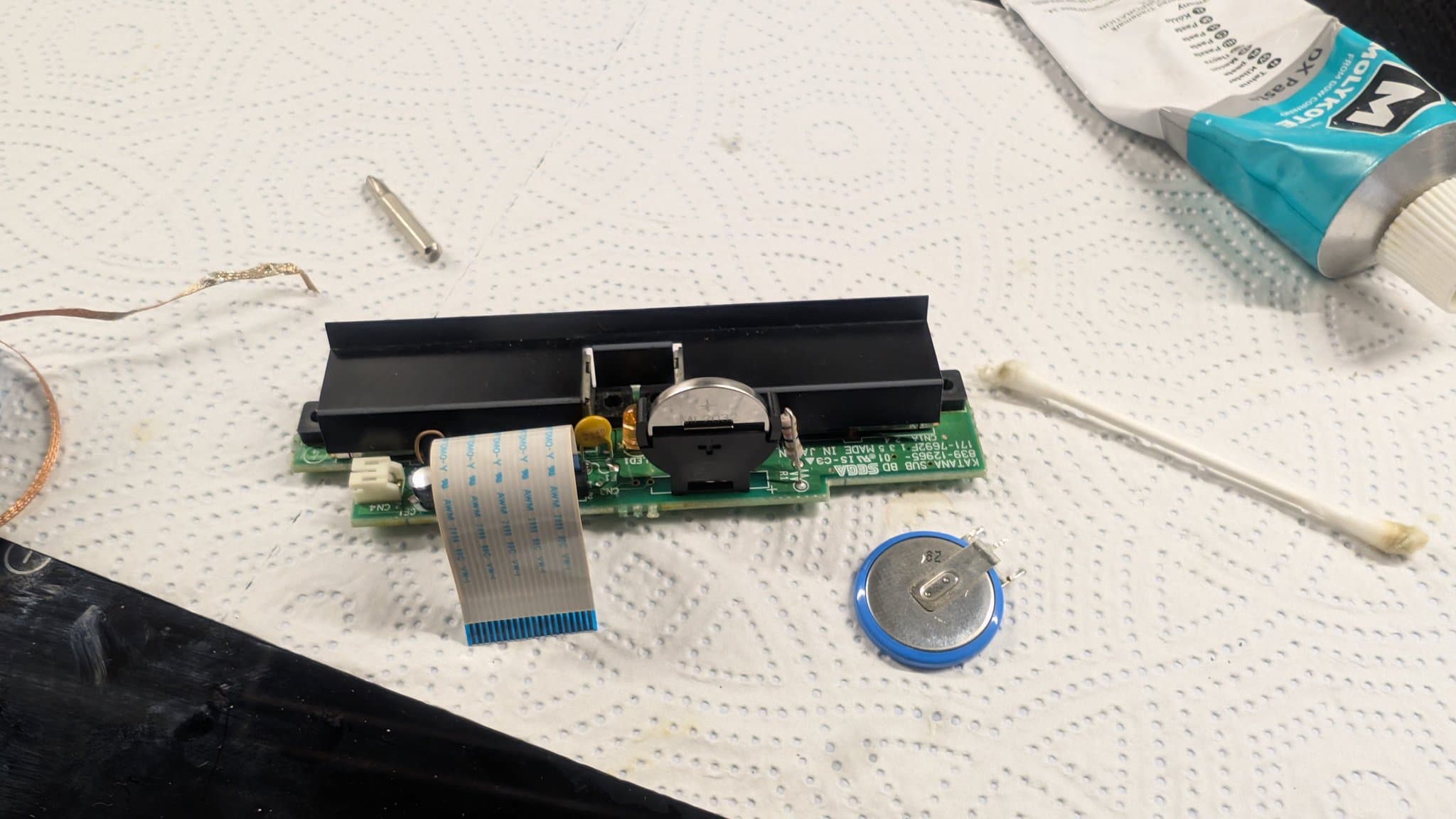

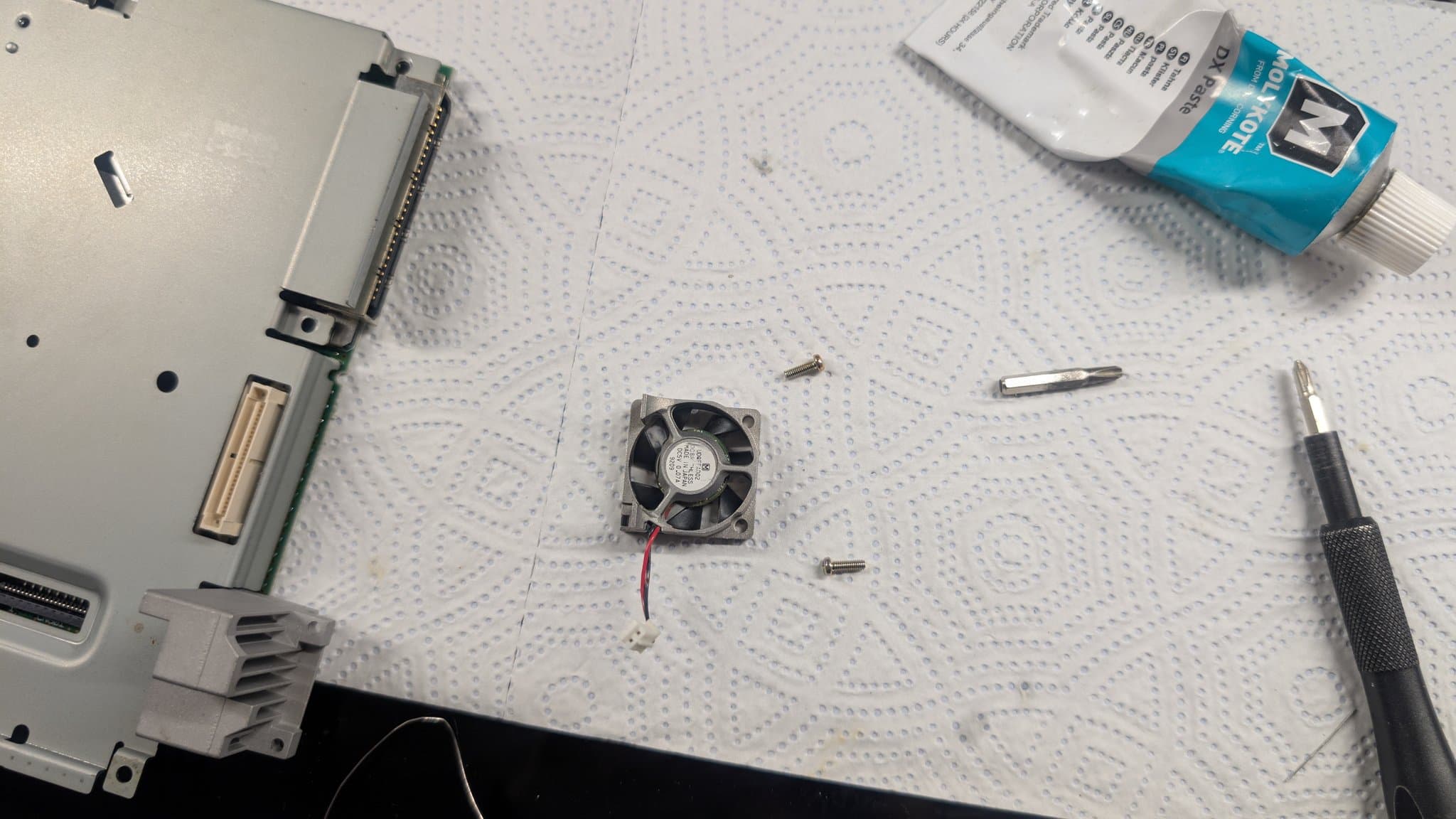

Lubricating fan, replacing battery and testing. Testing and sadly the drive still doesn't work but it's not a major issue as it's meant to be replaced by a GDEMU anyway. #RetroGaming

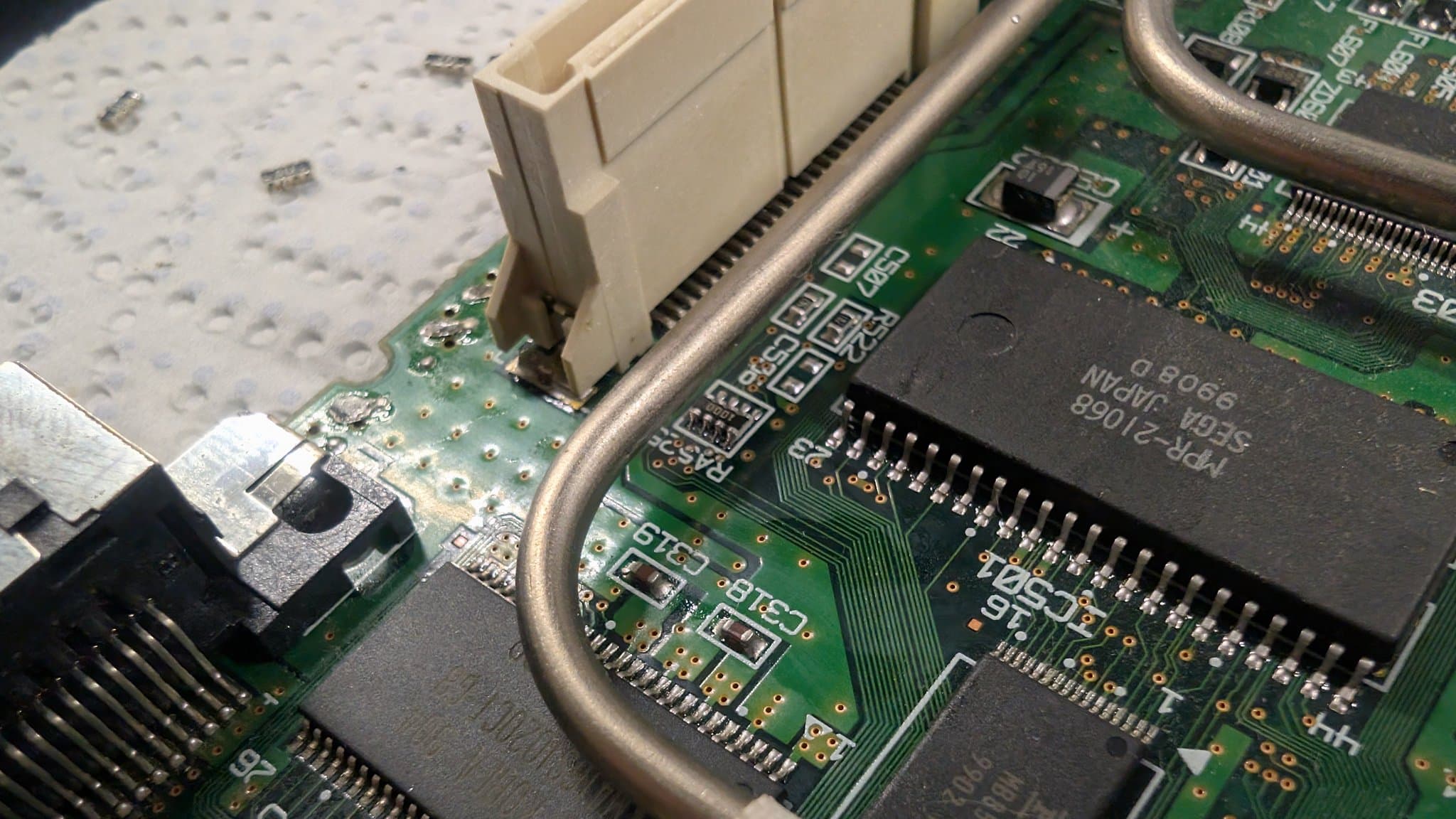

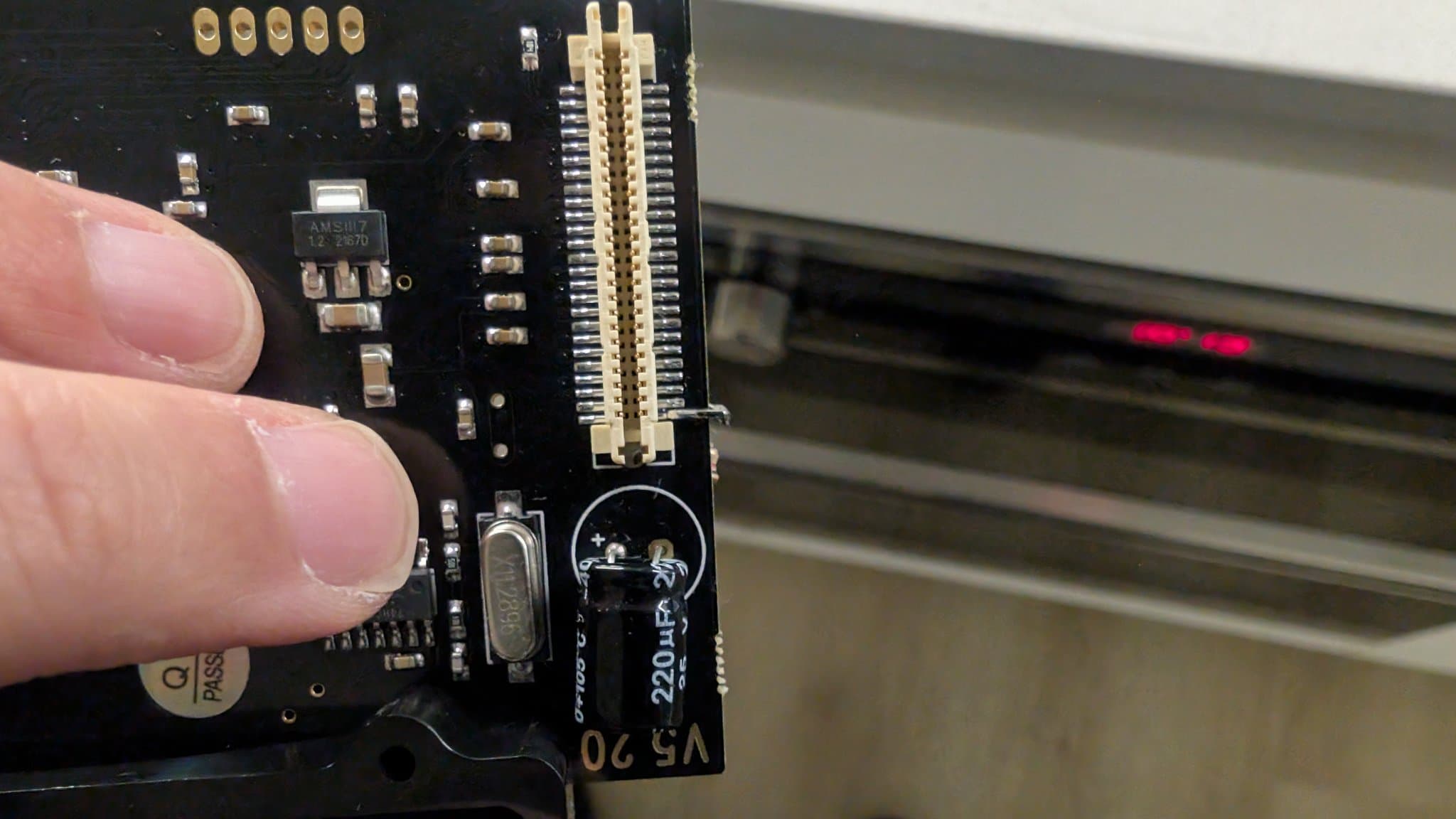

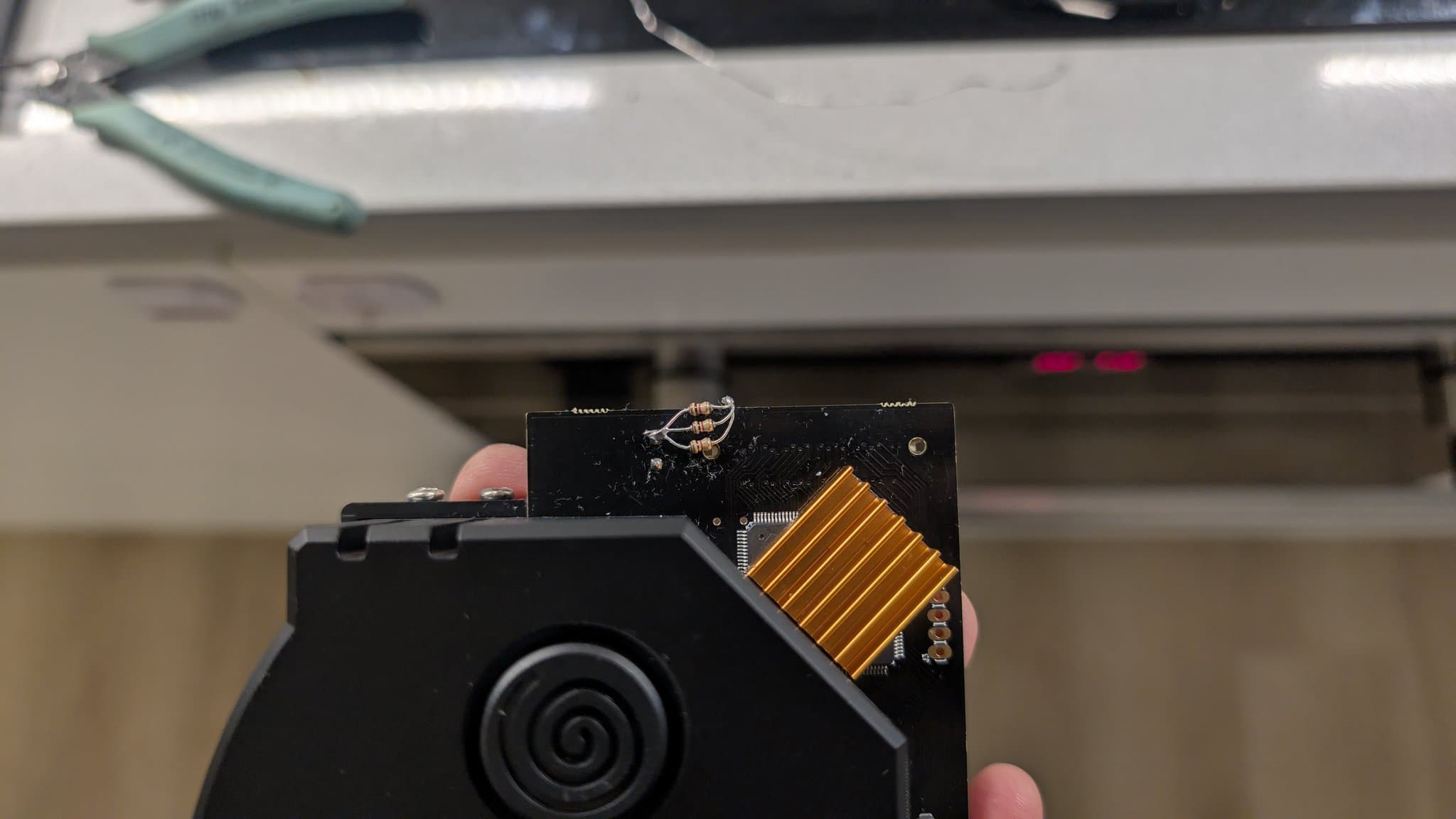

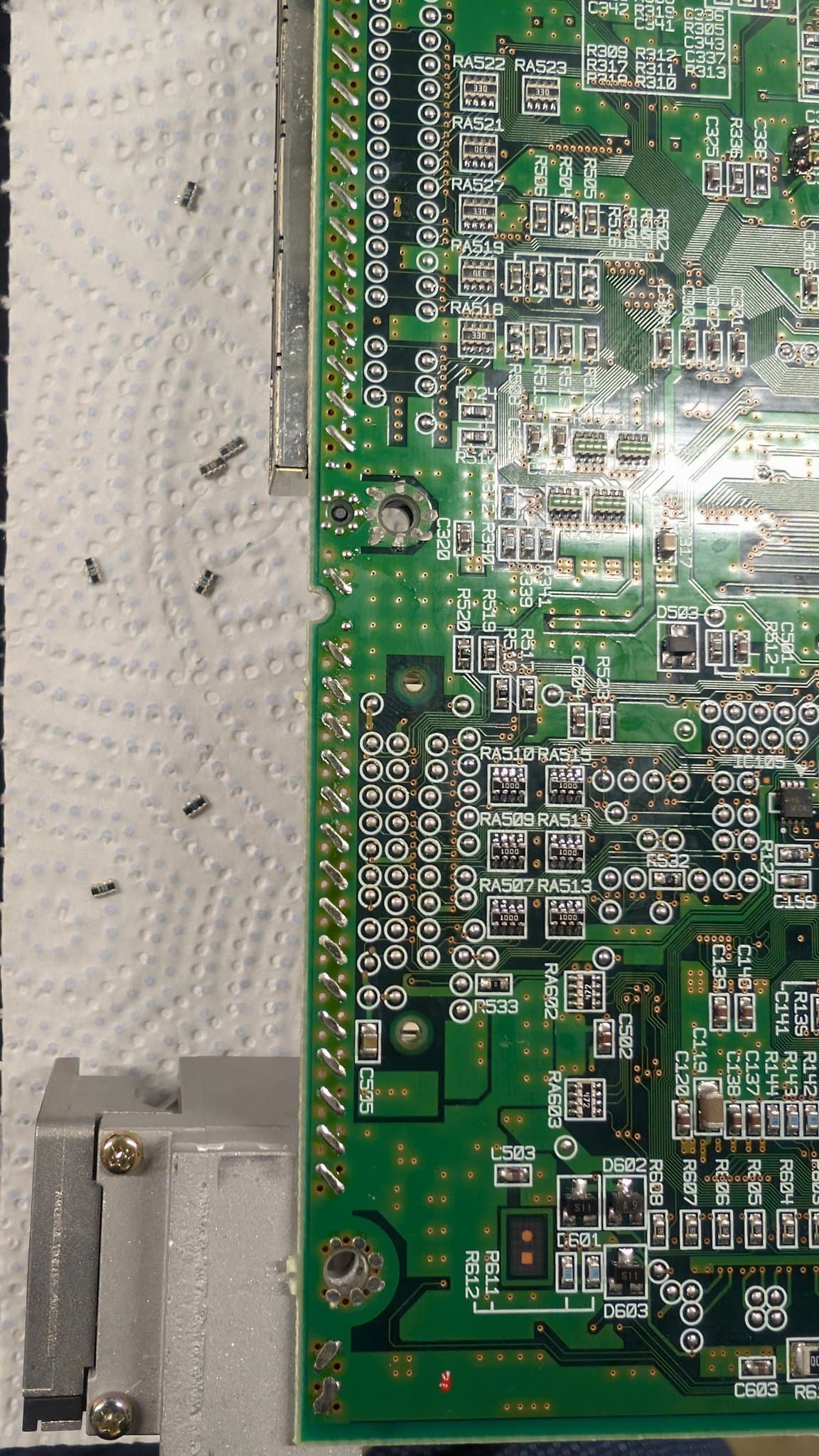

Modded the Japanese VA0 Dreamcast for GDEmu compatibility and added the janky resistor dummy load to the GDEmu while my friend decides on what to do about the power supply situation (100V PSU on European grid). #Dreamcast #Sega

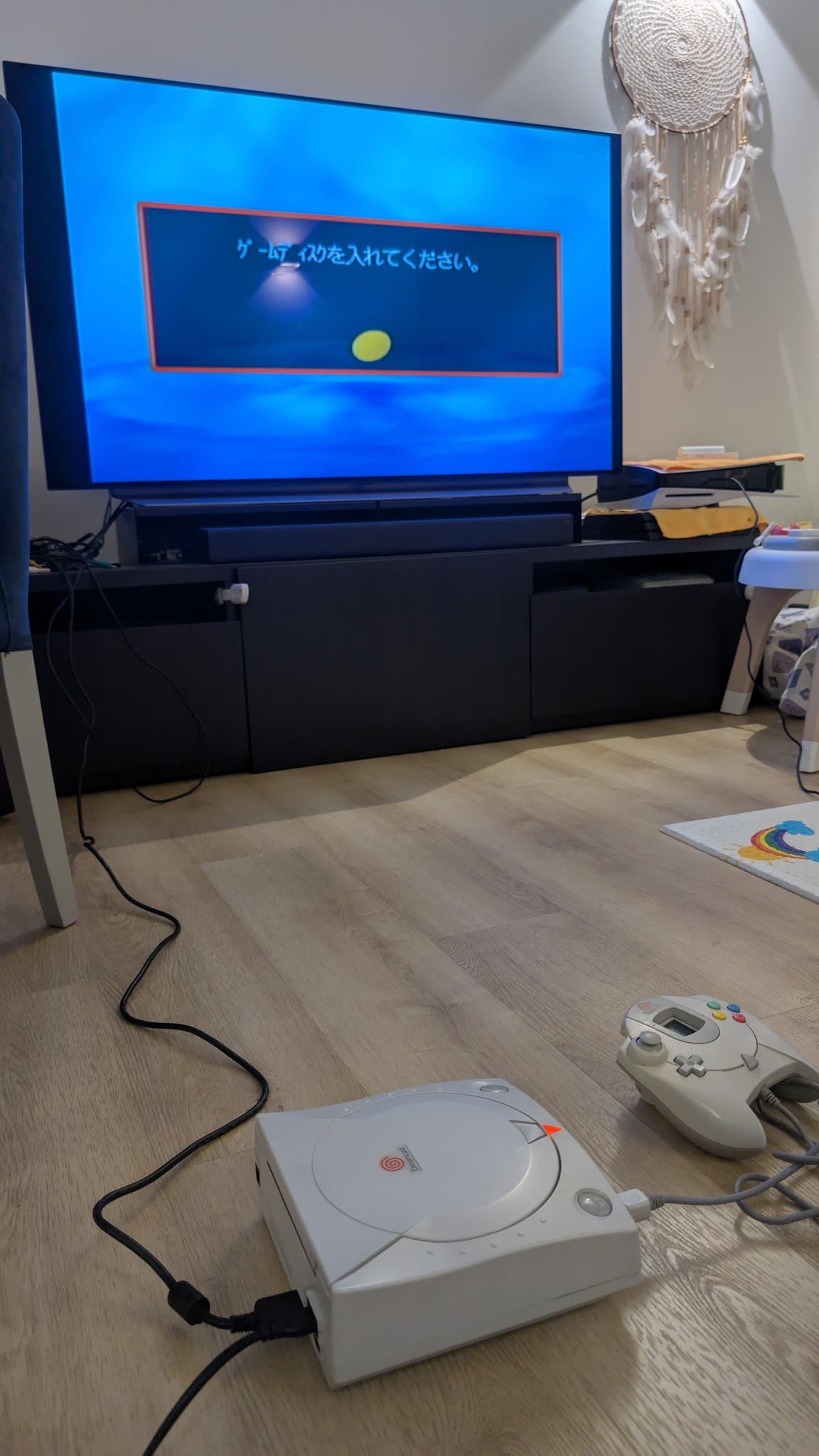

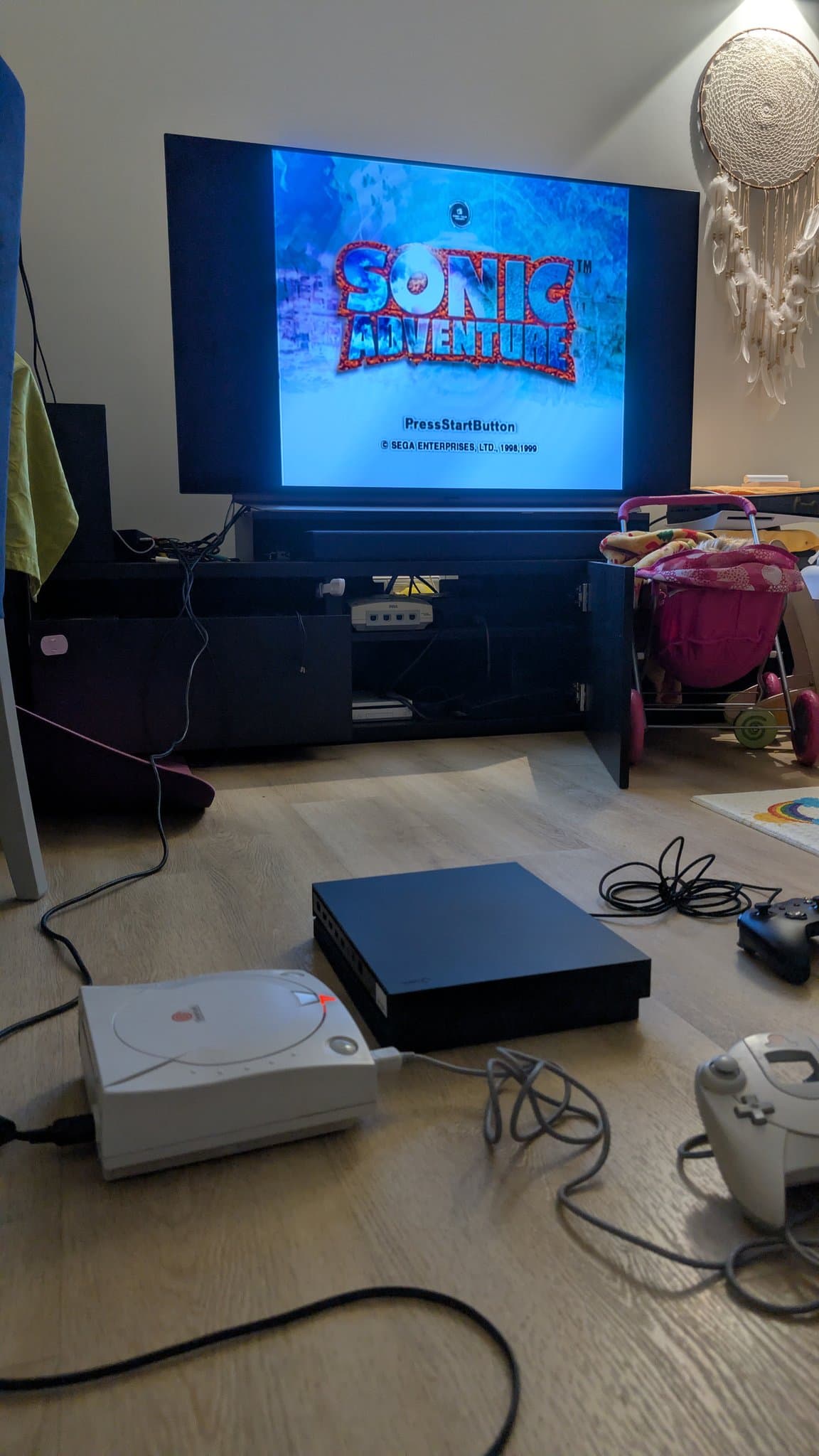

It's working. Now let's do a burn-in test with Sonic Adventure. #Sega #RETROGAMING #Dreamcast #SONIC #SonicTheHedgehog

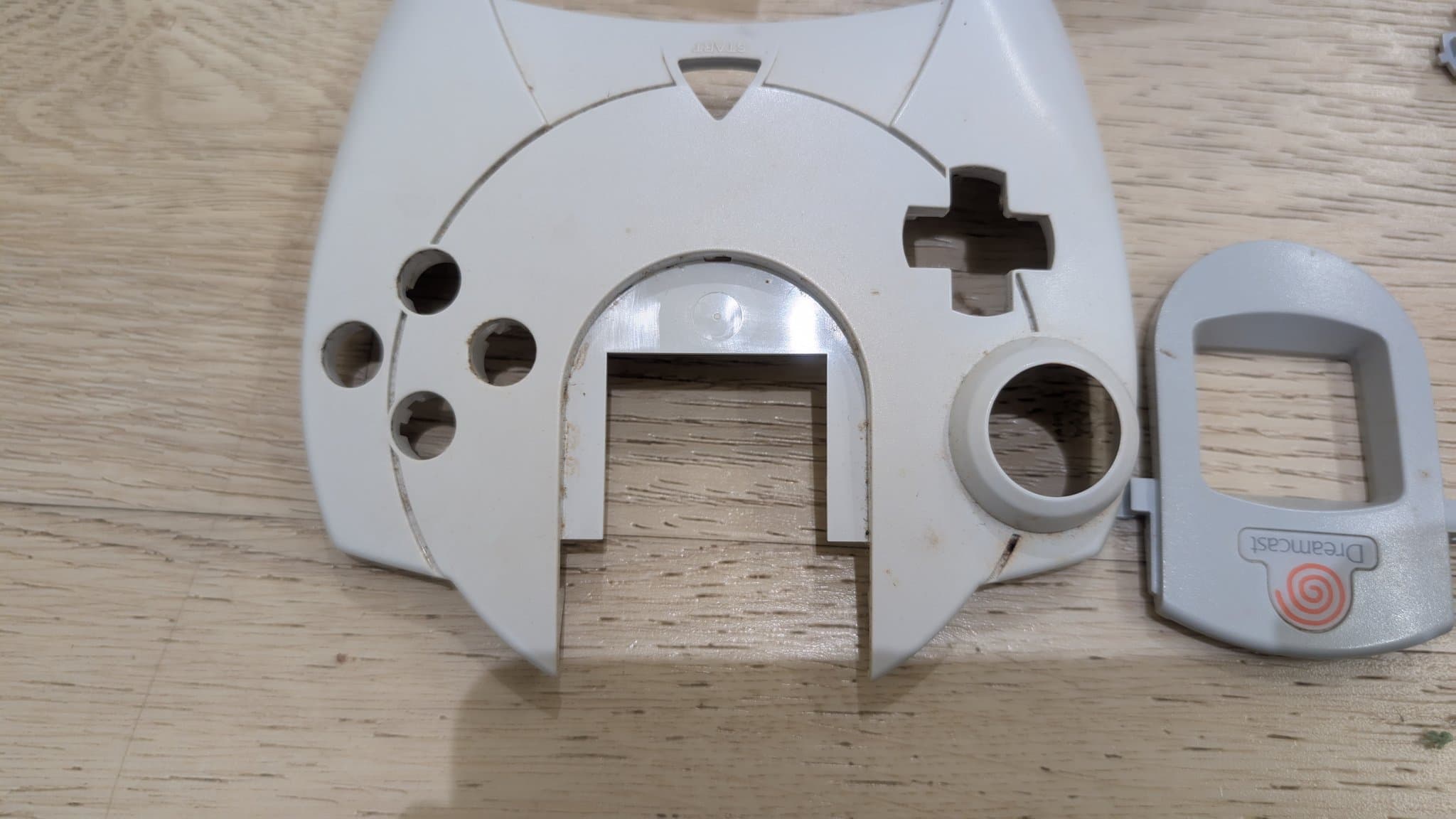

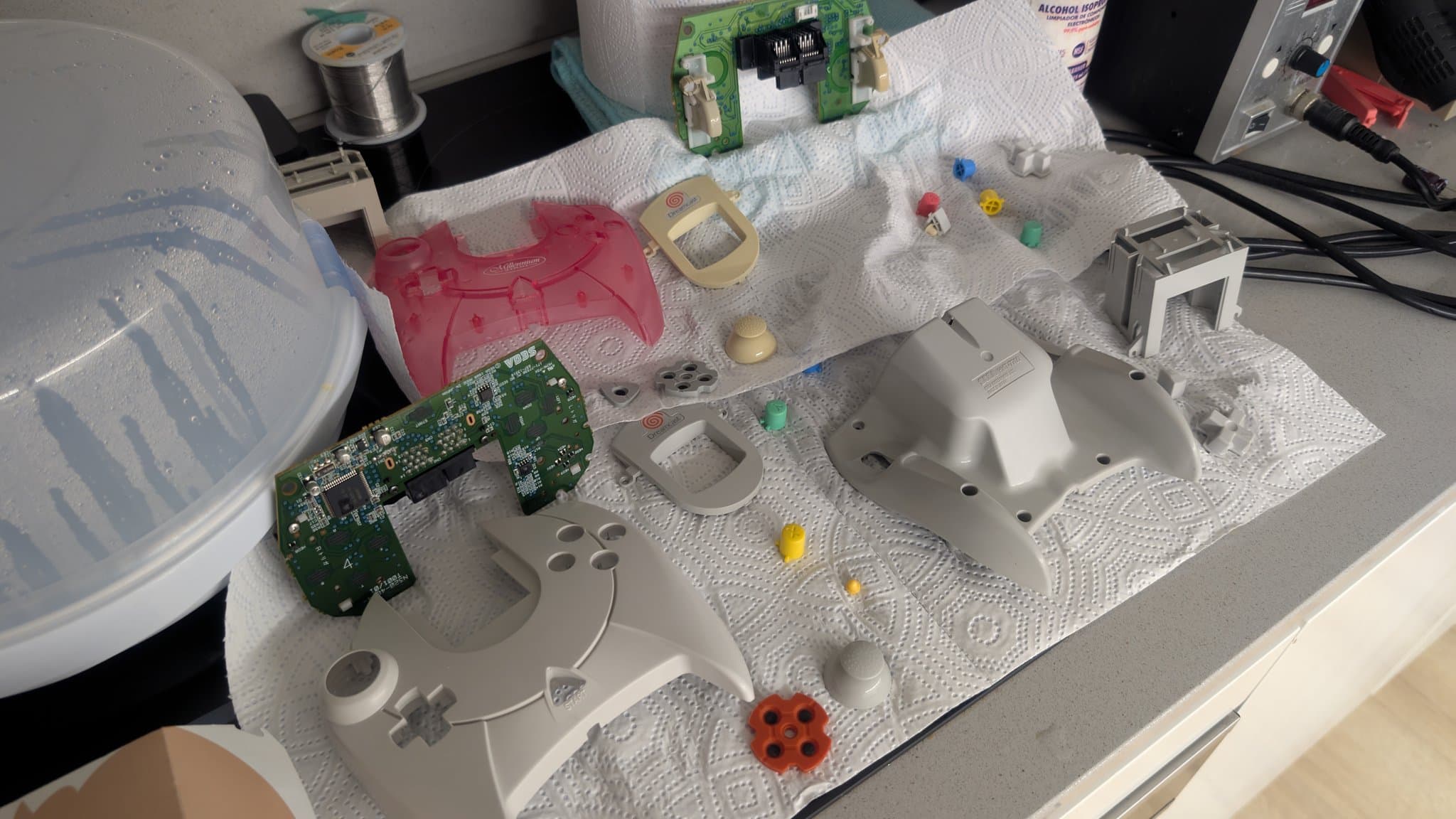

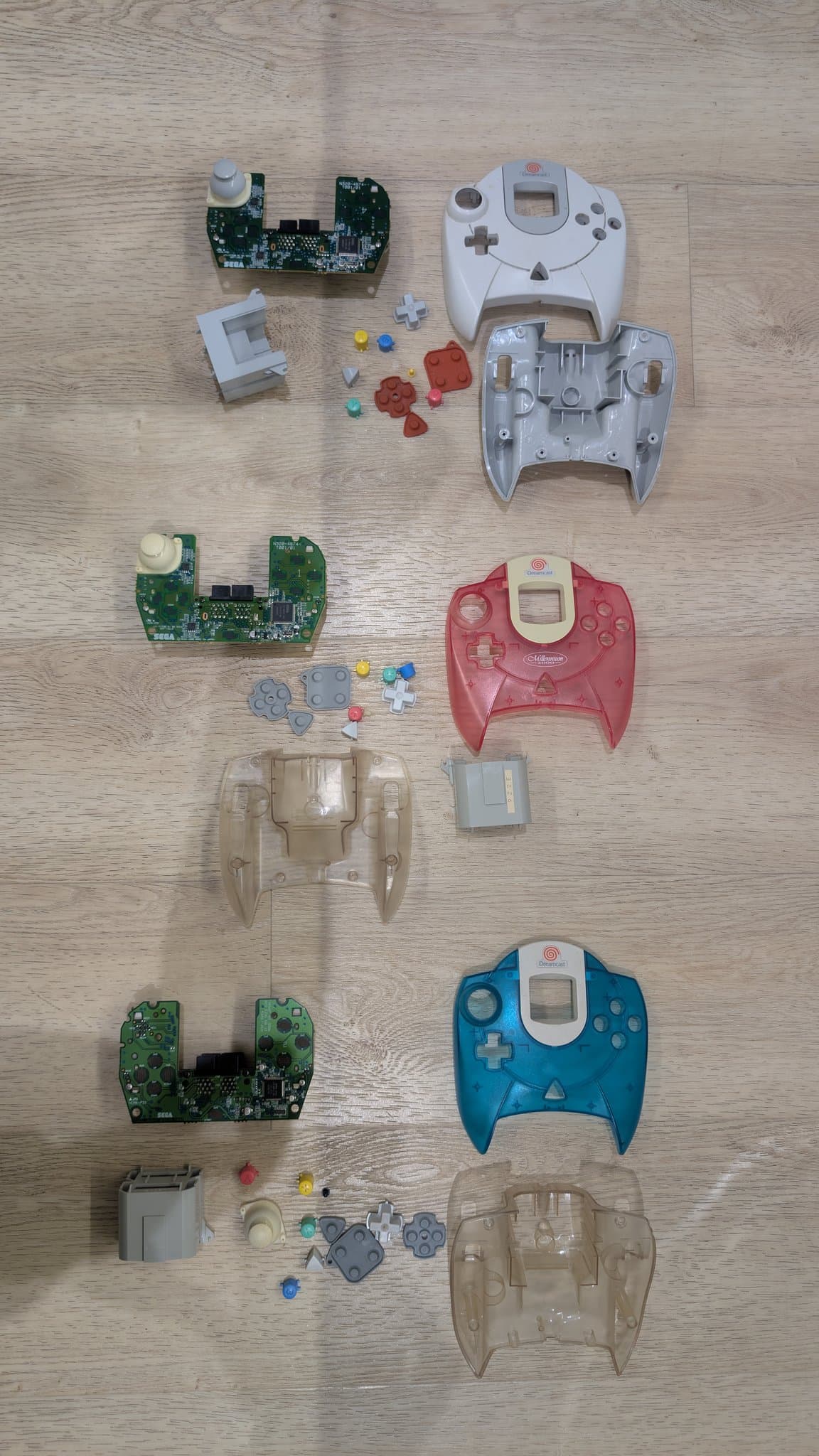

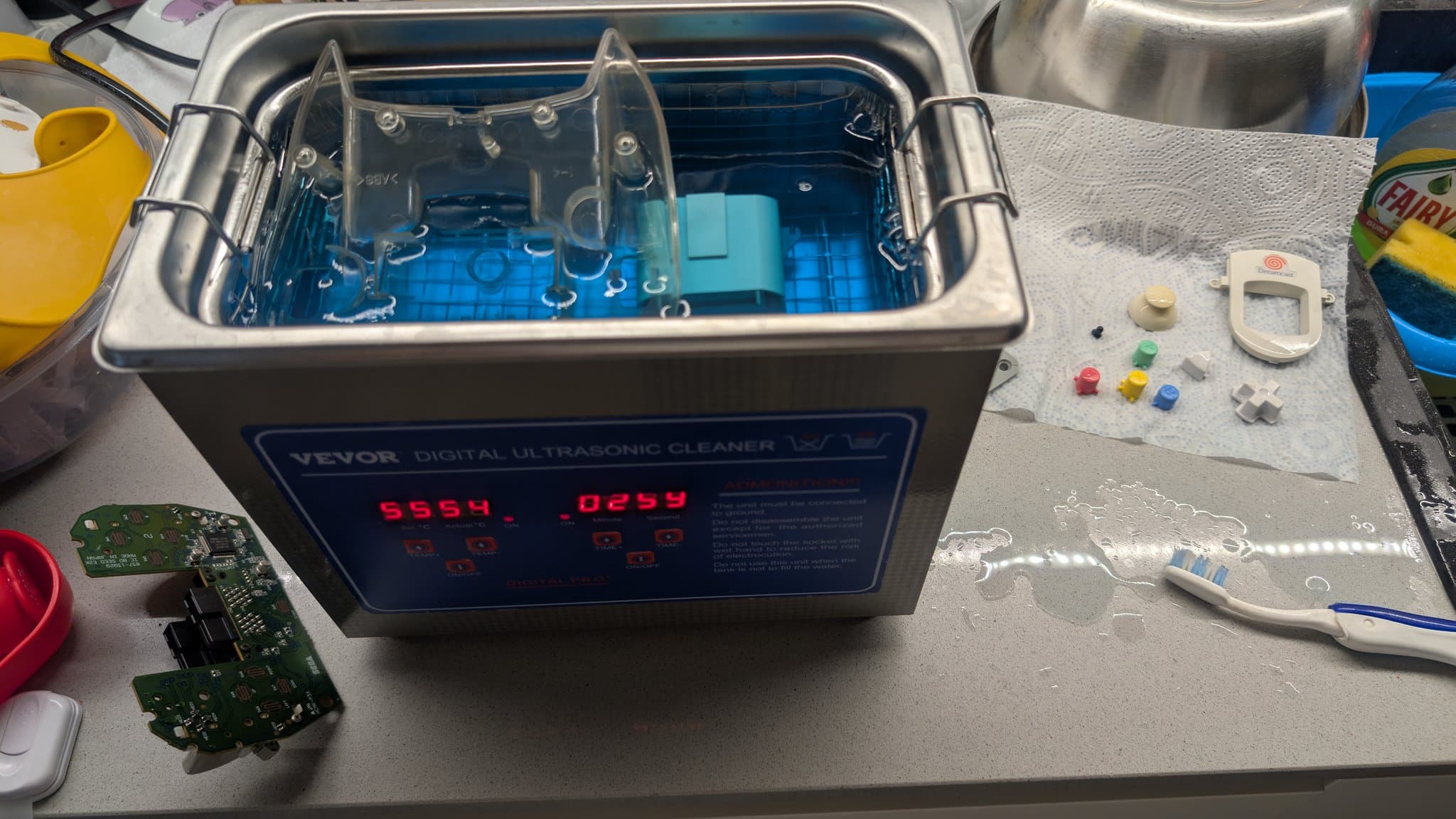

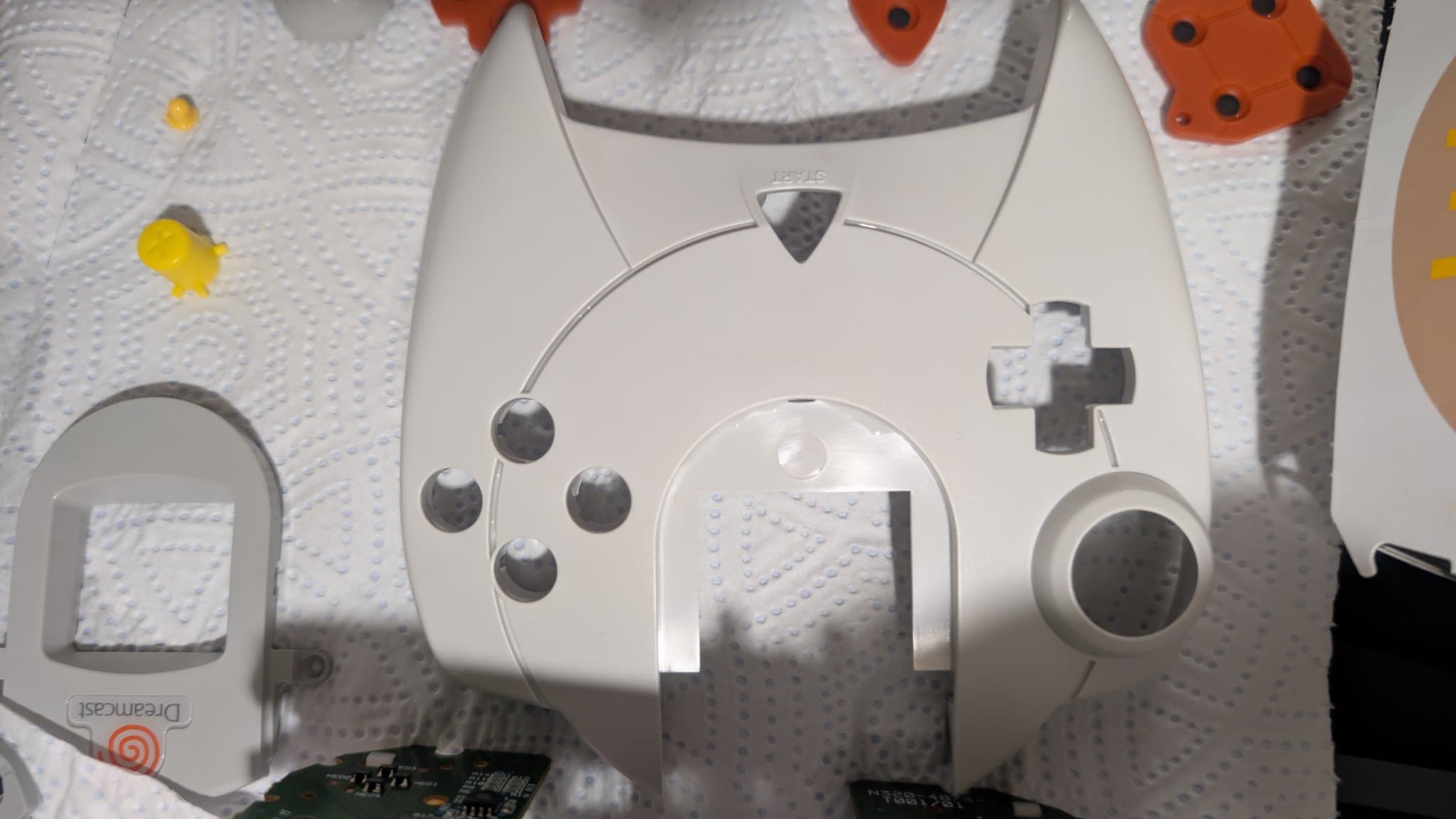

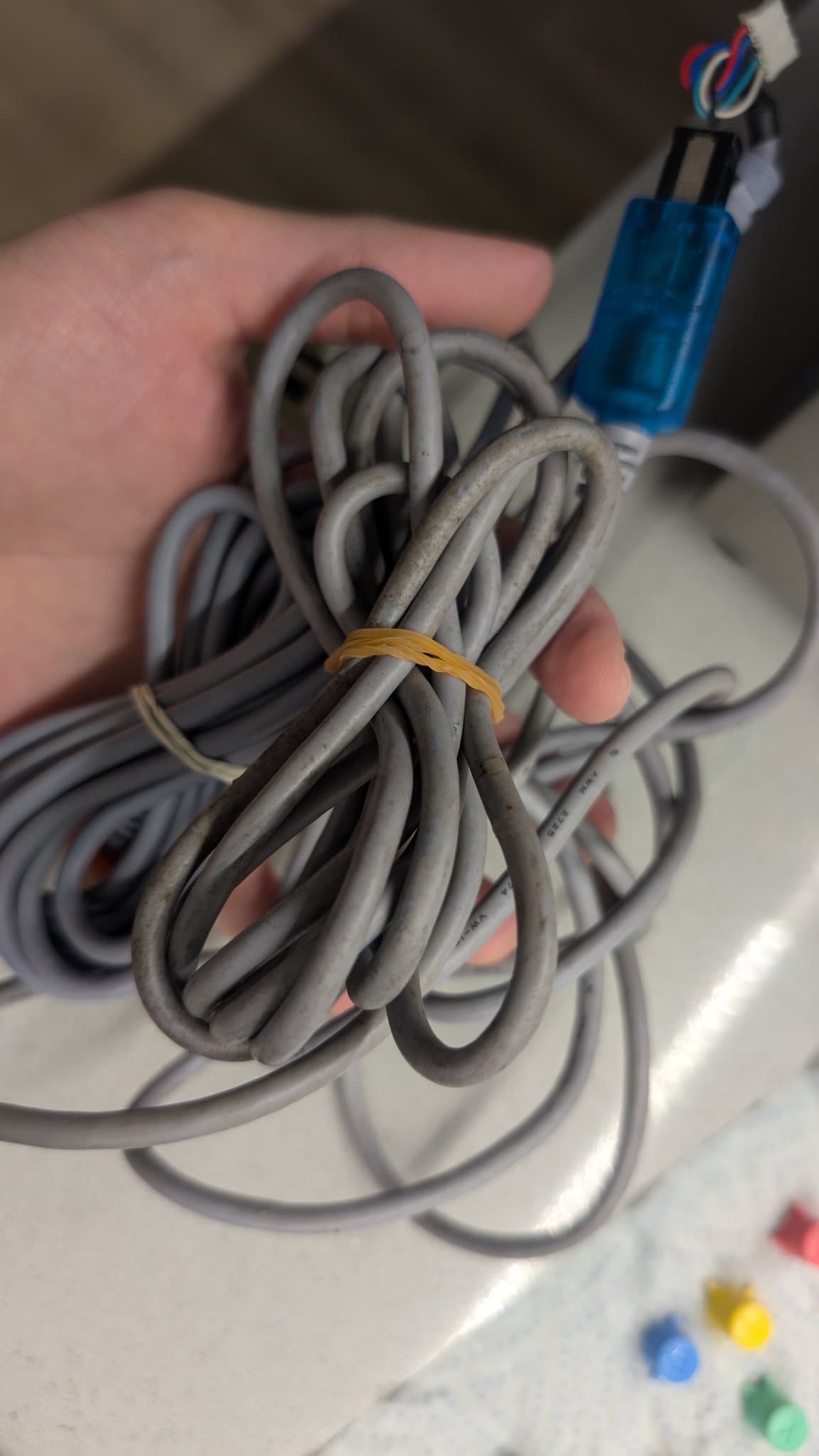

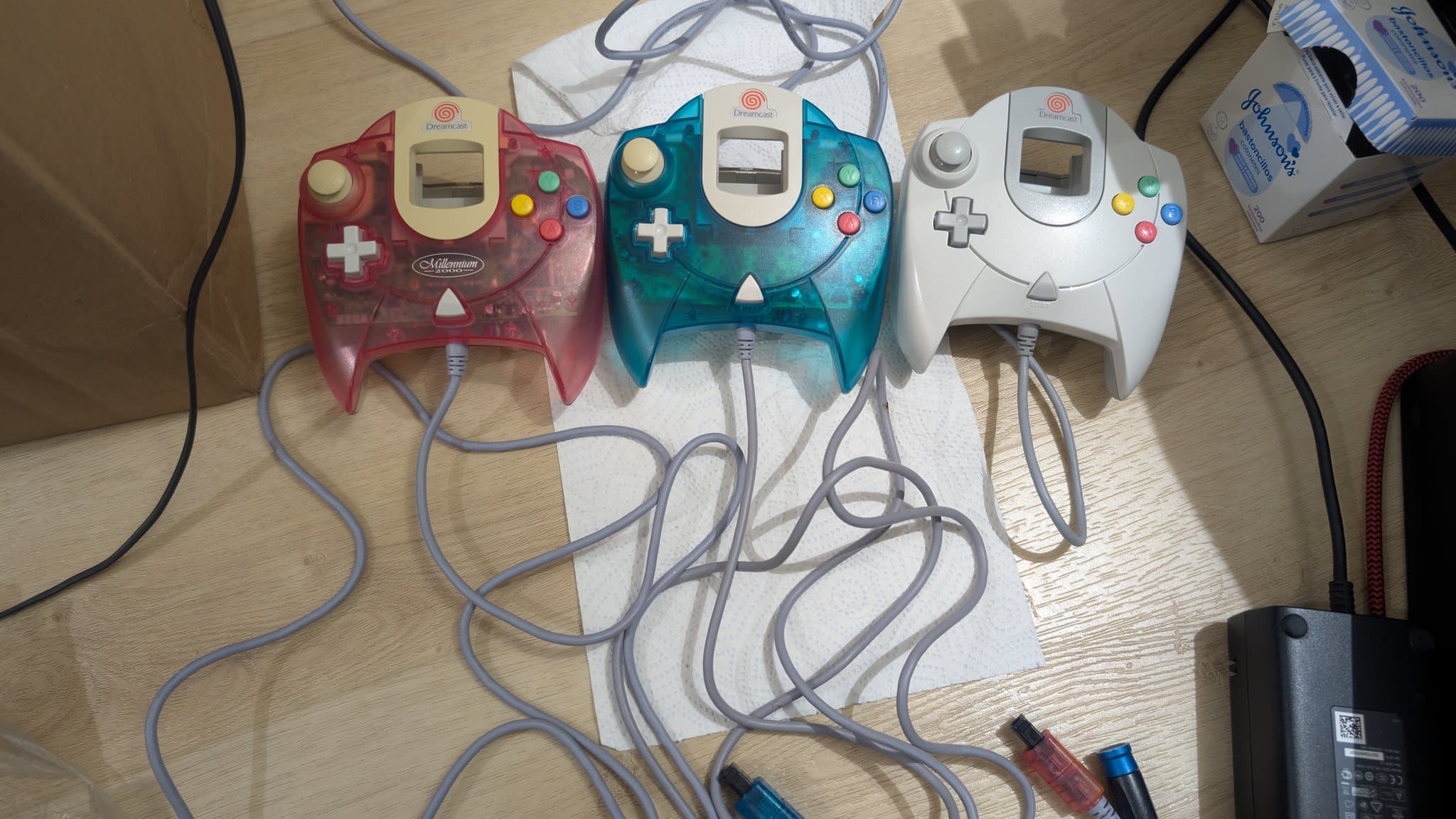

Cleaning the Dreamcast controllers to remove all the dust and grime accumulated throughout the years.

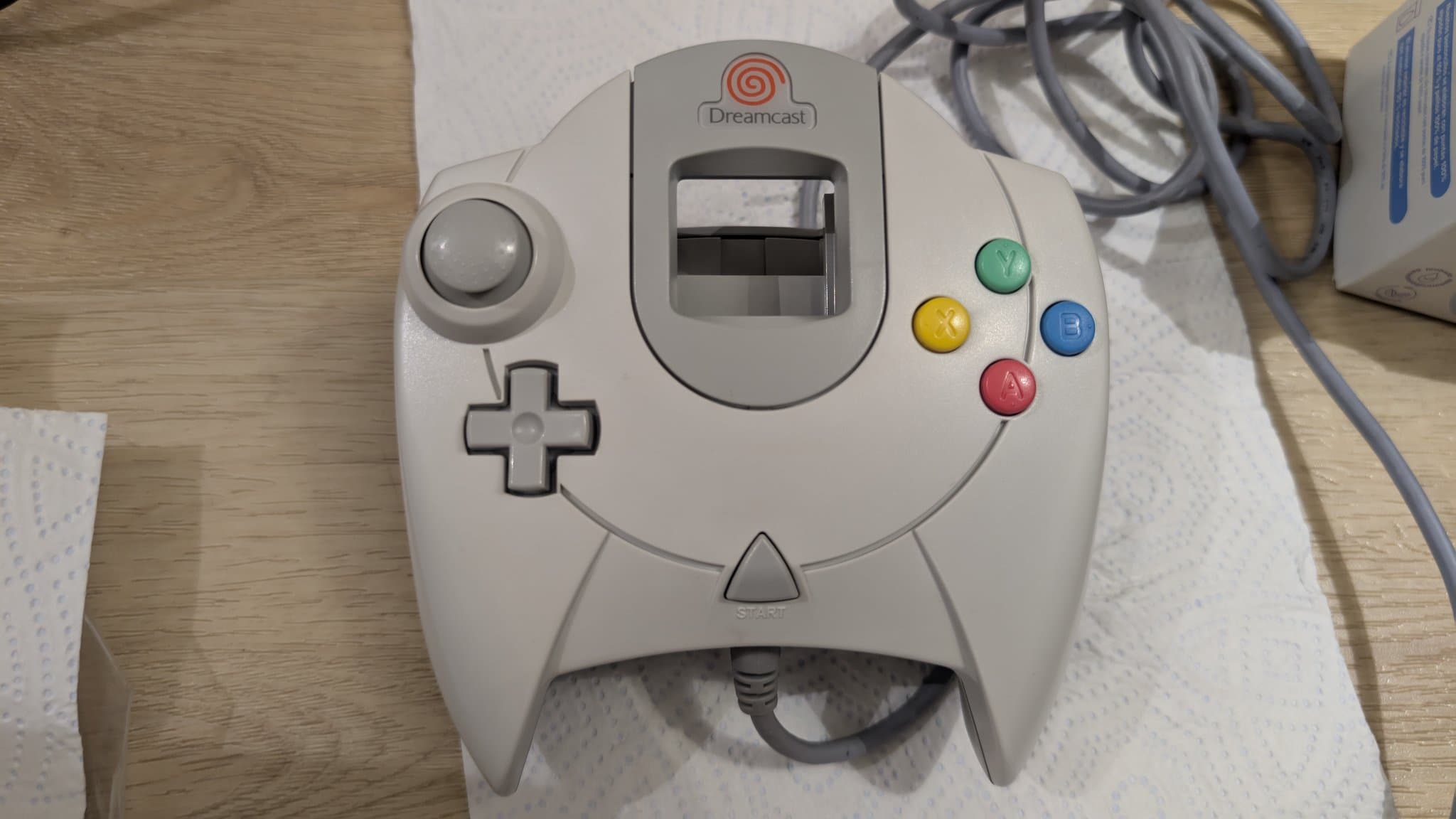

There we go, all better! Squeaky clean. 🫧 #Dreamcast #Sega #RetroGaming

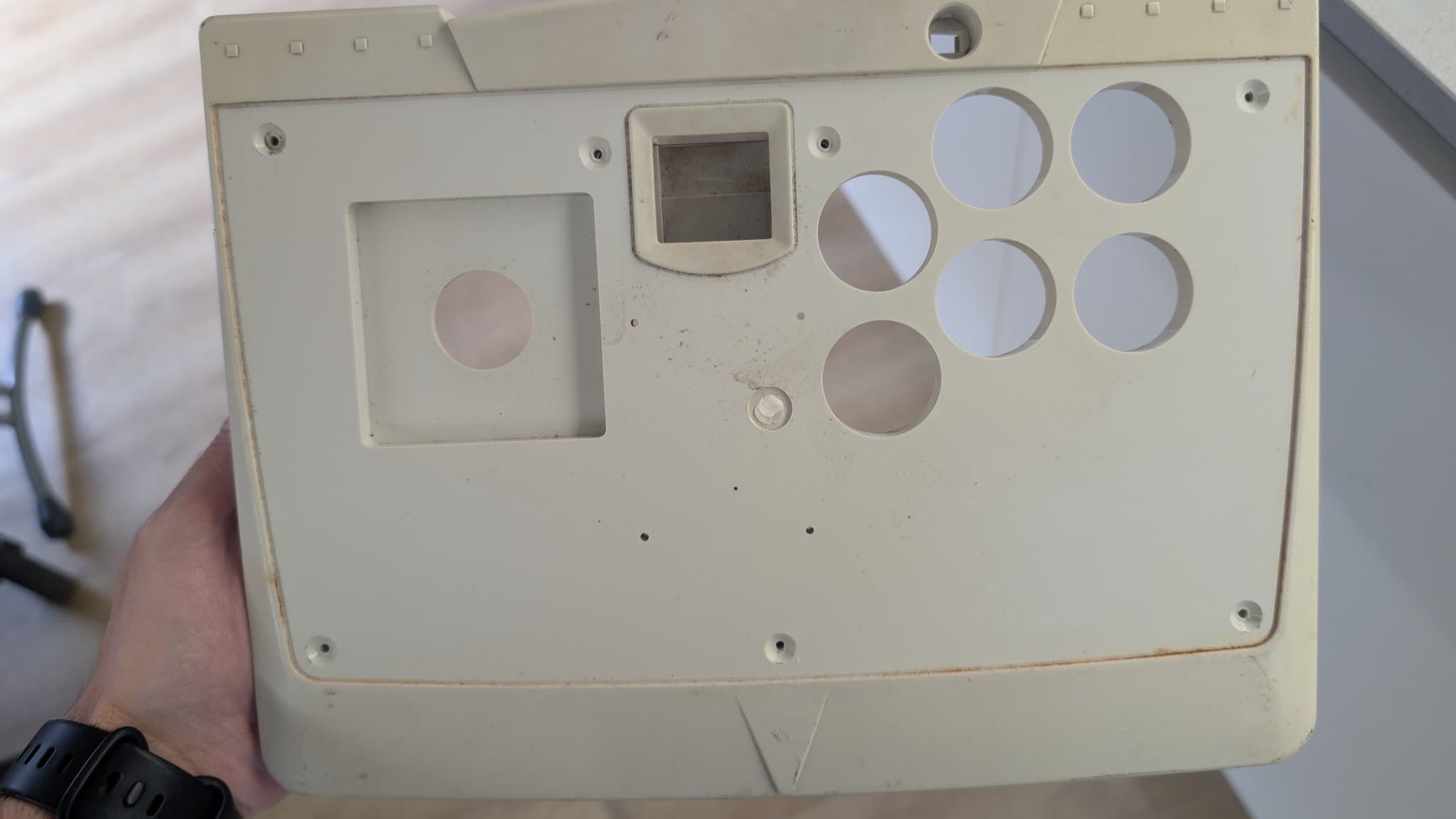

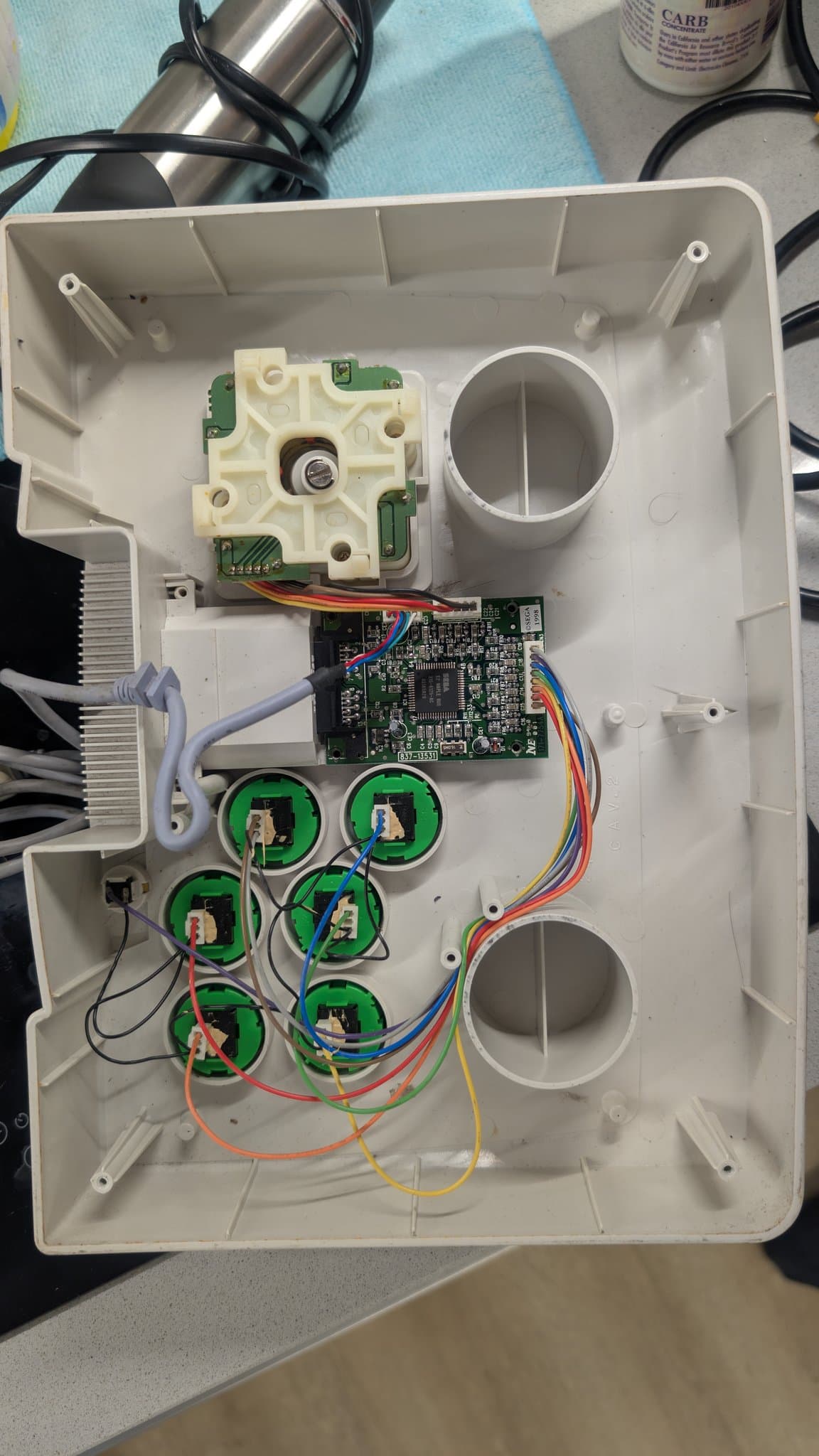

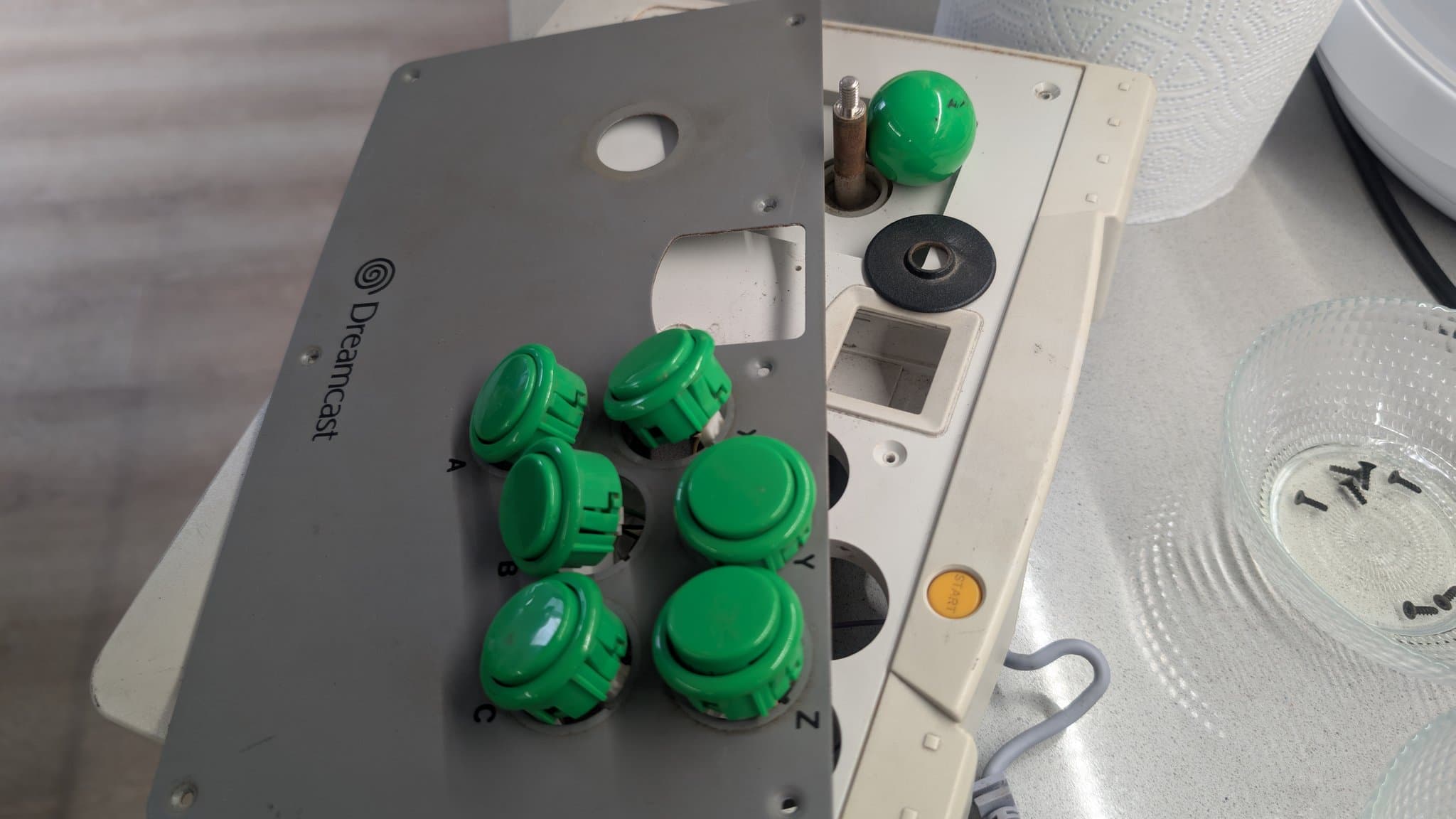

Taking care of a slightly yellowed and rusted Dreamcast arcade stick. #Sega #dreamcast #RETROGAMING

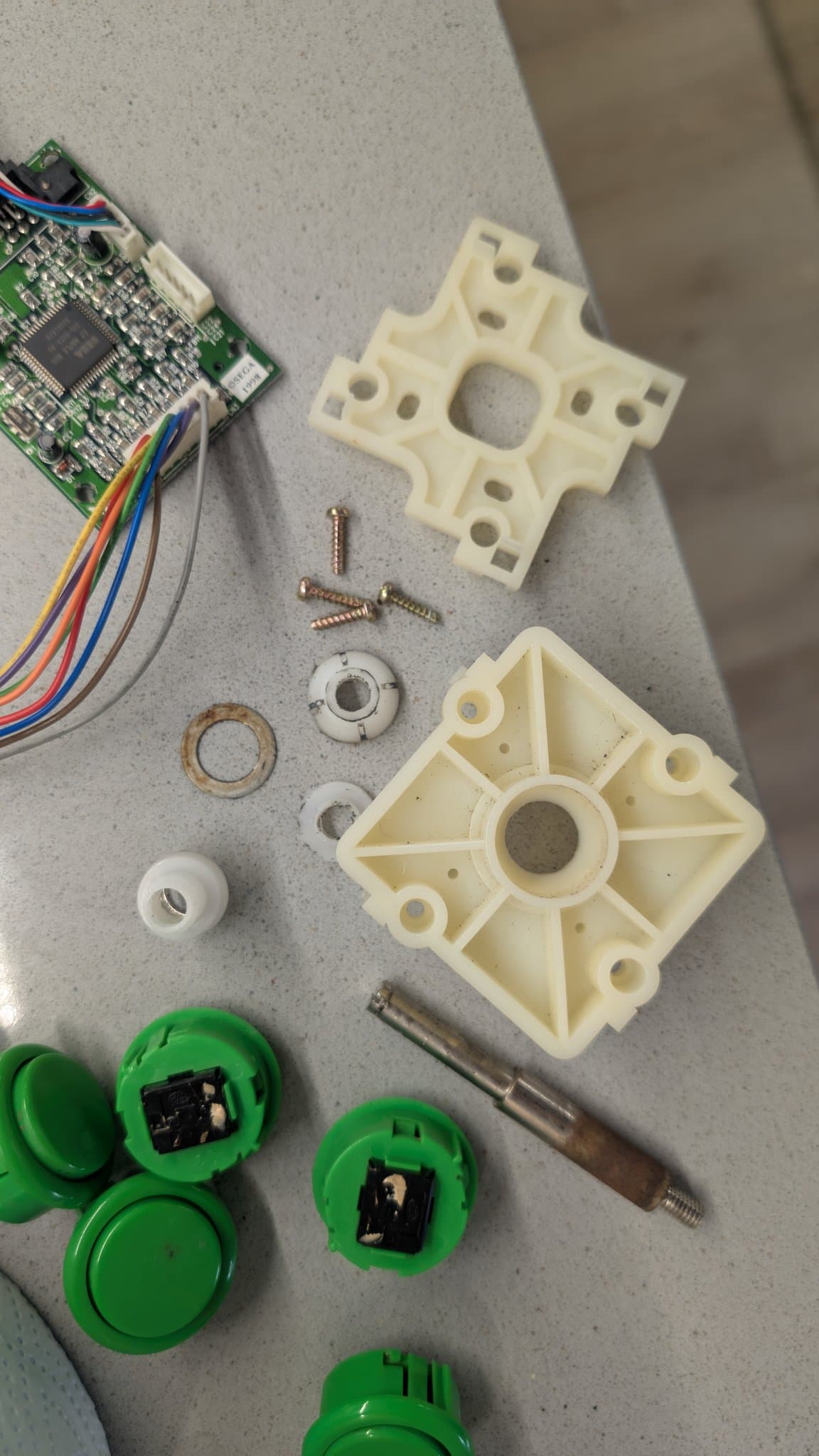

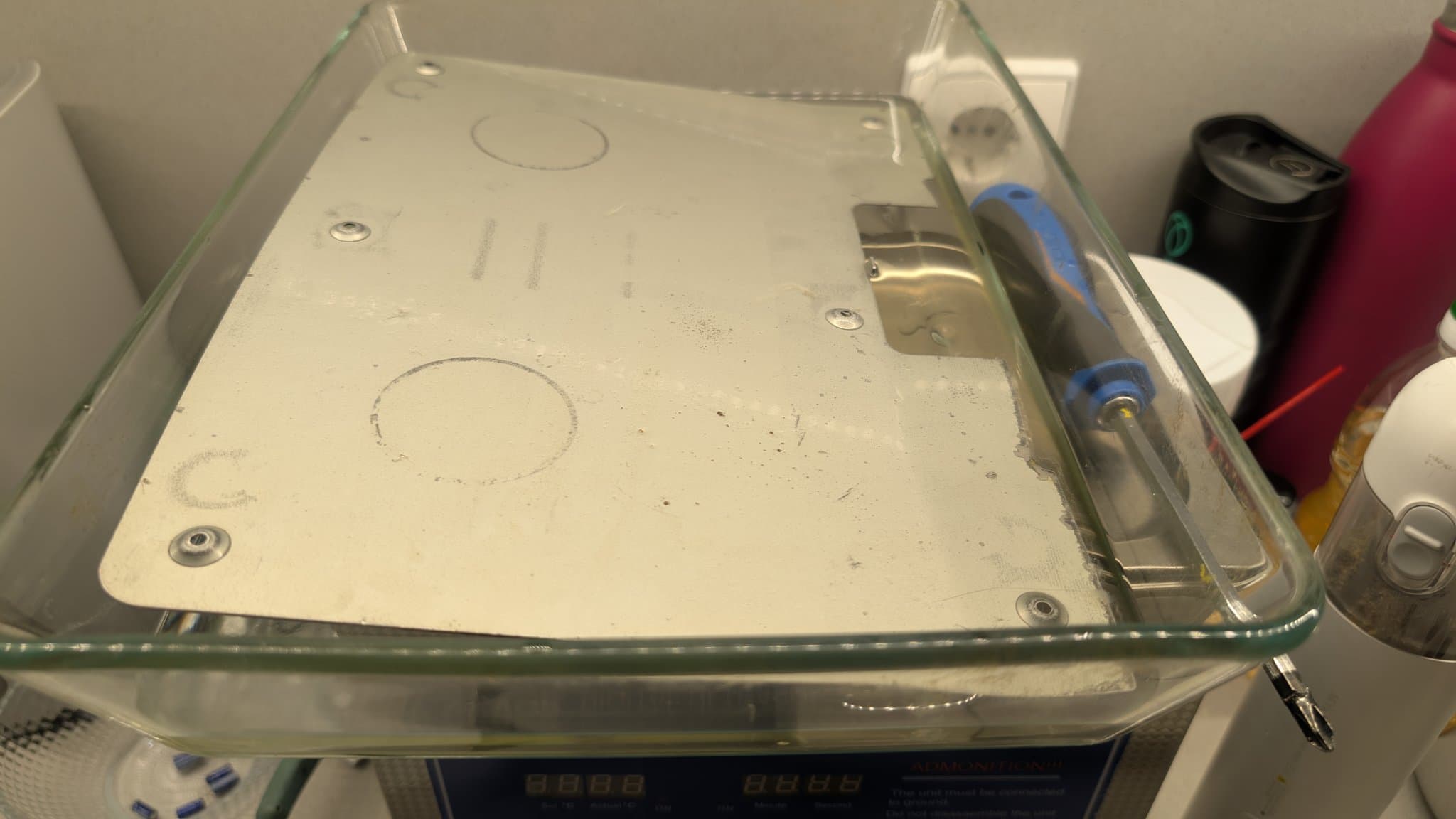

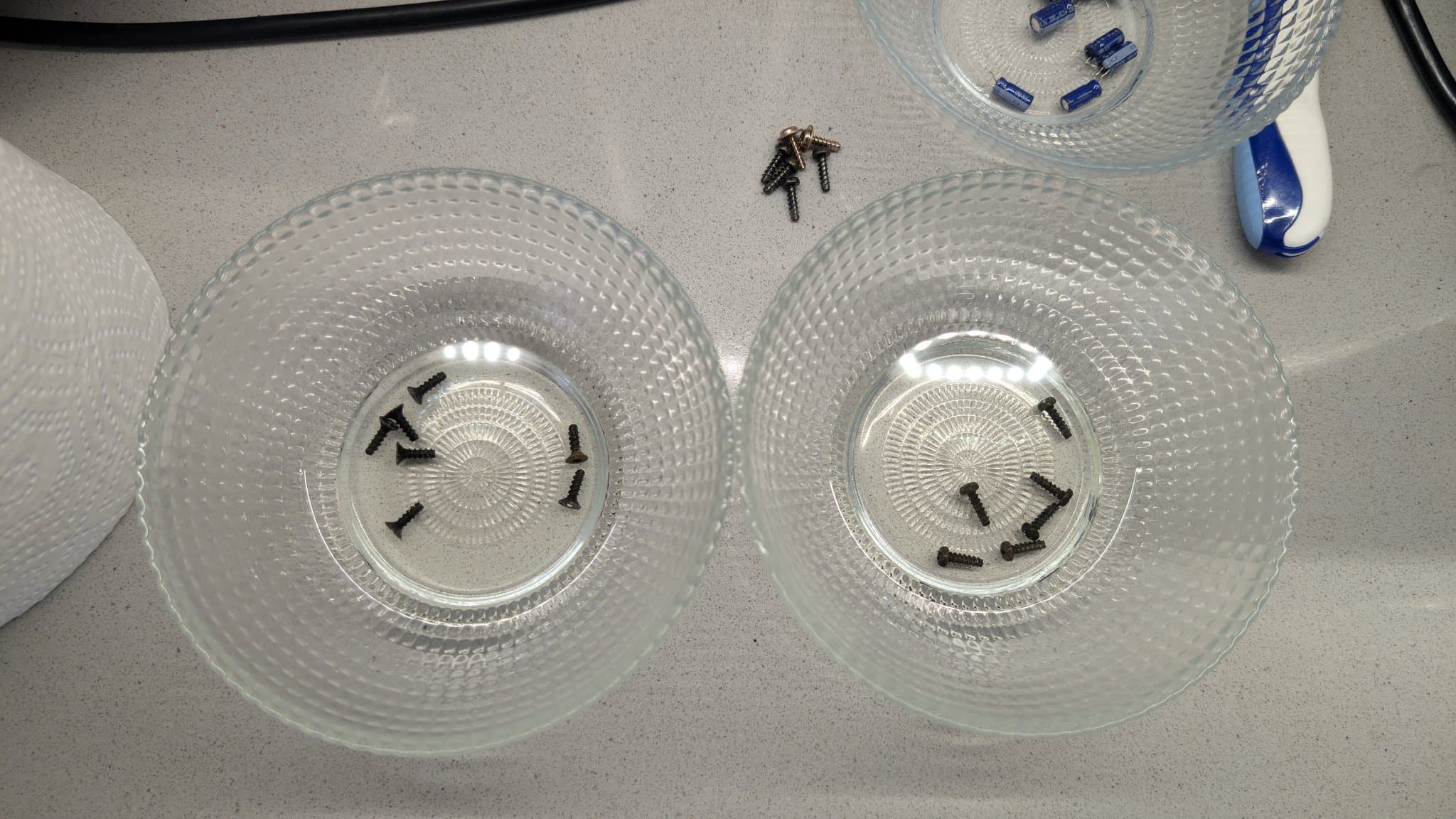

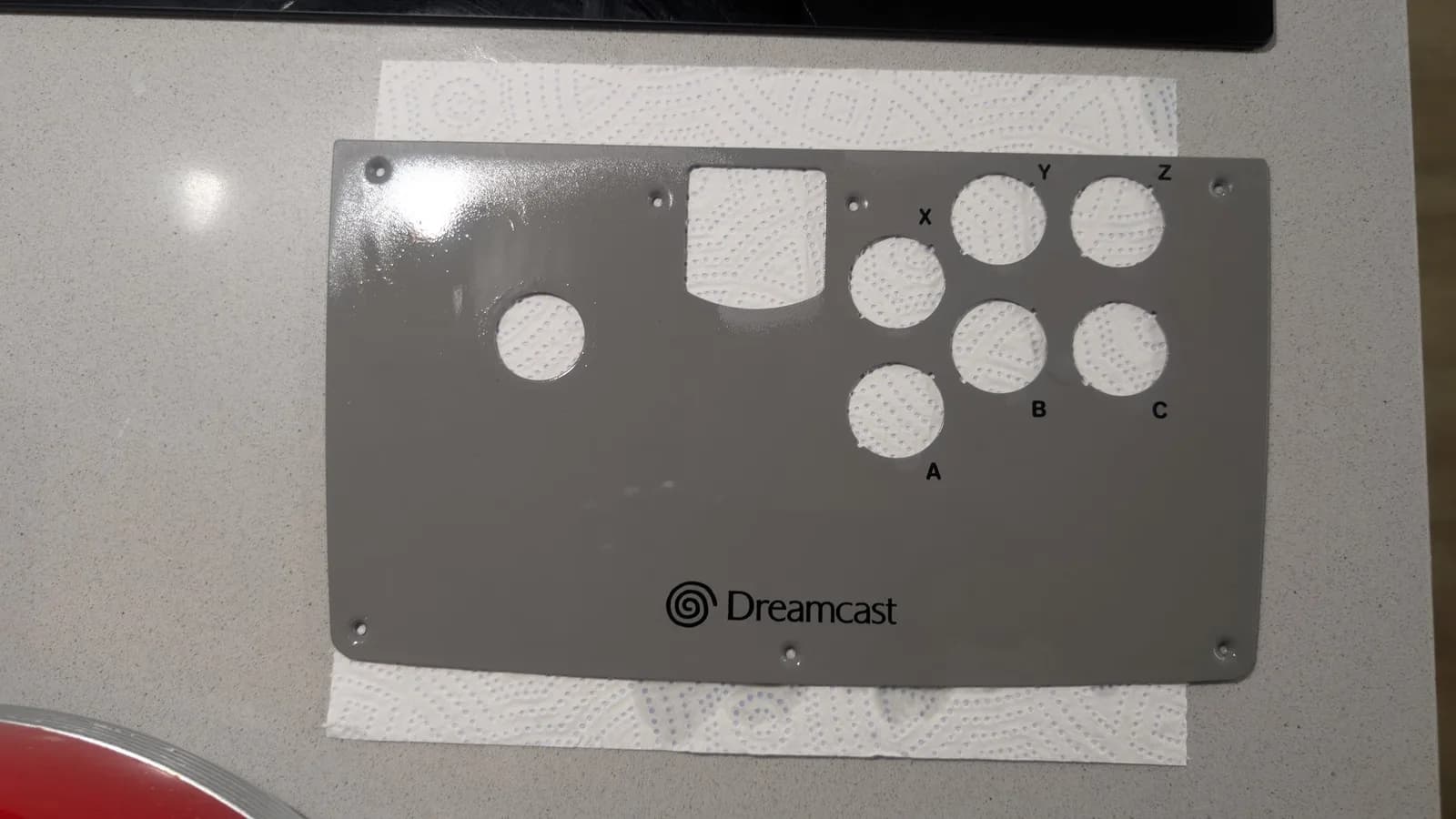

Disassembled everything. Dipped plates, stick and screws into evaporust.

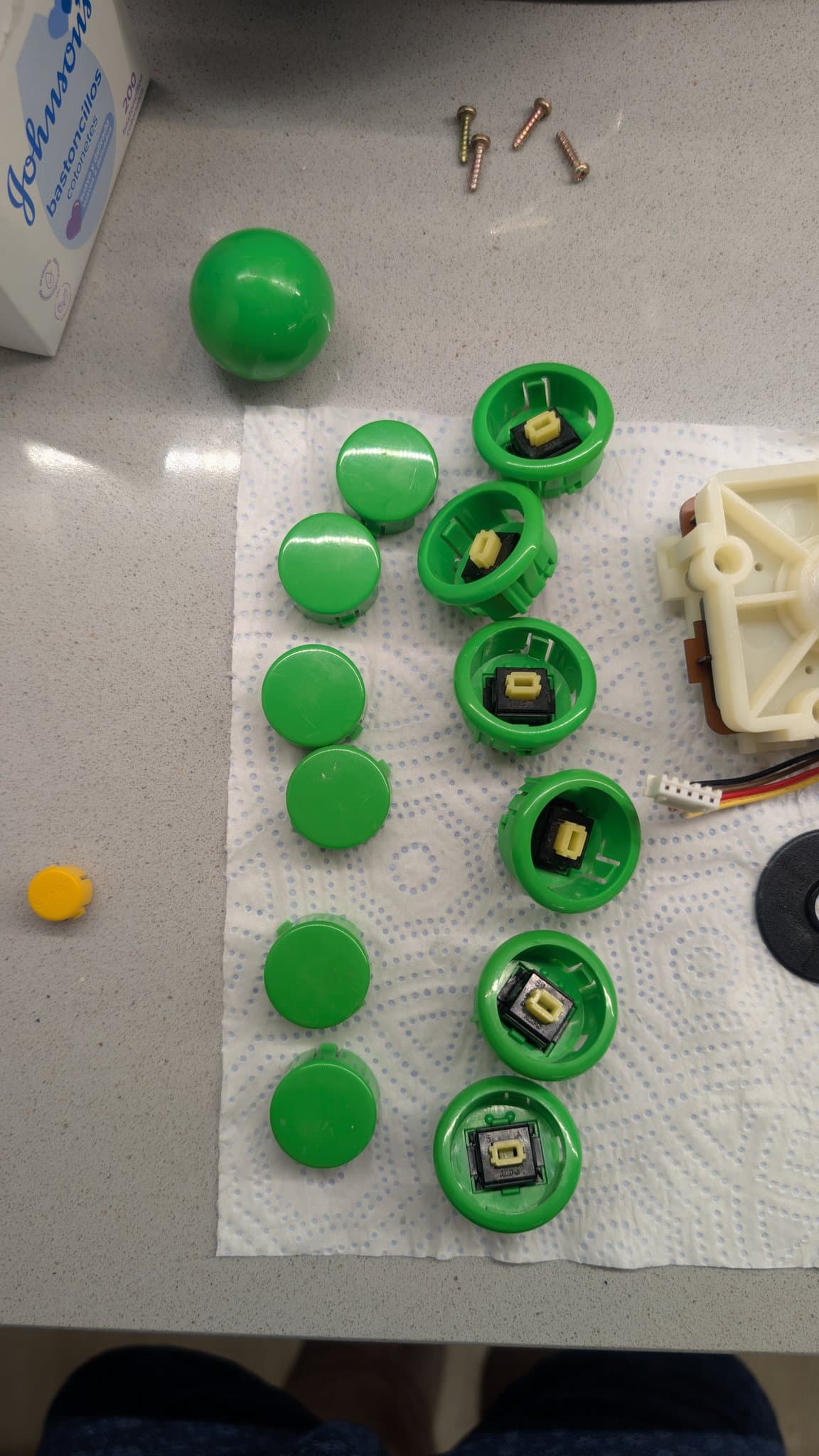

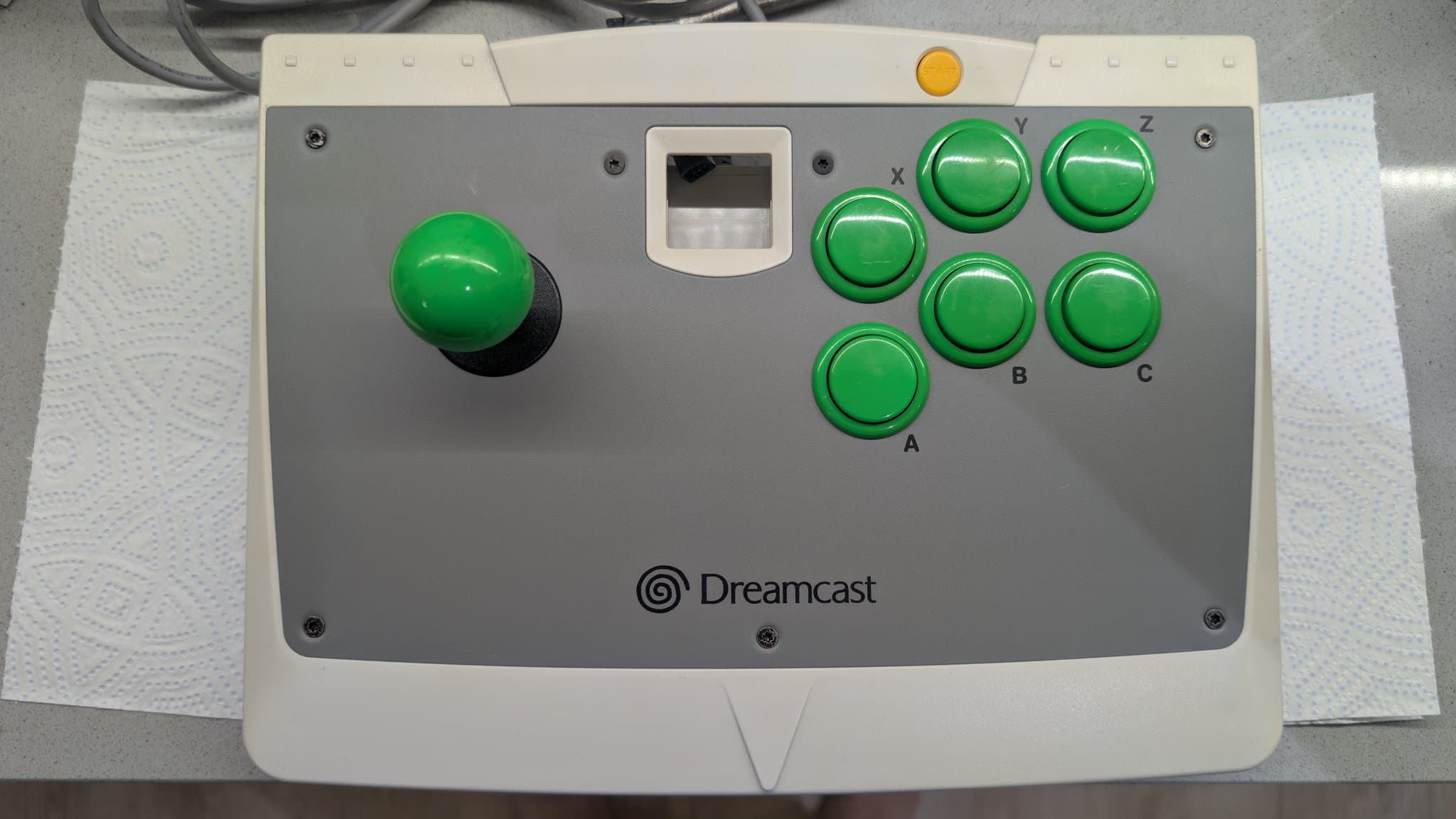

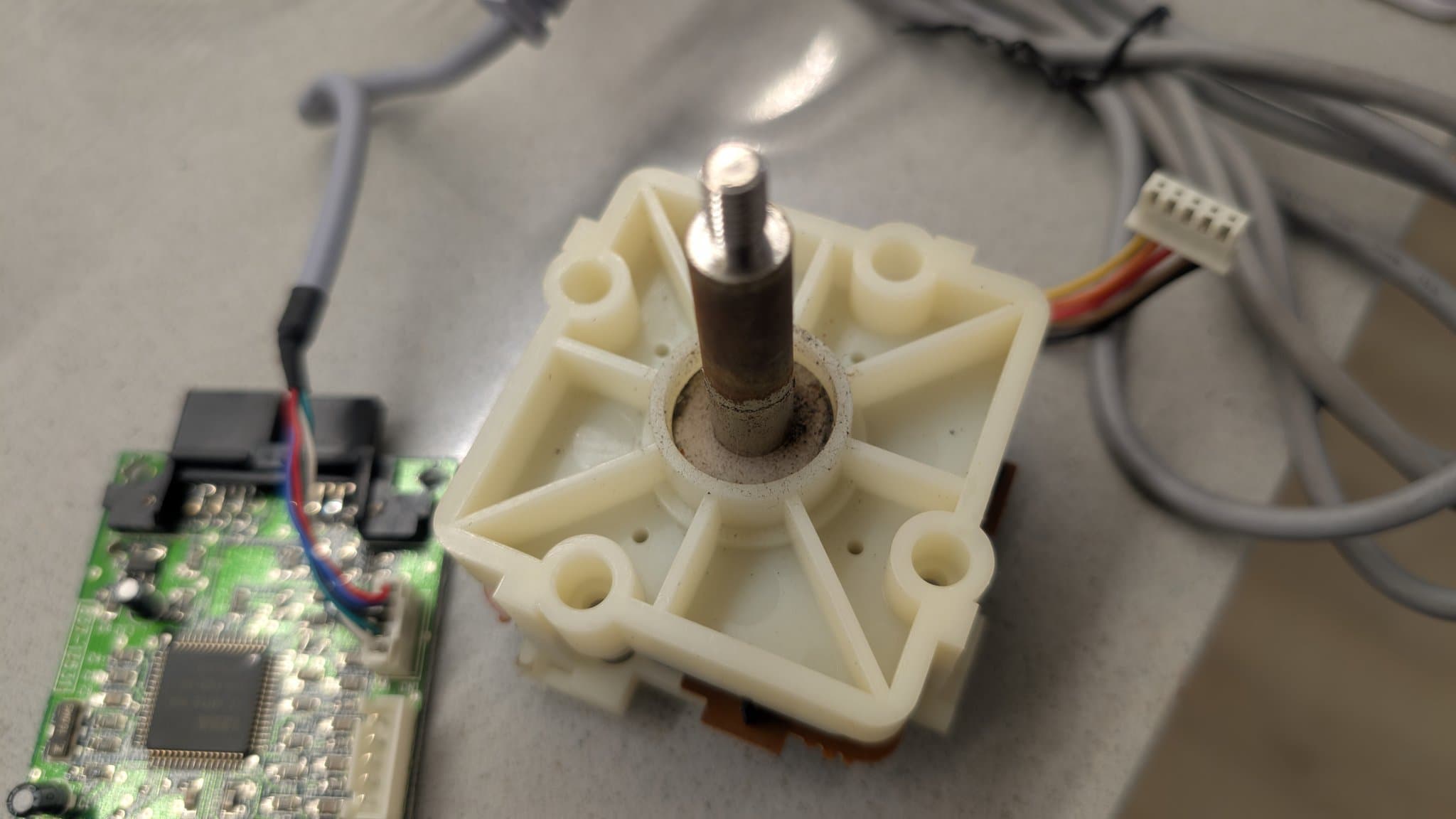

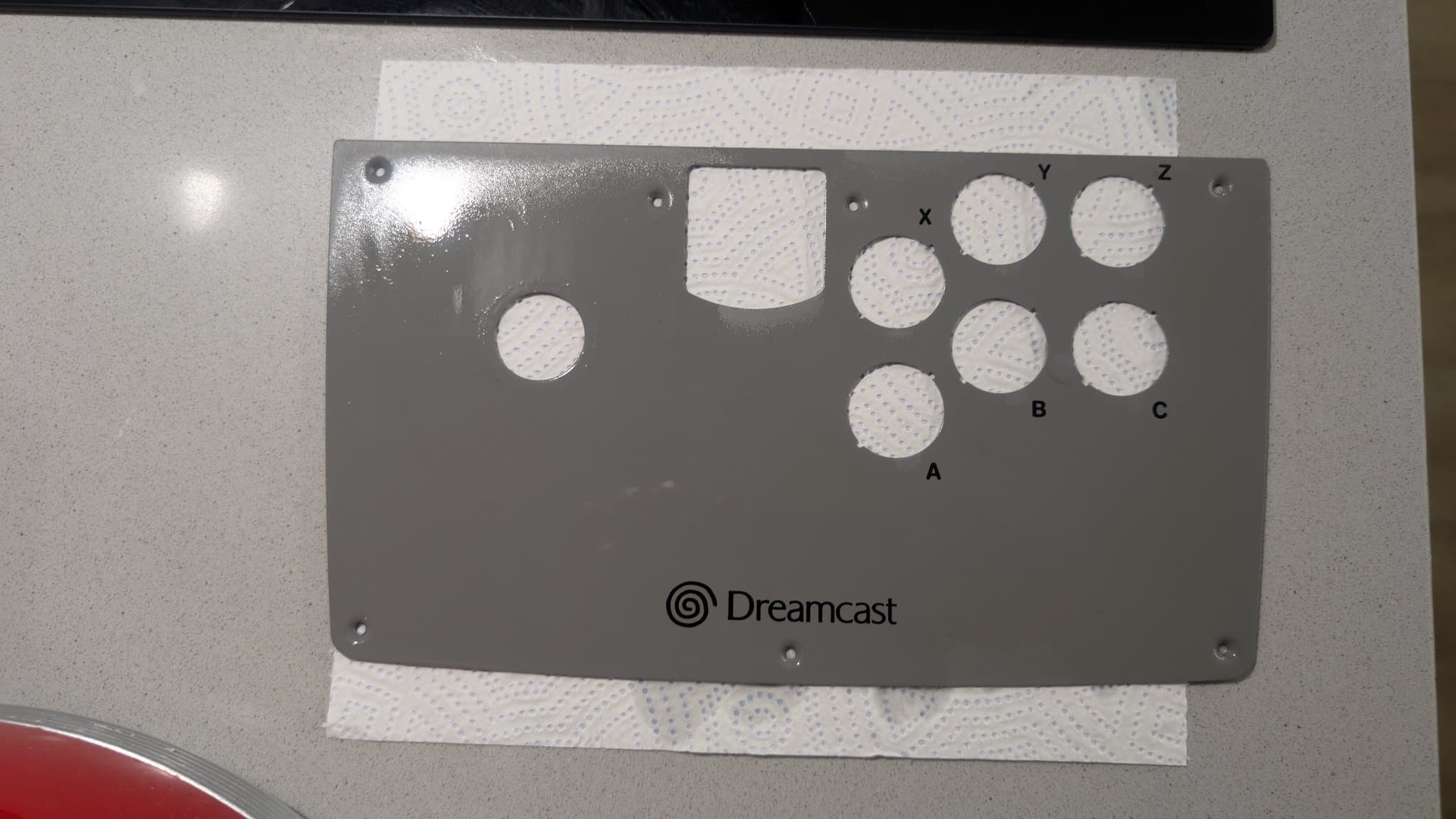

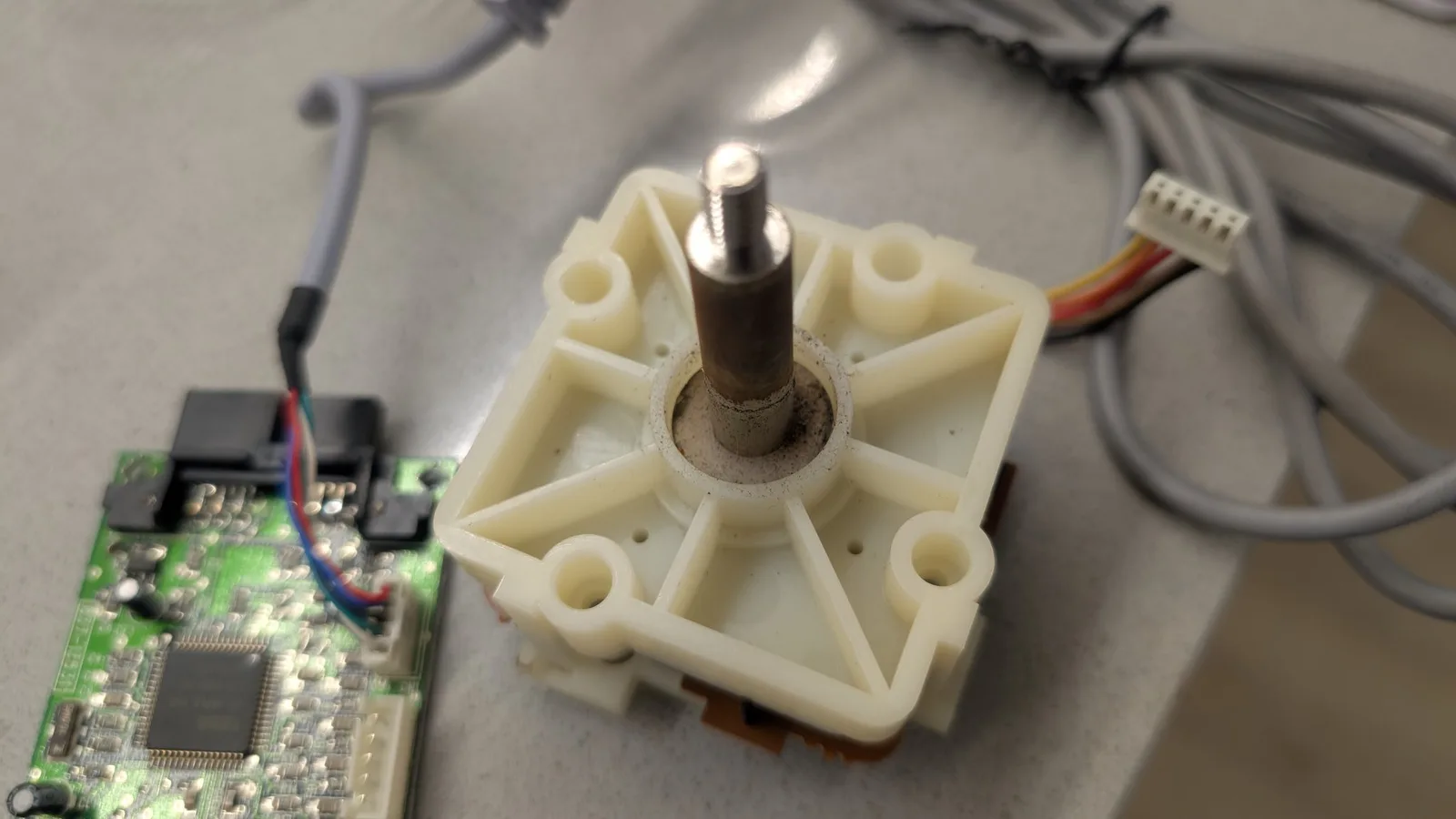

Washed the shell and ran a pencil eraser through it to remove stuff that wasn't coming out. Lubricated the stick and cleaned all the buttons. Put it back together and it's looking much better. Surprisingly, the rubber even removed some of the yellowing.

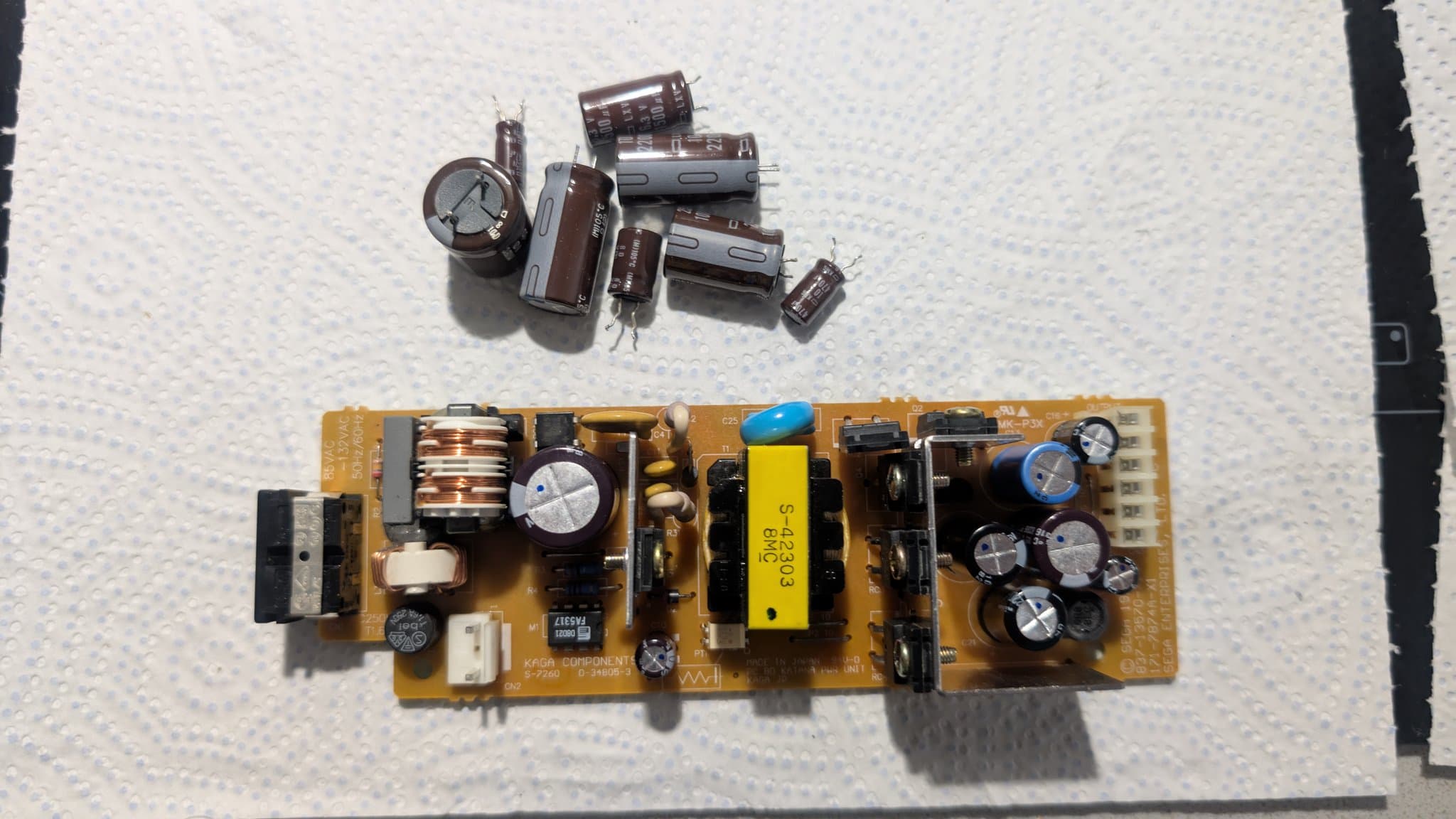

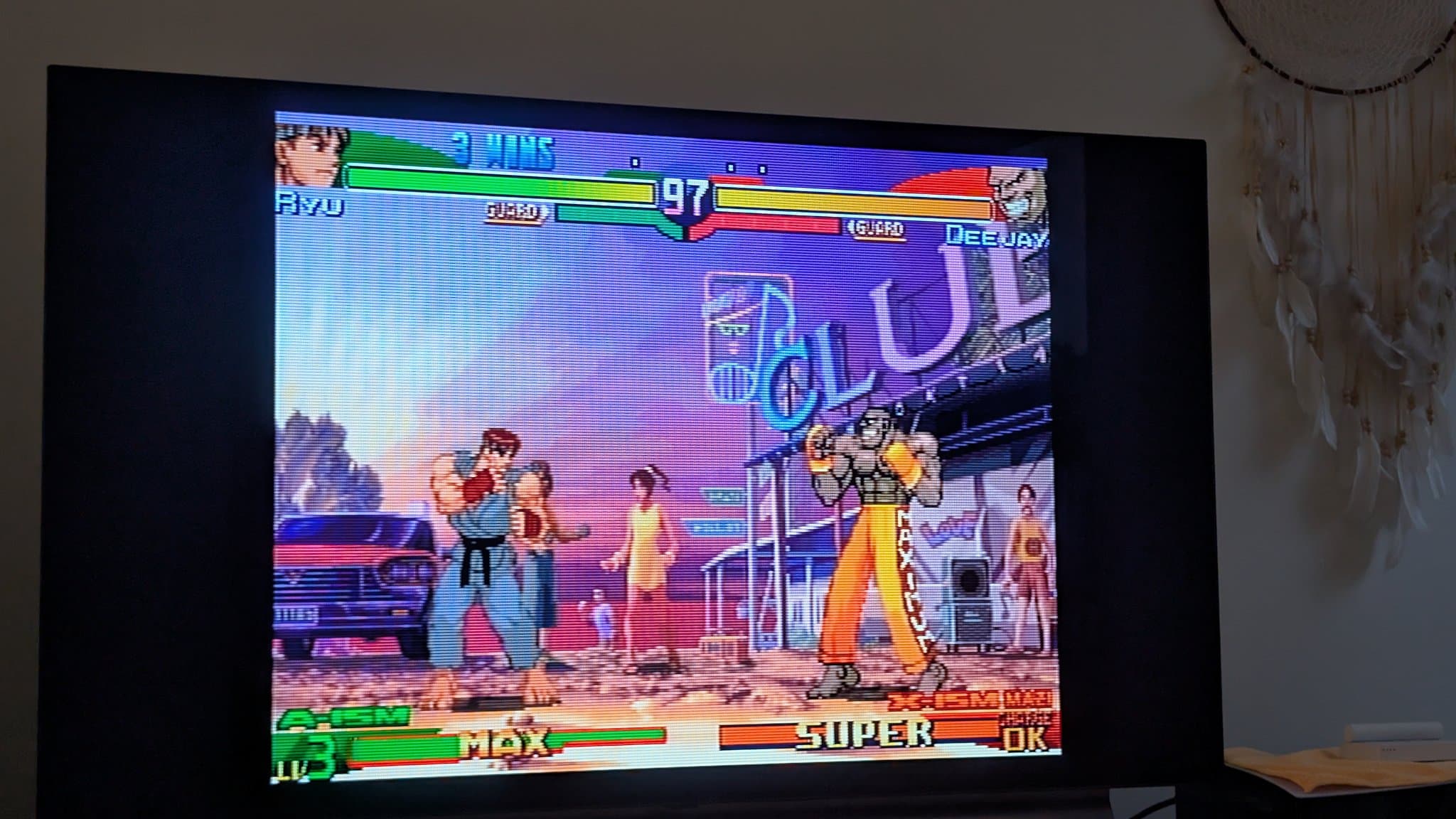

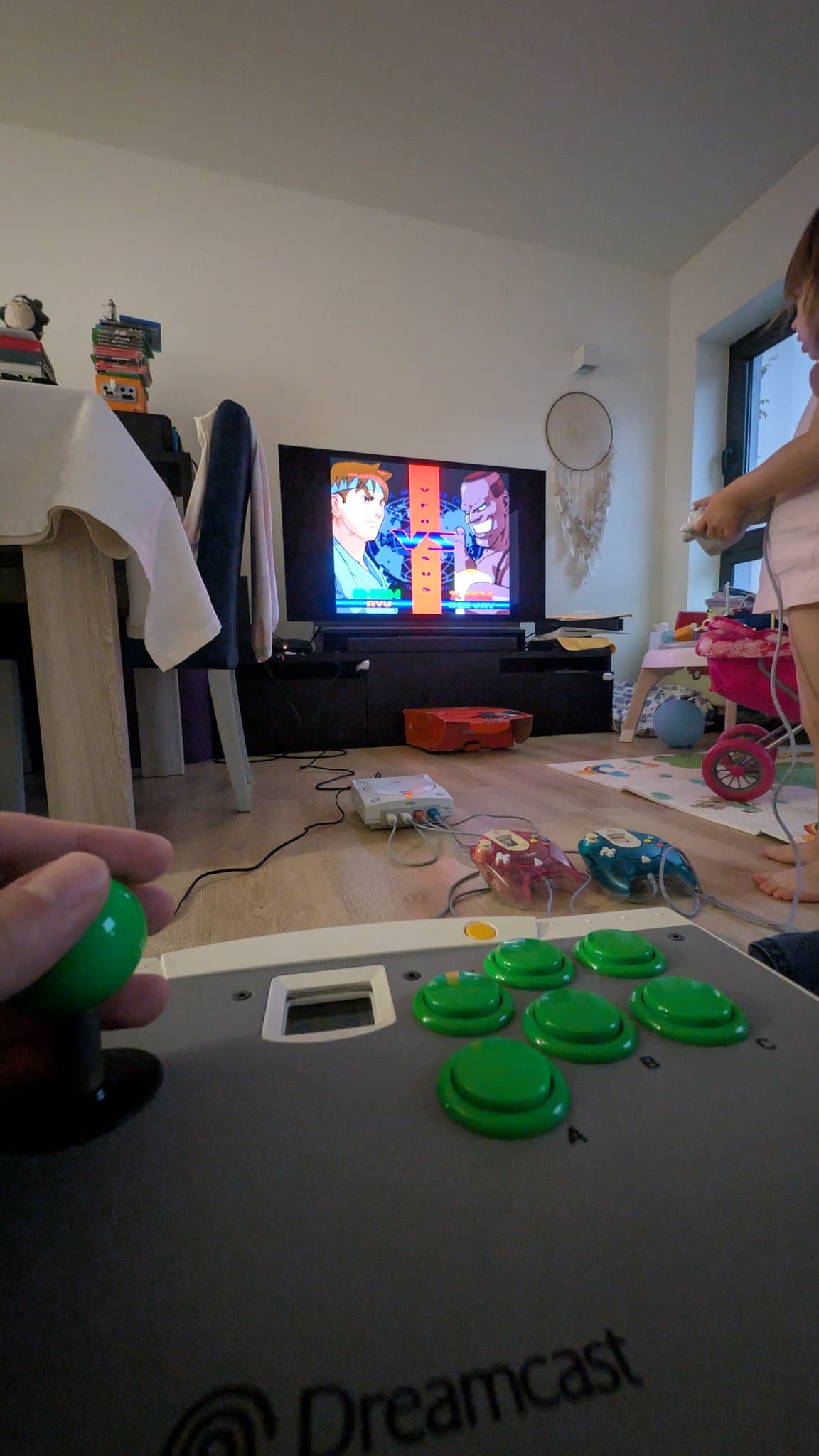

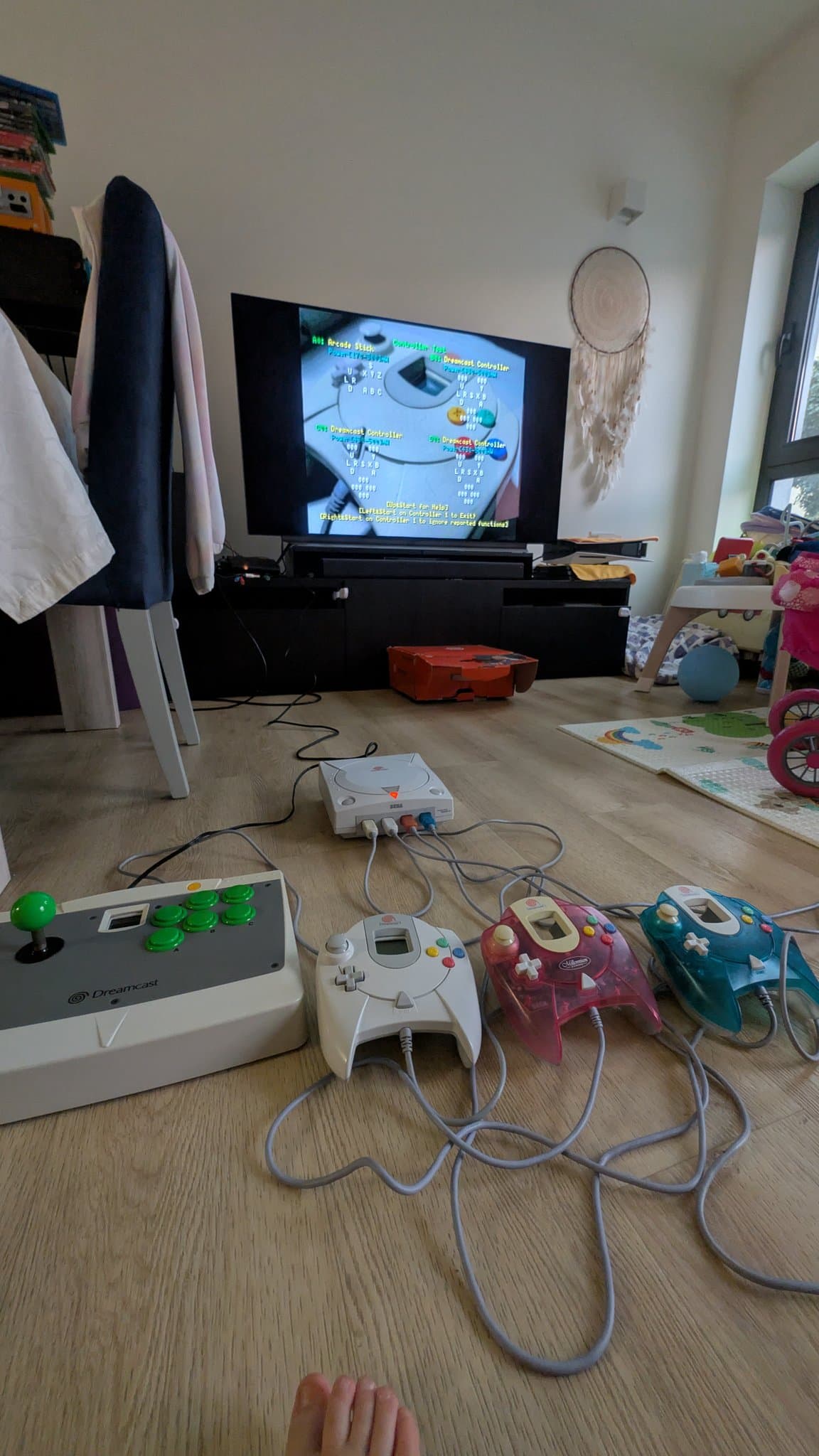

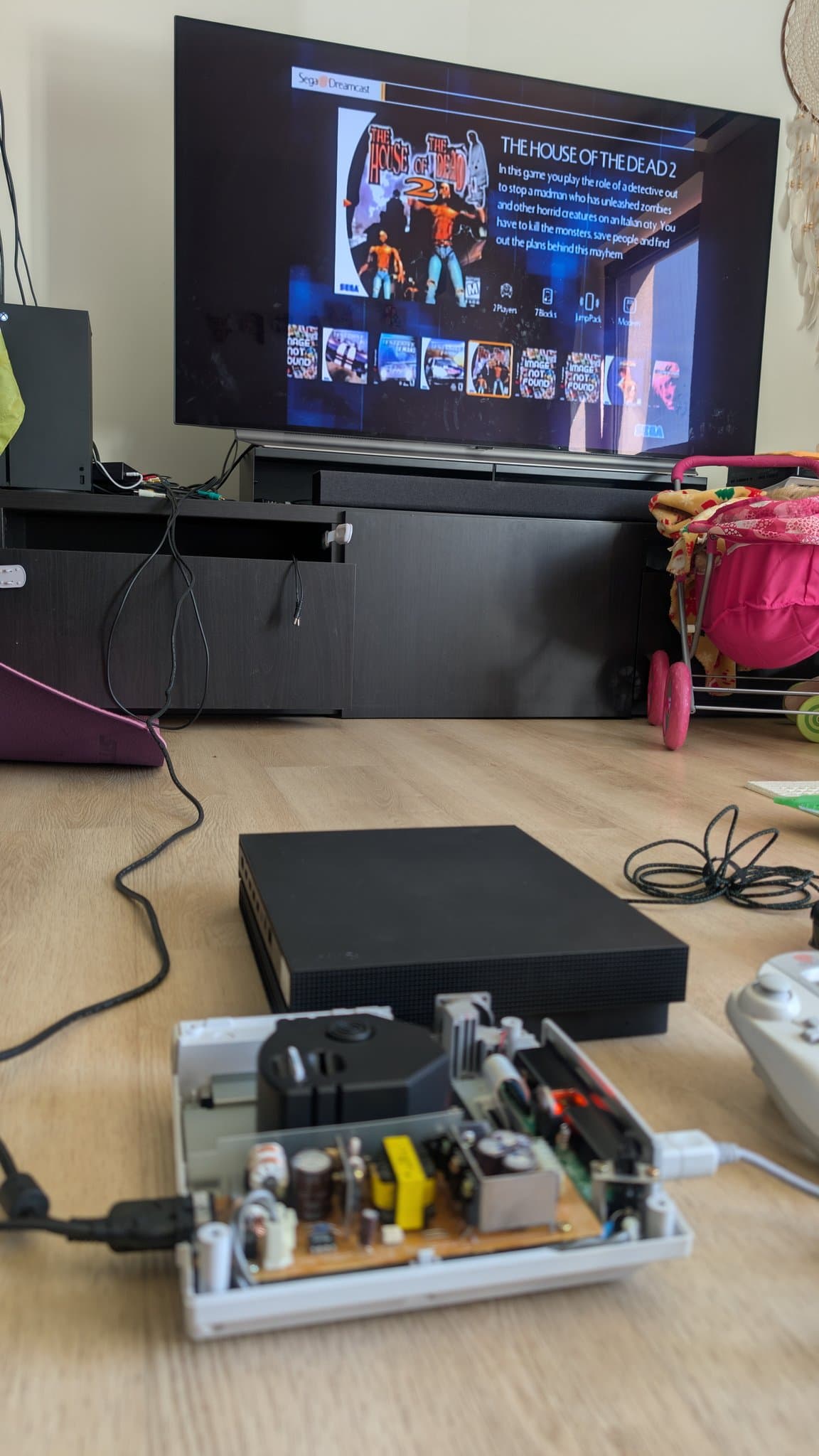

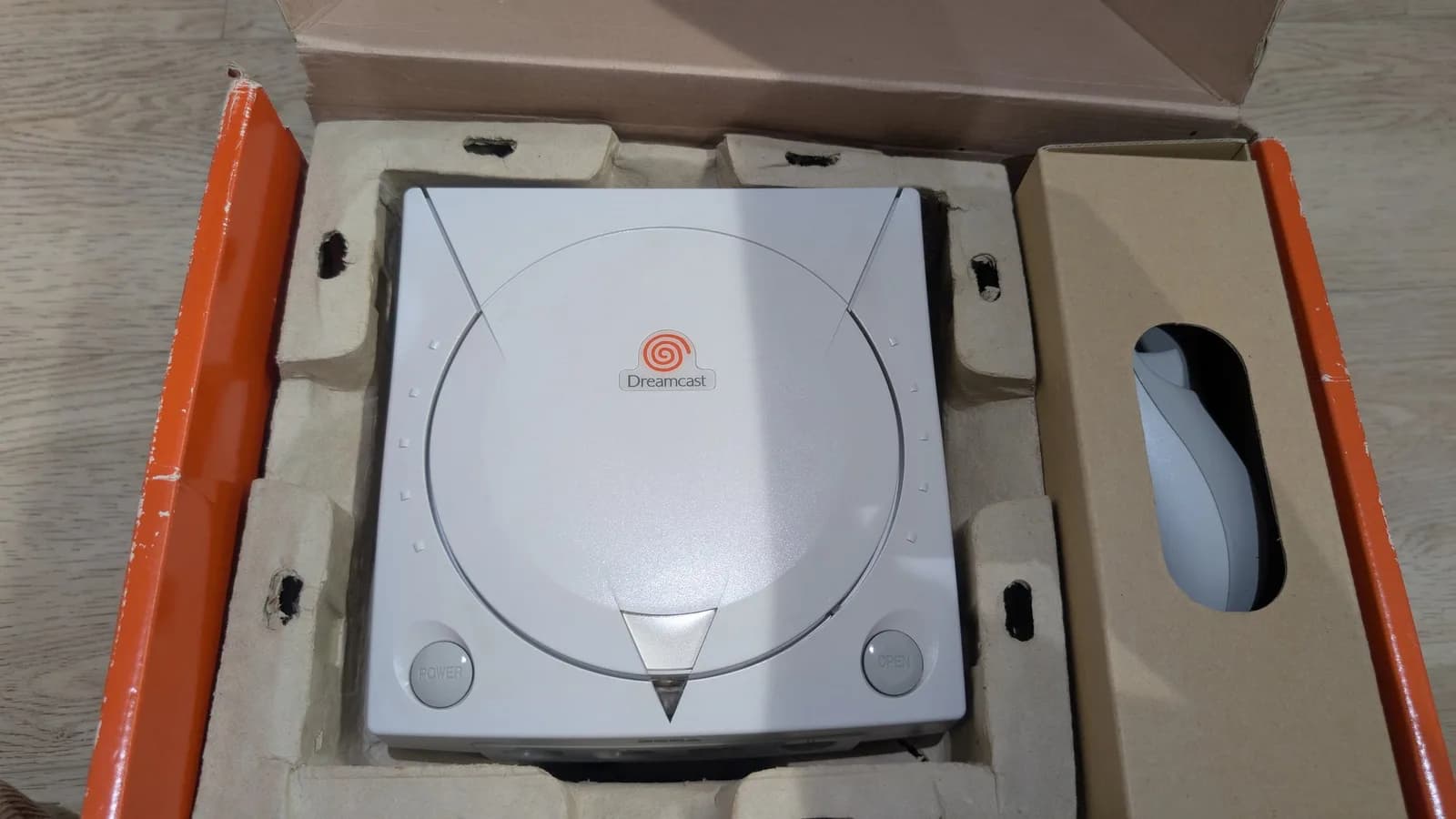

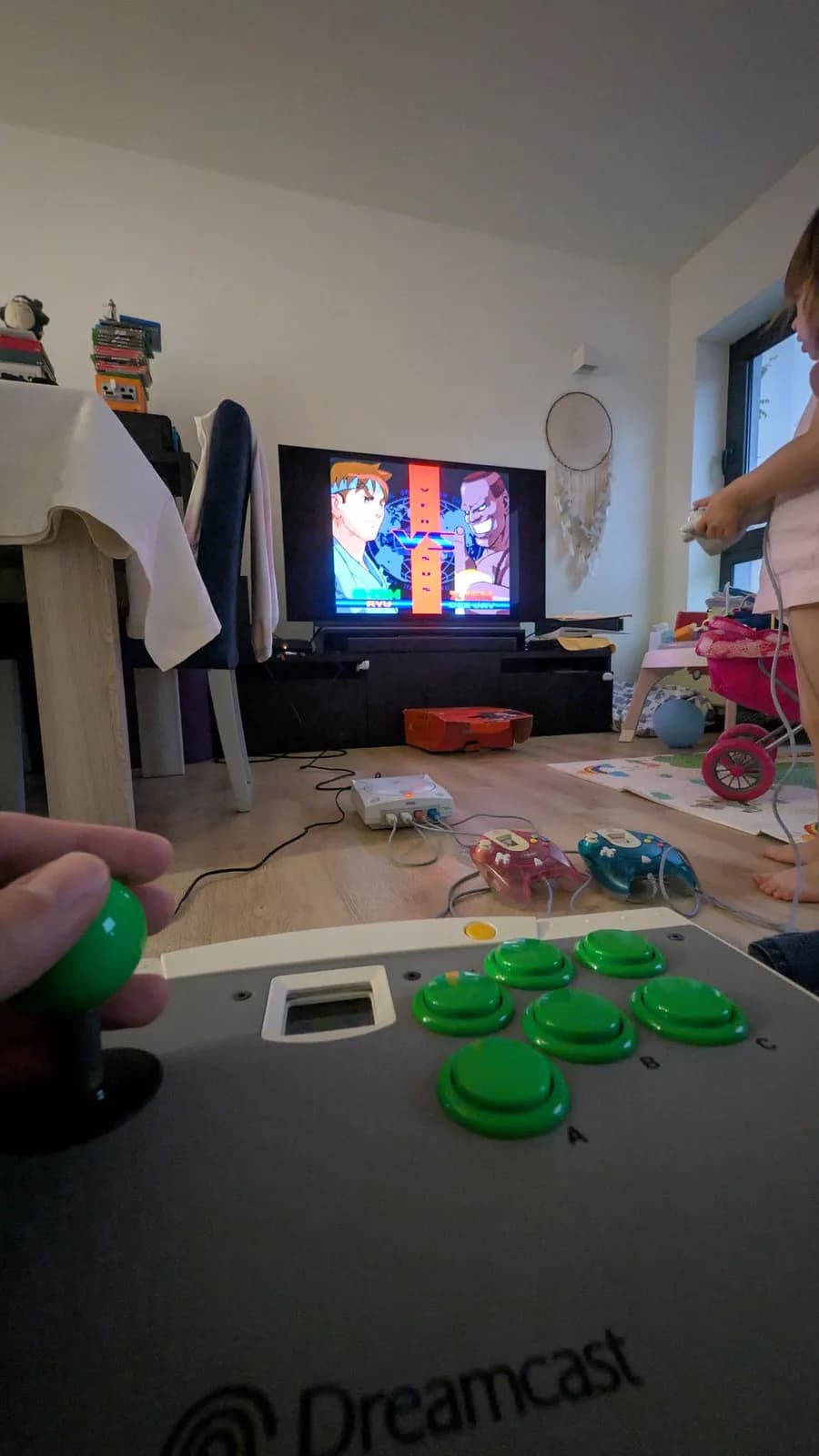

And with the PSU now recapped we have reached the end of this Dreamcast's journey at my hands. It's ready for its new owner. Ran the 240p test suite to test input on all controllers and then played a couple of rounds of Street Fighter Alpha 3. #Dreamcast #Sega #StreetFighter

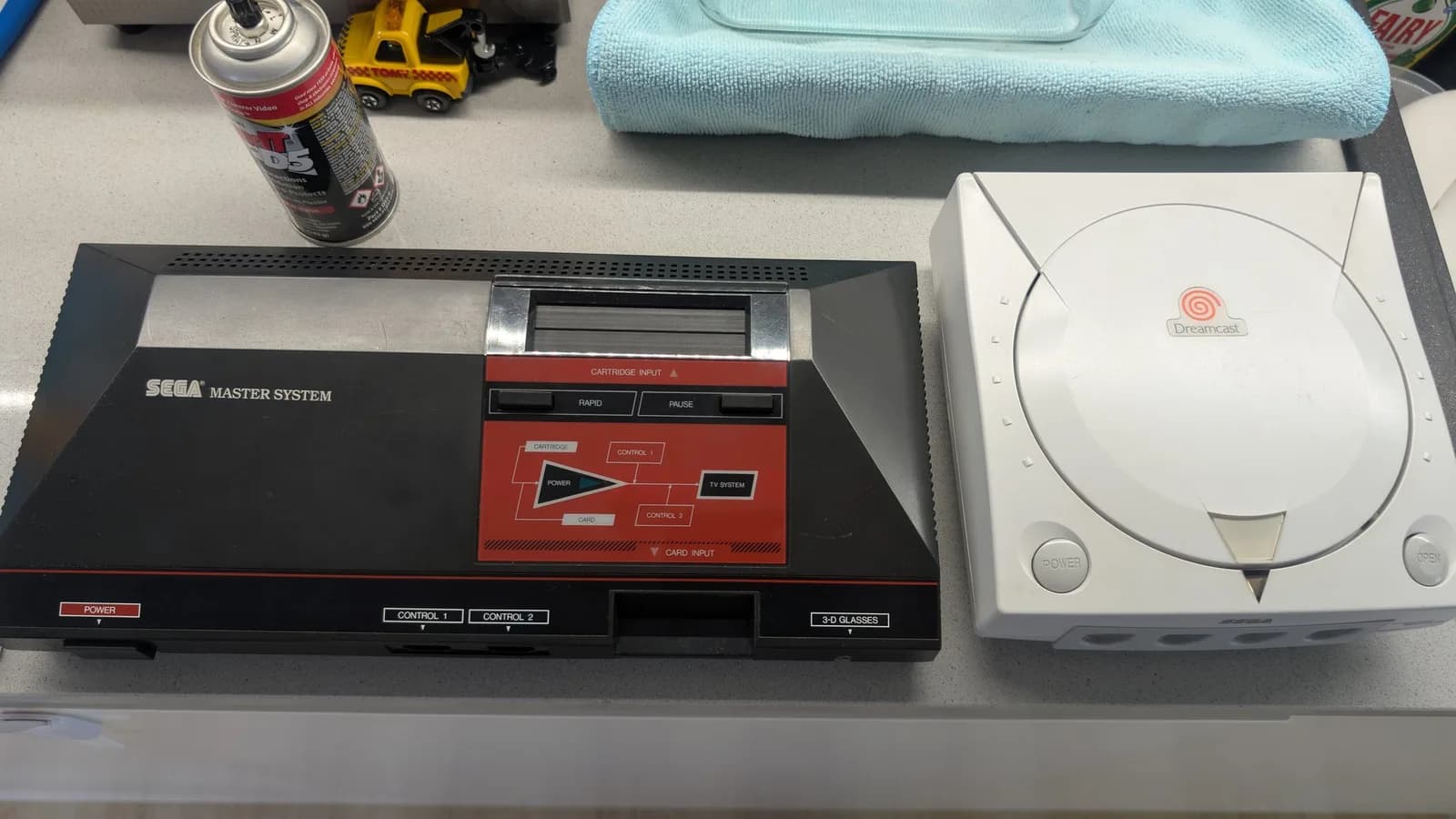

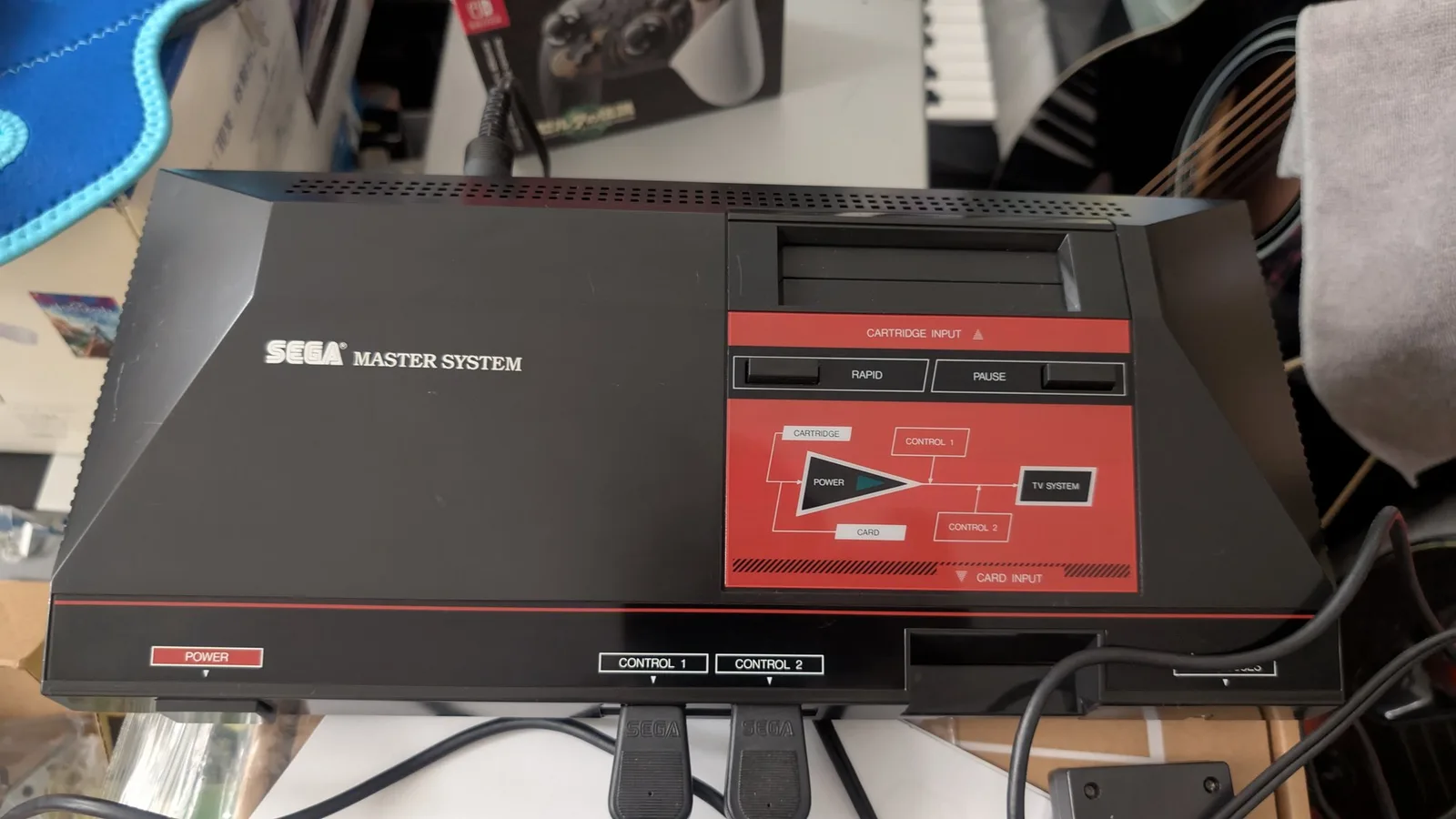

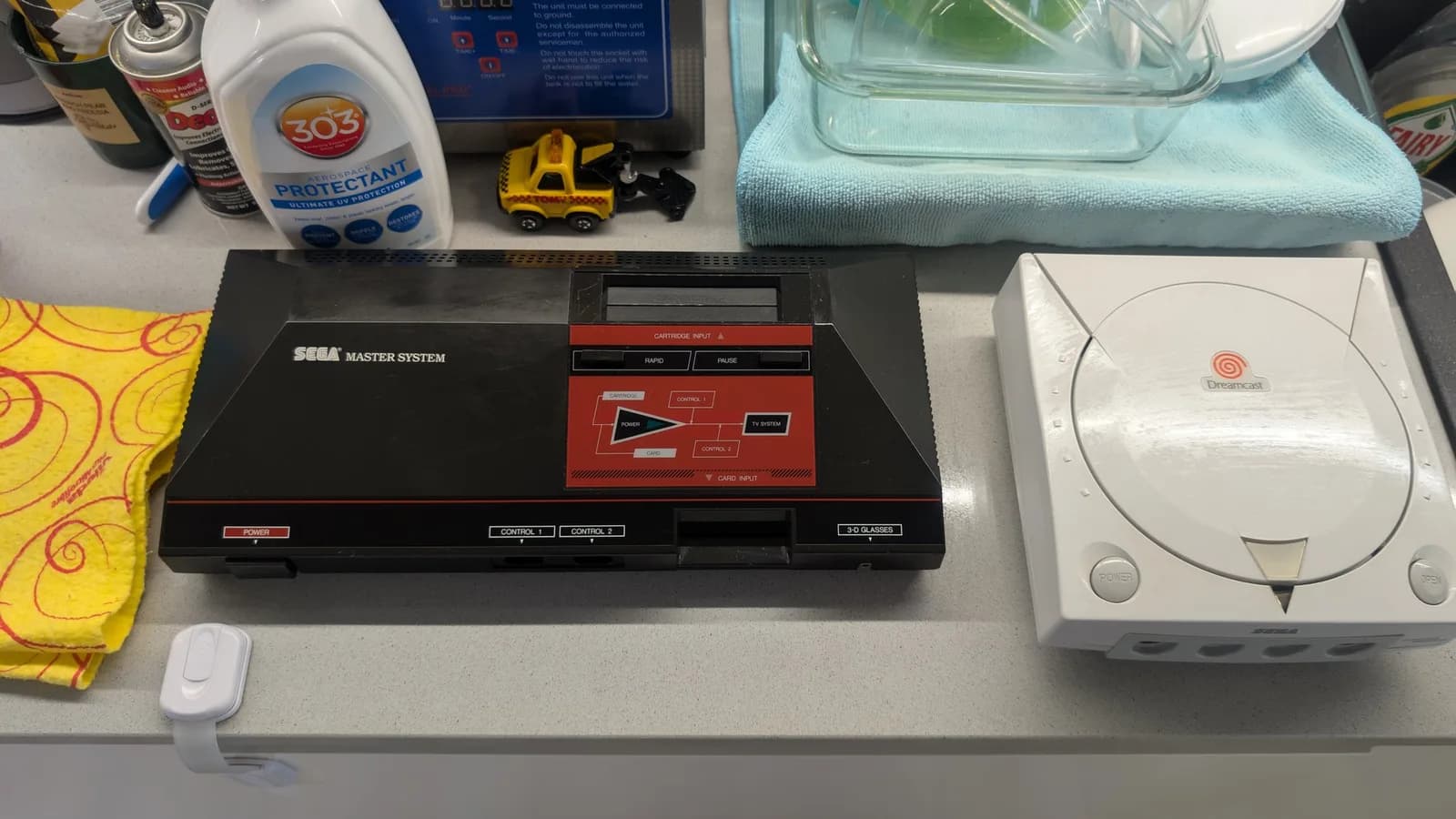

The final details before the sendoff. Wipe with isopropyl and then application of some 303 protectant. #RETROGAMING #Sega #Dreamcast #MasterSystem

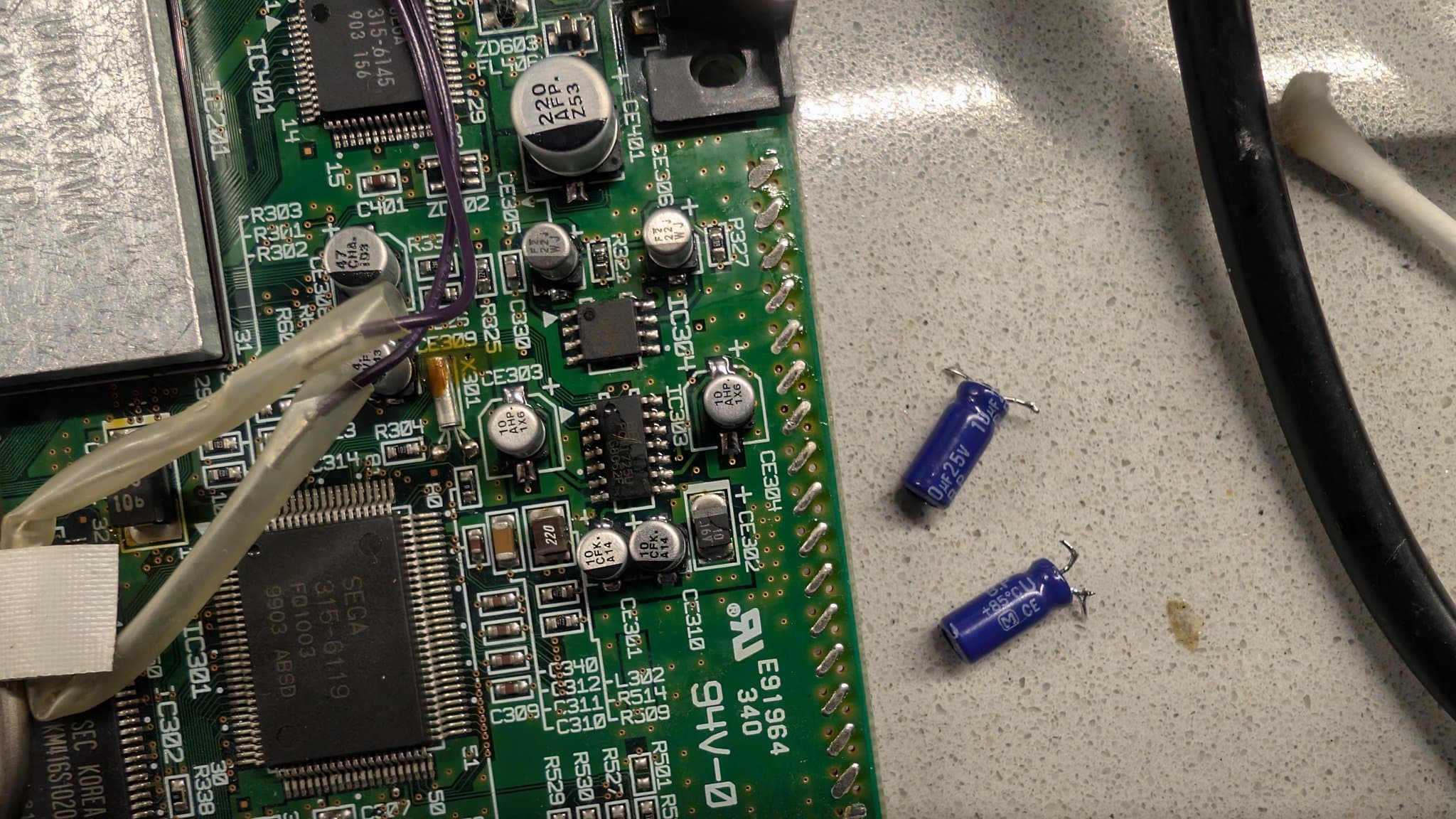

And there we go, righting the final wrong. I don't like using radial caps in SMD applications but I couldn't get stock of bi-polar ones at the time. Now I have them, so I fixed that real quick. #RETROGAMING #Sega #Dreamcast
