Sega — Saturn

Sega Saturn NTSC-J Model 1 PSU Recap & Retrobrite

October 28, 20222 threads~1 min read
RecapRetrobrite

PSU recap and a retrobriting pass on a Sega Saturn NTSC-J Model 1: fresh electrolytic capacitors on the power board and the grey Model 1 shell brightened back up.

Parts & Tools (3)

Sega Saturn PSU cap kit

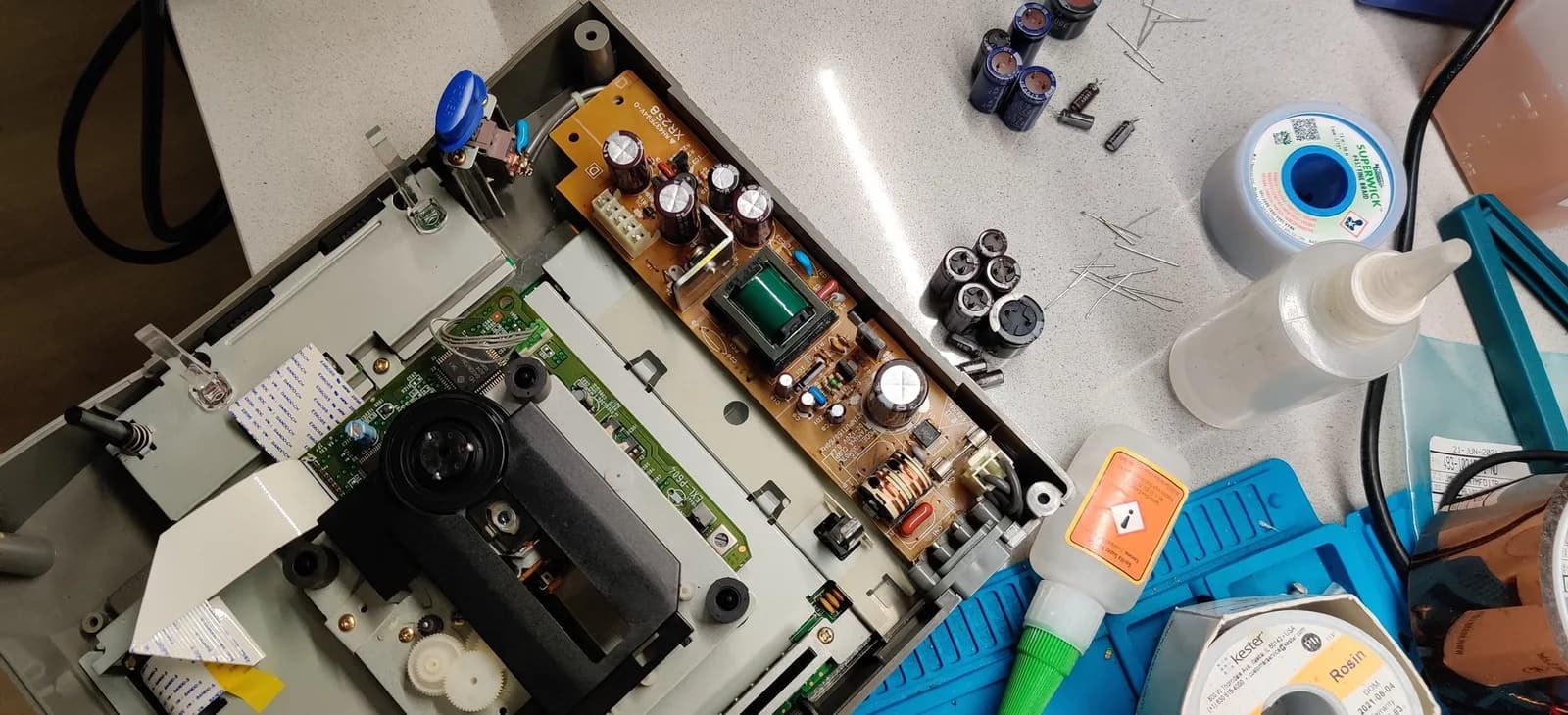

Console5 Sega Saturn Power Supply Cap Kit (Yamaha XR258), the fresh electrolytic capacitors fitted to the XR258 power board during the recap.

Vapour retrobrite method

RetroRGB's write-up of the vapour retrobrite method, the hydrogen-peroxide-vapour and UV technique used to reverse the yellowing on aged plastic.

Pseudo Saturn Kai

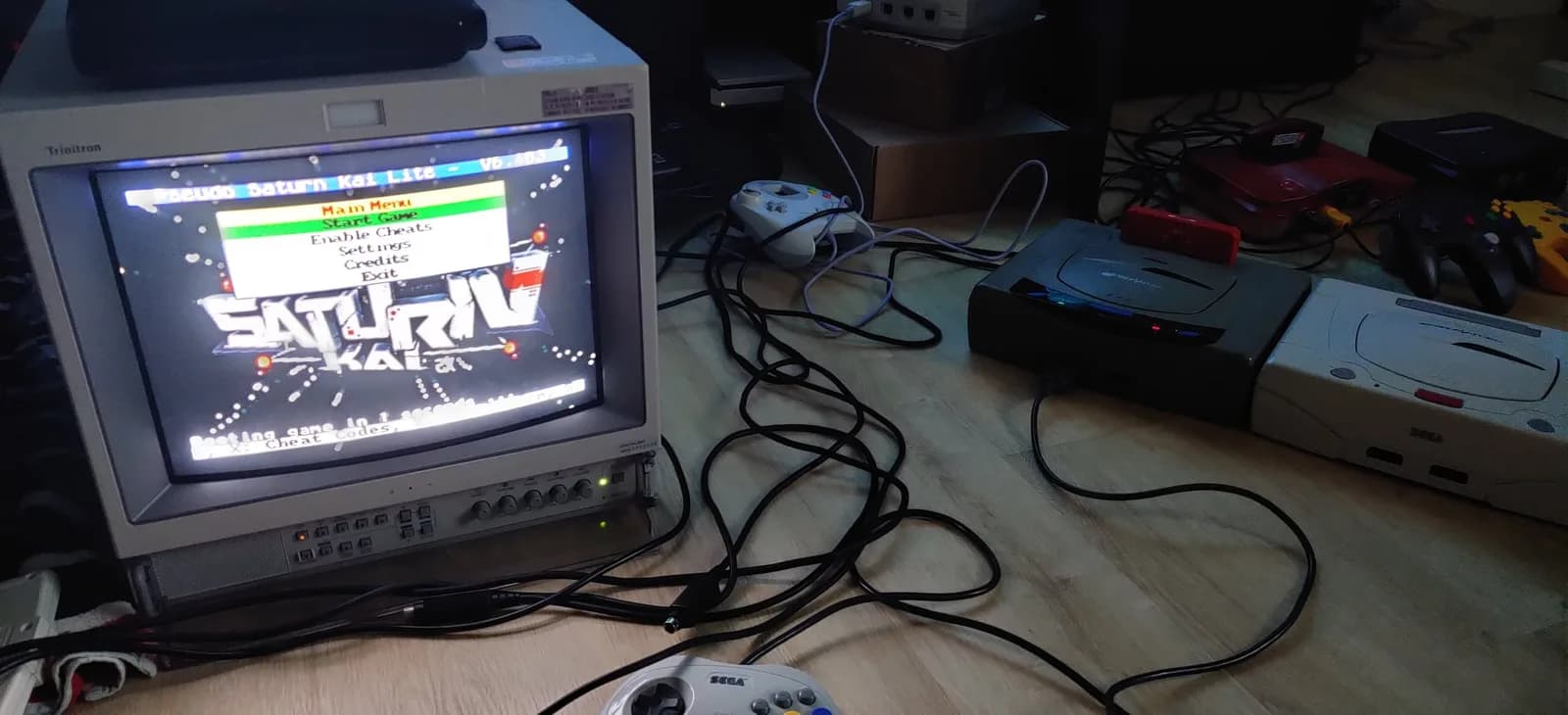

Pseudo Saturn Kai, the custom Sega Saturn firmware run from an Action Replay cartridge for region-free play and booting CD-R backups and homebrew.

hitmanmcc
hitmanmcc

October 28, 2022· Thread 1

View on X ↗Without login ↗

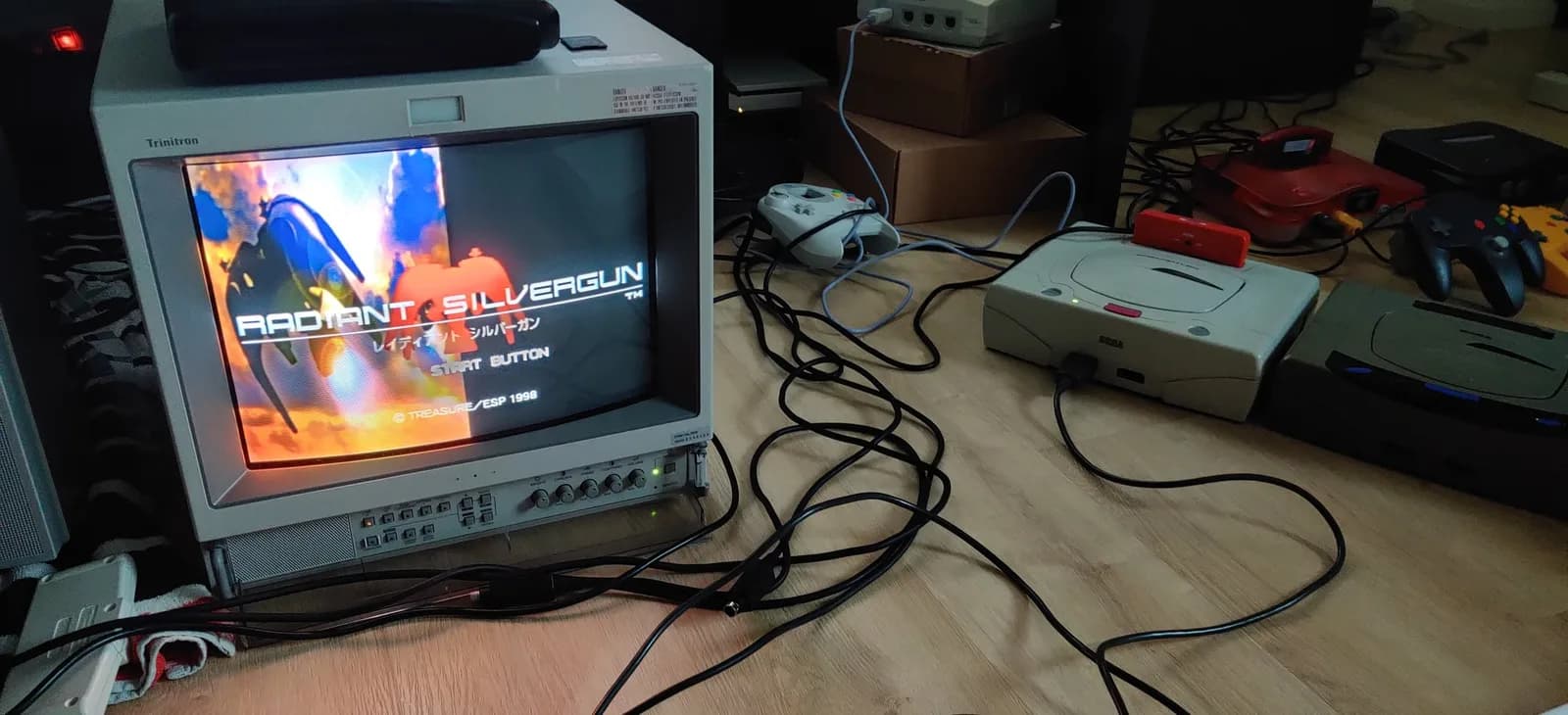

#Sega #Saturn Model 1 and Model 2 PSU recap and test. Everything is fine, playing some Radiant Silvergun as a means of smoke testing. #RETROGAMING

hitmanmcc
hitmanmcc

December 6, 2022· Thread 2

View on X ↗Without login ↗

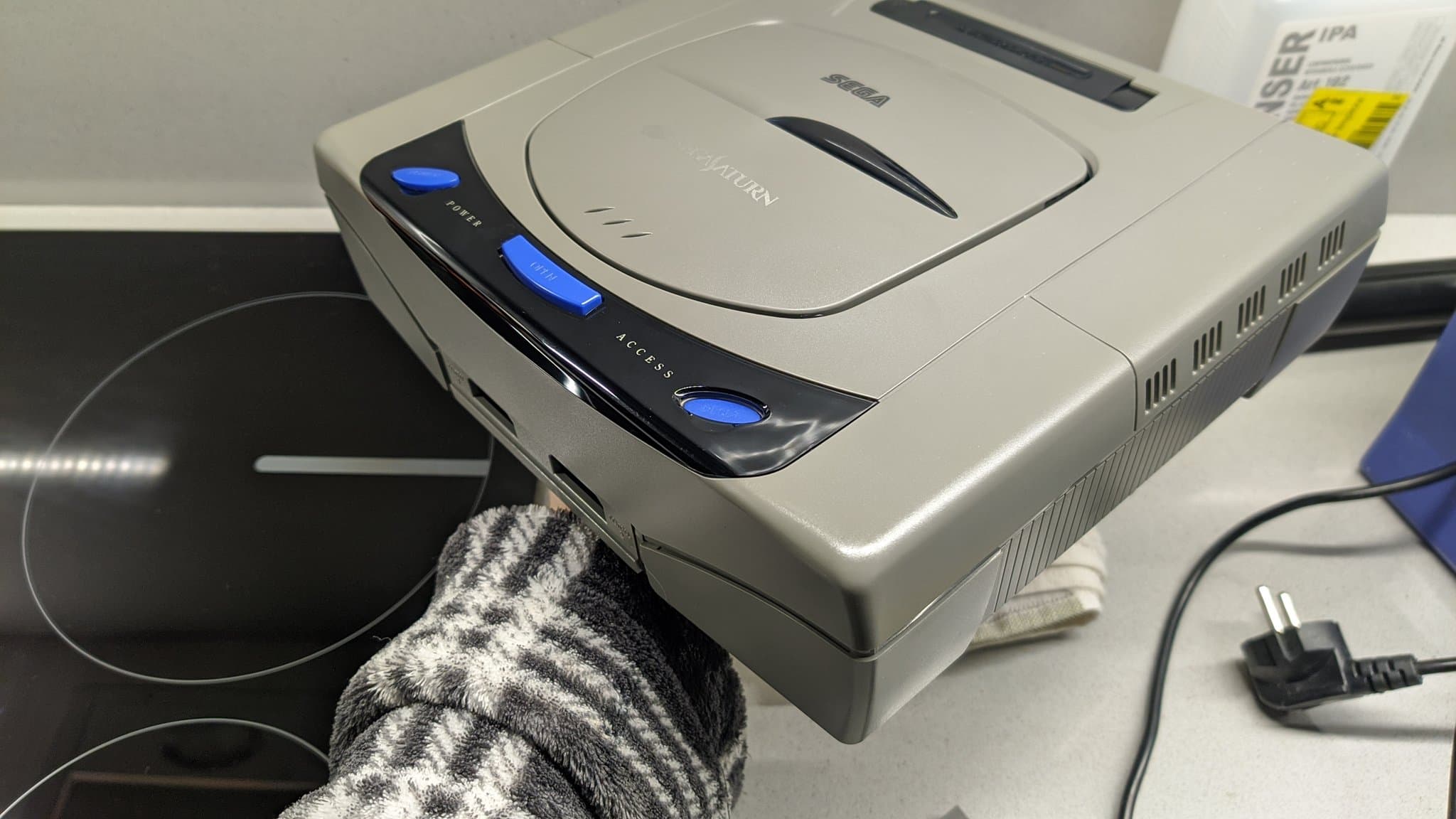

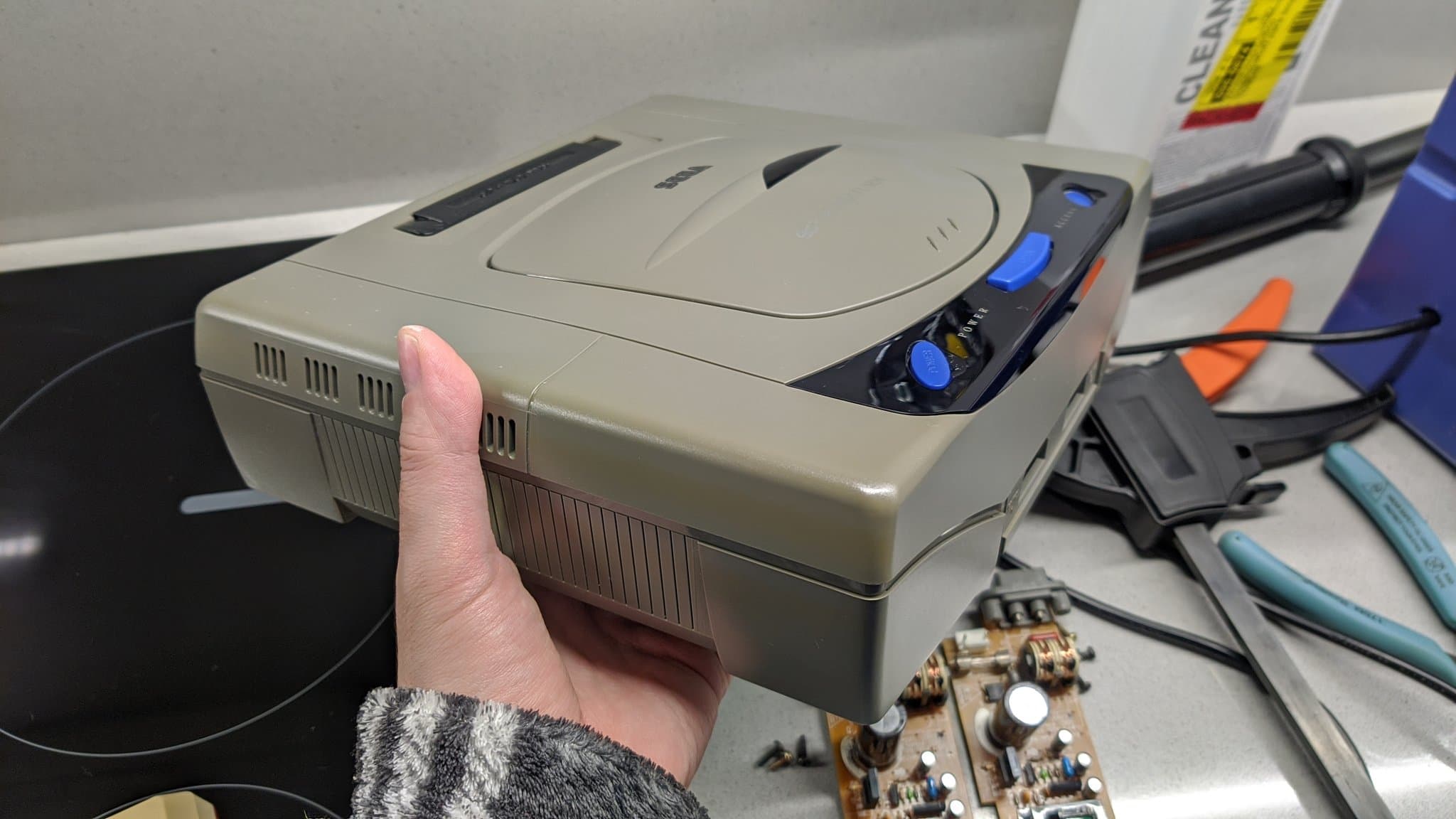

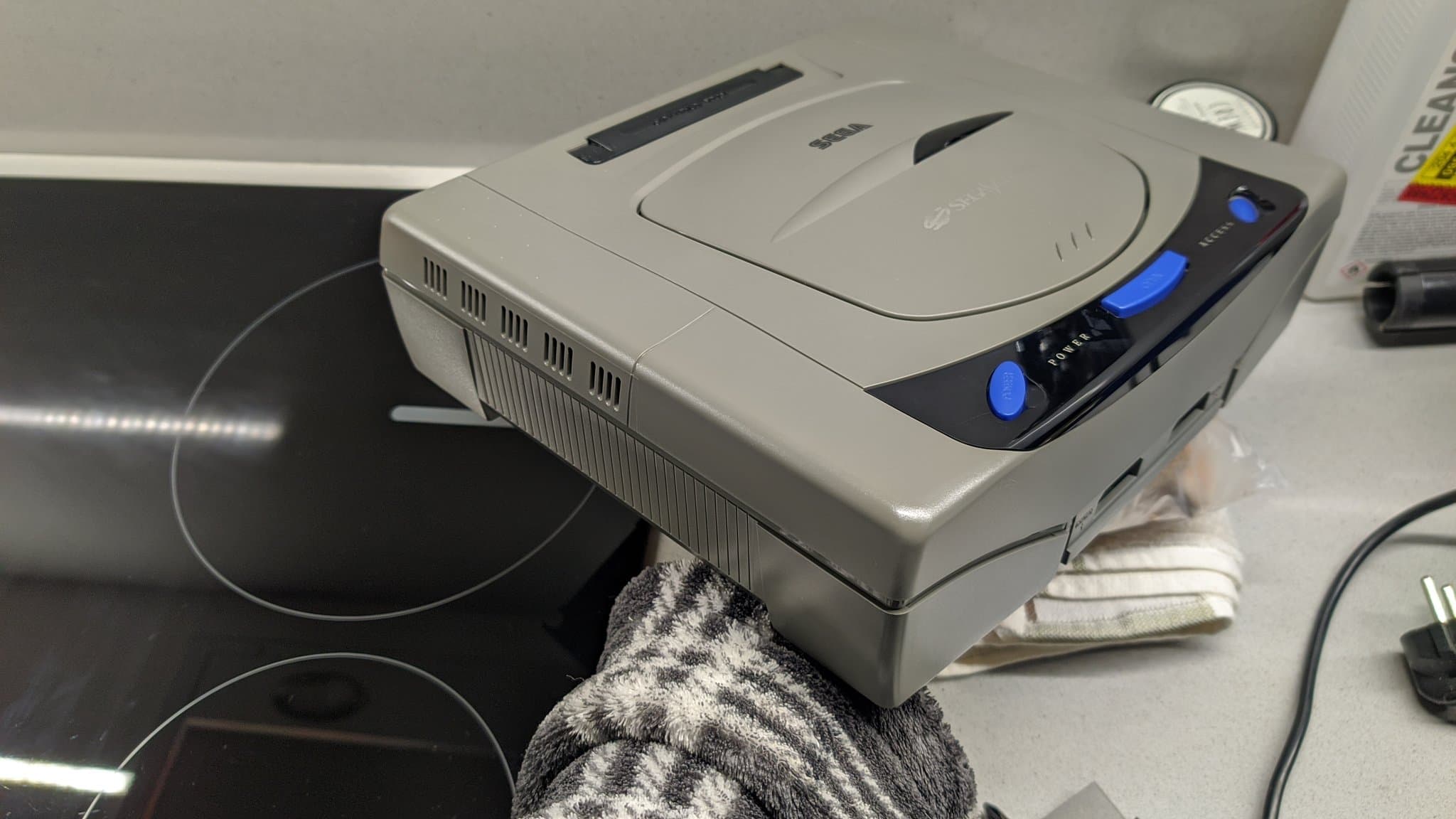

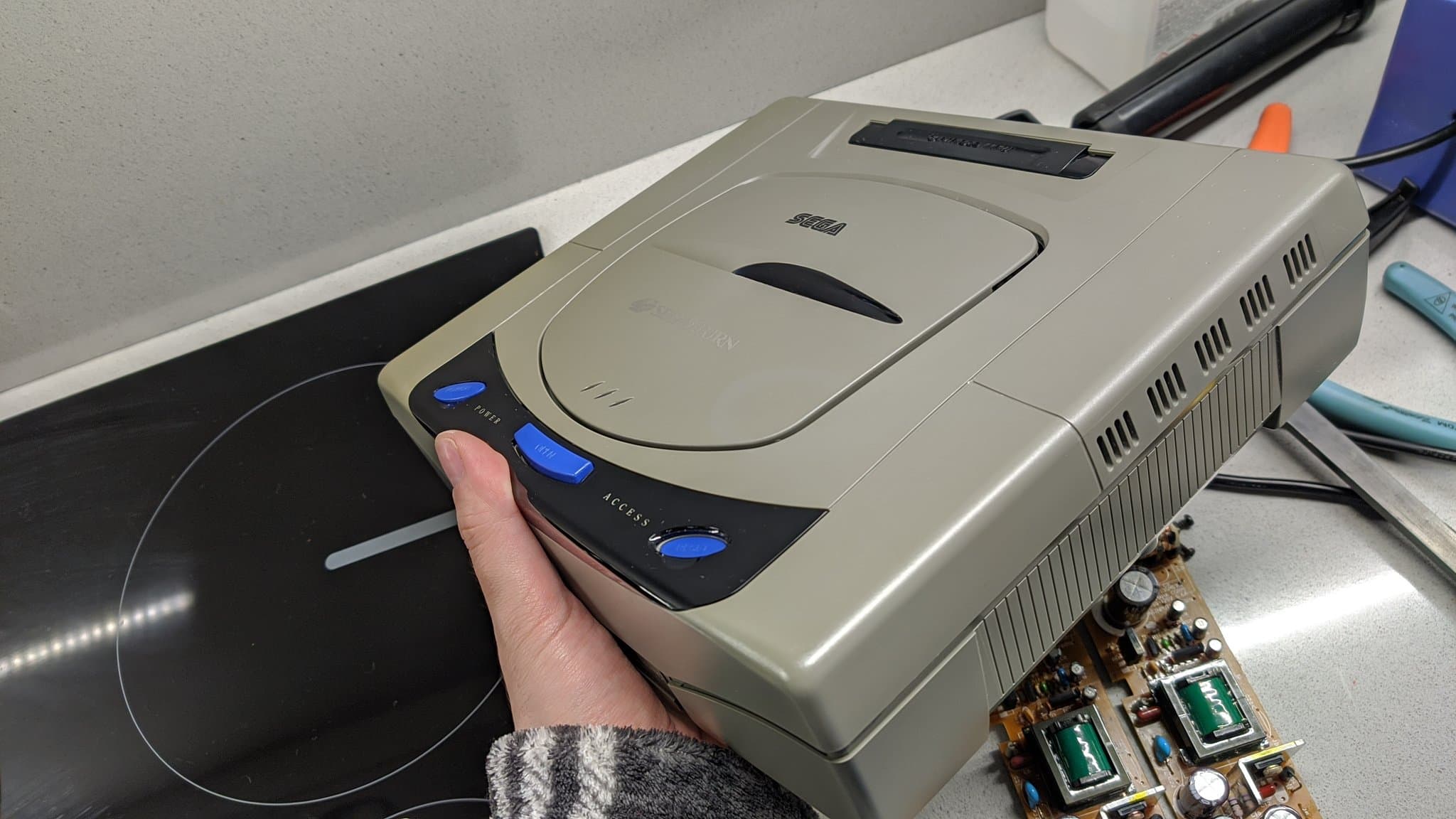

Another day, another shell restored. This time a Japanese model 1 #Sega Saturn. #RETROGAMING #retrobrighting
