Consoles/Nintendo/SatellaView

Nintendo — SatellaView

Nintendo Satellaview Recap & Retrobriting

November 10, 20222 threads~1 min read
RecapRetrobrite

A quick recap on a Nintendo Satellaview (SHVC-029) done alongside the Super Famicom, with fresh electrolytics inside and the shell run through the retrobriting setup too.

hitmanmcc
hitmanmcc

November 10, 2022· Thread 1

View on X ↗Without login ↗

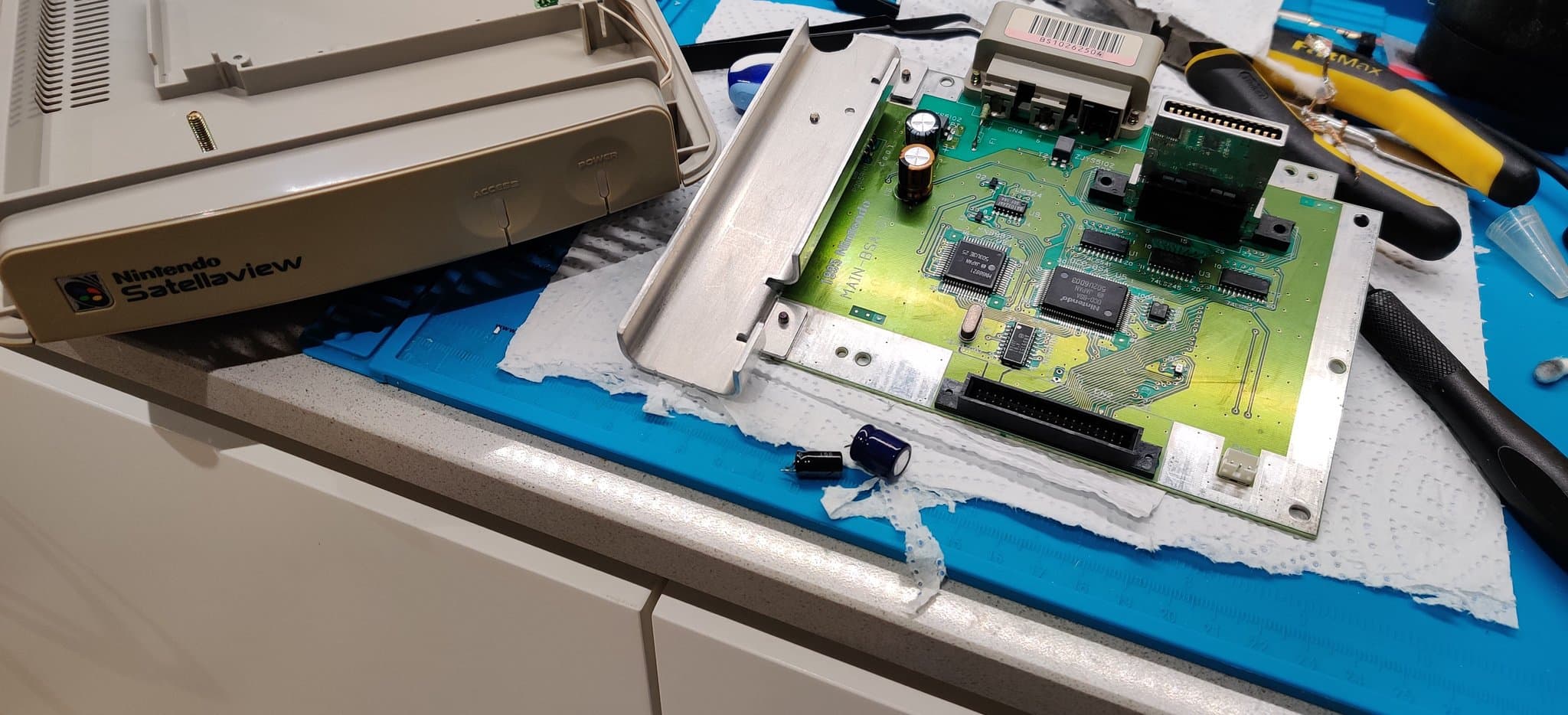

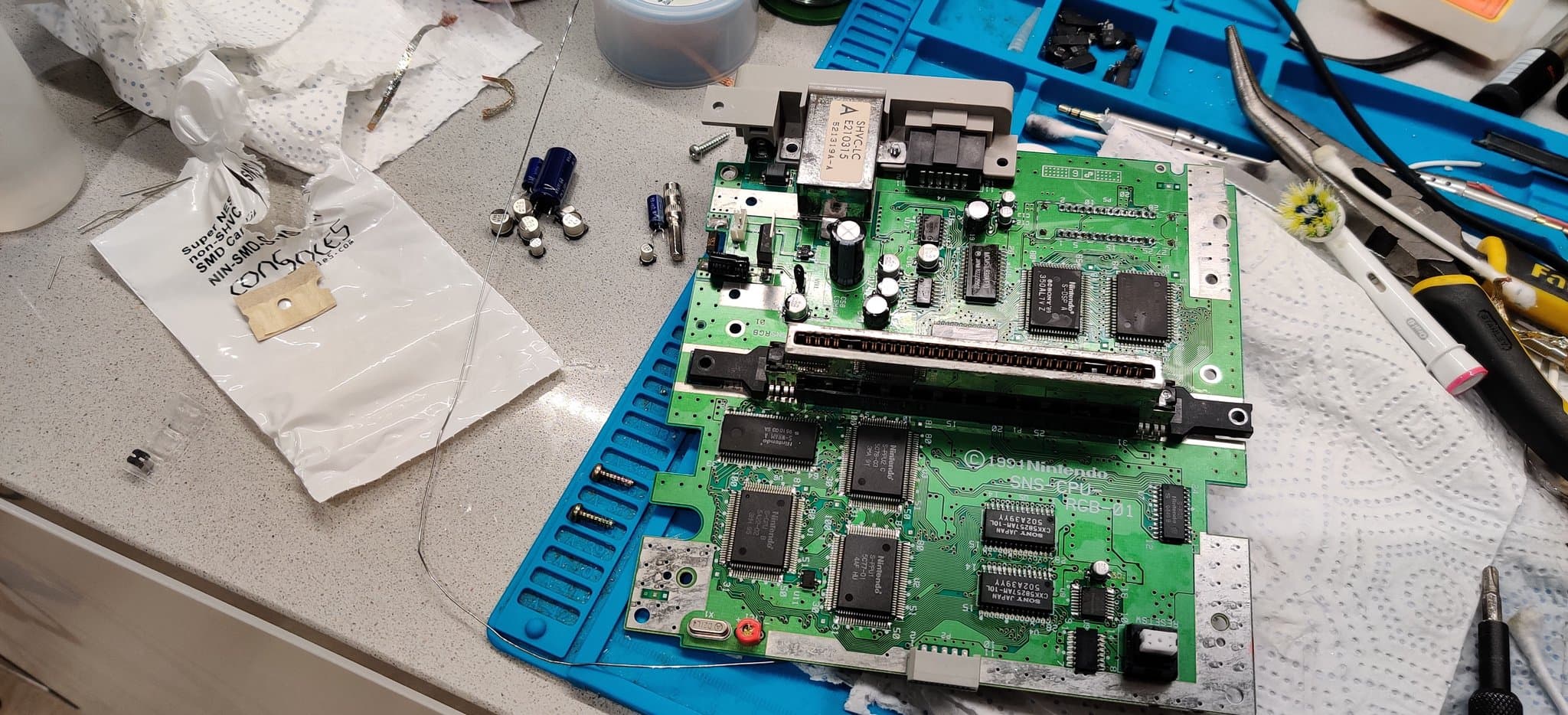

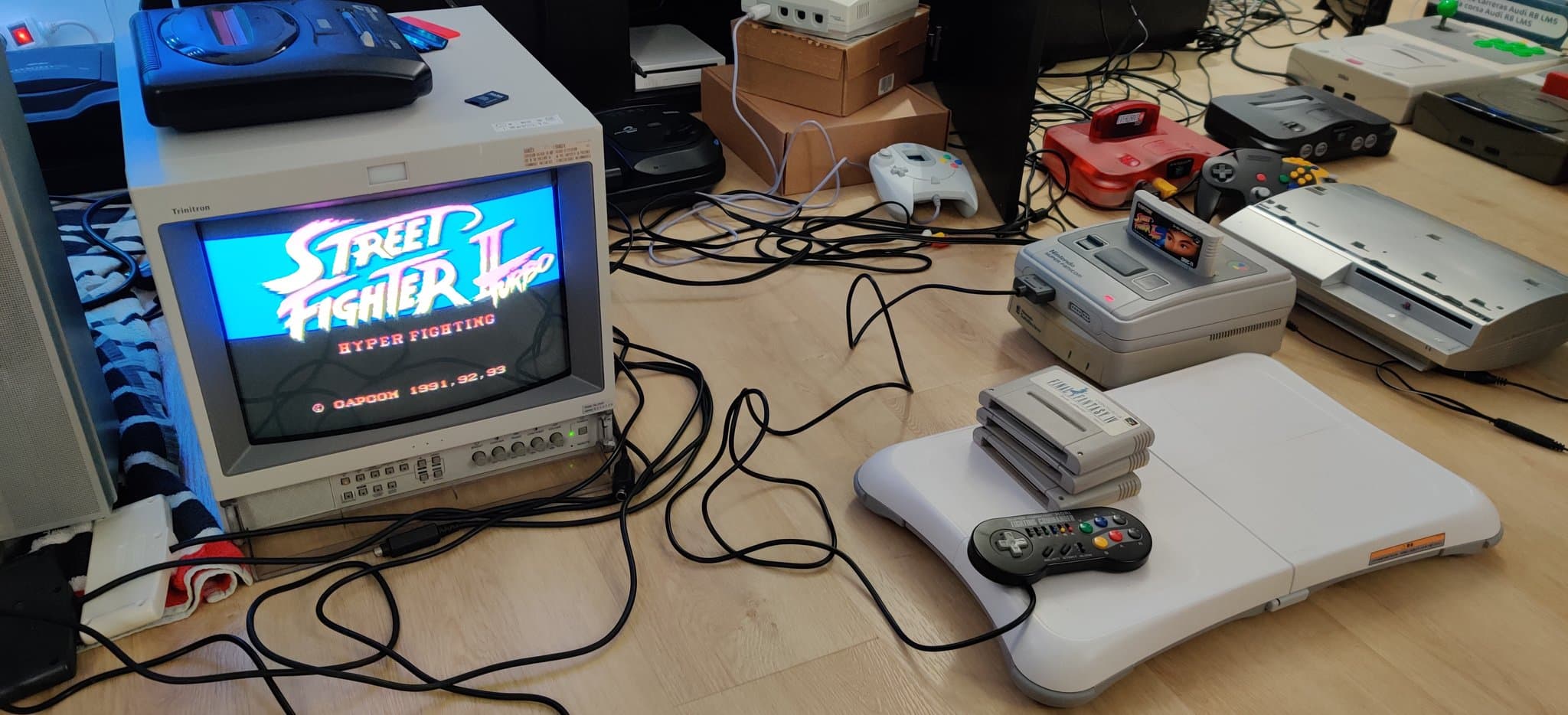

Getting some maintenance workout out of the way. Capacitor replacement on the #Nintendo Satellaview and Super #Famicom. Playing some #StreetFighter II Turbo to check if everything is fine with the Super Famicom. #RETROGAMING

hitmanmcc
hitmanmcc

December 5, 2022· Thread 2

View on X ↗Without login ↗

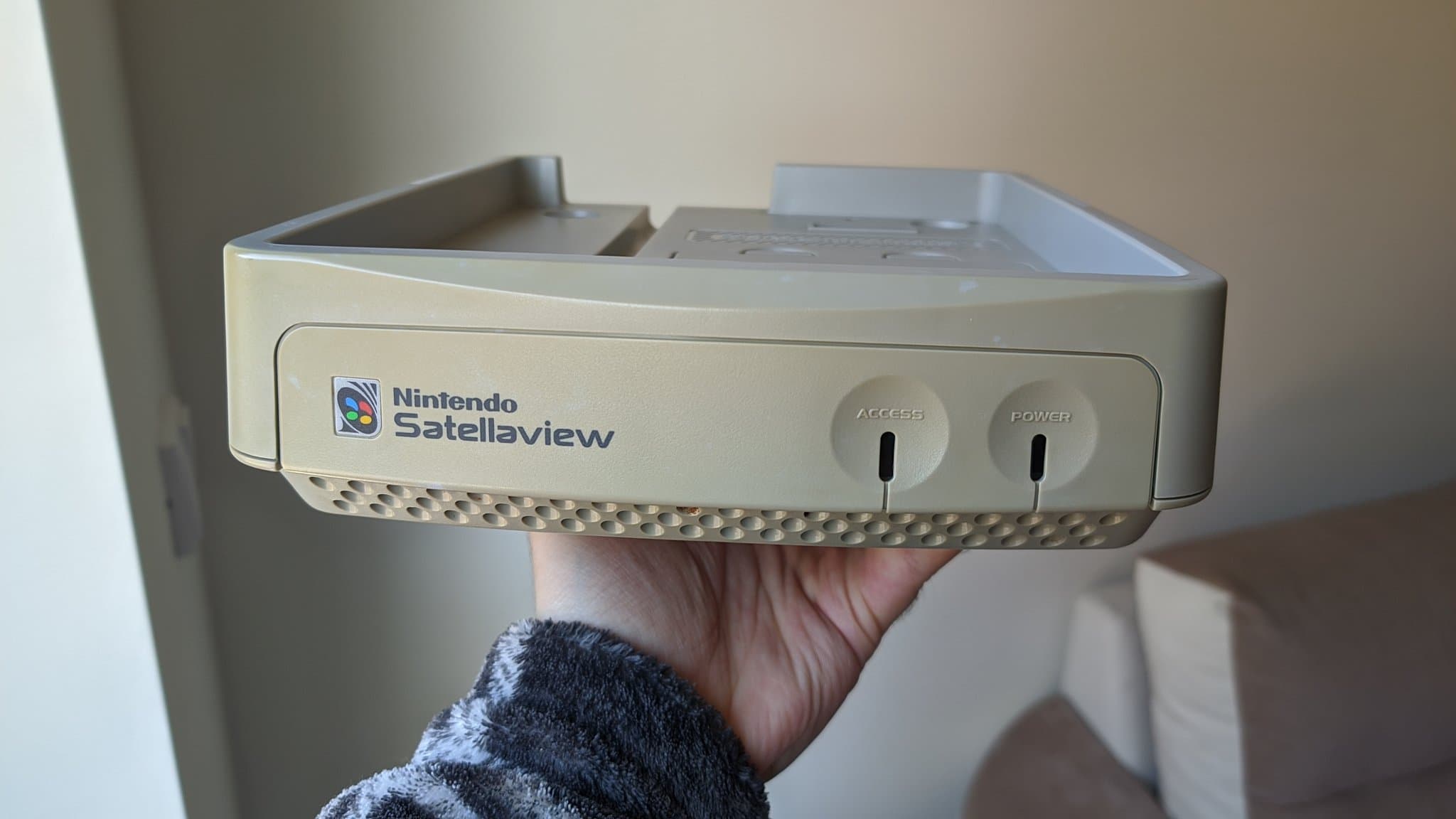

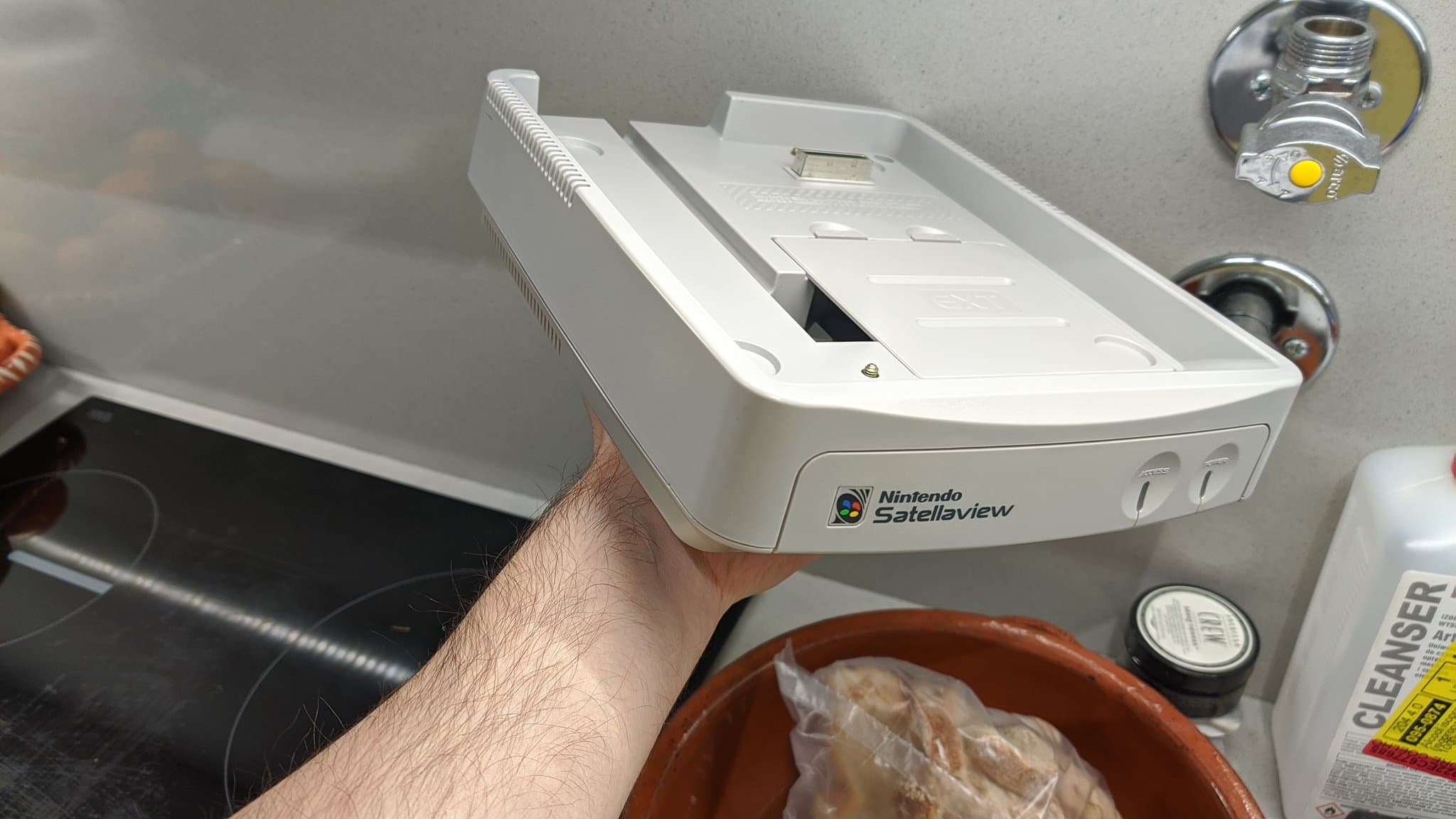

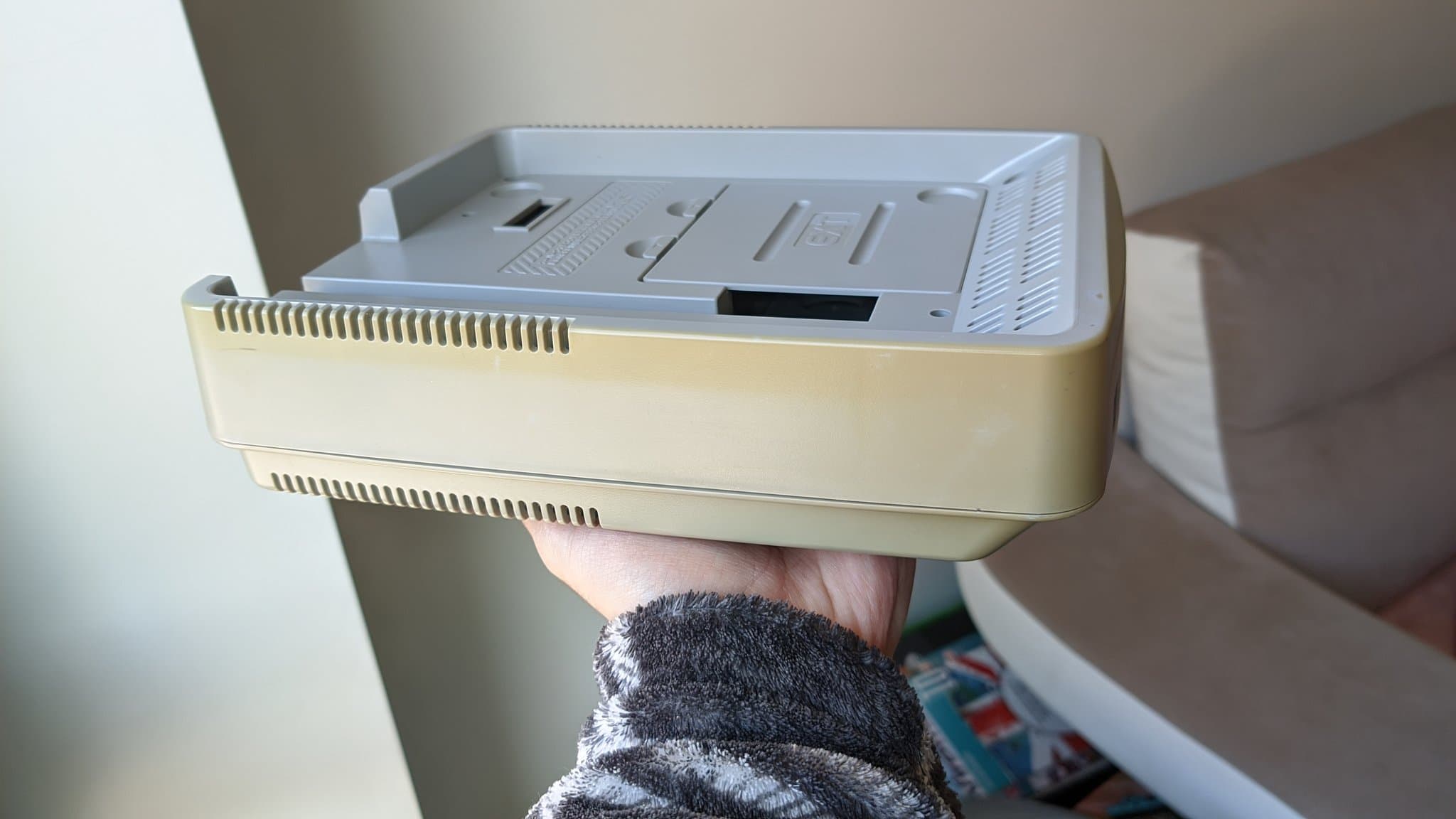

A spot of #retrobrighting to cleanup a #Nintendo #Satellaview shell. Not perfect but I'd say a marked improvement. #RETROGAMING
