Retrobriting various retro gaming items

July 24, 20221 thread~1 min readSuccessful repair

A batch session of retrobriting various items: SG-1000 II controllers, PC Engine shell and assorted controllers among the beneficiaries.

hitmanmcc

July 24, 2022· Thread 1· 5 tweets

View on X ↗Without login ↗

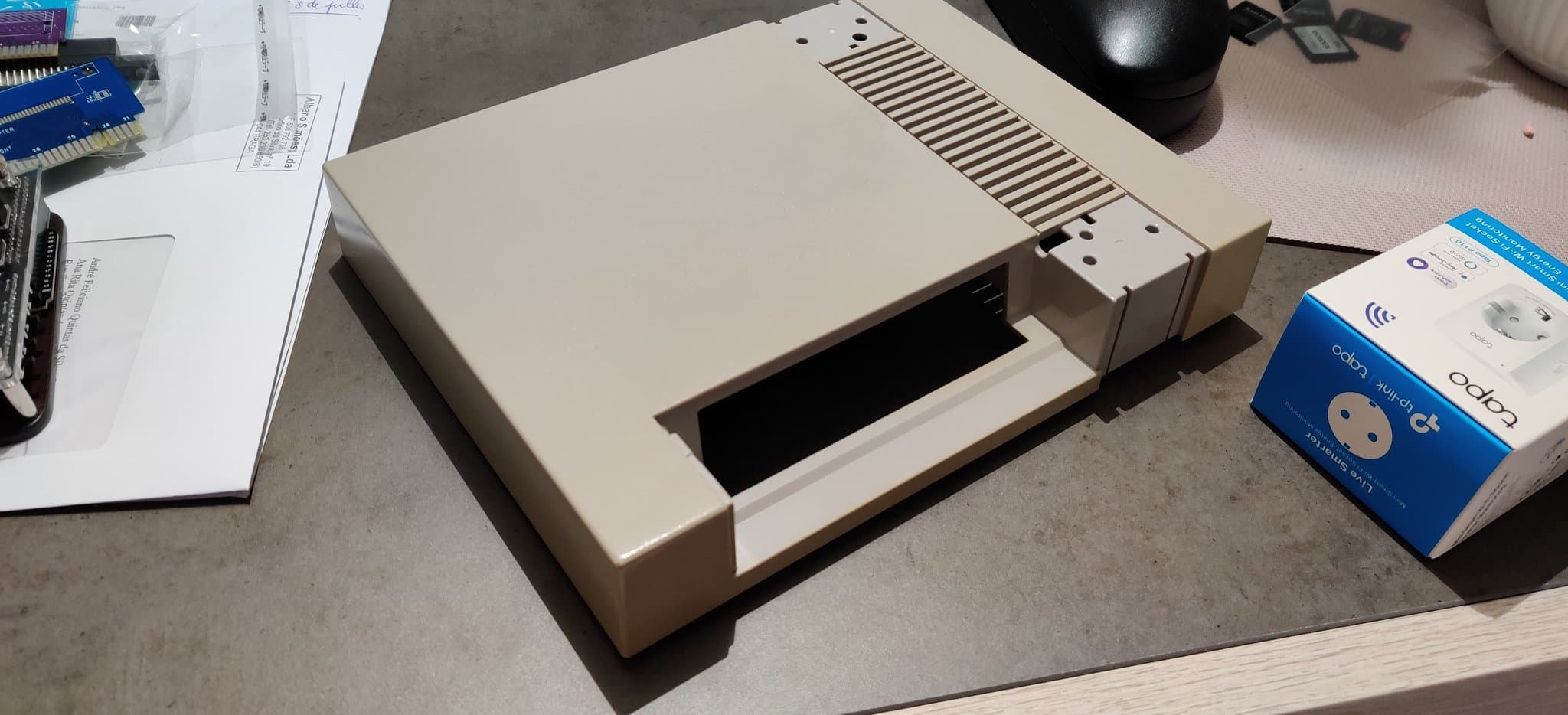

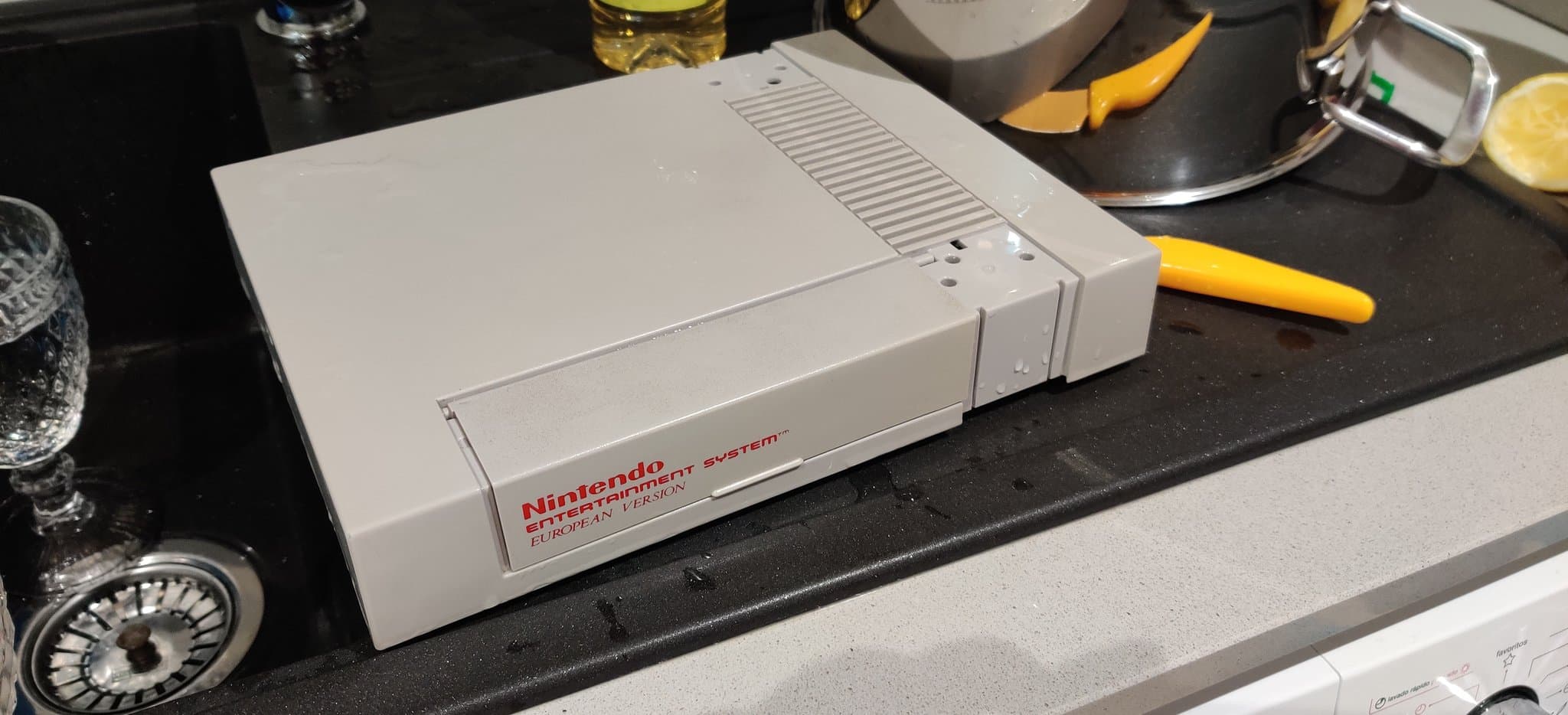

Just an assortment of stuff that went through #retrobrighting.

2 / 5

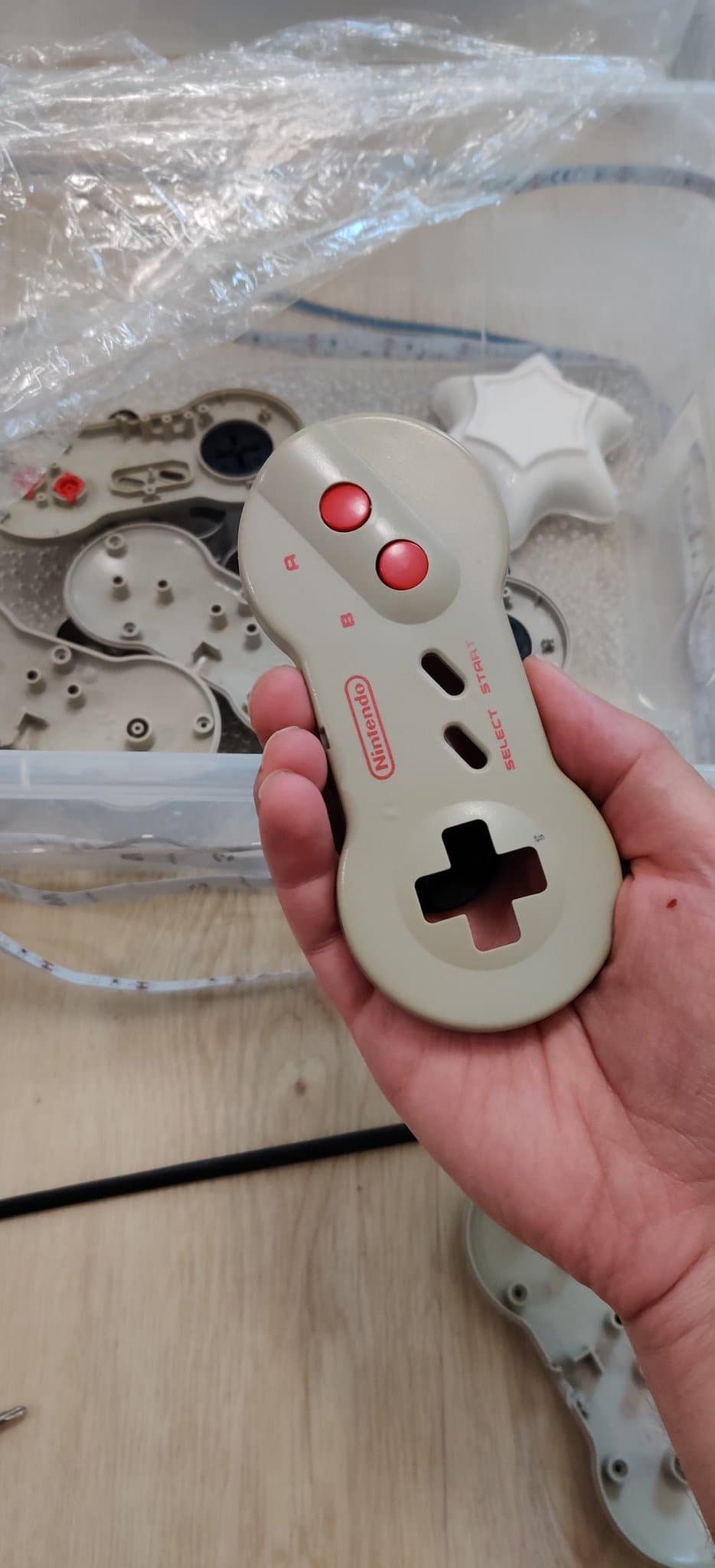

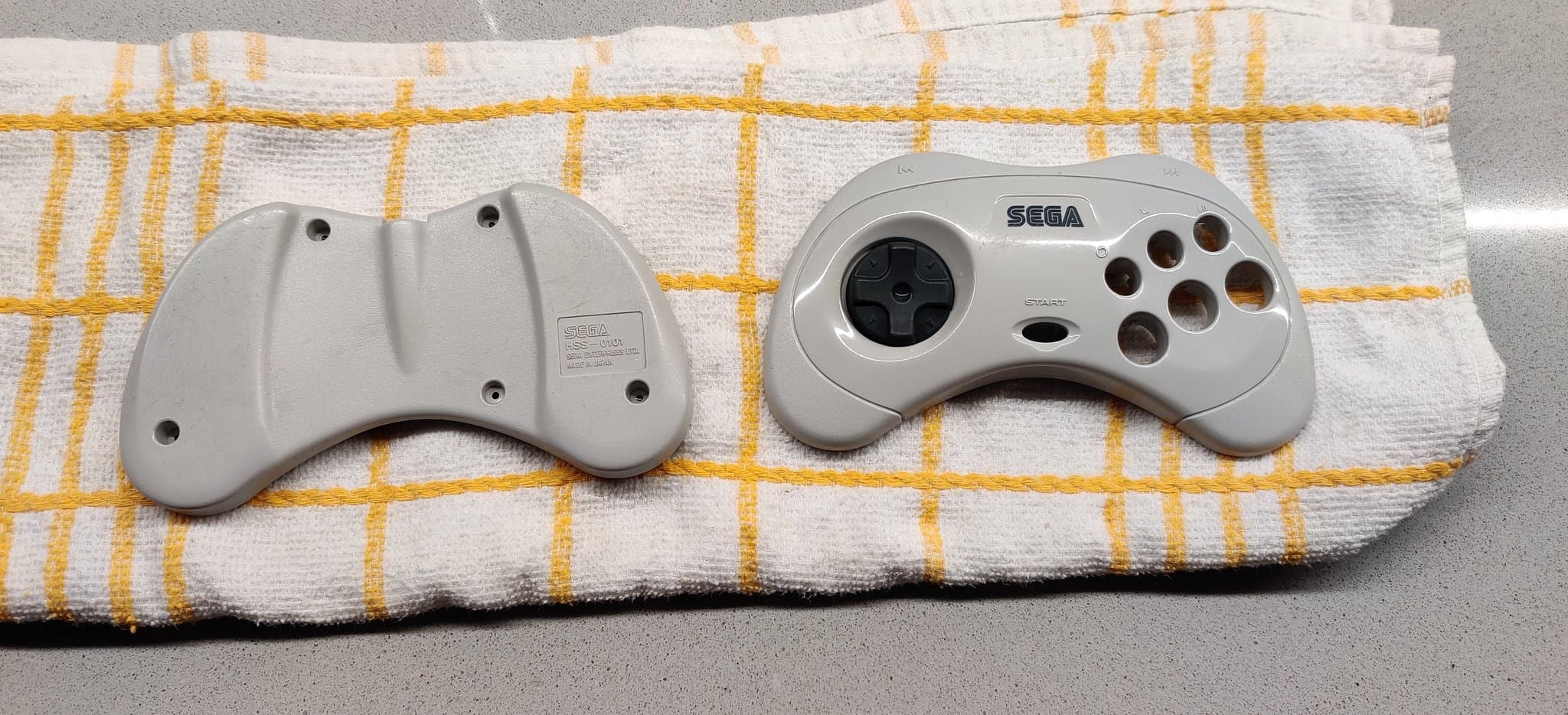

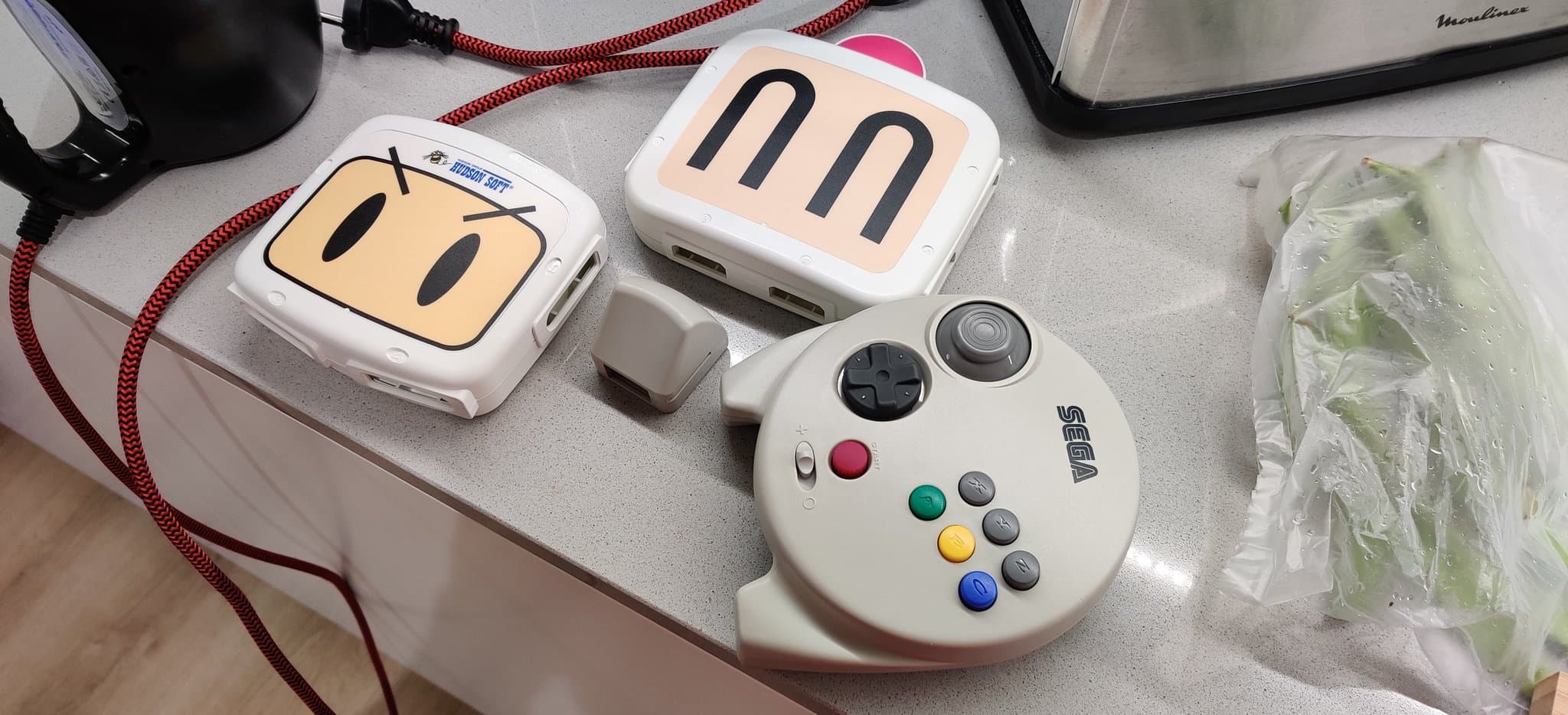

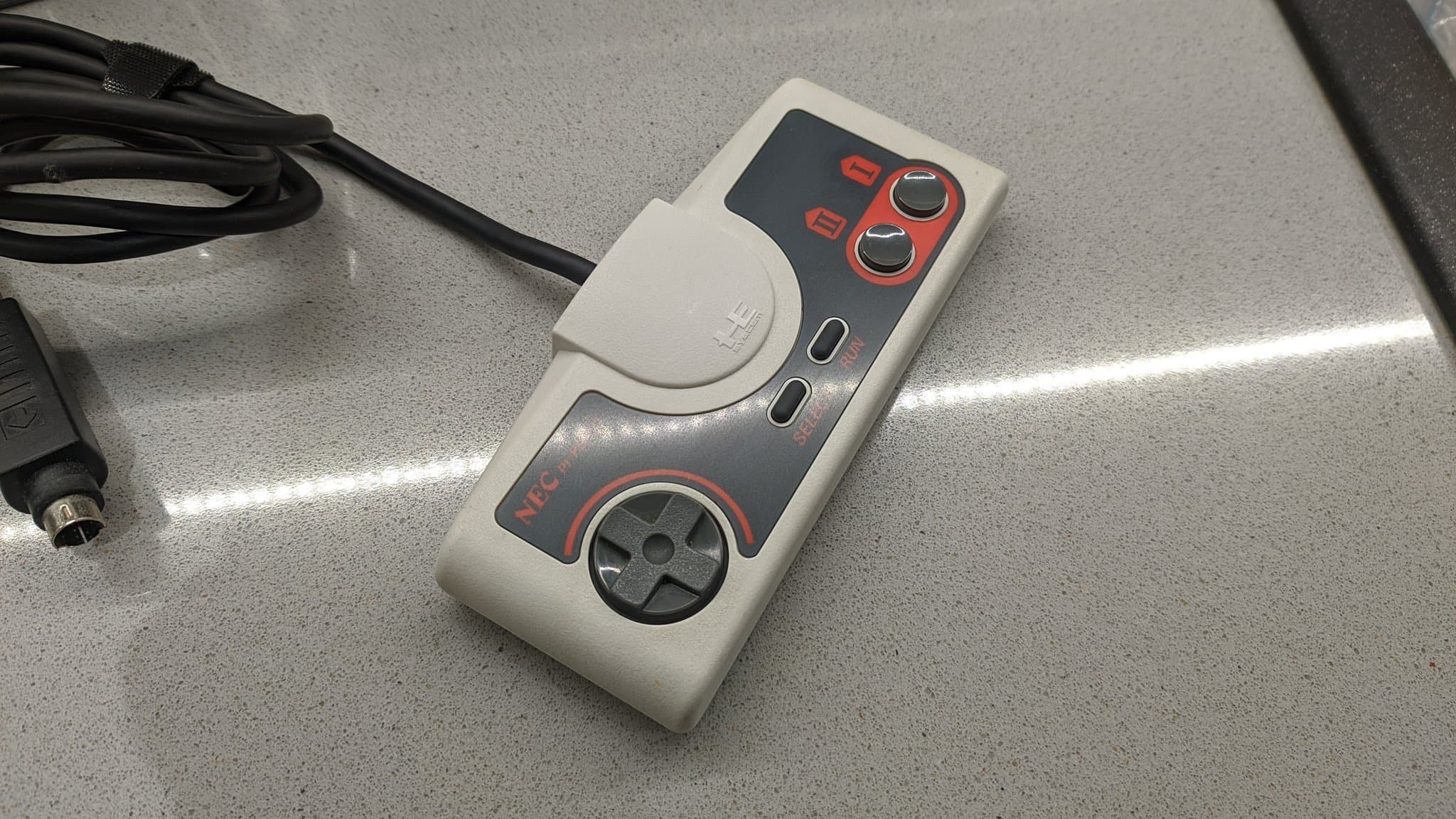

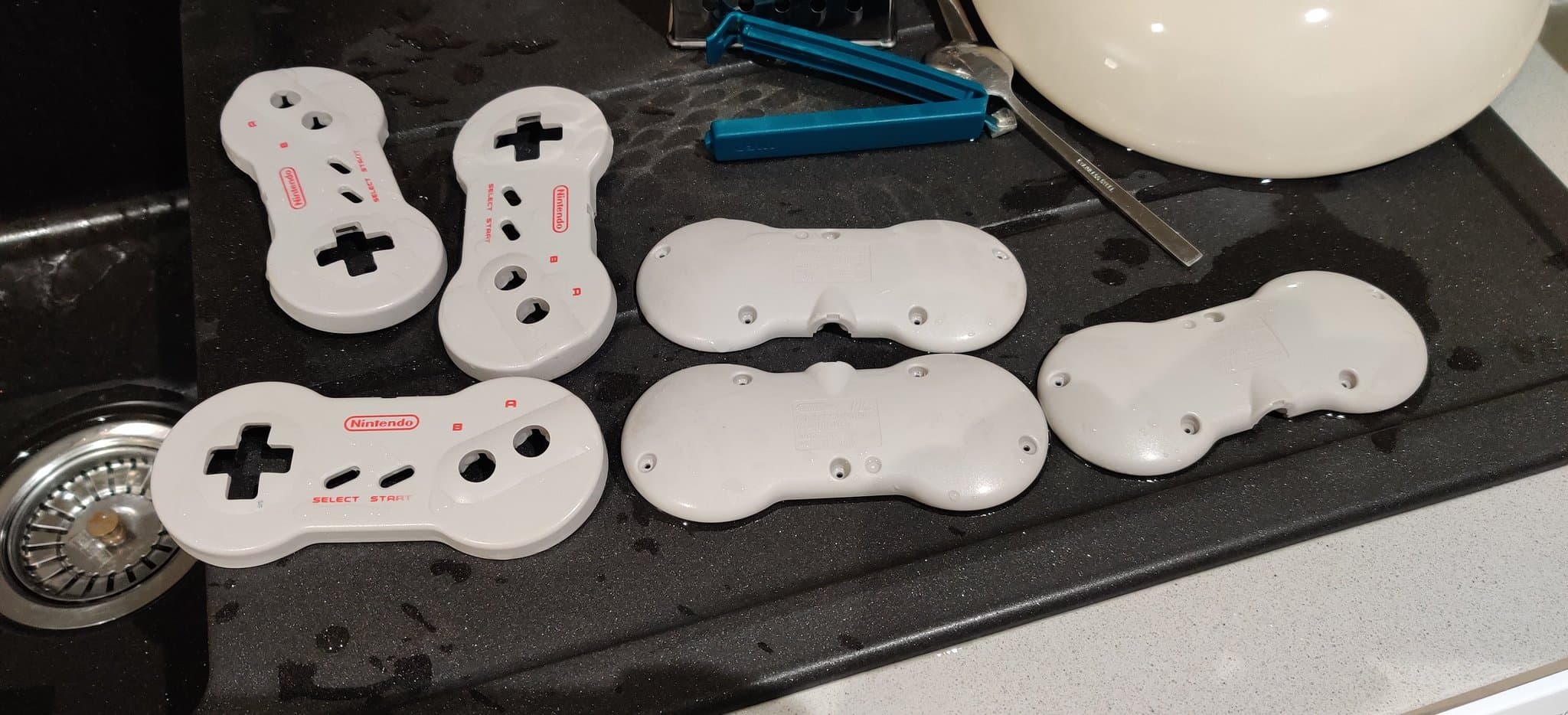

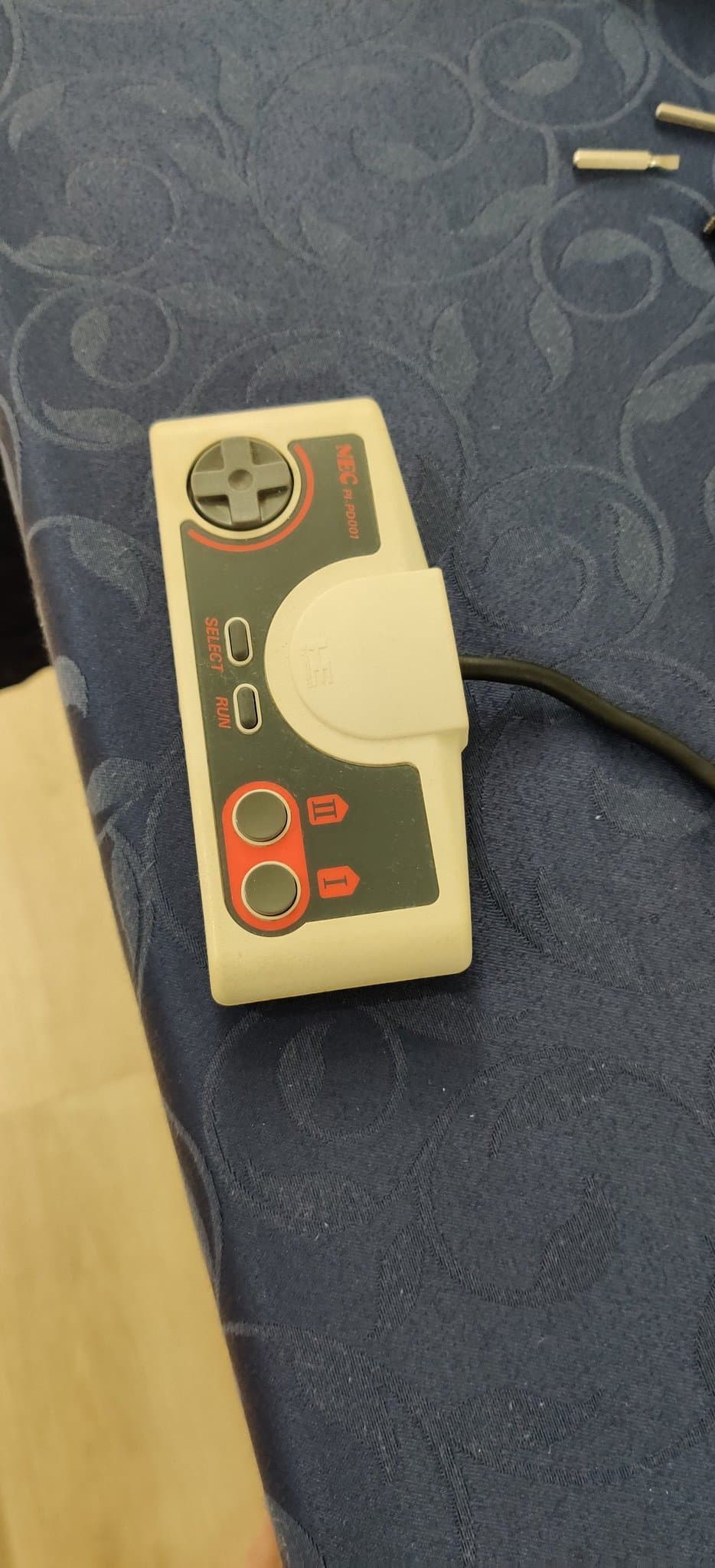

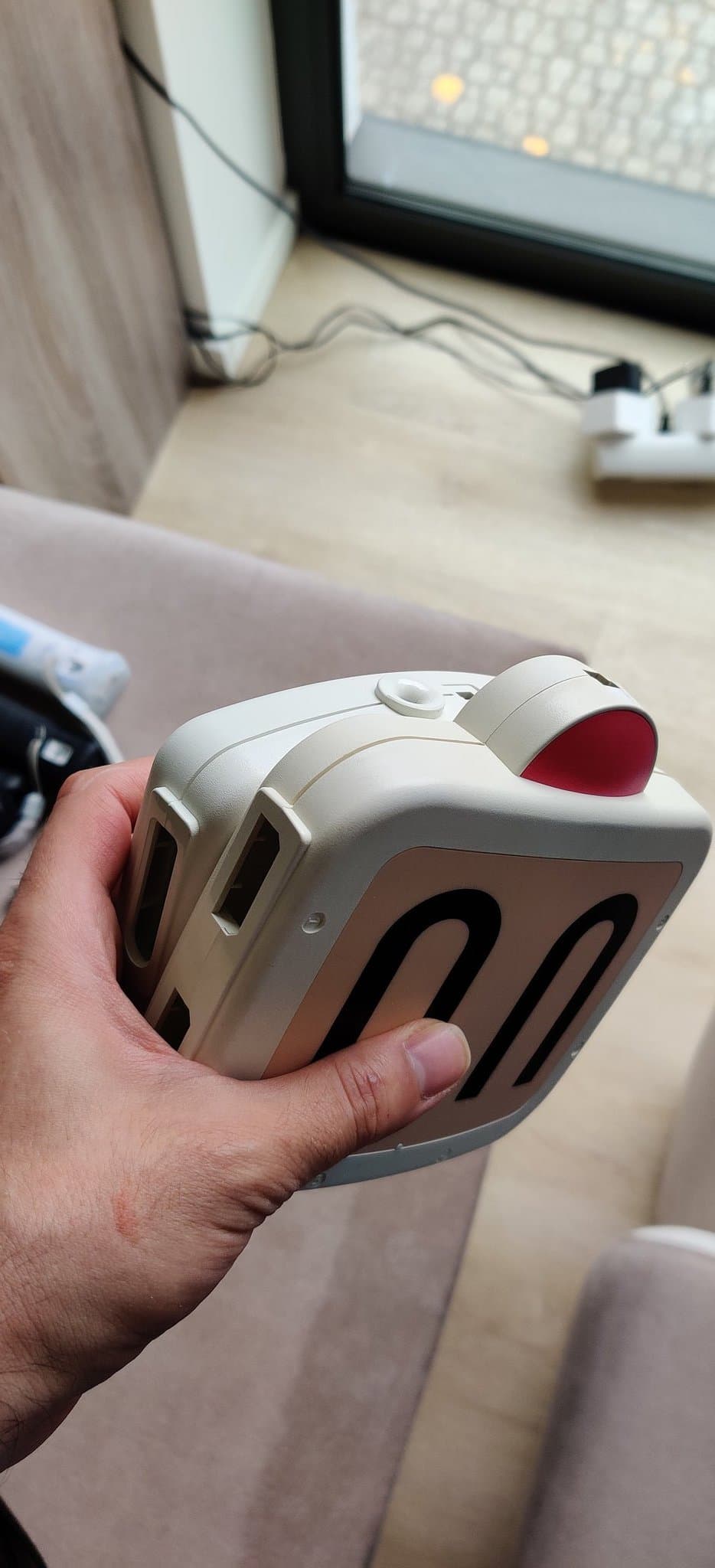

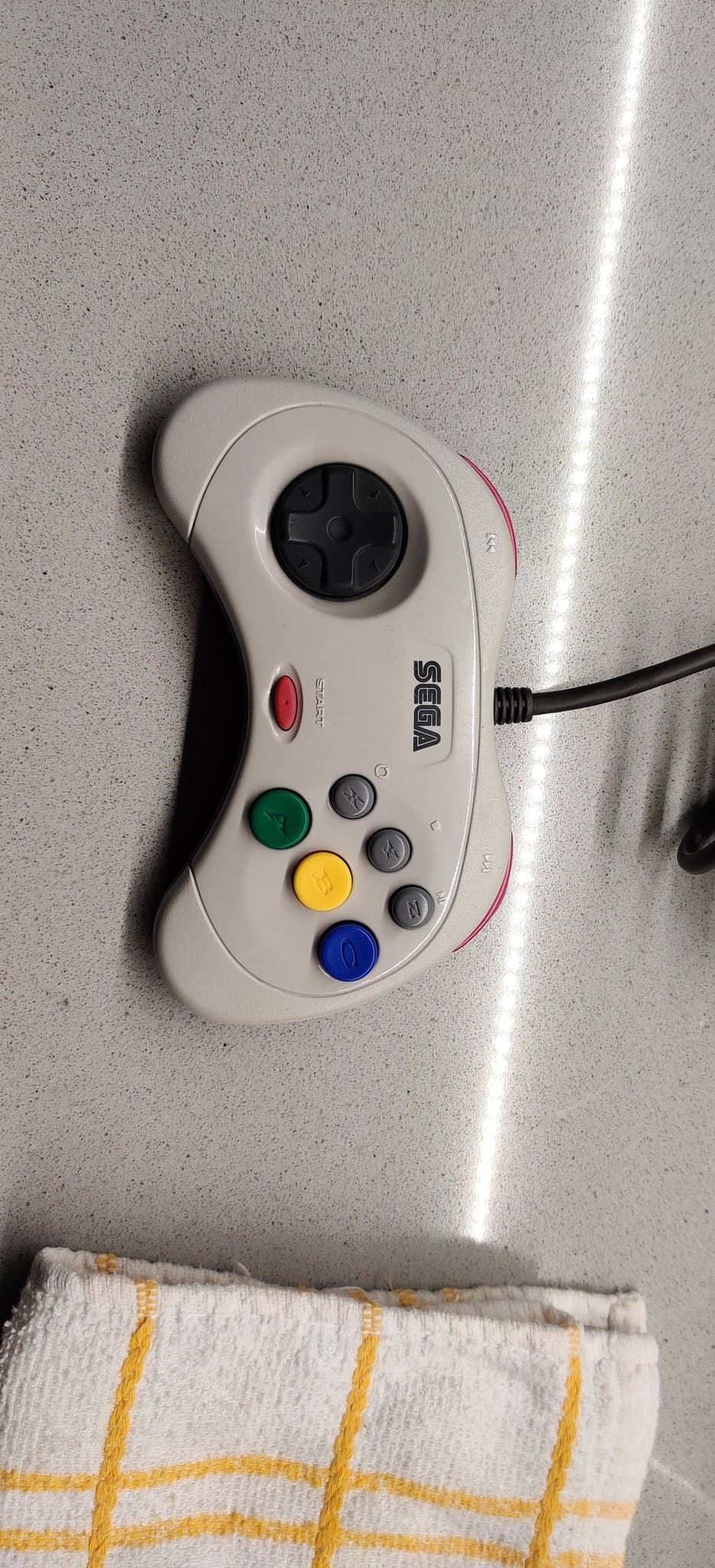

#retrobrighting some controllers.

3 / 5

4 / 5

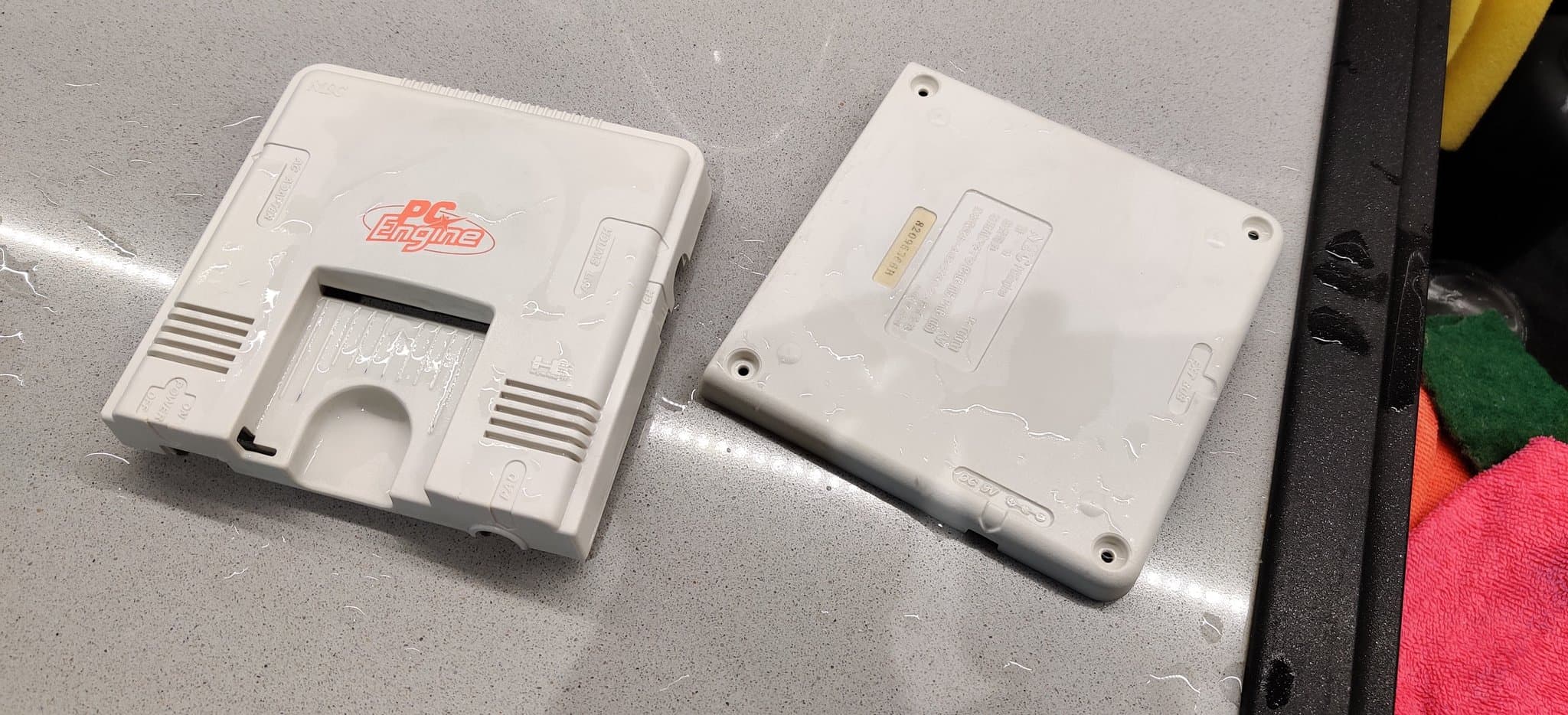

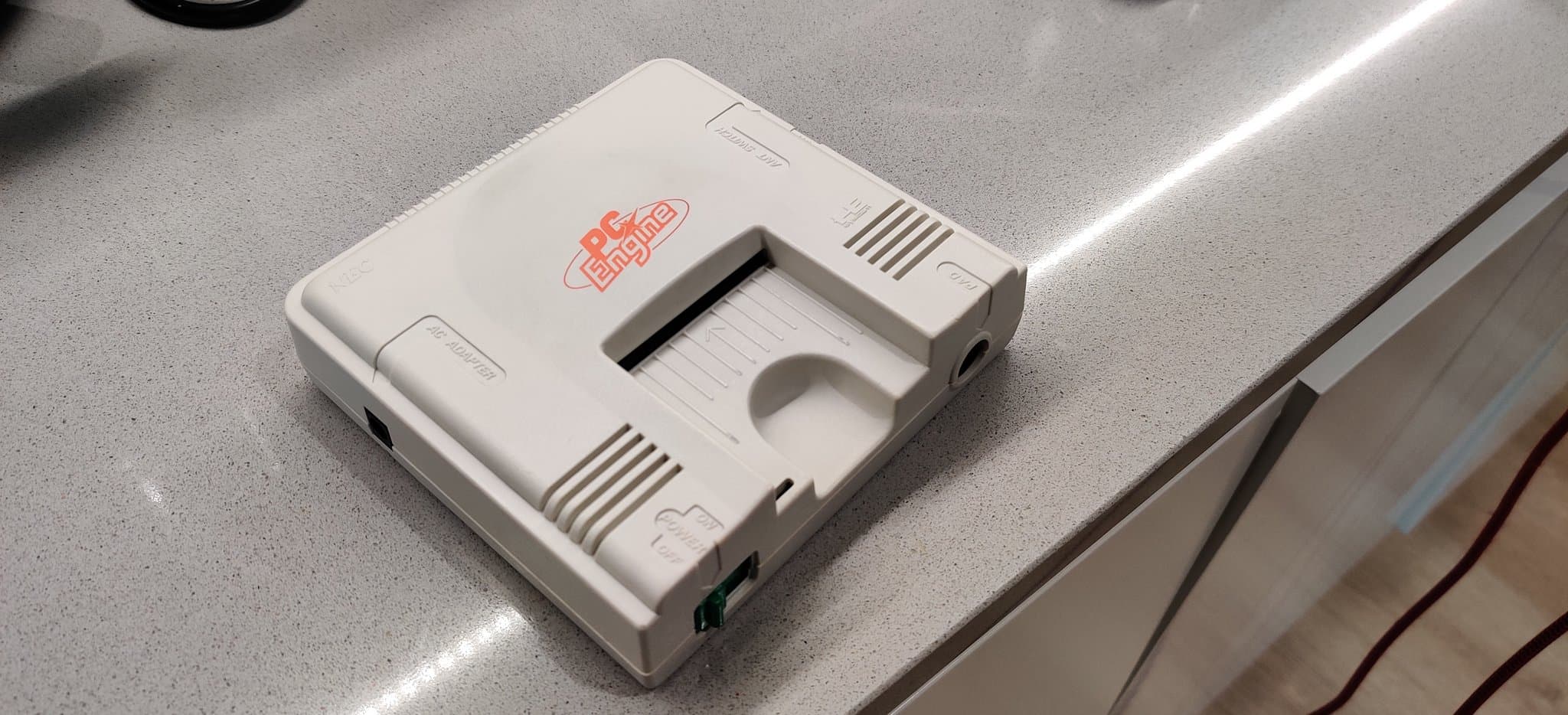

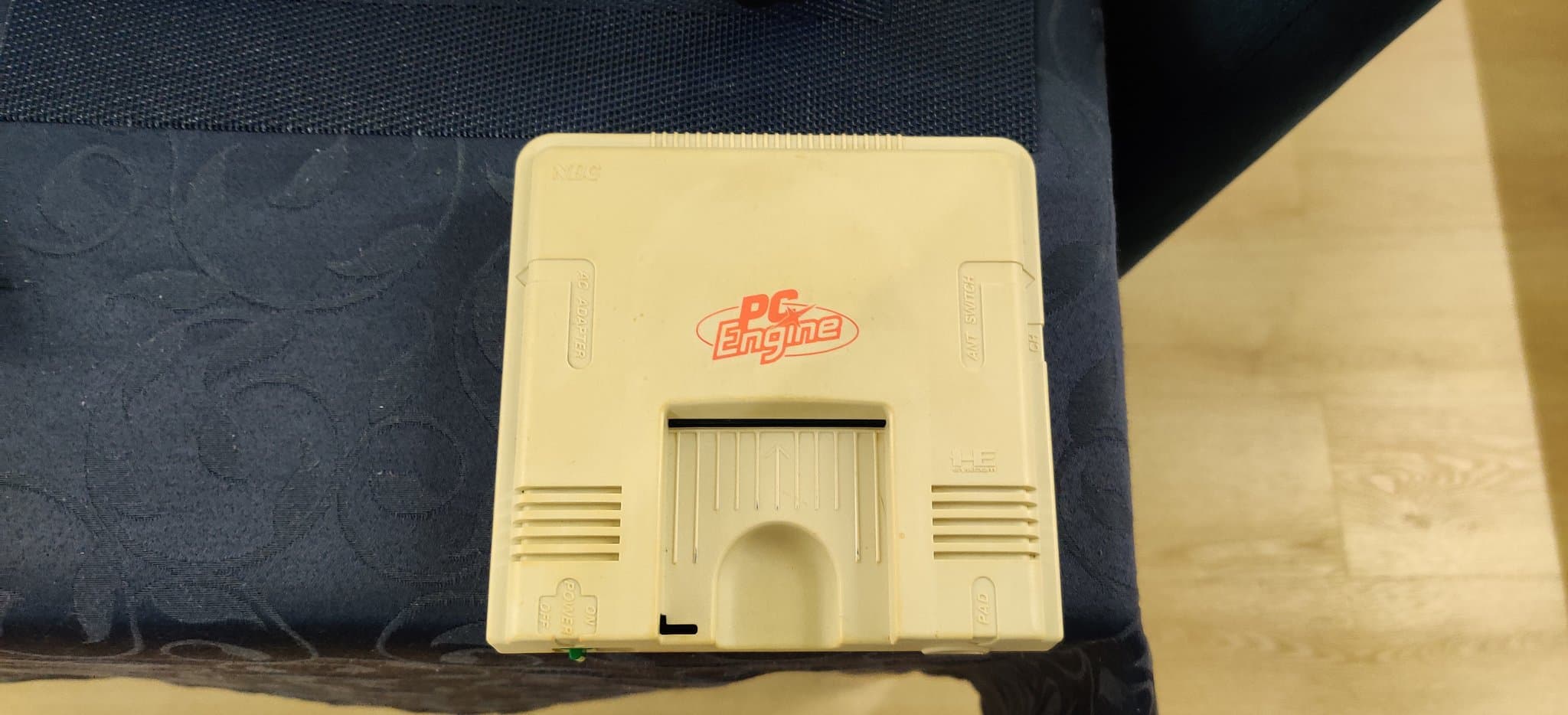

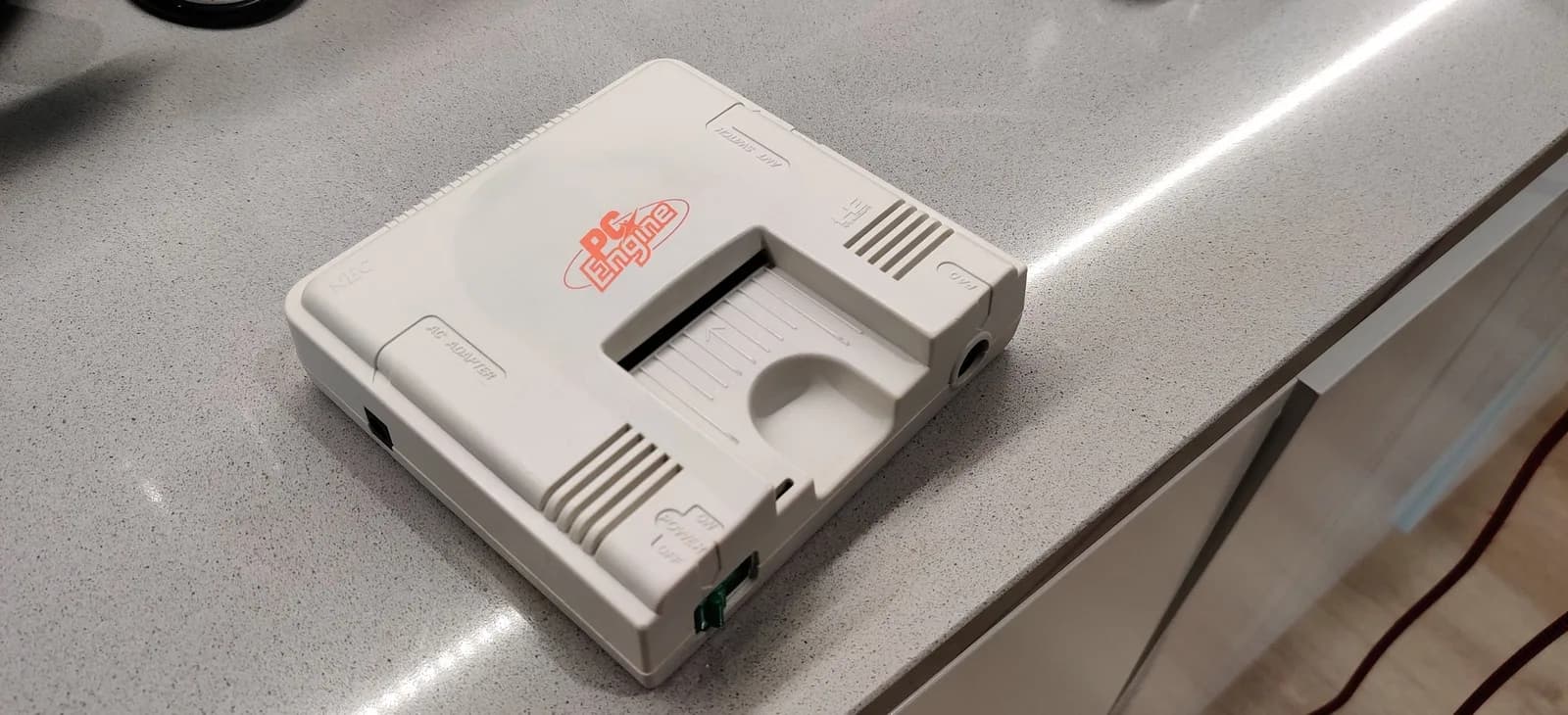

PC Engine beauty treatment. #RETROGAMING #retrobrighting

5 / 5

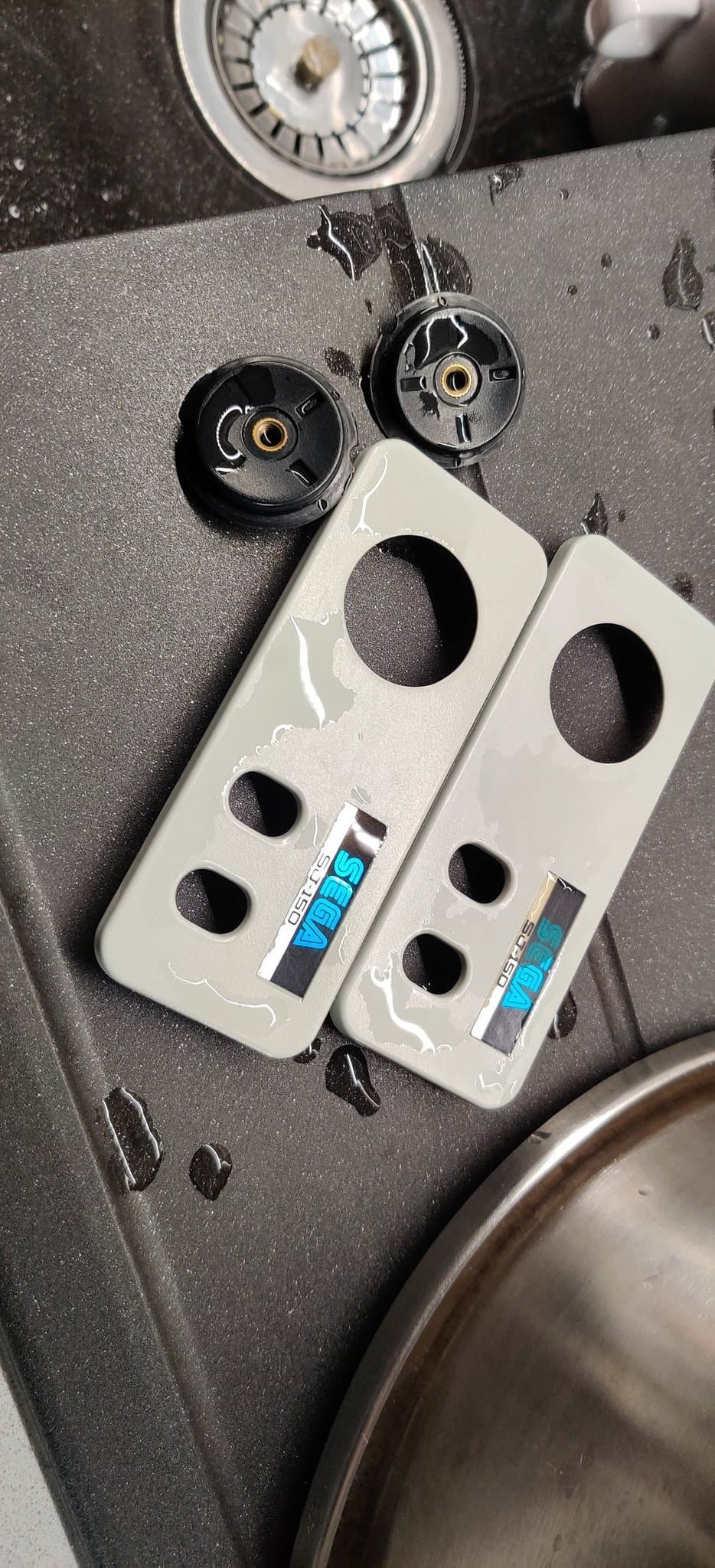

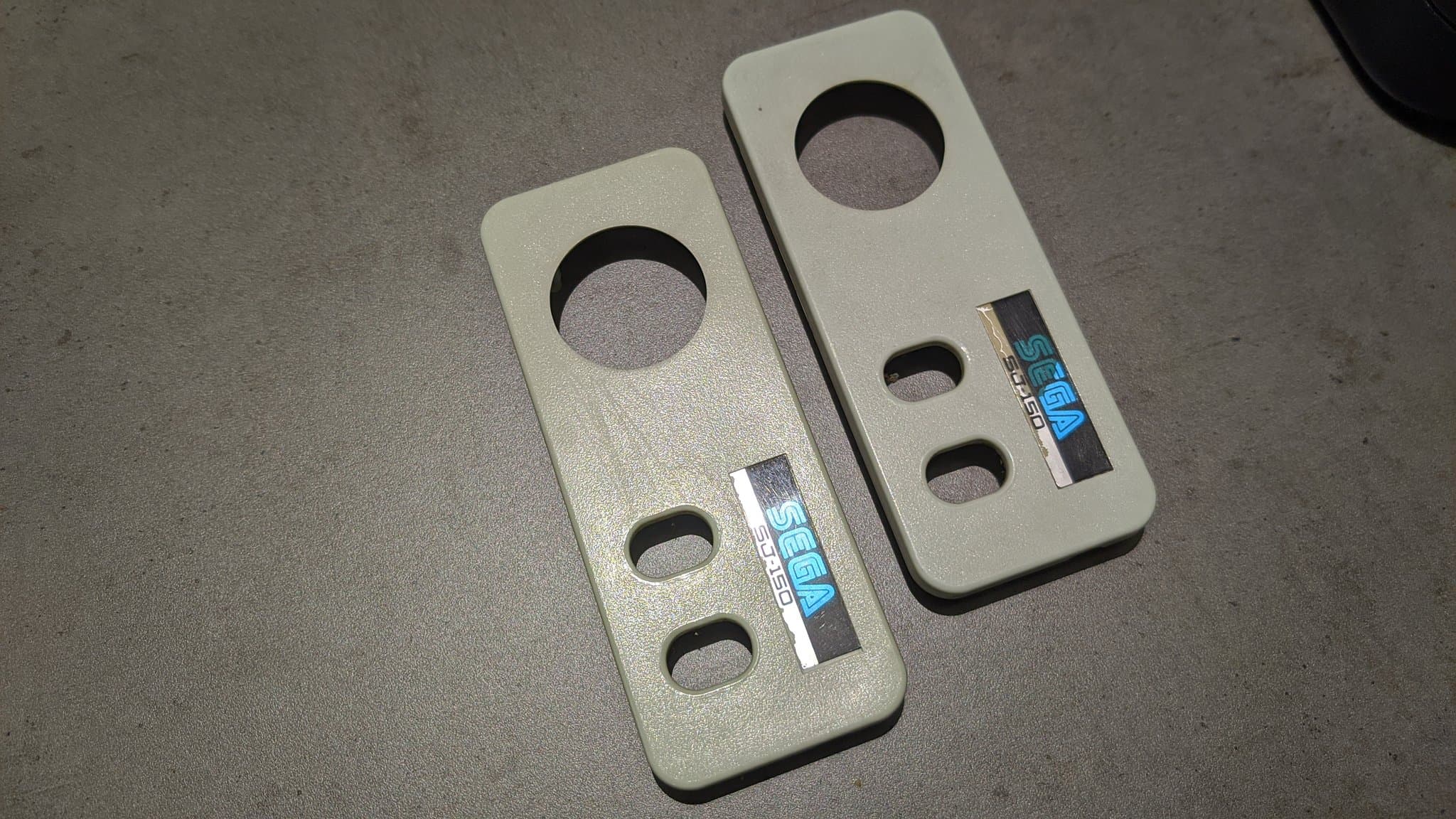

Sega SG-1000 II controllers done and dusted. #Sega #RETROGAMING #retrobrighting
