No power

Unit completely dead; no response to power button.

9 registros

Sharp X68000 XVI Compact: Cut PSU Cord & Full Recap
+41 fotos⏳En progreso

Sharp — X68000 XVI Compact

Sharp X68000 XVI Compact: Cut PSU Cord & Full Recap

Won at auction with its mains cord cut clean off the PSU, taken as a gamble at a below-market price. A replacement lead was spliced in from another Japanese cord using solder-ring heatshrink sleeves, with extra insulation over the joint. It powered on once, then refused entirely, so the PSU came out for a recap: fully decapped, scrubbed with white vinegar and isopropyl, new capacitors fitted and marked, and every joint on the solder side reflowed. That brought it back reliably and it booted Human68k from disk. The rest of the machine was worse, with electrolyte contamination on every capacitor pad on every board. SMDs came off the mainboard and the expansion card, the pads were reworked with fresh solder, flux and braid until all were clean and none lost, then the through-hole electrolytics followed. The floppy drives had leaked internally and were recapped with their motor shafts cleaned and lubricated, and the peripheral input board's single capacitor was replaced. Still powers on after reassembly, pending fuller testing.

No powerLeaking capacitorsCapacitor leakage damage
1 ago 20262 hilos
PC Engine LT board (component side) on a paper towel with the Ext Bus connector desoldered and resting above it, exposing the electrolyte and grime caked on the board where the connector had sat.
+34 fotos✓Reparación exitosa

NEC — PC Engine LT

NEC PC Engine LT Recap + LCD Bias Fix (Necromancy)

An epic of strife, perseverance and adaptation. The NEC PC Engine LT is the 1991 laptop-format PC Engine with a built-in colour LCD. Almost always dead from cap leakage. This one needed a full recap, a new voltage regulator, and an off-the-shelf voltage inverter module to replace the T500 LCD bias transformer, killed by the electrolyte. Without that, the screen stays dark.

No powerNo video outputLeaking capacitors+2
26 ene 20261 hilo
Game Gear main board cleaned, showing deteriorated button pad contacts from capacitor leakage and yellow electrolytic capacitors ready for replacement.
+57 fotos✓Reparación exitosa

Sega — Game Gear

Sega Game Gear Diagnostic: Power LED Only, Nothing Else

Had lunch with a couple of friends and one of them brought a Sega Game Gear along, wondering if anything could be done with it. Power LED only, nothing else.

No powerDim pictureNo audio+2
4 nov 20257 hilos
Another angle of the same battery-leakage corrosion on the Sharp X68000 main board before cleaning, some components clearly covered in green corrosion.
+55 fotos✗No se pudo reparar

Sharp — X68000

Sharp X68000: Recap, FDD & Oscillator (No Picture Yet)

A proper exercise in stubbornness on this Sharp X68000. Two rounds of repair, a full recap, FDD surgery (one of the floppy drives had clear signs of a blown capacitor with charring on the PCB), a new oscillator, and still no picture. The X68000 remains on the 'future date' pile.

No powerNo video outputLeaking capacitors+2
5 nov 20243 hilos
Corroded Wondermega mainboard showing oxidation on capacitors, damaged traces, and component deterioration requiring restoration work.
+135 fotos◐Reparación parcial

Sega — Wondermega

Sega Wondermega HWM-5010 Restoration (1st Unit)

Absolute labour of love on this Sega Wondermega HWM-5010 from Japan: corrosion, missing components, broken traces and a RAM package with broken legs. The Mega Drive side eventually came back to life; the Mega-CD side continues to freeze on the BIOS animation, defying everything thrown at it.

No powerNo audioLeaking capacitors+3
29 ago 202416 hilos
The underside of the Sharp X68000 Pro II power supply PCB, rested on top of the PSU's metal housing on the floor and being cleaned with a brush and a CompuCleaner air blower; massive electrolyte contamination covers the board, with darkened regions of the PCB and darkened solder joints, grime pooled where the electrolyte ran, and one edge of the board very dark from the contamination.
+40 fotos◐Reparación parcial

Sharp — X68000 Pro II

Sharp X68000 Pro II: Magic Smoke, Transistor & R-Type

Proper saga on this Sharp X68000 Pro II. Magic smoke from a reversed capacitor, an accidental probe short, and enough replaced components to fill a parts drawer before a single faulty transistor finally gave the game away. Got it booting and running R-Type, which was a hard-earned win. Video output later stopped working, so the story isn't entirely over.

No powerPSU failureMagic smoke+2
12 feb 20248 hilos

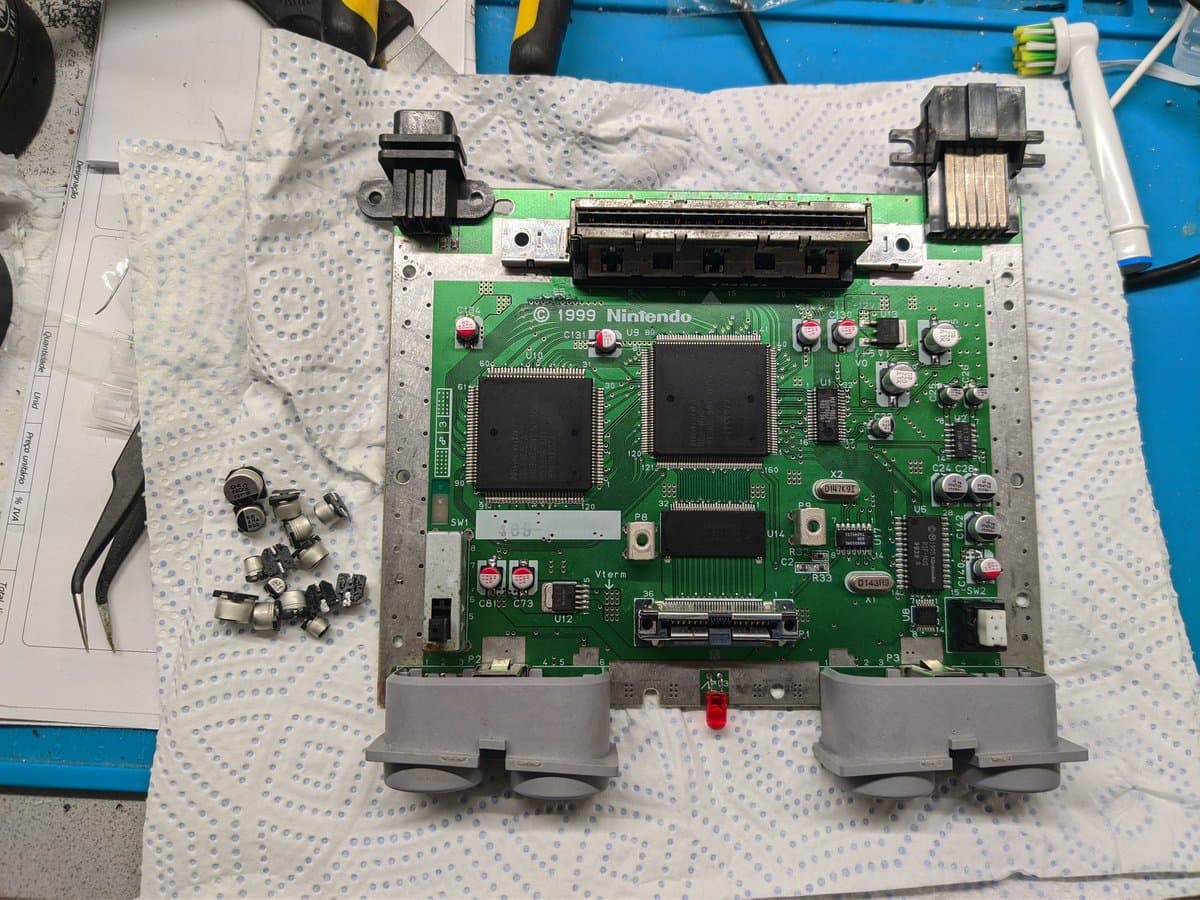

Nintendo 64 motherboard after recapping, the new SMD electrolytic capacitors (grey metal cans) already installed on the board, with the old ones removed and set to the left, on a paper towel over a blue silicone mat.
+8 fotos

Nintendo — Nintendo 64

Nintendo 64 Full Service: Recap, PSU & Controller

Full service on a Nintendo 64 (NUS-001) for a friend: recap, PSU reflow, controller overhaul and a freshly lubed joystick. Validated with Super Mario 64.

No power
5 jun 20232 hilos
Repaired Nintendo Super Famicom sitting on top of a Nintendo Satellaview base, running The Legend of Zelda: A Link to the Past on a Sony PVM-14L2; a Sega Mega Drive with a Mega Everdrive Pro cartridge, other consoles, controllers and cables around it on a wood surface.
+5 fotos✓Reparación exitosa

Nintendo — Super Famicom

Nintendo Super Famicom D1 Diode Replacement

This Nintendo Super Famicom (SHVC-001) would not power on due to a failed D1 diode. Tracing and replacing it, plus a recap, had the console booting again.

No power
17 oct 20222 hilos
Sega Mega-CD 2 mainboard still on its original capacitors (not yet recapped), with the new region-free BIOS chip ready to go into the now-empty footprint where the old BIOS was removed.
+16 fotos✓Reparación exitosa

Sega — Mega-CD 2

Sega Mega-CD 2: Fuse Fix, Region-Free BIOS & Recap

Dead Sega Mega-CD 2 that turned out to have a single blown fuse. Fuse replaced, region-free BIOS installed, then fully recapped in a follow-up session. Also tidied up some interesting factory bodge cap placements along the way.

Broken/worn drive beltNo powerBlown fuse
5 oct 20223 hilos
