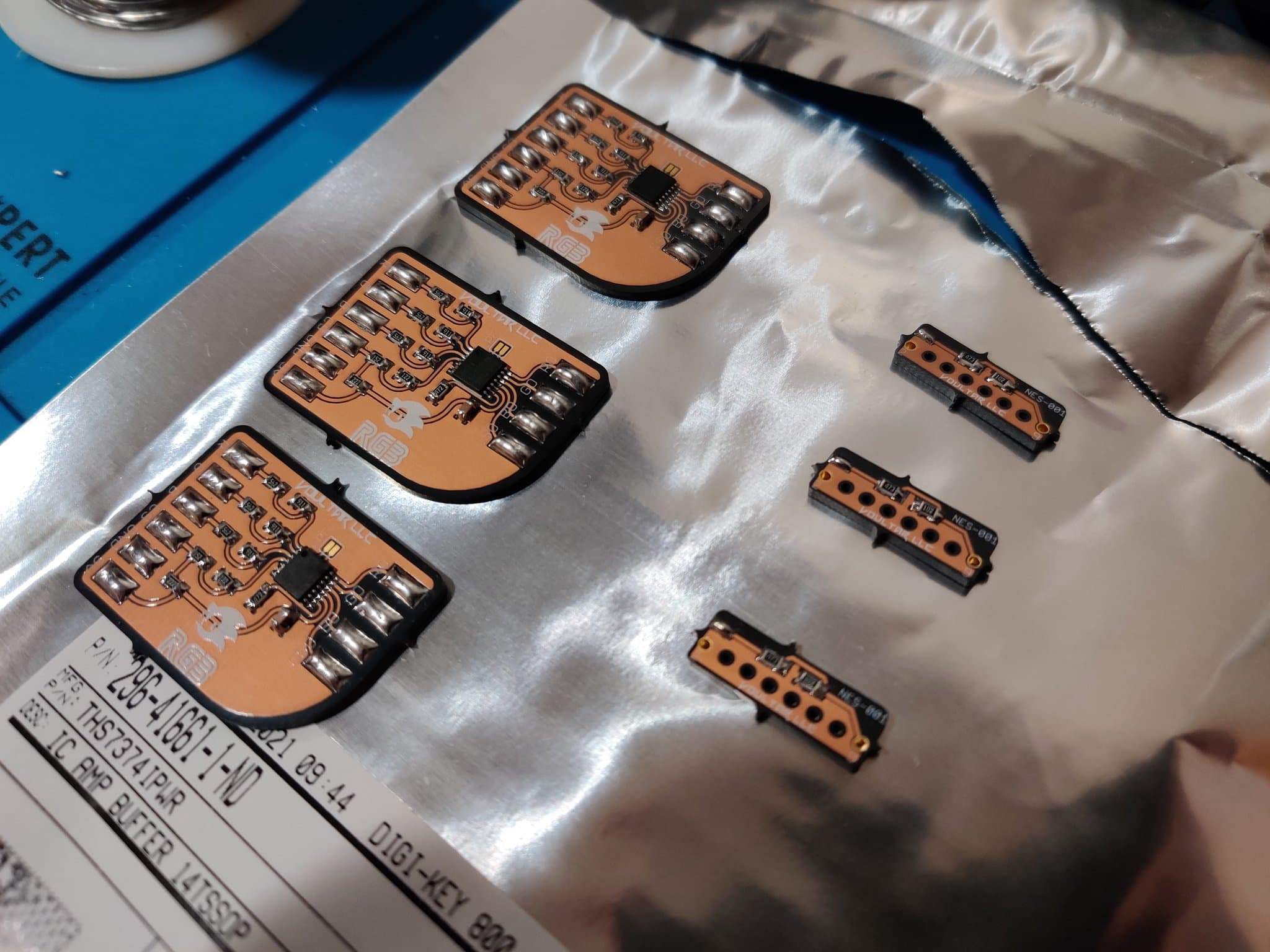

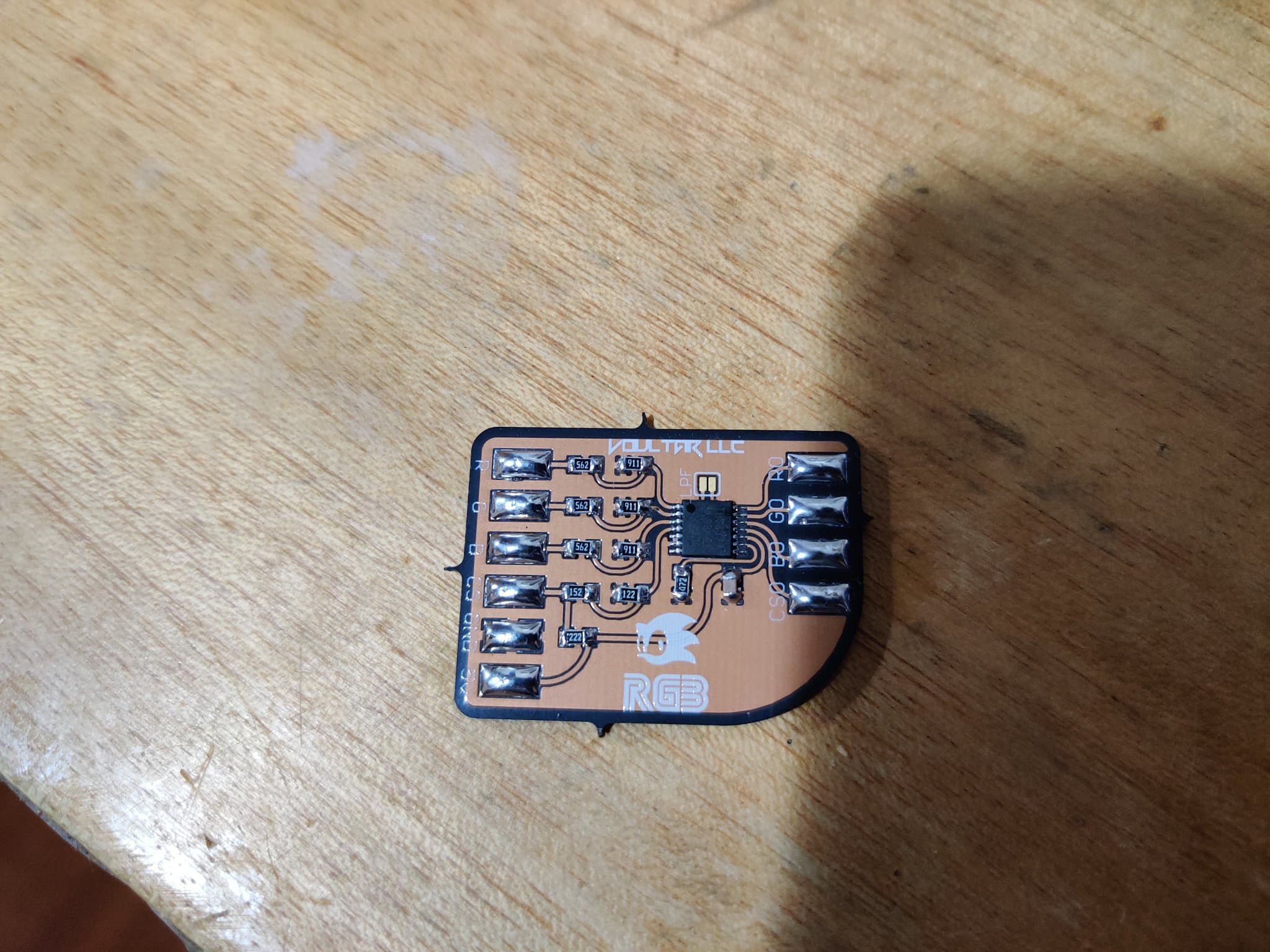

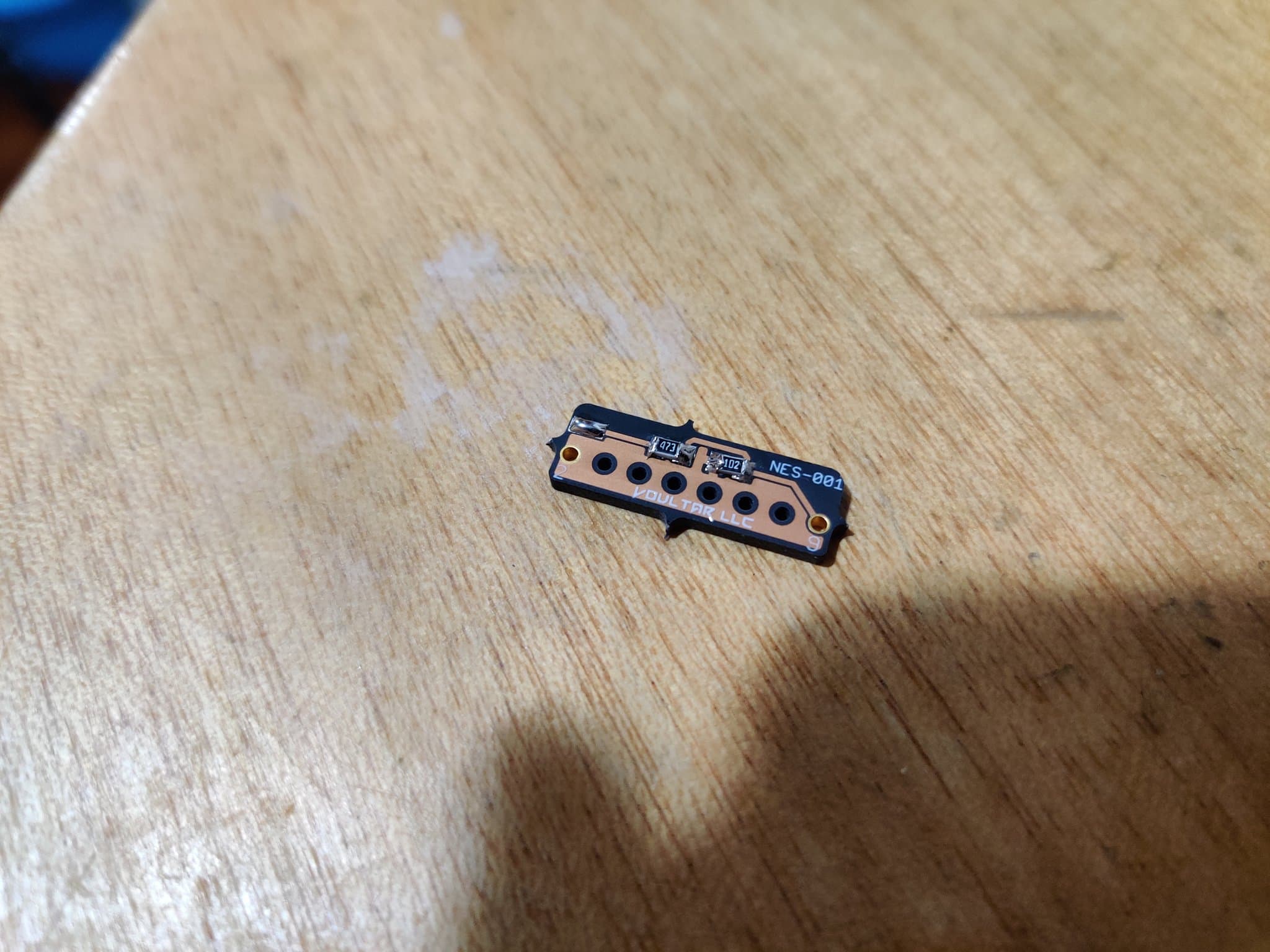

The very first boards I assembled: a Voultar MD RGB bypass and an NES expansion audio enabler. A steep learning curve, but you have to start somewhere.
Thank you very much @Voultar for sharing these designs, the component maps and in general, your knowledge. These will go nicely into my consoles. This was my first time soldering so many tiny components. I couldn't have done this without watching you, @SLRMODSHOP and others. 🙏

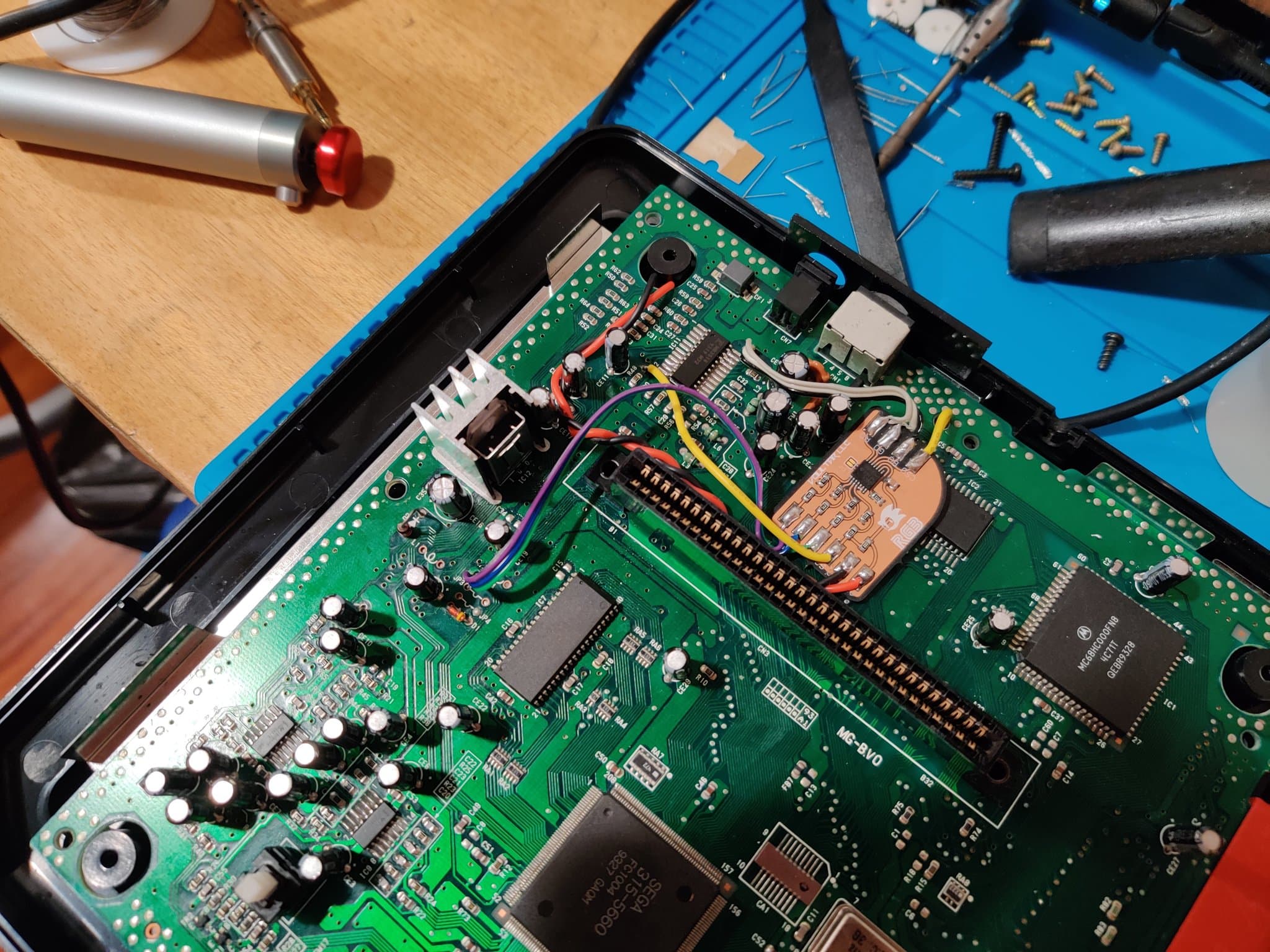

Test install of RGB bypass on Mega drive 2. The console works, no more ghosting in everdrive menu but I get some slight oscillation in the picture. Sync issue? @Voultar and @SLRMODSHOP any tips? Also, it's only working on the TV not on the retrotink. Insurrection industries cable

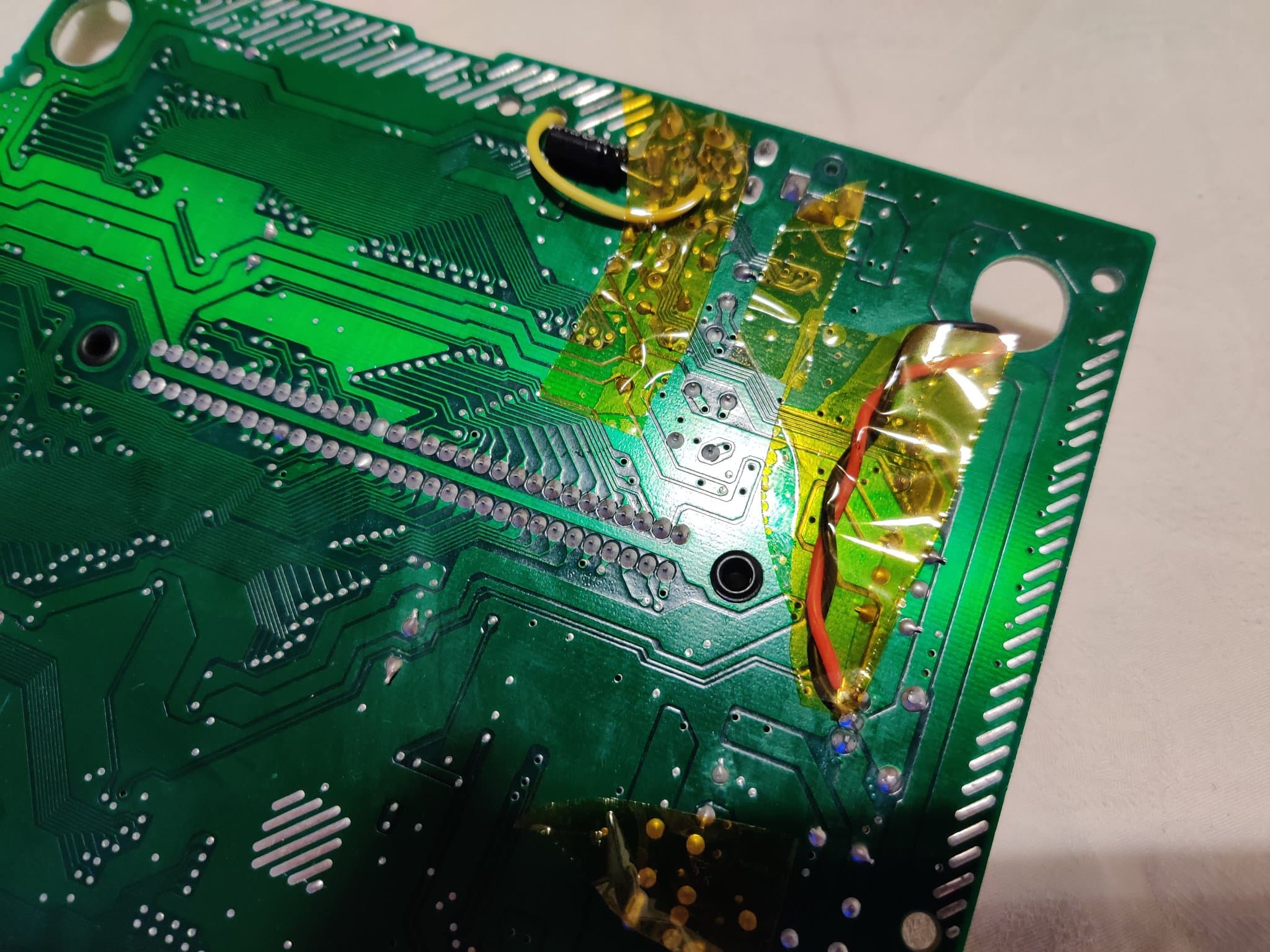

Lifted RGB and Sync pins on encoder. Fed 5V and ground from the regulator to the mod board.
