CRT Monitors & TVs/Sony/BVM-D14H1E

Sony

BVM-D14H1E

1 repair log

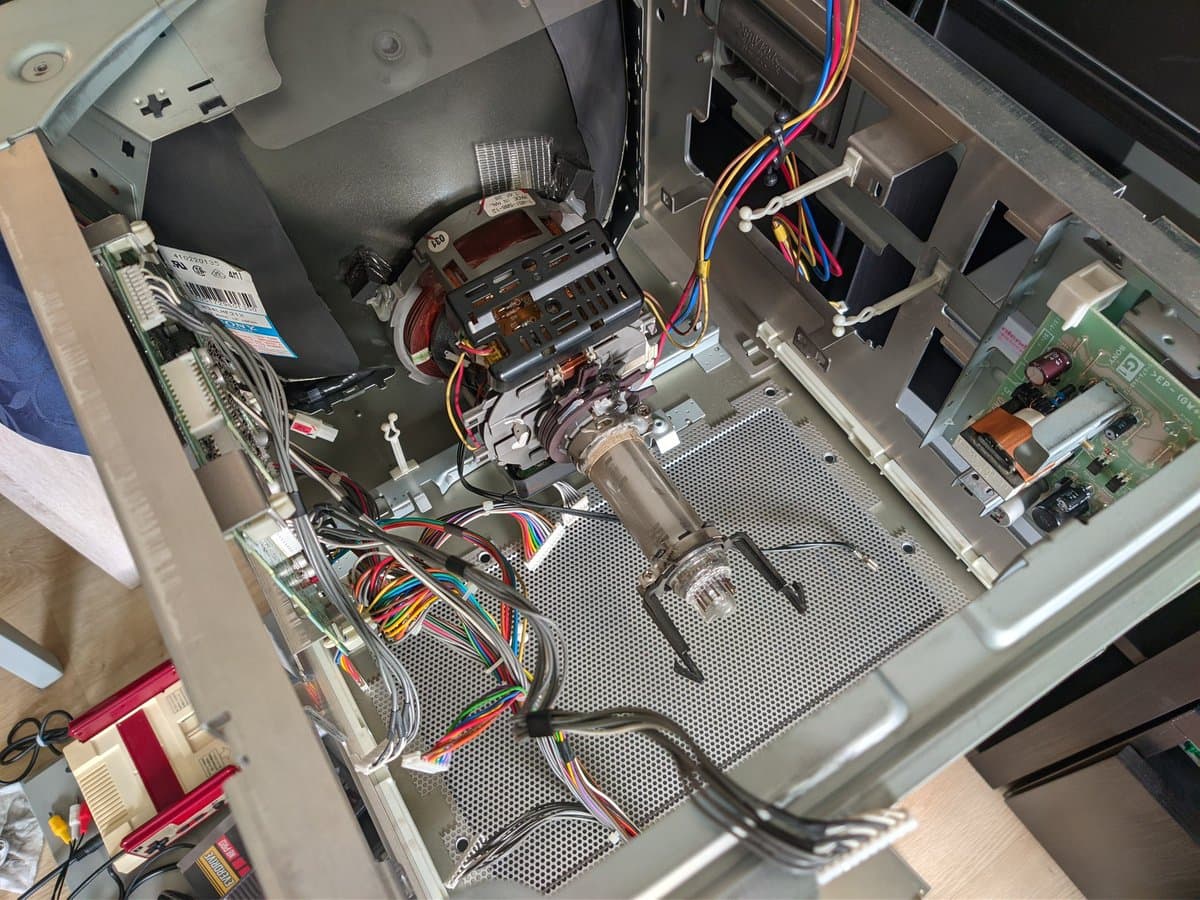

The Sony BVM-D14H1E almost completely disassembled during the recap, its boards removed, exposing the CRT rear, deflection yoke and glass tube neck on the perforated metal chassis with the wiring harnesses; a Nintendo Famicom with an EverDrive N8 Pro box sits on top of another monitor on the floor alongside.

+63 photos

Sony — BVM-D14H1E

Sony BVM-D14H1E Trinitron Service: Cap Kit & Showcase

Savon Pat cap kit installed on this Sony BVM-D14H1E HD broadcast reference monitor, boards cleaned and reflowed, dielectric grease on the anode. The king of the bunch, also used as a testbed for Switch, PS3 and Dreamcast via Extron MVX.

Jun 2, 202311 threads
